Hexagon socket head flange screws combine two important fastening features: an internal hexagonal drive and an integral flange beneath the screw head.

This combination can be useful in compact industrial assemblies where designers need tool access from above the fastener,

a defined underhead bearing surface and fewer separate assembly components.

These fasteners are also described as hex socket flange screws, socket head flange bolts, Allen flange screws or flanged socket head screws.

Unlike conventional external hex flange bolts, they are tightened through an internal hexagonal socket.

Unlike standard cylindrical socket head cap screws, they incorporate a flange that changes the bearing geometry beneath the head.

For industrial OEMs, these differences affect product design, manufacturing feasibility, installation, inspection and supplier qualification.

JUXIN FASTENERS supplies industrial fastening components and supports drawing-based OEM inquiries involving hex socket flange screws,

 alloy steel fasteners, stainless steel fasteners and custom threaded parts.

This guide explains the manufacturing process, material and surface-treatment choices, engineering limitations,

 industrial applications and technical purchasing requirements for hex socket flange screws.

What Is a Hex Socket Flange Screw?

A hex socket flange screw is an externally threaded fastener with an internal hexagonal drive and an integral flange beneath its head.

The principal features are:

• Internal hexagonal drive recess

• Head geometry defined by the product specification

• Integral bearing flange

• Externally threaded shank

• Specified screw length and thread configuration

The flange provides a bearing surface that may be larger than that of an otherwise comparable screw without an integral flange.

This may help distribute contact pressure over a greater area, depending on the actual geometry and mating material.

The internal hex drive allows tightening using a suitable hex key, hex bit or powered tool.

However, neither feature independently guarantees greater strength, higher permissible tightening torque or improved resistance to vibration loosening.

Hex Socket Flange Screws vs. Conventional Socket Head Cap Screws

The two designs serve related but different engineering needs.

Engineering Decision

Choose a hex socket flange screw when the flange geometry provides a verified advantage for the assembly.

Do not assume it is a direct substitute for a standard socket head cap screw.

Manufacturing Process of Hex Socket Flange Screws

The manufacturing route depends on material, geometry, production quantity, mechanical requirements and available tooling.

Common industrial methods include cold forming, machining, thread rolling, heat treatment and surface finishing.

Not every product requires the same process sequence.

Raw Material Selection

Material selection begins with the required mechanical properties and operating environment.

Potential materials include:

• Carbon steel

• Medium-carbon steel

• Alloy steel

• Austenitic stainless steel

• Other drawing-specified materials

For selected alloy steel applications, materials such as SAE 4135 or SAE 4140 may be considered, subject to the required finished fastener properties.

For stainless steel applications, suitable 304- or 316-family materials may be considered depending on the specification.

Important Principle

The steel grade alone does not establish the mechanical property class of the finished fastener.

Cold Heading and Flange Formation

Cold heading is a common manufacturing method for suitable high-volume threaded fasteners.

The process plastically forms material into the required head geometry.

For a hex socket flange screw, tooling may form the head and flange through one or more forming operations.

Potential Advantages

• Efficient material utilization

• Repeatable geometry under controlled production conditions

• Suitability for volume manufacturing

• Reduced need for extensive material removal

Manufacturing Limitations

Cold heading feasibility depends on:

• Material formability

• Head-to-shank geometry

• Flange diameter

• Head height

• Tooling design

• Production quantity

Large flange diameters, unusual head shapes or difficult materials may require a different manufacturing route.

OEM Design Recommendation

Provide the actual drawing and expected annual volume before assuming cold heading is the most economical process.

Internal Hex Socket Formation

The internal hexagonal recess may be formed through suitable production processes, depending on the material and design.

Critical characteristics include:

• Socket across-flats dimension

• Socket depth

• Socket alignment

• Corner geometry

• Head wall thickness

• Tool engagement

Why Socket Depth Matters

A socket that is too shallow may provide insufficient engagement for the installation tool.

A recess that is too deep may leave inadequate material beneath or around the socket, depending on the head design.

The geometry must therefore balance tool engagement with head strength.

Common Production Defects

Potential defects include:

• Incorrect socket size

• Incomplete forming

• Distorted socket corners

• Misaligned recess

• Cracks or other forming defects

Inspection requirements should be established according to the product specification.

Thread Rolling vs. Thread Cutting

Thread rolling forms threads by plastically displacing material.

Thread cutting removes material to produce the thread profile.

Both methods may be appropriate depending on the product and manufacturing requirements.

Thread Rolling

Potential benefits include:

• Efficient volume production

• Good dimensional repeatability under controlled conditions

• Favorable surface characteristics

• Potential fatigue-related advantages in suitable designs

However, thread rolling does not automatically guarantee superior fatigue life or higher load capacity.

Thread Cutting

Thread cutting may be suitable for:

• Selected low-volume components

• Certain custom geometries

• CNC-machined parts

• Applications where rolling is impractical

Engineering Recommendation

Specify the required thread dimensions, tolerance and performance rather than assuming that one manufacturing method is universally superior.

Heat Treatment

For suitable carbon steel and alloy steel fasteners, controlled heat treatment may be necessary to achieve specified mechanical properties.

Quenching and tempering are commonly relevant to certain higher-strength steel fasteners.

Relevant Requirements

• Mechanical property class

• Hardness

• Tensile strength

• Proof-load performance

• Material condition

ISO 898-1 may apply to defined metric carbon steel and alloy steel fasteners.

Important Limitation

Heat treatment does not automatically guarantee better fatigue resistance, impact toughness or service life.

The finished fastener must meet the applicable specification.

Surface Treatment

Surface finishing may be used to achieve specified corrosion protection, appearance or assembly characteristics.

Potential options include:

• Zinc plating

• Zinc-nickel plating

• Zinc-flake coating

• Black oxide

• Phosphate-based finishes

• Other drawing-specified treatments

The coating system must be compatible with the material, mechanical properties and service environment.

Corrosion Performance

A salt spray duration should never be assumed from the generic name of a coating.

Actual performance depends on the complete coating system, thickness, test method and acceptance criteria.

High-Strength Steel Consideration

Certain high-strength steel fasteners may be susceptible to hydrogen embrittlement under particular processing and service conditions.

Surface-treatment selection should account for this risk.

Quality Inspection

A suitable inspection plan may include:

• Head dimensions

• Flange diameter and thickness

• Socket dimensions

• Thread dimensions

• Screw length

• Material verification

• Mechanical property testing

• Surface finish inspection

• Coating requirements

Additional testing may be required for particular applications.

Supplier Qualification Principle

Testing frequency, documentation and acceptance criteria must be agreed for the actual order.

They should not be assumed from a general product description.

Engineering Design: Flange Diameter and Bearing Area

The flange is one of the defining characteristics of this fastener.

A larger bearing area may reduce nominal contact pressure compared with a smaller underhead contact area.

However, actual pressure distribution depends on the mating surfaces and joint stiffness.

Design Variables

• Flange outside diameter

• Flange thickness

• Underhead geometry

• Contact surface flatness

• Mating material hardness

• Required preload

Thin Sheet Metal Applications

An integral flange may be useful where the designer wishes to increase the underhead contact area.

However, thin sheet metal can still experience:

• Local indentation

• Permanent deformation

• Coating damage

• Joint relaxation

• Loss of clamping force

Engineering Recommendation

For thin sheet metal, evaluate the complete joint and the threaded attachment method.

Depending on the design, alternatives may include self-clinching nuts, blind rivet nuts, weld nuts or threaded inserts.

Socket Drive Geometry and Tool Access

Internal hex drives are useful where axial access is available but side clearance for an external wrench is limited.

However, the installation tool must engage the recess correctly.

Important Checks

• Hex bit size

• Socket depth

• Tool alignment

• Head clearance

• Access around surrounding components

• Required tightening torque

Potential Failure: Rounded Hex Socket

A rounded socket may result from:

• Incorrect bit size

• Worn tooling

• Insufficient engagement

• Tool misalignment

• Excessive torque

Production Recommendation

For repeated assembly, define tooling inspection and replacement criteria.

Thread Engagement and Screw Length

Correct screw length is essential for reliable assembly.

A screw that is too short may provide inadequate thread engagement.

A screw that is too long may bottom in a blind tapped hole.

Engineering Checks

• Grip length

• Usable thread depth

• Thread engagement

• Hole clearance

• Mating material

• Required preload

Important Principle

The appropriate engagement length depends on the actual materials and loading.

A universal engagement rule should not replace engineering verification.

Mechanical Property Classes

Hex socket flange screws may be specified with different mechanical properties depending on their material and product specification.

For applicable metric steel fasteners, ISO 898-1 provides defined property-class requirements.

Class 8.8

May be suitable for selected industrial applications requiring its specified mechanical properties.

Class 10.9

May be selected where higher mechanical capacity is required and the complete joint supports the design.

Class 12.9

May be appropriate for certain high-strength applications, subject to material, processing, environmental and joint-design considerations.

Stainless Steel Fasteners

Where applicable, ISO 3506-1 may be relevant for specified stainless steel mechanical properties.

A2-70 and A4-70 are not direct mechanical equivalents of class 10.9 or 12.9 steel fasteners.

Strength Selection Matrix

Torque, Preload and Assembly Reliability

A socket flange screw is tightened to generate clamping force.

However, applied torque and achieved preload are not identical quantities.

A simplified relationship is:

T ≈ K × F × d

Where:

• T = applied tightening torque

• K = simplified torque coefficient

• F = screw preload

• d = nominal diameter

This relationship is an approximation and should not be used as a universal tightening specification.

Factors Affecting Preload

• Thread friction

• Flange bearing-surface friction

• Lubrication

• Coating

• Surface condition

• Joint stiffness

• Tightening equipment

Why Flange Geometry Matters

The effective bearing friction radius may differ from that of a conventional socket head screw.

Therefore, replacing one design with another may change the torque-to-preload relationship.

Production Recommendation

Validate tightening conditions using the actual screw, mating components and surface finish.

Vibration Loosening and Fatigue

Hex socket flange screws are not inherently self-locking.

The integral flange does not automatically prevent loosening under vibration.

Potential Causes of Loosening

• Insufficient preload

• Joint movement

• Embedment

• Relaxation

• Transverse vibration

Possible Engineering Measures

Depending on the application, suitable options may include:

• Improved joint stiffness

• Controlled preload

• Approved threadlocking compounds

• Suitable locking patches

• Compatible locking nuts

• Mechanical locking features

Fatigue Considerations

Fatigue performance depends on cyclic loading, joint stiffness, preload, thread geometry and material properties.

A higher strength class does not automatically guarantee longer fatigue life.

Surface Finish and Corrosion Selection

The operating environment should guide the material and coating choice.

Zinc Plating

May be suitable for selected general industrial environments.

Zinc-Nickel Plating

May be considered where specified corrosion protection is required.

Zinc-Flake Coating

May be suitable for certain fastener systems depending on the coating specification.

Black Oxide

Provides a dark appearance with corrosion performance dependent on the complete treatment.

Stainless Steel

May be selected where suitable corrosion resistance is required.

Relevant Standards

ISO 4042 may apply to electroplated fasteners.

ISO 10683 may apply to specified non-electrolytically applied zinc-flake coating systems.

Important Limitation

Changing a coating may affect friction and assembly preload.

Coating substitution should therefore be reviewed before approval.

Industrial Applications of Hex Socket Flange Screws

Automotive and EV Equipment

Hex socket flange screws may be suitable for approved mechanical assemblies where compact installation and a defined bearing surface are important.

Potential applications include:

• Mechanical brackets

• Equipment housings

• EV battery equipment supports

• Vehicle production fixtures

• Auxiliary mechanical components

Engineering Considerations

• Vibration

• Temperature

• Corrosion

• Tool access

• Tightening consistency

General industrial fasteners are not automatically qualified for safety-critical steering, braking or suspension connections.

Industrial Machinery and CNC Equipment

Potential applications include:

• CNC machine assemblies

• Gearbox accessories

• Pump housings

• Mechanical fixtures

• Industrial equipment brackets

Engineering Priorities

• Joint stiffness

• Thread engagement

• Maintenance access

• Bearing geometry

• Preload control

Robotics and Industrial Automation

Compact internal hex drives may be useful in automation assemblies.

Potential applications include:

• Robot accessory brackets

• Sensor mounts

• Linear motion equipment

• Production fixtures

• Mechanical supports

Production Priorities

• Tool accessibility

• Screw feeding

• Installation repeatability

• Inspection

• Rework control

Construction and Heavy Equipment

Hex socket flange screws may be used in suitable equipment assemblies.

Potential applications include:

• Excavator accessories

• Construction machinery

• Agricultural equipment

• Mechanical housings

• Industrial lifting equipment accessories

Safety-critical lifting and structural connections require their own approved engineering specifications.

Renewable Energy and Power Equipment

Potential applications include:

• Solar equipment

• Energy storage enclosures

• Industrial power equipment

• Mechanical support assemblies

• Renewable energy equipment accessories

Engineering Considerations

• Corrosion

• Vibration

• Temperature

• Maintenance access

• Application-specific requirements

Railway and Transportation Equipment

Hex socket flange screws may be used in approved auxiliary mechanical assemblies.

However, rail braking, running gear and other safety-critical connections require application-specific qualification.

Aerospace-Related Equipment

Specialized socket flange screws may be considered for approved aerospace-related support equipment and precision mechanical assemblies.

General industrial screws are not automatically qualified for flight-critical applications.

Production-Line Quality and Assembly Consistency

For manufacturing engineers and production managers, a reliable screw specification must be supported by a repeatable assembly process.

Incoming Inspection

Depending on project requirements, checks may include:

• Product identification

• Head geometry

• Flange dimensions

• Socket size and depth

• Thread fit

• Material and mechanical property documentation

• Coating condition

Tooling Control

Confirm that installation bits are compatible with the internal socket.

Monitor tool wear and ensure adequate engagement.

Assembly Validation

Verify:

• Correct screw length

• Adequate thread engagement

• No bottoming in blind holes

• Suitable tightening procedure

• Required joint preload

• Acceptable bearing-surface condition

In-Process Monitoring

For repeated assembly, suitable controls may include tightening-process monitoring, tool-condition checks and selected completed-joint inspections.

Rework Control

Define when a screw may be reused and when replacement is required.

Damaged sockets, threads or bearing surfaces may justify replacement.

Production Decision Matrix

OEM Customization: What Can Be Defined by Drawing?

Custom hex socket flange screws may require dimensions or features outside standard product configurations.

Drawing-specific requirements may include:

• Nominal thread diameter

• Thread pitch

• Screw length

• Head diameter

• Head height

• Flange diameter

• Flange thickness

• Socket dimensions

• Thread length

• Material

• Mechanical properties

• Surface finish

• Dimensional tolerances

Manufacturing Feasibility

The drawing should be reviewed against the proposed manufacturing method.

Cold heading may be suitable for certain high-volume geometries.

CNC machining may be considered for selected custom designs or production quantities.

The appropriate process depends on geometry, material, tolerances, tooling and volume.

OEM Procurement and Supplier Qualification

Procurement teams should evaluate custom socket flange screws using a complete technical specification.

Recommended RFQ Information

Supplier Substitution Checklist

Before approving an alternative product or supplier, verify:

• Thread compatibility

• Head dimensions

• Flange geometry

• Socket geometry

• Material

• Mechanical properties

• Coating

• Tightening behavior

• Inspection requirements

A visually similar screw may not be mechanically or dimensionally equivalent.

Total Installed Cost

For high-volume OEM production, purchasing decisions should consider:

• Unit price

• Tooling

• Assembly cycle time

• Inspection

• Rework

• Inventory

• Supplier qualification

• Delivery reliability

A custom flange screw may reduce assembly components, but its actual cost benefit must be evaluated against manufacturing and tooling requirements.

Frequently Asked Questions

What is a hex socket flange screw?

It is an externally threaded fastener with an internal hexagonal drive and an integral flange beneath the head.

How is it different from a standard socket head cap screw?

The integral flange changes the underhead bearing geometry and may provide a larger contact area.

Does the flange eliminate the need for a washer?

Only where the joint design permits. Some assemblies require a separate washer for specific engineering functions.

Can an internal hex drive transmit higher torque?

Torque capacity depends on socket geometry, material, tool engagement and the applicable design.

An internal hex drive does not automatically provide higher permissible torque.

Are hex socket flange screws self-locking?

No. The flange does not independently prevent vibration loosening.

Which strength class should I choose?

Select the mechanical property class based on the complete joint design, not simply the highest available class.

Can stainless steel socket flange screws be used outdoors?

Suitable stainless steel grades may be considered, but corrosion performance depends on the actual environment.

Can JUXIN FASTENERS review custom socket flange screw drawings?

Yes. Drawing-based inquiries can be reviewed for geometry, materials, mechanical properties, coatings and quotation requirements.

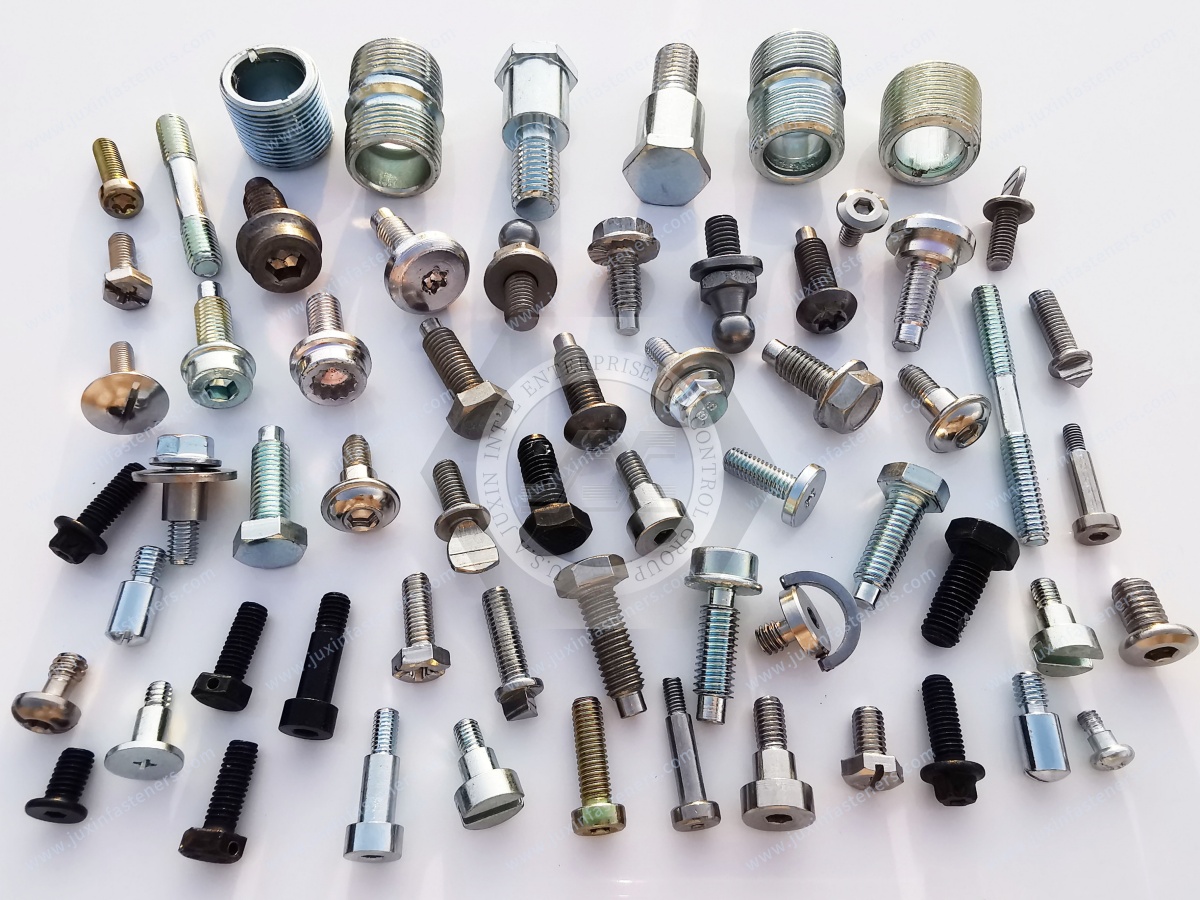

JUXIN FASTENERS: Hex Socket Flange Screws and OEM Fastening Solutions

JUXIN FASTENERS supplies industrial fastening components and supports drawing-based OEM inquiries for international manufacturers.

Relevant product categories include:

• Hex socket flange screws

• Socket head flange bolts

• Alloy steel socket screws

• Stainless steel socket screws

• Hex flange bolts

• Hexagon head bolts

• Socket head cap screws

• Button head socket screws

• Flat head socket screws

• Thread-cutting screws

• Self-tapping screws

• Nylon insert lock nuts

• All-metal locking nuts

• Weld nuts

• Blind rivet nuts

• Threaded inserts

• Custom CNC-machined fasteners

Specific dimensions, materials, property classes, coatings, inspection requirements, MOQ and lead time are confirmed during project review.

Request a Hex Socket Flange Screw Engineering Review and OEM RFQ

Are you sourcing hex socket flange screws for industrial machinery, robotics, automotive auxiliary equipment,

EV systems, renewable energy equipment or precision mechanical assemblies?

Or do you require a custom flange diameter, internal socket geometry, material or surface treatment?

JUXIN FASTENERS welcomes inquiries from design engineers, structural engineers, mechanical engineers, manufacturing engineers,

production managers, procurement specialists, purchasing managers, supplier development teams and supply chain managers.

For an efficient technical and commercial review, please provide:

2D drawing or applicable specification + thread designation + screw length + head dimensions + flange geometry + socket dimensions

+ material + mechanical property class + coating + application + tightening requirements + inspection criteria + sample quantity + annual purchasing volume + target delivery schedule

Our team can review your requirements, discuss suitable standard or drawing-based options, confirm sample arrangements and prepare quotation information.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your hex socket flange screw drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
