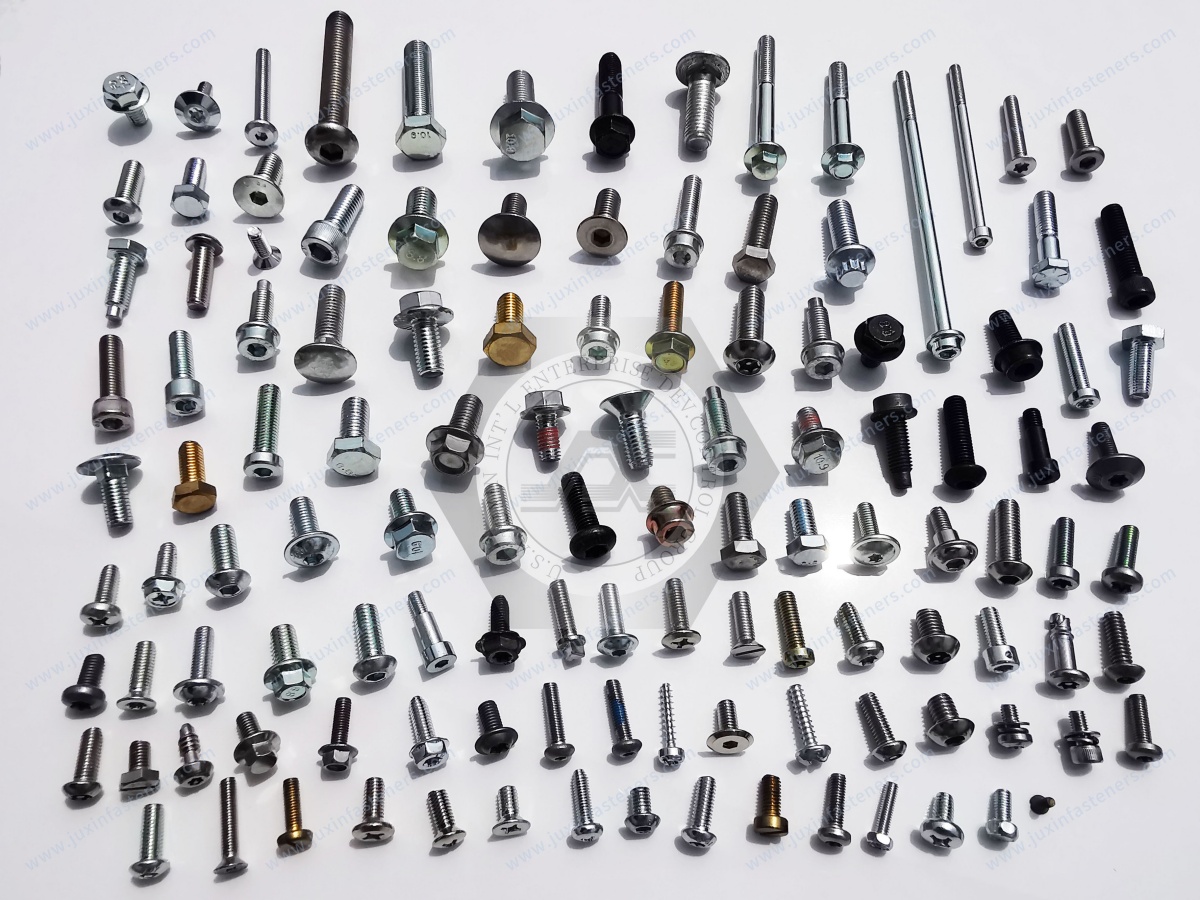

Hexagonal flange bolts are widely used in industrial mechanical assemblies where a hexagonal drive head and an integrated bearing flange provide a practical fastening configuration.

Commonly called hex flange bolts, flange head bolts or DIN 6921 flange bolts, these fasteners are used in suitable automotive equipment,

 electric vehicle components, industrial machinery, construction equipment, electrical equipment and other OEM manufacturing applications.

For an OEM purchasing team, however, selecting a hex flange bolt involves more than finding a supplier with a matching product photograph.

Two bolts may appear similar but differ in flange diameter, bearing-surface geometry, thread length, material, mechanical properties, coating or tightening behavior.

These differences can affect assembly compatibility, joint reliability and production consistency.

A supplier substitution that looks economical at the purchasing stage may create additional inspection, rework or installation costs if the replacement is not technically equivalent.

JUXIN FASTENERS supplies industrial fastening products and supports drawing-based OEM inquiries for hex flange bolts and other threaded fastening components.

This guide explains how engineers, production managers and procurement teams can specify, evaluate and source hex flange bolts for industrial manufacturing.

Its focus is on supplier qualification, assembly consistency, product specification and total installed cost rather than repeating general descriptions of flange bolt geometry.

What Is a Hex Flange Bolt?

A hex flange bolt is an externally threaded fastener with a six-sided drive head and an integrated flange beneath the head.

The flange provides a defined bearing surface against the connected component.

Depending on the product specification, the flange may have a smooth or serrated bearing surface.

The threaded shank may be fully or partially threaded according to the applicable standard or customer drawing.

Common Commercial Designations

• Hex flange bolt

• Hexagonal flange bolt

• Hexagon flange head bolt

• Flange head screw

• DIN 6921 flange bolt

• Smooth flange bolt

• Serrated flange bolt

• High-strength flange bolt

• Custom OEM flange bolt

The correct designation should match the actual product specification.

Why DIN 6921 Matters for Procurement

DIN 6921 is a recognized dimensional reference for metric hexagon flange bolts.

However, a DIN 6921 designation alone does not define every purchasing requirement.

An OEM specification may also need to identify:

• Thread designation

• Bolt length

• Mechanical property class

• Material

• Surface treatment

• Flange surface condition

• Inspection requirements

• Packaging and identification

Related International Standards

Depending on the product and application, relevant standards may include:

These standards cover different aspects of the product.

DIN 6921 and ISO 4162 should not automatically be treated as dimensionally interchangeable.

Metric and Inch-Series Flange Bolts

Metric flange bolts use specified metric thread designations.

Inch-series flange bolts may use UNC or UNF threads.

Metric, UNC, UNF, BSW and BSF threads are not interchangeable.

A similar nominal diameter does not establish compatibility.

The Most Common OEM Sourcing Mistake

One of the most significant procurement risks is approving a flange bolt based only on nominal diameter, length and property class.

For example, two bolts may share the same nominal thread size and mechanical property class while having different flange diameters or underhead geometries.

These differences can affect:

• Bearing contact

• Tool clearance

• Component seating

• Surface deformation

• Tightening behavior

• Assembly compatibility

Engineering Recommendation

Supplier qualification should begin with the complete approved drawing or applicable dimensional standard.

Hex Flange Bolt Specification Checklist

A practical OEM specification should identify the following characteristics.

A complete specification helps reduce technical clarification and unsuitable supplier substitutions.

Smooth Flange vs. Serrated Flange: What Procurement Must Confirm

Smooth and serrated flange bolts are different configurations.

Smooth Flange Bolts

These have a comparatively continuous underhead bearing surface.

They may be suitable where the joint requires a defined contact surface without intentional serrations.

Serrated Flange Bolts

These incorporate teeth or serrations beneath the flange.

The serrations may be intended to increase resistance to rotation at the bearing interface.

However, actual locking performance depends on the joint.

Supplier Qualification Questions

• Does the drawing require a smooth or serrated flange?

• Is the flange geometry defined?

• Is the mating material compatible?

• Could serrations damage the surface or coating?

• Has the tightening procedure been validated?

• Is an additional locking method required?

Important Engineering Limitation

A serrated flange bolt does not guarantee resistance to all vibration-loosening mechanisms.

A smooth flange bolt is not inherently self-locking.

Standard Flange Bolts vs. Custom OEM Flange Bolts

Standard products are appropriate when the approved application matches the relevant dimensional and mechanical specifications.

Custom flange bolts may be needed when the joint requires geometry or material characteristics not covered by the selected standard product.

Possible Custom Requirements

• Special flange diameter

• Modified flange thickness

• Custom head geometry

• Nonstandard bolt length

• Special thread length

• Selected material

• Specified property class

• Drawing-defined coating

• Special identification

• Project-specific packaging

When Is Customization Worth Considering?

Customization may be appropriate when it resolves a genuine engineering or production limitation.

Examples include:

• Insufficient tool clearance

• Bearing-surface interference

• Special grip requirements

• Restricted assembly access

• Production handling requirements

• Approved equipment geometry

However, a custom bolt may introduce additional tooling, qualification or purchasing considerations.

Standard vs. Custom Decision Matrix

Mechanical Property Classes for Hex Flange Bolts

For applicable metric carbon steel and alloy steel fasteners, ISO 898-1 defines mechanical property requirements.

Common property classes include:

• 8.8

• 10.9

• 12.9

However, the selected property class must be compatible with the complete joint.

Why Higher Strength Is Not Always Better

A higher-strength bolt may not improve joint performance where the limiting factor is:

• Internal thread stripping

• Bearing-surface deformation

• Joint relaxation

• Incorrect preload

• Corrosion

• Fatigue loading

• Mating component strength

Stainless Steel Flange Bolts

For applicable stainless steel fasteners, ISO 3506-1 uses a different mechanical classification system.

The material group and property class should be specified.

SAE Grade 8 Flange Bolts

SAE Grade 8 belongs to an inch-series mechanical specification system.

It is not equivalent to metric property class 8.8.

The applicable standard and complete requirements must be used when evaluating alternatives.

Material Selection for OEM Flange Bolts

Carbon Steel

May be suitable for general industrial applications where the required mechanical properties and corrosion protection can be achieved.

Alloy Steel

May be selected for higher-strength applications.

The finished fastener must meet the specified mechanical requirements.

Stainless Steel

May be considered where corrosion resistance is important.

The actual stainless grade, property class and operating environment must be reviewed.

Other Materials

Selected special materials may be considered for drawing-based projects.

Manufacturing feasibility and application suitability require confirmation.

Coating Selection and Supplier Qualification

Surface treatment affects more than appearance.

It can influence:

• Corrosion protection

• Thread fit

• Underhead friction

• Tightening behavior

• Surface condition

• Inspection requirements

Zinc Plating

May be suitable for selected general industrial environments.

Zinc-Nickel Coating

May be considered where the project specifies a suitable corrosion protection system.

Zinc-Flake Coatings

May be relevant to certain automotive and industrial applications.

Black Phosphate

May be used where specified, but its corrosion performance depends on the complete treatment system.

Yellow-Passivated Zinc

Color alone does not establish a particular corrosion protection performance.

The coating specification must define the required treatment and acceptance criteria.

Stainless Steel

May reduce the need for certain protective coatings, depending on the environment.

However, stainless steel is not universally corrosion-proof.

Coating Supplier Questions

• What coating specification applies?

• Is the coating compatible with the required property class?

• Are thread tolerances maintained?

• Is the friction condition controlled?

• Are corrosion requirements defined?

• What inspection documentation is required?

Hydrogen Embrittlement Considerations

Certain high-strength steel fasteners may be susceptible to hydrogen embrittlement under particular manufacturing and service conditions.

Coating and processing requirements must be selected accordingly.

Why Coating Substitution Can Affect Assembly

A change in coating may alter thread and underhead friction.

This can change the relationship between applied torque and bolt preload.

For production assemblies, a coating substitution may require tightening validation.

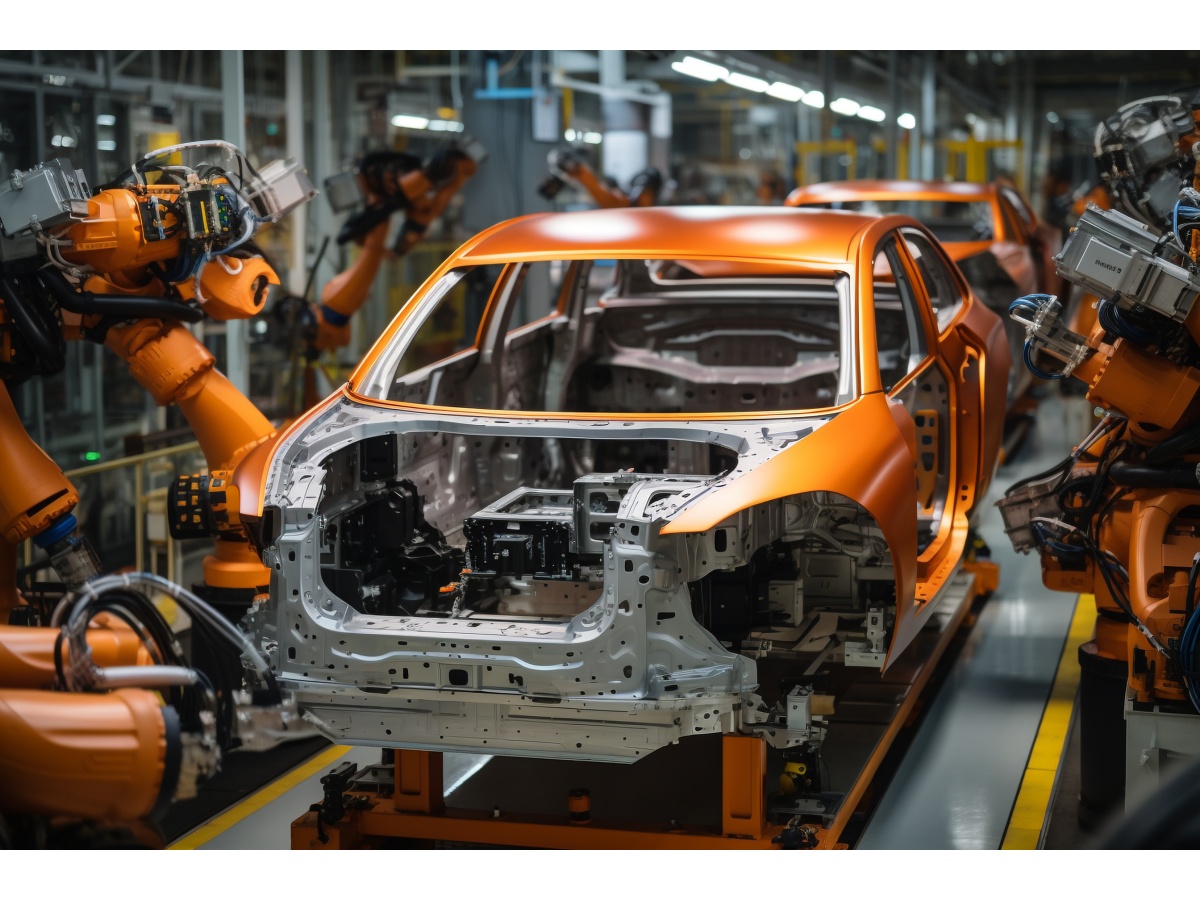

Automotive OEM Flange Bolt Sourcing

Automotive equipment may require fastening systems that perform under vibration, thermal cycling and repeated loading.

Potential applications include:

• Equipment mounting brackets

• Engine-related auxiliary assemblies

• Transmission-related equipment

• Selected chassis components

• Automotive manufacturing equipment

Procurement Considerations

• Approved property class

• Drawing-controlled flange geometry

• Coating specification

• Tightening procedure

• Identification requirements

• Supplier qualification

Safety-Critical Applications

Braking, steering, suspension and other safety-critical automotive systems require application-specific engineering approval.

A general industrial flange bolt should not automatically be substituted.

EV Battery and Electric Vehicle Equipment

Potential applications include:

• Battery equipment frames

• Battery tray brackets

• Electric motor mounting

• Charging equipment

• Power electronics support structures

Engineering Requirements

• Mechanical loading

• Thermal expansion

• Corrosion exposure

• Electrical isolation where required

• Assembly accessibility

• Tightening consistency

Supplier Qualification

An OEM purchasing team should ensure that the fastener specification is consistent with the approved equipment design.

Heavy Machinery and Construction Equipment

Heavy machinery may experience shock loading, contamination and vibration.

Potential applications include:

• Excavators

• Loaders

• Agricultural machinery

• Mining equipment

• Industrial gearboxes

• Equipment mounting systems

Engineering Priorities

• Mechanical property class

• Joint stiffness

• Bearing-surface strength

• Thread engagement

• Corrosion protection

• Maintenance requirements

Industrial Machinery and Automation Equipment

Hex flange bolts may be used in suitable assemblies for:

• CNC machines

• Robotics equipment

• Conveyors

• Industrial automation systems

• Packaging equipment

• Production machinery

Production Benefit

An integrated flange may reduce loose washer handling where the design permits.

Production Limitation

The flange must not interfere with nearby features or prevent correct seating.

Energy and Power Equipment

Hex flange bolts may be used in suitable mechanical assemblies associated with:

• Power generation equipment

• Energy storage enclosures

• Industrial electrical equipment

• Auxiliary mechanical structures

Pressure Equipment Limitation

A general DIN 6921 flange bolt should not automatically be treated as suitable for pressure-containing joints.

Pressure equipment requires project-specific bolting and joint specifications.

Petroleum and Chemical Equipment

Fastener selection should consider the actual exposure conditions.

These may include:

• Corrosion

• Temperature

• Chemical compatibility

• Mechanical loading

• Maintenance requirements

A generic corrosion-resistant coating does not establish suitability for every chemical environment.

Marine and Shipbuilding Equipment

Potential applications include:

• Marine auxiliary machinery

• Port equipment

• Shipboard mechanical supports

• Coastal industrial equipment

Engineering Considerations

• Chloride exposure

• Galvanic corrosion

• Stainless steel selection

• Coating compatibility

• Mechanical properties

No single coating or material provides universal marine corrosion protection.

Industry Selection Matrix

Hex Flange Bolt Manufacturing Methods: What Buyers Should Know

Manufacturing methods influence dimensional feasibility, cost and production planning.

Cold Forming

Cold forming may be used for suitable flange bolt geometries and production quantities.

Thread Rolling

Thread rolling may be used to form external threads on suitable fastener blanks.

CNC Machining

Machining may be relevant to selected custom geometries, prototypes or specialized requirements.

Heat Treatment

Applicable higher-strength steel fasteners may require controlled heat treatment to achieve specified mechanical properties.

Surface Treatment

Coating or finishing is selected according to the approved specification.

Important Supplier Qualification Principle

The appropriate manufacturing route depends on the actual fastener design.

A supplier's use of a particular process should not be assumed without confirmation.

Manufacturing Feasibility Questions

• Can the specified flange geometry be produced?

• Are the thread dimensions achievable?

• Does the material support the required mechanical properties?

• Is dedicated tooling necessary?

• Are samples required?

• What inspection criteria apply?

• What production quantity is planned?

Dimensional Inspection Requirements

An OEM drawing may require inspection of:

• Head dimensions

• Flange diameter

• Flange thickness

• Underhead radius

• Bearing-surface condition

• Thread dimensions

• Overall length

• Thread length

• Material

• Surface finish

The inspection plan should reflect the applicable standard and customer requirements.

Mechanical and Coating Verification

Depending on the project, relevant verification may include:

• Mechanical property requirements

• Thread inspection

• Dimensional checks

• Coating thickness

• Corrosion testing where specified

• Application-specific assembly testing

The exact tests, sampling frequency and documentation must be agreed during supplier qualification.

Do Not Assume Every Batch Requires Every Test

A suitable quality plan should be based on the product standard, risk level and purchase requirements.

Unnecessary or undefined testing can increase cost without improving technical clarity.

Production Management: Total Installed Cost of Flange Bolts

A production manager should evaluate more than the bolt's purchase price.

Potential Cost Components

• Fastener unit price

• Separate washer cost where applicable

• Component handling

• Assembly labor

• Installation tooling

• Inspection

• Rework

• Inventory

• Packaging

• Maintenance

When Flange Bolts May Reduce Assembly Cost

A flange bolt may simplify assembly where it eliminates a separate washer without compromising the approved joint design.

When Flange Bolts May Increase Cost

A special flange geometry, coating or material may increase purchasing or qualification costs.

Production Decision Example

Consider an industrial bracket assembled with a conventional hex bolt and separate washer.

A flange bolt may reduce one loose component.

However, before approving the substitution, the engineering team should verify:

• Flange contact geometry

• Bearing pressure

• Tightening friction

• Tool access

• Material compatibility

• Assembly performance

Only after successful technical evaluation should the purchasing team compare total installed cost.

Common Supplier Substitution Risks

Different Flange Diameter

May change bearing contact or cause interference.

Different Underhead Geometry

May prevent proper seating.

Different Thread Length

May affect grip and engagement.

Different Coating

May change corrosion protection and tightening behavior.

Different Property Class

May affect mechanical performance.

Smooth vs. Serrated Flange

May change surface contact and installation behavior.

Different Manufacturing Route

May require additional qualification depending on the drawing and application.

Engineering Recommendation

A replacement flange bolt should be approved against the complete technical specification, not just nominal dimensions.

OEM Supplier Development Checklist

Before qualifying a flange bolt supplier, confirm:

• Product drawing or applicable standard

• Thread designation

• Flange geometry

• Material

• Property class

• Surface treatment

• Inspection requirements

• Sample approval

• MOQ

• Lead time

• Annual volume

• Packaging and identification

• Change-control requirements

Supplier Change Control

For recurring OEM production, changes to material, geometry, coating or manufacturing process may require customer approval.

The applicable purchase agreement and quality requirements should define the change-control process.

Common RFQ Mistakes

Requesting Only “M8 Flange Bolt”

This does not define length, flange geometry, property class or coating.

Requesting “High Strength” Without a Property Class

The required mechanical properties remain unclear.

Requesting “Corrosion Resistant” Without a Coating Specification

The supplier cannot determine the exact requirement.

Requesting “Equivalent to DIN 6921” Without a Drawing

The applicable dimensions and deviations may be uncertain.

Omitting Annual Volume

The supplier may be unable to evaluate the most suitable manufacturing and purchasing approach.

Omitting Assembly Requirements

Potential tightening or tool-access issues may remain unidentified.

Recommended OEM RFQ Package

For an efficient quotation, provide:

• 2D drawing or applicable standard

• Exact thread designation

• Nominal diameter

• Bolt length

• Thread length

• Flange diameter

• Smooth or serrated flange requirement

• Material

• Mechanical property class

• Coating specification

• Equipment application

• Inspection requirements

• Sample quantity

• Annual purchasing volume

• Packaging requirements

• Target delivery date

Frequently Asked Questions

What is the difference between a hex flange bolt and a standard hex bolt?

A hex flange bolt incorporates a flange beneath the head, providing a defined bearing surface.

 A conventional hex bolt may require a separate washer depending on the joint design.

Can hex flange bolts reduce assembly cost?

They may reduce component handling where a separate washer can be eliminated.

The complete installed cost should be evaluated.

Are DIN 6921 flange bolts interchangeable with ISO 4162 bolts?

Not automatically. The applicable dimensional requirements must be compared.

Do hex flange bolts provide higher preload?

Not inherently. Preload depends on the complete joint and tightening conditions.

Are serrated flange bolts self-locking?

Serrations may contribute resistance to rotation at the bearing interface, but they do not guarantee vibration resistance.

Can a class 10.9 flange bolt replace a class 8.8 flange bolt?

Not automatically. The complete joint and approved specification must be reviewed.

Can a zinc-nickel coating replace ordinary zinc plating?

Only after confirming the corrosion, friction, dimensional and other applicable requirements.

Are SAE Grade 8 flange bolts equivalent to metric 8.8 bolts?

No. They belong to different mechanical specification systems.

What information is needed to source custom hex flange bolts?

Provide the drawing, thread designation, dimensions, material, property class, coating, quantity and application requirements.

Can JUXIN FASTENERS support OEM flange bolt inquiries?

Yes. Drawing-based inquiries can be reviewed for technical requirements, manufacturing feasibility, samples and quotation.

JUXIN FASTENERS: OEM Hex Flange Bolt Supply and Custom Fastening Solutions

JUXIN FASTENERS supplies industrial fastening products and supports drawing-based OEM sourcing requirements.

Relevant product categories include:

• DIN 6921 hex flange bolts

• High-strength industrial bolts

• Custom hex head bolts

• Drawing-specific flange bolts

• Industrial locking nuts

• CNC-machined threaded components

• Other custom fastening products

Product specifications, materials, coatings, manufacturing feasibility, inspection requirements, MOQ and lead time are confirmed during project review.

Request an OEM Hex Flange Bolt Quotation

Are you sourcing hex flange bolts for automotive equipment, EV components, industrial machinery, heavy equipment or another OEM manufacturing project?

JUXIN FASTENERS welcomes technical and purchasing inquiries from design engineers, mechanical engineers, structural engineers, manufacturing engineers,

production managers, procurement specialists, purchasing managers, supplier development teams and supply chain managers.

For an efficient technical and commercial review, please send:

2D drawing or standard + thread designation + diameter + length + flange geometry + material + property class + coating + application

 + inspection requirements + sample quantity + annual volume + target delivery schedule

Our team can review the project requirements, discuss suitable fastening options, confirm sample arrangements and provide quotation information.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your hex flange bolt drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
