Oct. 17, 2023
Inverted external retaining rings are specialized shaft-retention components used where the geometry,
installation envelope or adjacent component arrangement requires a retaining-ring configuration different from a conventional external circlip.
Like other external shaft retaining rings, their fundamental purpose is axial retention.
Once installed in a properly designed shaft groove, the retaining ring forms a mechanical shoulder that helps prevent bearings, gears, bushings, rollers,
pulleys, sleeves and other shaft-mounted components from moving beyond their intended axial position.
The basic load path is:
Retained Component → Retaining Ring → Shaft Groove → Shaft
This distinction is important because an inverted external retaining ring should not automatically be described as a device for preventing reverse shaft rotation.
Rotation and axial retention are different engineering functions.
A retaining ring primarily controls axial displacement. Torque transmission or prevention of relative rotation normally requires another design feature such as a key,
spline, interference fit, pin, drive feature or another appropriate mechanical interface.
For OEM engineers and sourcing teams, the more useful question is therefore not:
"Does the shaft rotate forward or backward?"
It is:
"What retaining-ring geometry provides the required axial retention within the available shaft, groove and assembly envelope?"
The term inverted external retaining ring can be used commercially for specialized or modified external retaining-ring geometries in which features differ from those of a conventional external shaft circlip.
Depending on the product family, drawing or supplier terminology, differences may involve:
Lug orientation
Ring profile
Clearance envelope
Installation-tool access
Contact geometry
Opening configuration
Adjacent-component clearance
Groove relationship
Because terminology is not always used identically across every supplier or industry, the product name alone should not be used to define the part.
For engineering and procurement purposes, the controlling information should be:
Applicable standard, if any
Customer drawing
Ring dimensions
Shaft dimensions
Groove dimensions
Material
Heat treatment
Surface finish
Installation method
Application requirements
This is especially important when sourcing a replacement or second-source component.
Both products can perform axial retention on shafts, but their geometry and installation envelope may differ.

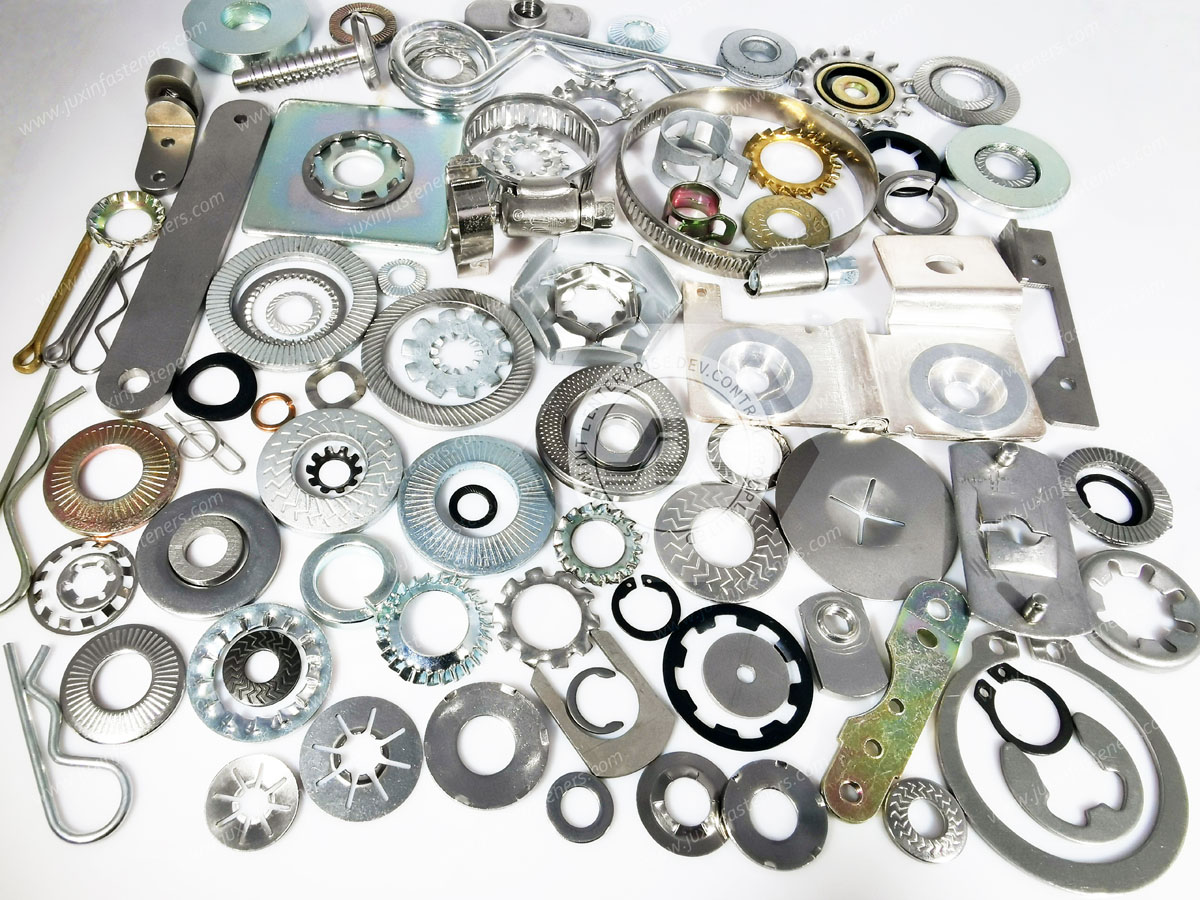

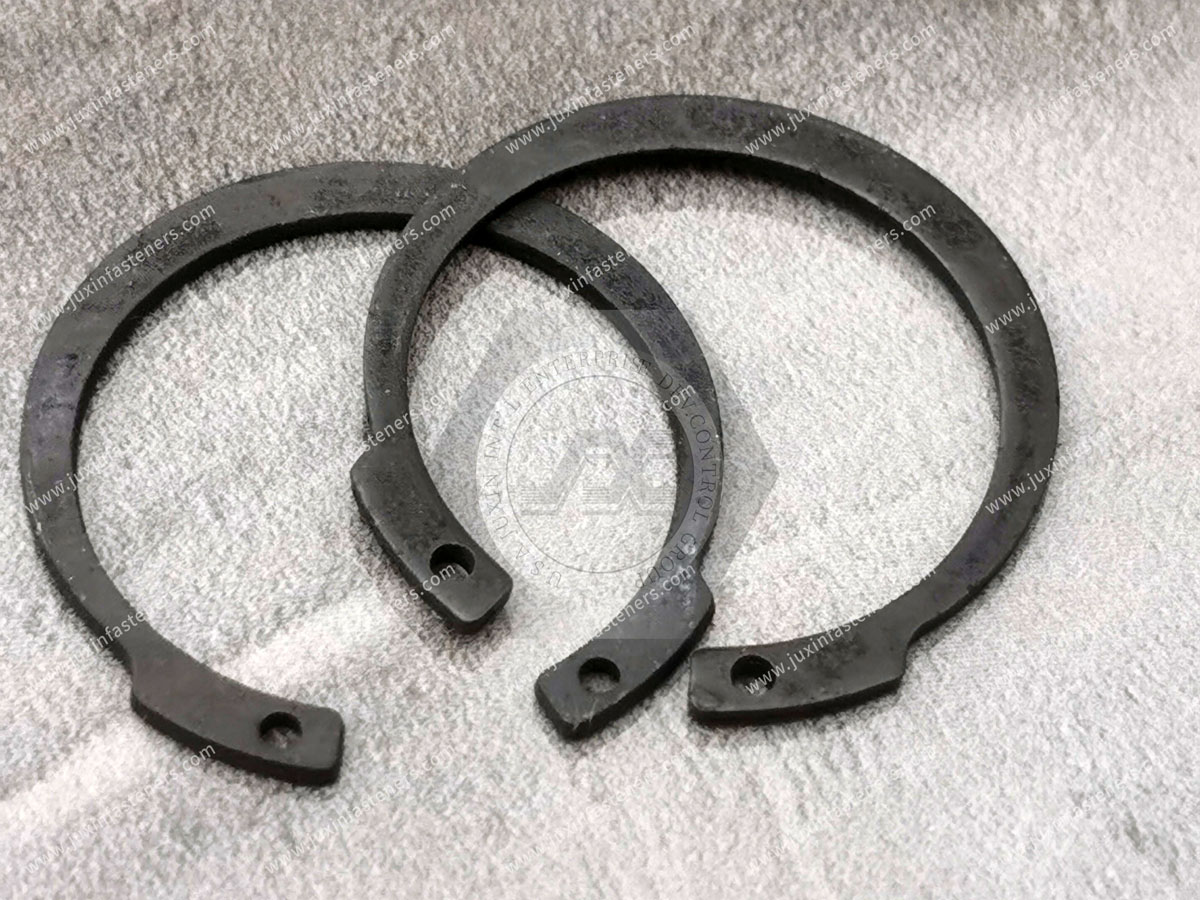

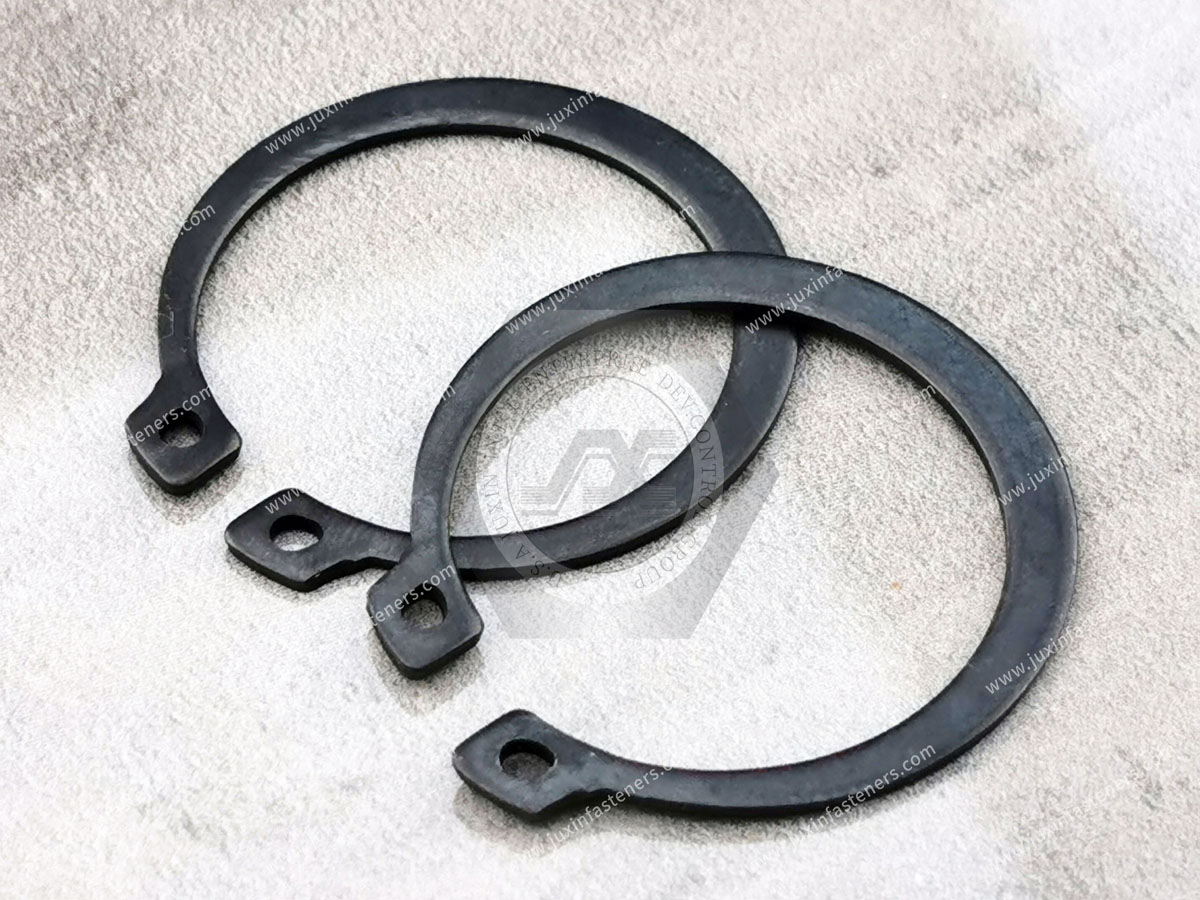

A conventional external circlip is installed in a groove machined around a shaft.
The ring is generally expanded during installation, moved over the shaft and released into the groove.
DIN 471 is one widely recognized standard associated with conventional external retaining rings for shafts.
These rings are commonly used for:
Bearings
Gears
Bushings
Pulleys
Rollers
Sprockets
Sleeves
Mechanical transmission components
An inverted or modified external retaining ring may be considered where the surrounding assembly requires a different ring profile or clearance arrangement.
Possible reasons include:
Limited radial space
Restricted axial space
Adjacent component interference
Installation-tool restrictions
Existing legacy shaft geometry
Special contact requirements
Customer-specific assembly architecture
Therefore, the difference should be evaluated geometrically rather than simply by product name.
For standard shaft-retention architecture, see our engineering guide to External Retaining Rings for Shafts: DIN 471 Circlip Selection, Groove Design & OEM Applications.
This is an important engineering distinction.
A shaft can rotate:
Clockwise
Counterclockwise
Continuously
Intermittently
Reversibly
while a retaining ring continues to perform the same basic axial-retention function.
The retaining ring is normally not the feature responsible for transmitting drive torque.
If a gear must rotate with a shaft, torque may instead be transferred through:
Splines
Keys and keyways
Interference fits
Pins
Serrations
Drive flats
Clamping hubs
Other engineered interfaces
The retaining ring may then prevent the component from moving axially along the shaft.
These functions should not be confused.
A useful design model is:
Torque Requirement → Shaft-to-Component Drive Interface
Axial Position Requirement → Shoulder / Retaining Ring / Nut / Other Axial Retainer
Separating these functions can make failure analysis and component selection much clearer.
Retaining rings operate within a very small mechanical envelope.
Small changes in geometry can affect:
Groove engagement
Installation clearance
Tool access
Contact with adjacent components
Axial clearance
Ring deformation
Load distribution
Removal access
Assembly efficiency
For this reason, an inverted or modified ring should not automatically be substituted for a standard external circlip simply because the nominal shaft diameter is the same.
The complete assembly must be considered.
When a retained component moves axially against an external retaining ring, the ring transfers load into the shaft groove.
The approximate load path is:
Component → Ring Contact Surface → Retaining Ring → Groove Shoulder → Shaft
Several components therefore influence the capacity of the system.
Relevant factors include:
Material
Hardness
Thickness
Profile
Elastic recovery
Heat treatment
Surface condition
Relevant factors include:
Groove diameter
Groove depth
Groove width
Edge condition
Groove position
Dimensional tolerance
Relevant factors include:
Material
Hardness
Diameter
Distance from groove to shaft end
Local geometry
Relevant factors include:
Contact face
Chamfer
Diameter
Material
Applied axial force
This means retaining capability should be evaluated as a system rather than as a property of the ring alone.
A retaining ring requires a compatible groove.
For a standard ring, groove dimensions should follow the applicable standard or approved manufacturer's engineering specification.
For a custom or inverted retaining ring, groove geometry should be reviewed together with the ring.
Important parameters include:
Nominal shaft diameter
Groove diameter
Groove depth
Groove width
Groove location
Groove-edge geometry
Groove-to-shaft-end distance
Dimensional tolerances
Incorrect groove geometry can lead to:
Incomplete seating
Excessive axial play
Difficult installation
Permanent ring deformation
Reduced groove engagement
Groove shoulder damage
Unexpected disengagement
The ring and groove should therefore be treated as mating engineering features.
One of the most common mistakes in retaining-ring selection is considering only the shaft diameter.
Axial positioning depends on the complete dimensional chain.
For example:
Shaft Shoulder → Bearing / Gear / Bushing Width → Spacer → Groove Position → Groove Width → Retaining Ring Thickness
Each feature has a tolerance.
The resulting tolerance stack determines whether the assembly has:
Excessive endplay
Acceptable running clearance
Controlled positioning
Unwanted preload
Assembly interference
This becomes especially important for:
Bearings
Gear trains
Electric motors
Precision rollers
Actuators
Robotic mechanisms
Measurement equipment
If precise axial positioning is required, a retaining ring may need to work together with spacers, shims or other engineered components.
Not every project requires a custom component.
Whenever possible, engineers should first determine whether a standardized external retaining ring can satisfy the assembly.
Standard parts can offer:
Easier sourcing
Lower development cost
Faster replacement
Established dimensional relationships
Reduced tooling requirements
Easier supplier qualification
However, custom or modified retaining rings may be appropriate when the application requires:
Non-standard shaft diameter
Existing non-standard groove
Special ring thickness
Modified lug geometry
Restricted installation envelope
Reduced radial projection
Special contact geometry
Special material
Special coating
Legacy replacement geometry
In these cases, the project should be evaluated from the actual drawing or sample.
Retaining-ring material affects elasticity, strength, fatigue behavior, corrosion resistance and environmental compatibility.
Heat-treated spring steels are widely used for shaft retaining rings.
They can provide:
High strength
Elastic recovery
Wear resistance
Fatigue performance
Cost-efficient high-volume production
The exact performance depends on the specified steel grade, heat treatment and final hardness.
Stainless retaining rings may be selected where corrosion resistance is important.
Potential applications include:
Food-service equipment
Medical equipment
Laboratory equipment
HVAC systems
Pumps
Outdoor machinery
Telecommunications equipment
Processing equipment
The specific stainless grade should be selected according to the actual environment.
Stainless steel should not automatically be treated as universally resistant to every chemical or corrosive condition.
Special alloys may be considered where applications involve:
Elevated temperatures
Aggressive chemicals
Special magnetic requirements
Unusual fatigue conditions
Customer-specific material specifications
Material selection should follow the application requirement rather than the industry name alone.
Depending on material and environmental requirements, retaining-ring finishes may include:
Phosphate and oil
Black finishes
Zinc-based coatings
Zinc-nickel coatings
Zinc-flake coating systems
Other engineered surface treatments
Selection should consider:
Corrosion requirement
Base material
Hardness
Coating thickness
Dimensional tolerance
Installation behavior
Environmental exposure
Customer specification
For hardened spring components, coating-process selection should also consider the relevant risk of hydrogen embrittlement.
Retaining rings fit into controlled grooves.
Therefore, changing the coating can affect more than appearance.
A different coating system may influence:
Finished thickness
Groove clearance
Installation force
Seating behavior
Friction
Removal behavior
This is particularly important when qualifying an alternative supplier for an existing production assembly.
The approved finish should therefore be included in the RFQ and drawing whenever relevant.
Installation requirements depend on the actual retaining-ring geometry.
For conventional external circlips, suitable external circlip pliers or controlled production tooling are commonly used.
For inverted or modified geometries, tool access should be confirmed before finalizing the design.
Engineers should evaluate:
Shaft-end access
Tool clearance
Adjacent components
Maximum permitted ring expansion
Assembly sequence
Removal requirements
Automation compatibility
A ring that is dimensionally correct but difficult to install can create unnecessary production problems.
External retaining rings are elastic components, but their expansion is not unlimited.
Opening a ring farther than necessary can cause:
Permanent deformation
Increased free diameter
Reduced groove engagement
Distorted geometry
Uneven seating
Reduced retaining performance
Production tooling should therefore control expansion.
This is especially important in high-volume automated assembly where a small installation error can be repeated across thousands of parts.
After assembly, verify that:
The ring is fully seated in the groove
The ring is not visibly distorted
The ring does not interfere with adjacent components
Required axial clearance is achieved
The retained component is correctly positioned
The ring has not been damaged during installation
For automated assembly, suitable inspection or error-proofing methods may be incorporated according to the production requirement.

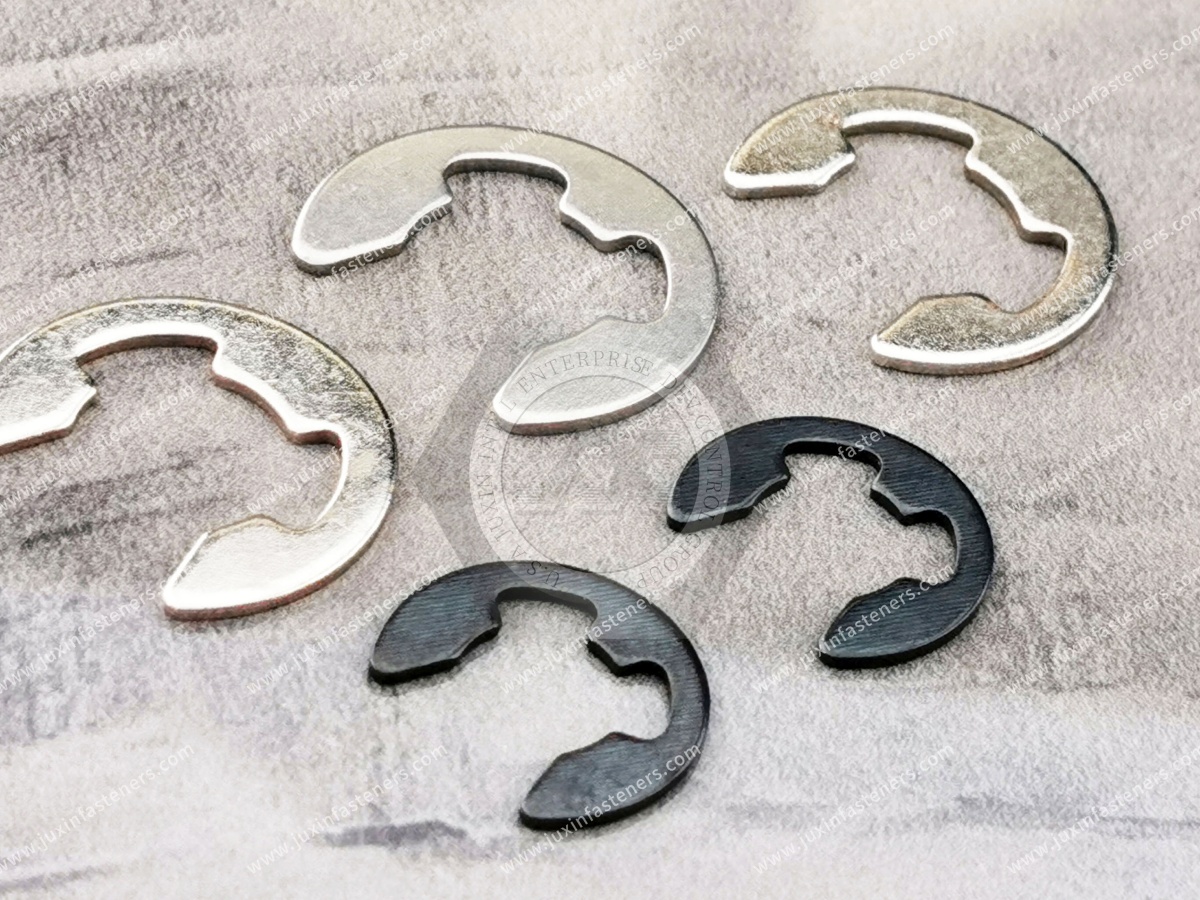

E-clips are another shaft-retention option, but they should not automatically be treated as interchangeable with inverted external retaining rings.
An E-clip is generally installed radially from the side of the shaft.
This can be useful when shaft-end access is unavailable.
An external circlip normally follows a different groove and installation architecture.
Selection should therefore consider:
Available installation direction
Shaft-end access
Radial clearance
Groove geometry
Axial load
Assembly speed
Service requirements
For radial installation applications, review our E-Type Retaining Rings for Shafts resource.
External retaining rings are used on shafts.
Internal retaining rings are installed inside bores or housings.
The distinction is straightforward:
External Ring → Shaft Groove
Internal Ring → Bore Groove
For housing and bore retention, see our DIN 472 Retaining Rings for Bores and Internal Retaining Rings for Bores engineering resources.
Retaining rings are frequently used to axially locate bearings.
An external retaining ring may provide an axial stop for the bearing inner ring on a shaft.
Potential applications include:
Electric motors
Pumps
Gearboxes
Rollers
Actuators
Machine tools
Industrial equipment
The complete bearing arrangement should still be evaluated, including:
Shaft shoulder
Bearing chamfer
Groove position
Ring contact
Axial load
Axial clearance
For bearing-specific selection, see our Bearing Retaining Rings guide.
External retaining rings may be used to axially position:
Gears
Sprockets
Pulleys
Bushings
Rollers
Sleeves
in power-transmission systems.
However, axial retention and torque transmission should be treated separately.
The retaining ring may position the gear axially while a key, spline, interference fit or other drive interface transmits torque.
This distinction is especially important in reversing drives.
Inverted or specialized retaining-ring geometries may be useful in compact automated equipment where assembly space is limited.
Potential applications include:
Robotic joints
Actuators
Grippers
Gear mechanisms
Rollers
Positioning equipment
Automated material handling
Production machinery
Design engineers should evaluate both functional load and assembly access.
For robotic equipment, ease of service replacement may also be important.
Potential applications for shaft retaining rings include:
Electric motors
Pumps
Actuators
Seat mechanisms
Transmission subassemblies
Steering-related mechanisms
Thermal-management equipment
Auxiliary mechanical systems
Automotive applications may introduce project-specific requirements for:
Material
Surface finish
Corrosion resistance
Traceability
Inspection
Packaging
Production consistency
These requirements should be specified by drawing or RFQ.
Retaining rings may be used in suitable mechanical subassemblies for:
Door mechanisms
Actuators
Seat systems
Mechanical controls
Auxiliary equipment
Maintenance systems
Rail projects may require additional controls related to material, coating, documentation and traceability.
These should be evaluated according to the specific project requirement.
Inverted and conventional shaft retaining rings may be used in:
Gearboxes
Motors
Pumps
Conveyors
Reducers
Rollers
Machine tools
Packaging machinery
Processing equipment
Material-handling equipment
Their compact geometry can reduce the number of components required for axial retention when the shaft and groove are designed appropriately.
Possible applications include:
Fans
Blowers
Pumps
Motors
Compressors
Valve actuators
Cooling equipment
Material and surface-finish selection may depend on:
Humidity
Condensation
Outdoor exposure
Temperature
Chemical environment
Liquid-cooling and thermal-management equipment used in modern data centers contains many rotating and actuated mechanical subassemblies.
Retaining rings may be used in appropriate components such as:
Pumps
Motors
Fans
Blowers
Valve actuators
Cooling distribution equipment
The final ring specification should be based on the actual mechanical assembly rather than the general data-center application.
External shaft retaining rings may be used in:
Electric motors
Generators
Cooling systems
Fans
Mechanical actuators
Auxiliary drive systems
Electrical enclosure mechanisms
Environmental exposure and operating temperature should be considered when selecting material and coating.
Possible applications include:
Cooling fans
Motors
Actuators
Antenna positioning mechanisms
Outdoor mechanical systems
Outdoor telecommunications applications may require increased corrosion resistance depending on exposure conditions.
Retaining rings may be found in mechanical assemblies such as:
Pumps
Motors
Robotic handling systems
Rollers
Actuators
Positioning equipment
If the application has special cleanliness, vacuum, outgassing or process restrictions, these requirements must be separately specified and evaluated.
A general industrial retaining ring should not automatically be represented as semiconductor-process qualified.
Shaft retaining rings may be used in suitable mechanical systems within:
Commercial mixers
Refrigeration equipment
Food-processing machinery
Conveyors
Pumps
Motors
Dispensing equipment
Material and coating should be selected according to actual cleaning and corrosion conditions.
Use in food-service machinery does not automatically mean that a retaining ring is intended or approved for direct food contact.
Potential non-implant applications include:
Diagnostic equipment
Laboratory automation
Pumps
Motors
Actuators
Sample-handling systems
Positioning mechanisms
Projects may require specific controls for:
Material
Cleanliness
Traceability
Packaging
Documentation
These requirements should be stated during supplier qualification.
A specialized geometry may be worth evaluating when:
A conventional external circlip interferes with another component
Installation-tool access is limited
Radial clearance is restricted
Existing legacy equipment uses a non-standard ring
A customer drawing specifies an inverted geometry
Standard lugs create packaging interference
The ring must fit within a special assembly envelope
However, custom geometry should have a clear engineering reason.
If a standard retaining ring performs the required function, the standard solution may simplify sourcing and long-term maintenance.
Legacy machinery often creates sourcing problems because the original retaining-ring drawing is unavailable.
A replacement-development process may include:
Existing Sample → Dimensional Inspection → Shaft Measurement → Groove Measurement → Material / Hardness Review
→ Surface-Finish Review → Drawing → Prototype → Assembly Test → Pilot Lot → Production
A physical sample is useful, but it cannot reveal every original design requirement.
For example, a sample may not establish:
Original material specification
Heat-treatment specification
Design axial load
Fatigue requirement
Original coating requirement
Environmental requirement
Application information should therefore accompany the sample whenever possible.
Supplier-development teams often need to qualify an alternative source without changing the existing assembly.
The objective is not simply to produce a ring that "looks the same."
Important characteristics may include:
Material
Hardness
Ring thickness
Free geometry
Groove compatibility
Elastic recovery
Surface finish
Coating thickness
Installation behavior
Production consistency
A robust second-source process may therefore follow:
Drawing / Sample Review → Specification Confirmation → Prototype → Dimensional Verification → Assembly Validation → Pilot Production → Approved Production
Engineers may search for:
Inverted external retaining ring
Inverted shaft retaining ring
Inverted circlip
External retaining ring
Shaft retainer
Shaft retaining ring
External snap ring
Special external circlip
Retaining ring for shaft
Custom shaft circlip
Low-profile retaining ring
Their real question is often:
Which retaining architecture will fit the available space while safely controlling axial movement?
Answering this requires more than simply supplying a catalog size.
Procurement and supplier-development teams may search for:
Inverted retaining ring manufacturer
External retaining ring supplier
Shaft circlip manufacturer
Custom retaining ring supplier
Stainless steel retaining ring supplier
OEM circlip manufacturer
Drawing-based retaining ring
Retaining ring second source
Their commercial question is usually:
Can the supplier reproduce the required geometry, material, heat treatment, coating and production consistency for our existing or new assembly?
This is why drawing and application review should be part of the sourcing process.
For an efficient technical review, provide as much of the following information as possible.
Customer drawing
Applicable standard, if known
Existing part number
Physical sample
Ring dimensions
Shaft diameter
Shaft material
Shaft hardness where relevant
Shaft-end geometry
Groove diameter
Groove width
Groove depth
Groove position
Groove tolerance
Distance from groove to shaft end
Bearing, gear, bushing, pulley, roller or other component
Component dimensions
Contact geometry
Required axial position
Axial load
Static or cyclic loading
Shock
Vibration
Rotational speed where relevant
Reversing operation where relevant to the overall assembly
Required service life
Required retaining-ring material
Hardness
Surface treatment
Corrosion requirement
Restricted-substance requirements
Temperature
Humidity
Outdoor exposure
Chemical exposure
Cleaning environment
Sample quantity
Prototype quantity
Production quantity
Estimated annual volume
Packaging requirements
Traceability requirements
Target delivery schedule
The more complete the RFQ information, the easier it is to distinguish between a standard part, a modified standard component and a fully custom retaining ring.
A practical selection path is:
What component requires axial retention?
→ Is it mounted on a shaft or inside a bore?
→ What shaft diameter and groove geometry are available?
→ Can a conventional standard external circlip be used?
→ Does the conventional ring interfere with surrounding components?
→ Is tool access restricted?
→ Would an E-clip solve the installation problem?
→ Is an inverted or modified ring geometry actually required?
→ What axial load must the system carry?
→ What shaft material supports the groove?
→ What axial clearance is permitted?
→ What material and coating are required?
→ Does the application require a standard, modified or fully custom component?
This approach prevents a specialized retaining ring from being selected simply because of terminology.
For standard external shaft circlips, review External Retaining Rings for Shafts: DIN 471 Circlip Selection, Groove Design & OEM Applications.
For a broader retaining-ring overview, see Elastic Retaining Rings & Circlips: Types, Selection, Groove Design and Industrial Applications.
For comparison of shaft and bore retention, see Retaining Rings for Shafts and Bores.
For radial shaft installation, review E-Type Retaining Rings for Shafts.
For bearing applications, see Bearing Retaining Rings.
For internal bore retention, review DIN 472 Retaining Rings for Bores.
For drawing-specific requirements, see Custom Retaining Rings & Spring Fasteners.
JUXIN FASTENERS supports sourcing and development of external retaining rings, shaft circlips, E-clips, internal retaining rings and drawing-based spring fasteners for industrial OEMs and supply-chain programs.
Projects can be evaluated from:
International standard
Customer drawing
Existing physical sample
Shaft dimensions
Groove dimensions
Application requirements
Material specification
Surface finish
Production quantity
Depending on the project, the sourcing route may be:
Standard Retaining Ring → Modified Standard Ring → Drawing-Based Replacement → Custom Retaining Ring
The most effective retaining-ring sourcing process begins with the mechanical assembly:
Application → Retained Component → Shaft → Groove → Axial Load → Clearance → Installation Envelope
→ Ring Geometry → Material → Heat Treatment → Surface Finish → Prototype → Validation → Production
This transforms a generic request such as:
"Please quote an inverted retaining ring."
into a technically useful RFQ:
"Please evaluate this retaining-ring geometry for our shaft, groove, axial load, installation envelope, material, finish and production volume."
For inverted external retaining rings, shaft retainers, external circlips, external snap rings, standard or modified shaft retaining rings,
stainless steel retaining rings, drawing-based replacement rings, custom retaining rings or OEM second-source projects,
send your drawing, sample, shaft dimensions, groove dimensions, material, surface finish, application requirements and quantity to:
JUXIN FASTENERS can review the available engineering information and evaluate whether a standard, modified-standard or custom retaining-ring solution is appropriate for the application.
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
