A fastener's mechanical property class does not, by itself, determine the clamp force achieved during tightening.

 In a bolted joint, the relationship between applied torque and generated axial load depends on thread geometry, friction at contacting surfaces, lubrication, coating condition and the mating components.

For automotive OEMs, electric vehicle manufacturers, industrial equipment producers and other high-volume assembly operations,

variation in these factors can create inconsistent clamp loads even when the same tightening torque is applied.

ISO 16047 — Fasteners — Torque/clamp force testing provides a standardized framework for measuring torque–clamp force behavior under defined test conditions.

The results help engineers understand tightening characteristics, compare specified surface conditions and evaluate whether a fastener system is suitable for further assembly validation.

At Juxin Fasteners, we supply standard and drawing-specific industrial fasteners, including bolts, screws, nuts and threaded fastening components.

Where an OEM project requires torque–clamp force testing, the applicable test configuration, acceptance criteria, documentation and supply feasibility should be confirmed during technical review.

This guide explains the test principles, important measured parameters, common interpretation errors and practical considerations for production engineers, quality teams and purchasing departments.

What Is ISO 16047 Torque–Clamp Force Testing?

ISO 16047 specifies a test method for evaluating the relationship between tightening torque and clamp force in threaded fasteners under controlled conditions.

The method supports the determination of tightening characteristics and, where the required measurements and test configuration are available, friction-related parameters.

The principal purpose is to generate comparable test data under clearly defined conditions.

It is not a universal certification of joint safety, nor does a successful test establish that a fastener will maintain the same clamp force throughout its service life.

What the Test Can Help Determine

• Applied tightening torque

• Generated clamp force

• Torque–clamp force relationship

• Thread and bearing friction characteristics where appropriately measured

• Total friction characteristics under the specified method

• Variation between tested samples

• Influence of surface treatment and lubrication

The actual parameters reported depend on the test equipment, procedure and customer specification.

Why Tightening Torque Is Not the Same as Clamp Force

Tightening torque is a rotational moment applied to a fastener.

Clamp force is the compressive force acting across the joint, associated with the axial tension developed in the fastener.

During tightening, torque is consumed by several mechanisms, particularly friction at the threads and under the rotating bearing surface.

Therefore, identical tightening torque does not necessarily produce identical clamp force.

A change in lubricant, coating, washer or mating nut may alter the result even when the bolt itself remains unchanged.

The Main Parameters in an ISO 16047 Test

Important Distinction

The test cannot independently determine every friction component unless the necessary measurements and assumptions are supported by the selected configuration.

How ISO 16047 Testing Works

A typical torque–clamp force test uses a suitable tightening arrangement with instrumentation for measuring applied torque and clamp force.

Depending on the required parameters, additional measurements may be used to distinguish torque contributions.

The fastener is tightened under the prescribed conditions while measurement equipment records the relevant values.

The resulting data may be presented as a torque–clamp force curve or as specified numerical results.

A Practical Test Sequence

1. Identify the fastener, mating components and surface conditions.

2. Prepare the test arrangement according to the selected procedure.

3. Verify the required measurement equipment and test conditions.

4. Tighten the fastener while recording the specified parameters.

5. Evaluate the results against the agreed acceptance criteria.

6. Document the configuration, results and relevant observations.

The detailed procedure must follow the applicable edition of ISO 16047 and the customer-approved test specification.

Why the Test Assembly Must Be Defined

The measured behavior belongs to the tested combination, not simply to an isolated bolt.

A bolt tested against one nut and washer combination may produce different results when used with another nut, bearing surface or lubricant.

This distinction is particularly important when comparing suppliers or validating a surface coating change.

Engineering Recommendation

Always identify the mating components and surface conditions in the test request and report.

Torque–Clamp Force Curves: How to Interpret the Results

A torque–clamp force curve illustrates how clamp force develops as tightening torque increases.

The curve can help engineers identify differences in tightening behavior between samples or surface conditions.

For example, if two otherwise comparable test assemblies develop different clamp forces at the same torque, their combined tightening characteristics differ.

However, the curve alone may not identify the root cause. Differences may arise from thread friction, bearing friction, seating behavior or other aspects of the test configuration.

What Engineers Should Review

• Clamp force at the specified evaluation point

• Torque required to reach a defined clamp force

• Variation between samples

• Unexpected changes in the curve

• Test configuration and surface condition

• Any visible thread or bearing damage

Important Limitation

A smooth torque–clamp force curve does not prove that the assembled joint will resist fatigue, vibration loosening, corrosion or long-term relaxation.

Thread Friction and Bearing Friction

The two principal friction interfaces should be considered separately.

Thread Friction

Thread friction occurs between the mating internal and external threads. It is affected by thread geometry, coating, lubricant, roughness and mating material.

Bearing Friction

Bearing friction occurs beneath the rotating bolt head or nut. It depends on the bearing diameter, contact pressure, surface finish, washer condition and lubrication.

A fastener coating may influence both interfaces, but not necessarily by the same amount.

Engineering Recommendation

Where an OEM specification requires individual friction coefficients, confirm that the proposed test configuration supports the necessary measurements.

Torque Coefficient or K-Factor

The simplified torque–preload relationship is commonly expressed as:

T = K × F × d

Where:

• T = tightening torque

• K = dimensionless torque coefficient or nut factor

• F = axial preload

• d = nominal thread diameter

This expression is useful for understanding the approximate relationship between torque and preload under defined conditions.

However, K is not the same as the thread friction coefficient or bearing friction coefficient.

It combines several influences and must not be assumed to remain constant across different coatings, mating surfaces or assembly conditions.

ISO 16047 Versus VDI 2230

These references serve different engineering purposes.

Engineering Recommendation

Use ISO 16047 data as relevant input to the fastening-engineering process, not as a substitute for joint design calculations or production validation.

How Surface Coatings Influence Test Results

Fastener surface treatments affect corrosion resistance, appearance, friction and assembly behavior.

Common coating systems for suitable industrial fasteners include electroplated zinc, zinc-nickel and zinc-flake systems.

 Other finishes and lubricated topcoats may be specified for particular applications.

The coating's friction behavior depends on the complete system, including supplementary sealers or lubricants.

A coating that provides suitable corrosion protection does not automatically provide the friction range required by an OEM tightening specification.

Electroplated Zinc Fasteners

Zinc-plated bolts may exhibit different friction characteristics depending on the plating, passivation, sealer and lubricant system.

Zinc-Nickel Fasteners

Zinc-nickel coatings may be selected for particular corrosion requirements,

but their tightening behavior must be evaluated with the actual supplementary treatment.

Zinc-Flake Coated Fasteners

Zinc-flake systems may incorporate topcoats that influence friction.

Test results should identify the coating system and relevant surface condition.

Stainless Steel Fasteners

Stainless steel threaded fasteners may require attention to galling, surface finish, lubrication and mating material.

Engineering Recommendation

Do not compare coating systems solely by their nominal corrosion rating.

Evaluate torque–clamp force behavior under the specified conditions.

Lubrication and Test Repeatability

Lubrication can change the torque needed to achieve a particular clamp force.

A lubricant applied inconsistently may increase variation between samples. Storage conditions, handling and repeated tightening can also affect surface behavior.

Engineering Recommendation

State whether the test specimens are dry, prelubricated or treated with an assembly lubricant, and define whether the specimens are new or previously tightened.

Tightening Speed and Test Conditions

Tightening speed and other procedural conditions can influence measured results.

The applicable test method and customer specification should establish the required conditions.

Important Limitation

Results obtained under one test procedure should not automatically be treated as equivalent to results obtained under another.

Why Fastener Testing Must Consider Mating Components

A production bolt may be assembled into a welded nut, threaded insert, self-clinching nut or blind rivet nut.

These threaded components may differ from the standardized mating hardware used in a laboratory test.

For example, a rivet nut can rotate in the panel or deform under load before the bolt reaches the intended tightening condition.

Similarly, a self-clinching nut may be limited by its retention in the sheet rather than by the strength of its internal thread.

Engineering Recommendation

Where the actual mating component is a threaded insert or sheet metal fastener,

validate the complete assembly in addition to any applicable standardized torque–clamp force test.

Automotive OEM Fastener Validation

Automotive manufacturers use torque-controlled fastening in body assemblies, chassis-related components, equipment brackets and other threaded joints.

ISO 16047 testing may help evaluate the tightening characteristics of specified bolts and nuts before production release.

For applications with high safety or durability requirements, additional joint-specific design and validation are necessary.

Important Distinction

ISO 16047 testing does not, by itself, qualify a fastener for a safety-critical automotive application.

EV Battery Pack and Electric Vehicle Assemblies

EV battery enclosures, electrical equipment housings and auxiliary mounting structures may require controlled bolt preload.

In a battery cover assembly, for example, insufficient preload may affect gasket compression, while excessive preload may damage thin flanges or threaded attachment points.

Torque–clamp force data can help engineers understand how the specified fastener and surface finish behave during tightening.

However, the complete battery enclosure must also be evaluated for sealing, vibration, thermal expansion and any applicable safety requirements.

Engineering Recommendation

For EV battery assemblies, validate the fastener together with the mating thread, enclosure material and sealing system.

Industrial Machinery and Automated Production

Industrial equipment manufacturers often rely on repeatable tightening operations for motor mounts, machinery frames, brackets and equipment housings.

ISO 16047 testing can support the selection of fasteners with appropriate tightening characteristics.

For production managers, the key question is whether the laboratory results translate into consistent assembly performance on the actual line.

Production Recommendation

Compare laboratory data with representative production tightening trials, including the intended tools, mating components and surface conditions.

Electrical Enclosures and Sheet Metal Fasteners

Electrical cabinets and sheet metal assemblies may use self-clinching nuts, rivet nuts, threaded inserts and other retained fastening components.

For these applications, a bolt's torque–clamp force behavior must be considered alongside the attachment strength of the installed nut or insert.

Additional Validation May Include

• Insert pull-out resistance

• Insert torque-out or spin-out resistance

• Panel deformation

• Thread stripping

• Joint seating

• Repeated service assembly

The required tests depend on the product and application.

Railway, Wind Energy and Structural Equipment

Railway vehicles, wind energy equipment and structural assemblies may contain highly loaded joints with specific design and inspection requirements.

Torque–clamp force testing can provide useful information about tightening behavior,

 but it does not replace project-specific structural calculations, fatigue assessment or applicable assembly qualification.

Engineering Recommendation

Where the application uses a qualified bolt assembly or specialized tightening method, follow the governing project requirements before approving a coating or supplier substitution.

ISO 16047 Testing for Production Managers

Production managers need consistent assembly results, predictable cycle times and manageable quality risks.

Torque–clamp force testing can help identify whether fastener friction variation is a potential contributor to inconsistent tightening.

However, laboratory results must be connected to the production process.

A Practical Production Validation Approach

Begin with approved fastener samples and a defined test configuration. Review torque–clamp force results,

then perform representative assembly trials using the actual production components and tightening equipment.

Evaluate whether the tightening process achieves the required joint performance within acceptable variation.

Where appropriate, establish monitoring limits for torque, angle or other measurable process characteristics.

Important Limitation

Torque monitoring alone does not directly measure clamp force in every production joint.

Batch-to-Batch Variation

Fasteners produced or coated in different batches may show variation in tightening behavior.

Potential contributors include:

• Coating thickness and distribution

• Lubricant application

• Surface roughness

• Mating-part variation

• Handling and storage

• Thread condition

Quality Recommendation

Where friction performance is a critical characteristic, define an appropriate sampling and acceptance plan.

How to Review an ISO 16047 Test Report

A useful test report should allow the customer to understand exactly what was tested and under which conditions.

Important Distinction

A report stating only that a product “passed ISO 16047” is insufficient unless the relevant acceptance criteria and test conditions are defined.

ISO 16047 specifies a testing method; it does not establish a universal pass/fail friction range for every fastener.

Common Problems Revealed During Torque–Clamp Force Evaluation

These observations are diagnostic clues, not definitive root-cause conclusions.

Supplier Qualification and Alternative Fastener Approval

For procurement specialists, purchasing managers and supplier development teams, a new supplier's bolt should not be approved solely

because it has the same dimensions and mechanical property class as the current product.

Differences in coatings, lubricants or mating-surface interactions may change the clamp force developed at the same torque.

Supplier Review Checklist

• Approved drawing and revision

• Applicable fastener standard

• Material and mechanical property class

• Coating specification

• Lubrication requirements

• ISO 16047 test configuration

• Required acceptance criteria

• Sample approval

• Production consistency requirements

• Inspection documentation

• Packaging and storage conditions

• Change notification requirements

• Annual demand, MOQ and delivery schedule

Engineering Recommendation

Where tightening behavior is critical, evaluate the proposed alternative fastener in the actual joint before approving a supplier change.

ISO 16047 and OEM Custom Fasteners

Juxin Fasteners welcomes inquiries for standard and drawing-specific threaded fasteners with defined mechanical, dimensional and surface treatment requirements.

Relevant product categories include:

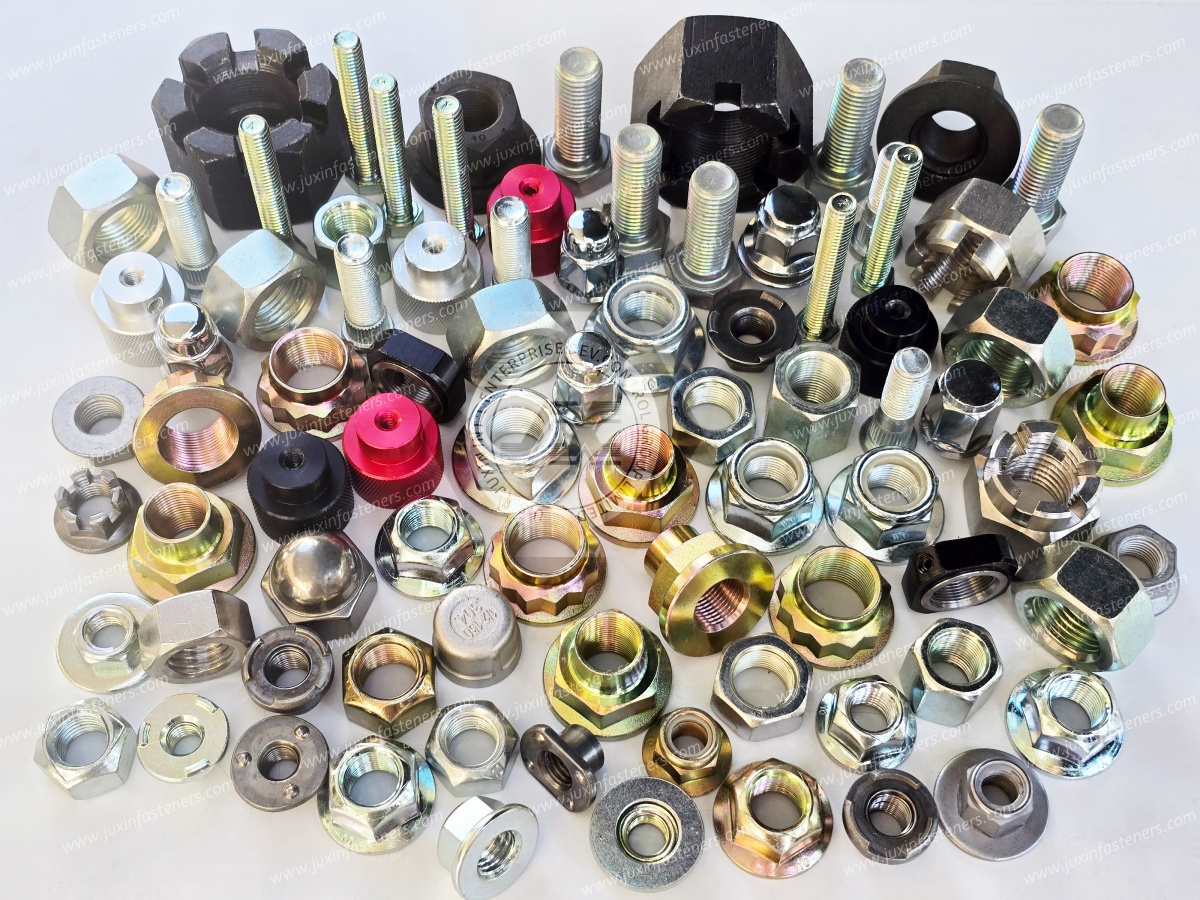

• High-strength bolts and screws

• Automotive bolts and nuts

• Custom threaded fasteners

• Weld nuts and weld studs

• Self-clinching fasteners

• Blind rivet nuts

• Threaded inserts

• Industrial fastening components

ISO 16047 testing is particularly relevant to suitable threaded fastener combinations.

For welded, clinched or riveted threaded attachments, additional assembly-specific testing may be needed to evaluate the attachment to the parent material.

The availability of specific testing services, reports, inspection plans or customer documentation must be confirmed during quotation.

Frequently Asked Questions

What does ISO 16047 measure?

It specifies methods for evaluating the relationship between tightening torque and clamp force, together with applicable friction-related characteristics under defined test conditions.

Does ISO 16047 specify one acceptable friction coefficient for all bolts?

No. Acceptance criteria depend on the customer's fastener and assembly requirements.

Can ISO 16047 testing determine the correct tightening torque for my assembly?

It provides useful test data, but the correct tightening specification also depends on the joint design, required preload and production conditions.

Does a successful ISO 16047 test guarantee vibration resistance?

No. Resistance to vibration loosening and fatigue requires additional joint-specific evaluation.

Can zinc-plated and zinc-flake coated bolts have different torque–clamp force results?

Yes. Their coating and lubricant systems may produce different friction behavior.

Can the same bolt produce different results with different nuts or washers?

Yes. The mating threads and bearing surfaces influence the measured relationship.

Is ISO 16047 testing suitable for rivet nuts and self-clinching nuts?

The torque–clamp force behavior of a mating threaded fastener may be evaluated under an appropriate configuration, but the installed insert or clinch attachment also requires its own functional validation.

What should a purchasing manager request from a supplier?

The approved drawing, coating specification, test configuration, measured results, acceptance criteria and relevant inspection documentation.

Can Juxin Fasteners support OEM projects with ISO 16047 testing requirements?

Juxin Fasteners welcomes inquiries involving defined torque–clamp force testing requirements.

The specific test arrangement, documentation and supply scope are subject to confirmation.

Juxin Fasteners: OEM Fastener Supply and Testing Requirements

Juxin Fasteners supplies industrial fastening components for OEM and manufacturing applications.

Our product range includes bolts, screws, nuts, threaded inserts, self-clinching fasteners, rivet nuts and drawing-specific fastening components.

For projects involving torque–clamp force performance, customers can submit their fastener drawings, coating specifications,

test requirements and expected order quantities for technical and commercial review.

Exact product availability, testing scope, documentation, MOQ and delivery schedules are confirmed during quotation.

Request a Quote for OEM Fasteners with Torque–Clamp Force Requirements

Are you sourcing automotive bolts, high-strength industrial fasteners, custom screws and nuts or threaded components with specified ISO 16047 torque–clamp force testing requirements?

Juxin Fasteners welcomes inquiries from design engineers, mechanical engineers, manufacturing engineers, production managers, purchasing managers and supplier development teams.

For technical review and quotation, please provide:

Fastener drawing and revision + thread designation + material and property class + coating and lubricant specification + mating nut and bearing surface details

+ required torque–clamp force test method + friction or preload acceptance criteria + production tightening conditions + inspection documentation

+ sample quantity + annual demand + packaging + target delivery schedule.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your OEM fastener drawings, torque–clamp force requirements and RFQ to Juxin Fasteners for technical review and quotation.
