Jul. 12, 2023
Vibration, shock, cyclic loading, and thermal changes can gradually reduce the reliability of threaded joints in automotive systems, industrial machinery,
automation equipment, electrical enclosures, transportation equipment, pumps, motors, and other mechanical assemblies.
When a threaded joint is exposed to dynamic loading, the question is not simply whether the nut is tight enough.
Engineers must consider preload, joint stiffness, friction, transverse movement, thread engagement, surface condition, and the ability of the selected locking mechanism to resist rotational loosening.
Nylon insert locknuts, also known as nyloc nuts or nylon locknuts, provide a practical prevailing-torque mechanism through a polymer insert that interferes
with the mating bolt thread. Flange locknuts can additionally provide an integrated bearing surface, while all-metal prevailing-torque nuts may be considered for applications where polymer temperature limitations are unsuitable.
JUXIN FASTENERS supplies nylon insert locknuts, flange locknuts, stainless steel locknuts, carbon steel locknuts, high-strength nuts, self-clinching nuts,
weld nuts, rivet nuts, and other threaded fastening solutions for industrial and OEM applications.
The correct anti-vibration fastener should be selected from the complete joint requirement rather than from the product name alone.
Threaded fastener loosening is influenced by the way external loads act on the joint.
A properly designed threaded joint creates clamp force through bolt preload. When the assembly is exposed to service loads, the joint must maintain sufficient clamping force and prevent excessive relative movement between the mating components.
Under certain transverse vibration conditions, small movements can occur between the fastener and joint surfaces. These movements can progressively reduce the resistance to rotational movement of the nut or bolt.
Other factors can contribute to loosening or loss of joint integrity, including:
Insufficient initial preload
Excessive transverse loading
Joint settling
Surface embedding
Incorrect tightening torque
Friction variation
Damaged threads
Insufficient thread engagement
Thermal expansion and contraction
Incorrect fastener selection
Changes in surface treatment or lubrication
This is why an anti-vibration fastener should be considered as part of the complete joint design.
One of the most important engineering principles in vibration-resistant fastening is that a locking feature does not replace proper joint design.
A nylon insert locknut can provide prevailing torque, but it cannot compensate indefinitely for:
Very low bolt preload
Excessive joint movement
Poor joint stiffness
Incorrect bolt length
Damaged threads
Severe substrate deformation
Inadequate bearing area
Incorrect installation
The locking feature and the preload perform different functions.
Preload creates the clamping force.
Prevailing torque increases resistance to rotational movement.
Both may be important, but they should not be treated as the same performance parameter.
A nylon insert locknut contains a polymer insert positioned within the internal thread area.
When the mating bolt enters the insert:
The bolt thread contacts the polymer.
The polymer deforms around the thread.
Interference creates additional friction.
This friction generates prevailing torque.
The prevailing torque increases resistance to free rotation of the nut.
The mechanism therefore provides resistance before the nut is fully seated.
After the nut reaches the joint surface, the final clamping condition depends on the complete fastening system.
The actual installation torque can therefore include both:
Torque associated with overcoming prevailing resistance
Torque associated with generating bolt preload
This distinction should be considered when developing assembly torque specifications.
Prevailing torque is the torque required to rotate a prevailing-torque nut while the nut is not yet fully seated against the joint.
It is generated by the locking feature.
For a nylon insert nut, the polymer creates interference with the bolt thread.
Prevailing torque should not be confused with the torque used to achieve final bolt preload.
For simplified torque-preload analysis:
T ≈ K × F × d
where:
T = tightening torque
K = torque coefficient affected by friction and assembly conditions
F = bolt preload
d = nominal bolt diameter
The value of K is not a universal constant. It can change with:
Surface finish
Coating
Lubrication
Thread condition
Material pairing
Contact surfaces
Assembly method
Locking feature
This is one reason why simply copying a tightening torque from another fastener configuration can produce unexpected results.
Nylon insert locknuts are commonly selected when an assembly requires additional resistance to rotational loosening.
They can be considered for:
Industrial machinery
Automotive equipment
Automation systems
Electrical equipment
HVAC equipment
Pumps
Motors
Brackets
Sheet metal assemblies
Robotics
Equipment frames
Maintenance-access assemblies
However, the term “anti-vibration” should not be interpreted as an unlimited performance guarantee.
Actual joint behavior depends on the severity and direction of vibration, preload, joint stiffness, fastener configuration, friction, temperature, and service conditions.
For highly dynamic or safety-critical joints, the complete joint should be validated according to the customer's engineering requirements.
A conventional hex nut provides threaded engagement and clamping when installed with a compatible bolt.
A nylon insert locknut adds prevailing-torque resistance.
| Feature | Standard Hex Nut | Nylon Insert Locknut |
|---|---|---|
| Internal thread | Free-running | Polymer interference |
| Prevailing torque | Normally low | Additional resistance |
| Resistance to rotational loosening | Joint-dependent | Additional locking mechanism |
| Temperature sensitivity | Material-dependent | Polymer-dependent |
| Reuse behavior | Generally predictable | Locking behavior may change with reuse |
| Installation torque | Mainly friction-related | Includes prevailing torque |
| Typical purpose | General fastening | Additional resistance to loosening |
Neither design is universally superior.
The correct choice depends on the application.
The applicable standard depends on the nut configuration and thread system.
Common international references include:
ISO 2320 for prevailing torque type steel nuts
ISO 10511 for prevailing torque type hexagon thin nuts with non-metallic insert
DIN 985 for prevailing torque type hexagon nuts with non-metallic insert
DIN 982 for the applicable higher-profile prevailing torque hexagon nut configuration
DIN 6926 for prevailing torque type hexagon flange nuts with non-metallic insert
ASME B18.16.6 for inch-series prevailing-torque locknuts
The standard should always be matched to the actual product configuration.
A supplier should not describe every nylon insert locknut as being interchangeable across these standards.
For OEM projects, the customer's drawing and purchasing specification should define the final configuration.
Metric nylon insert locknuts are commonly used throughout European, Asian, North American, and international industrial supply chains.
Typical nominal sizes may include:
M4
M5
M6
M8
M10
M12
M14
M16
The nominal size alone is not enough for sourcing.
The RFQ should also specify:
Thread pitch
Nut height
Standard
Material
Property class
Insert requirement
Surface finish
Application
Quantity
For example, “M8 locknut” does not fully define whether the requirement is a standard hex nylon insert nut, a flange locknut, a thin locknut, a stainless locknut, or another configuration.
North American equipment and global OEM platforms may use Unified inch threads.
Common examples include:
1/4-20 UNC
5/16-18 UNC
3/8-16 UNC
1/2-13 UNC
The thread form, class, nut configuration, material, and applicable standard should be identified in the drawing or purchasing specification.
For inch-series applications, applicable ASME/ANSI requirements should be confirmed before production.

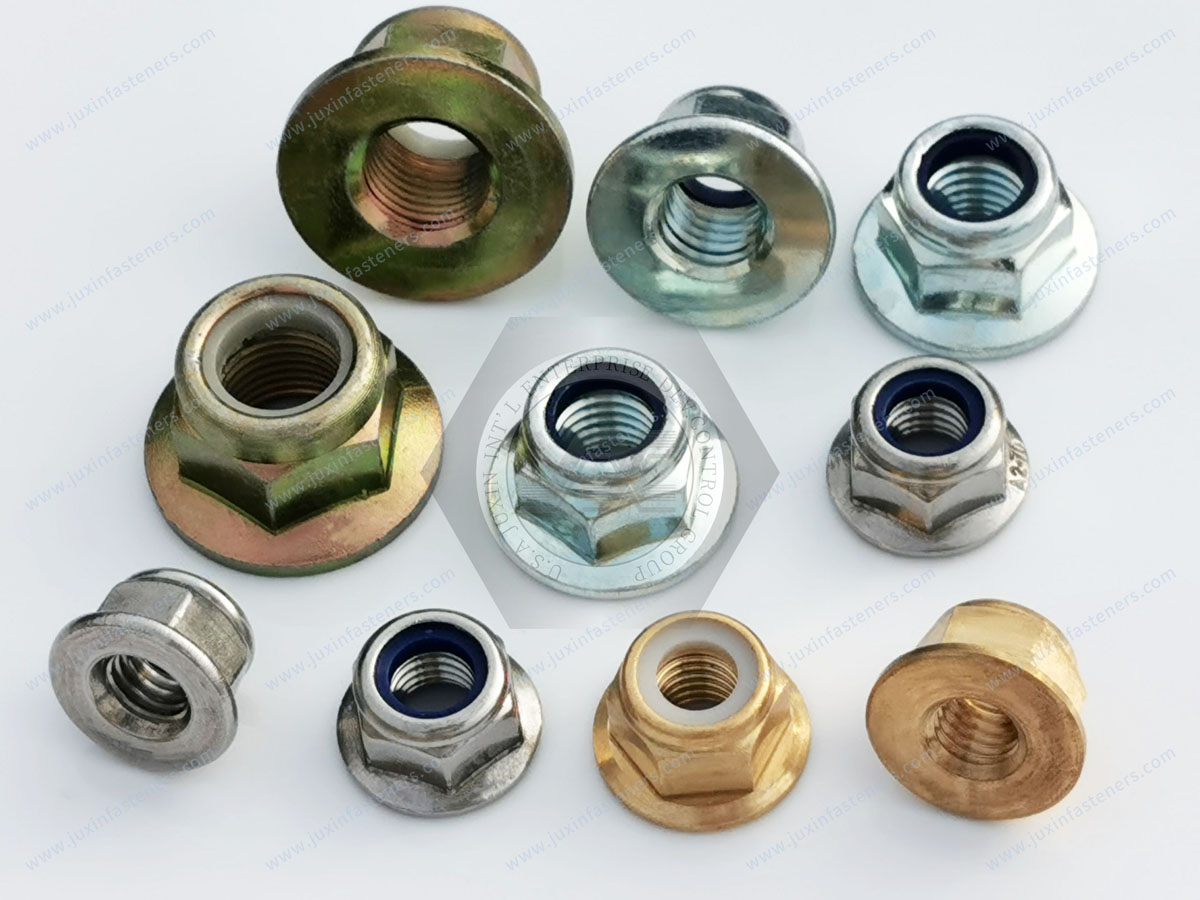

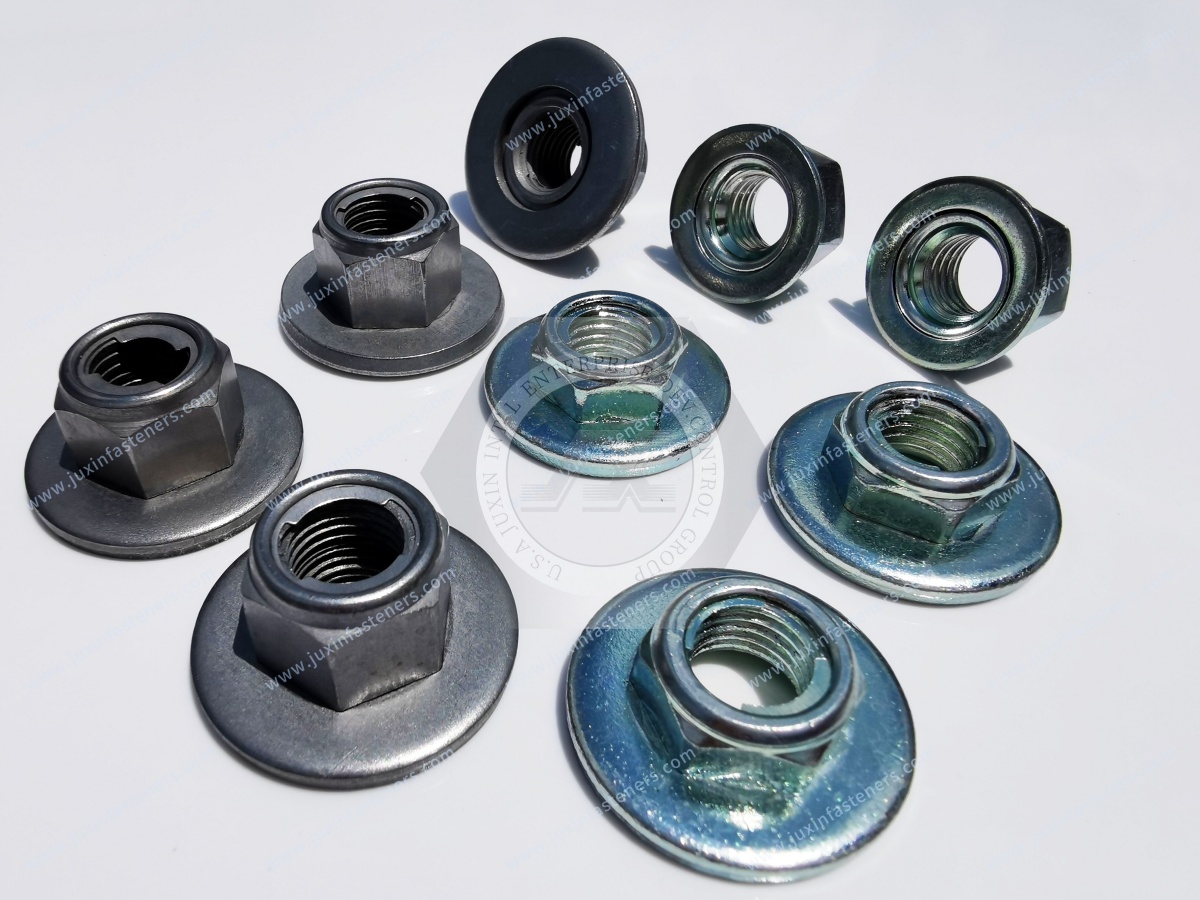

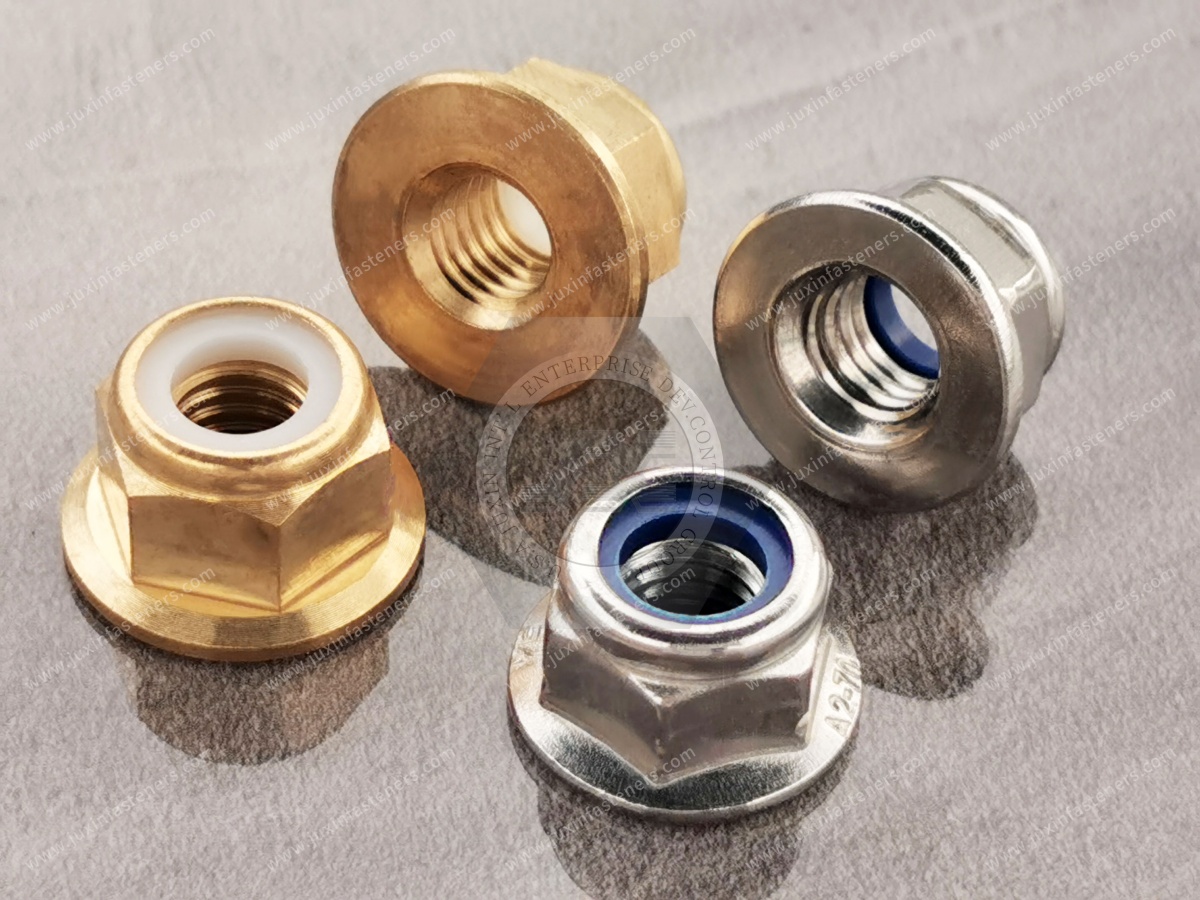

A flange locknut combines a threaded nut with an integrated bearing flange.
The flange increases the bearing area compared with a standard hex nut.
This can be useful where the joint requires:
Larger bearing area
Integrated washer-like geometry
Reduced number of loose components
Additional prevailing-torque resistance
Easier assembly
Nylon insert flange locknuts may therefore be considered for automotive brackets, machinery frames, electrical equipment, sheet metal structures, and other industrial assemblies.
However, flange geometry does not automatically prevent deformation of soft materials.
The substrate still needs to be evaluated.
When a steel fastener is installed against aluminum, magnesium, plastic, or thin sheet metal, the bearing surface may become a critical part of the joint.
A larger flange can distribute the bearing load over a wider area, but the result still depends on:
Flange diameter
Sheet thickness
Material strength
Hole size
Surface condition
Bolt preload
Joint stiffness
Fastener geometry
If a joint repeatedly develops deformation around the fastener, simply changing to a flange locknut may not solve the underlying problem.
The engineer should review the entire bearing interface.
Carbon steel is widely used for industrial locknuts where strength, cost, availability, and coating options are important.
Potential surface treatments include:
Zinc plating
Trivalent chromium passivation
Zinc-nickel coating
Zinc-flake coating
Black finishes
Customer-specified surface treatments
The final finish should be selected according to the actual corrosion environment and customer requirements.
Surface treatment can also affect friction and therefore influence assembly behavior.
This is important when a coating change is made after an assembly torque has already been established.
Stainless steel nylon insert locknuts can be considered where corrosion resistance and material compatibility are important.
Common stainless fastener material families include:
A2 stainless steel
A4 stainless steel
Applicable requirements can be evaluated against the relevant ISO 3506 specifications where appropriate.
The environment should still be evaluated.
Stainless steel does not automatically mean that a fastener is suitable for every chemical or marine environment.
Engineers should consider:
Chlorides
Salt exposure
Humidity
Chemical contact
Temperature
Dissimilar-metal contact
Galvanic corrosion
The polymer insert is an important performance limitation when the joint operates at elevated temperature.
For applications where a nylon insert is unsuitable, an all-metal prevailing-torque nut may be considered.
These applications can include certain:
Engine-adjacent assemblies
Exhaust-related areas
High-temperature machinery
Industrial thermal equipment
Power equipment
Specialized mechanical assemblies
The actual selection should be based on the required temperature range, locking mechanism, material, property class, corrosion environment, and installation requirements.
An all-metal locknut should not be selected simply because the application is described as “high temperature.”
Temperature should not be considered only as a simple maximum-temperature number.
Thermal conditions can influence:
Polymer behavior
Friction
Bolt preload
Joint dimensions
Material expansion
Coating behavior
Long-term joint stability
For example, an assembly containing steel fasteners and an aluminum component can experience different thermal expansion rates.
The resulting change in joint condition may be more important than the nominal temperature alone.
For demanding applications, the engineer should evaluate the complete joint over its expected thermal cycle.
Nylon insert locknuts can be used in suitable automotive applications where the temperature, vibration, material, and service requirements are compatible with the product.
Potential applications include:
Automotive brackets
Interior mechanisms
Electrical equipment
HVAC components
Auxiliary equipment
Body-related assemblies
Non-safety-critical structural brackets
Production and service equipment
For safety-critical joints, the fastener must be evaluated against the specific customer and vehicle engineering requirements.
The phrase “automotive locknut” describes an application, not a universal certification.
Electric vehicles contain numerous fastening points exposed to vibration, thermal cycling, electrical equipment environments, and packaging constraints.
Potential areas include:
Battery-related equipment
Electrical enclosures
Thermal-management assemblies
Motor-related auxiliary equipment
Structural brackets
Cable and harness support components
HVAC systems
Charging equipment
Battery and high-voltage applications may have additional requirements for electrical isolation, material compatibility, corrosion resistance, temperature, and assembly process.
The correct locknut should therefore be selected from the complete component specification.
Industrial machines may contain motors, pumps, gearboxes, fans, actuators, brackets, guards, covers, and rotating components.
These systems can generate continuous vibration.
Nylon insert locknuts may be considered where:
Operating temperature is suitable
Polymer compatibility is acceptable
Required prevailing torque can be achieved
Maintenance requirements are compatible
The joint design supports the required preload
For high-energy rotating equipment, the fastening system should be evaluated according to the equipment manufacturer's engineering requirements.
Automation equipment often experiences repeated acceleration and deceleration.
Robotic systems can also expose joints to cyclic movement over long service periods.
Fastener selection should therefore consider:
Joint movement
Vibration
Assembly accessibility
Maintenance cycles
Weight
Temperature
Fastener size
Thread engagement
Required locking method
A nylon insert locknut can be a practical option for suitable applications, while other self-locking solutions may be more appropriate for severe environments.
Electrical cabinets and industrial control enclosures can experience vibration from:
Fans
Motors
Compressors
Pumps
Transport
Machinery operation
Self-locking nuts can help prevent unwanted rotational movement of threaded components.
Potential applications include:
Internal brackets
DIN-rail support structures
Cable management brackets
Fan assemblies
Control-panel components
Sheet metal structures
Equipment mounting points
Where electrical insulation is required, the complete component configuration should be evaluated rather than assuming that a polymer insert provides electrical isolation for the entire joint.
HVAC equipment often includes fans, compressors, motors, pumps, heat exchangers, brackets, and sheet metal assemblies.
These components can generate vibration during operation.
Nylon insert locknuts can be considered for suitable temperature zones and mechanical joints.
For areas exposed to elevated temperature, refrigerant-related environments, chemicals, or continuous thermal cycling, material and finish compatibility should be reviewed before selection.
Transportation systems can contain large numbers of threaded joints exposed to vibration and repeated service cycles.
Potential applications include:
Electrical cabinets
Equipment brackets
Interior assemblies
Service panels
Mechanical equipment
Auxiliary systems
Rail and transportation projects may also include customer-specific requirements covering materials, corrosion resistance, fire performance, traceability, inspection, and documentation.
These requirements should be specified during supplier qualification and RFQ review.
Suppose an assembly arrives at a customer's service department with a loose nut.
The immediate reaction may be:
“We need a stronger locknut.”
That may not be the correct conclusion.
A better troubleshooting sequence is:
Was the original installation torque correct?
Is the bolt property class appropriate?
Is sufficient thread engagement available?
Is the joint experiencing transverse movement?
Is the material embedding or deforming?
Has lubrication, coating, contamination, or surface treatment changed?
Does the operating temperature exceed the suitable range of the locking element?
Only after understanding the failure mode should the engineer decide whether a nylon insert locknut, flange locknut, all-metal prevailing-torque nut, or another locking solution is appropriate.
This approach can prevent unnecessary changes to otherwise suitable fastener designs.
Nylon insert locknuts are not necessarily intended for unlimited repeated installation.
During repeated removal and installation, the polymer insert can experience changes in its thread-contact condition.
The resulting prevailing-torque behavior may change.
Factors include:
Number of cycles
Bolt condition
Thread condition
Assembly torque
Temperature
Contamination
Insert material
Application requirements
There is no universal number of reuse cycles that should be applied to every product and application.
Where locking performance is critical, the customer's engineering specification should define the maintenance and replacement policy.
A locknut cannot be evaluated independently from the bolt.
The bolt affects:
Thread engagement
Friction
Thread geometry
Material compatibility
Installation torque
Preload
Prevailing torque interaction
For example, changing from a standard plated carbon-steel bolt to a different coating or stainless steel bolt can alter friction and assembly behavior.
Therefore, when changing the bolt supplier or surface treatment, procurement teams should avoid assuming that the previous torque specification will remain unchanged.
For carbon and alloy steel fasteners, applicable mechanical property classes should be considered according to relevant ISO 898 requirements.
The bolt and nut should be selected as a compatible pair.
A higher-strength nut does not automatically improve a joint if:
The bolt is weaker
The joint material is weaker
The required preload is lower
The joint geometry is unsuitable
The assembly method is uncontrolled
Fastener strength should therefore be matched to the actual engineering requirement.
Corrosion can alter fastener dimensions, friction, thread condition, and long-term joint performance.
Potential finishes include:
Zinc plating
Trivalent chromium passivation
Zinc-nickel alloy coating
Zinc-flake coating
Stainless steel
Customer-specified protective systems
The correct choice depends on the environment.
Applications exposed to:
Humidity
Road salt
Industrial chemicals
Outdoor conditions
Condensation
Marine environments
may require more careful material and surface-treatment selection.
ASTM B117 may be used as part of corrosion testing where specified, but salt-spray test hours should not be treated as a universal prediction of field life.
A procurement specification should communicate the actual engineering requirement.
Instead of:
“M10 anti-vibration nut”
a stronger specification may identify:
M10 thread
Thread pitch
Nut configuration
Applicable standard
Material
Property class
Nylon insert requirement
Surface finish
Operating temperature
Application
Corrosion requirement
Quantity
Packaging
Inspection requirements
Documentation requirements
This reduces ambiguity during quotation and supplier comparison.
For an accurate JUXIN FASTENERS quotation, provide the following whenever available:
Part number
Drawing
Drawing revision
Thread size
Thread pitch
Metric or inch thread
Nut type
Applicable standard
Material
Property class
Nylon insert requirement
Surface treatment
Corrosion requirement
Operating temperature
Application
Assembly method
Annual volume
Order quantity
Packaging requirement
Inspection requirement
Required documentation
Delivery location
Customer-specific quality requirements
A drawing is particularly useful when the nut has a custom flange, special geometry, non-standard insert configuration, or application-specific requirements.
For procurement and supplier development teams, supplier qualification should cover both product capability and supply-chain control.
Confirm whether the supplier can support:
Required thread sizes
Metric and inch threads
Standard locknut configurations
Flange locknuts
Stainless steel options
Carbon steel options
Surface treatments
Custom configurations
Review the supplier's ability to control:
Dimensions
Threads
Materials
Surface treatments
Insert configuration
Lot identification
Customer-specific inspection requirements
Define the required documentation before production, such as:
Certificate of Conformance
Material documentation
Dimensional inspection records
Surface-treatment documentation
Lot or batch identification
Customer-specific records
Review:
Production quantity
Packaging
Delivery planning
Communication
Change control
Drawing revision control
Long-term supply requirements
This approach gives procurement teams a more meaningful supplier comparison than unit price alone.
The primary questions are:
What causes the loosening?
What type of vibration exists?
What preload is required?
What locking mechanism is appropriate?
What temperature does the joint experience?
Which material is compatible?
What thread and nut geometry are required?
The primary questions are:
Can the supplier produce the specified configuration?
Can the supplier control thread and dimensions?
Can the required material and finish be supplied?
Can documentation requirements be supported?
Can production quantities be maintained?
Can drawing revisions and changes be controlled?
The focus should include:
Product consistency
Technical communication
Inspection capability
Documentation
Packaging
Traceability
Production stability
Change management
Long-term supply capability
A strong OEM fastening program addresses all three levels.
JUXIN FASTENERS supplies fastening solutions for customers requiring standard and custom configurations.
Relevant products include:

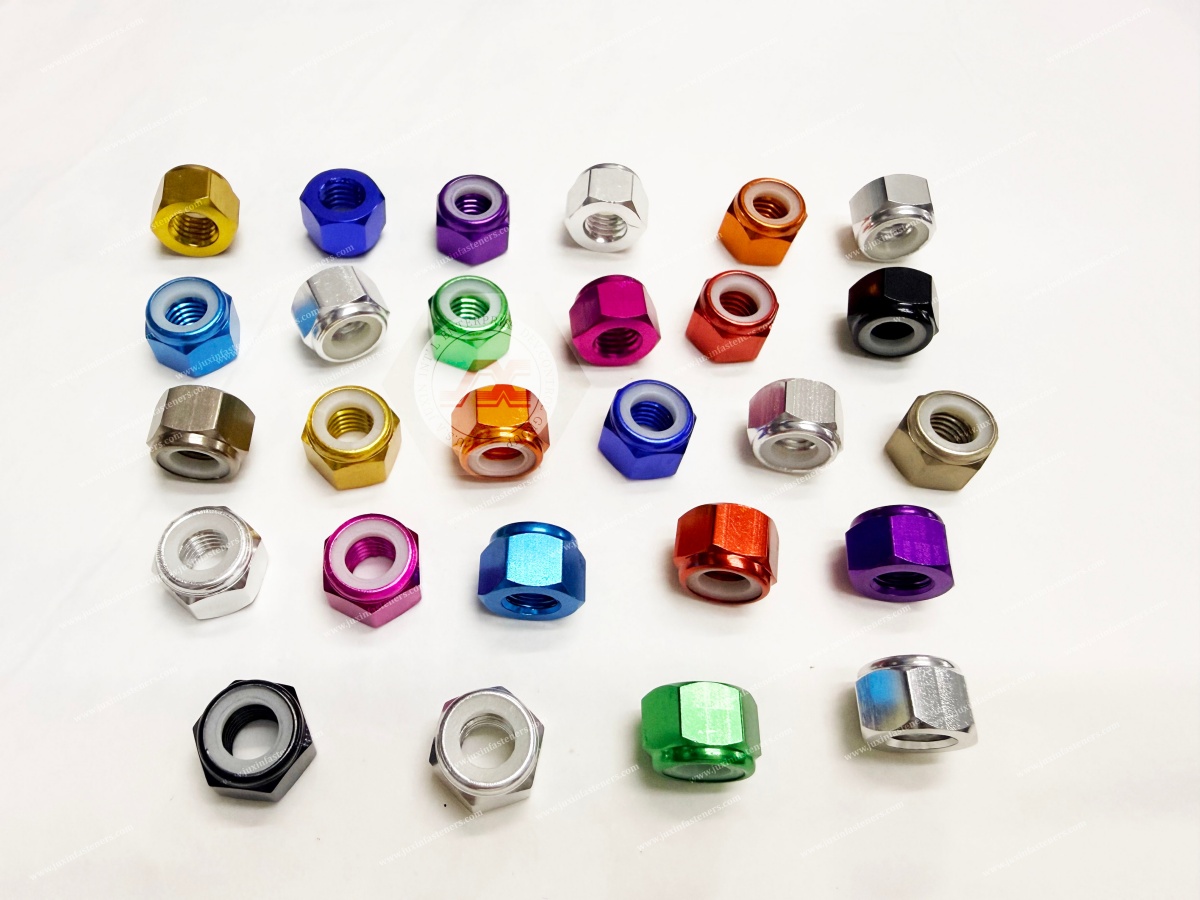

Nylon insert locknuts
Nyloc nuts
Nylon insert flange locknuts
Stainless steel locknuts
Carbon steel locknuts
Prevailing torque nuts
High-strength nuts
Self-clinching nuts
Weld nuts
Rivet nuts
Custom bolts and screws
CNC machined threaded components
Depending on the project, the product can be specified according to:
Thread
Standard
Material
Property class
Insert configuration
Nut geometry
Surface treatment
Quantity
Inspection
Documentation
Packaging
JUXIN FASTENERS has more than 20 years of fastener manufacturing experience and supports OEM and industrial customers in translating application requirements into practical fastening specifications.
A reliable sourcing process can be structured as:
1. Identify the loosening problem
What is moving, loosening, or changing during service?
2. Understand the joint
What are the materials, loads, temperature, vibration, and service conditions?
3. Select the locking mechanism
Nylon insert, flange locknut, all-metal prevailing torque nut, or another fastening method?
4. Define the thread
Metric or inch? What size and pitch?
5. Define the material
Carbon steel, alloy steel, stainless steel, or customer-specified material?
6. Define the surface treatment
What environmental and corrosion requirements apply?
7. Define assembly requirements
What installation method and torque strategy are used?
8. Define inspection
Which dimensions, material, finish, and locking characteristics require verification?
9. Define procurement
What quantity, packaging, documentation, traceability, and delivery requirements are required?
10. Submit the RFQ
Provide the drawing or specification so the supplier can quote the correct configuration.
For OEM and industrial customers, a reliable fastener supplier should understand both the engineering requirement and the purchasing specification.
JUXIN FASTENERS can support the sourcing process around:
Nylon insert locknuts
Prevailing torque nuts
Flange locknuts
Stainless steel locknuts
Carbon steel locknuts
High-strength nuts
Custom threaded components
Automotive fastening
Industrial machinery fastening
Electrical equipment fastening
Automation and robotics fastening
Sheet metal fastening
The goal is not simply to replace a loose nut with a “stronger” product.
The goal is to identify a fastening configuration that matches the joint, application, material, environment, assembly method, and procurement requirements.
If your application involves vibration, shock loading, thermal cycling, repeated movement, or a requirement for additional resistance to rotational loosening, send JUXIN FASTENERS your drawing or specification.
For an efficient technical and commercial review, include:
Product drawing or specification
Thread size and pitch
Nut configuration
Material
Surface treatment
Application
Operating environment
Quantity
Required standard
Inspection requirements
Documentation requirements
JUXIN FASTENERS can evaluate the specified fastening requirement and provide a suitable quotation based on the information supplied.
JUXIN FASTENERS
More than 20 years of fastener manufacturing experience
Email: info@juxinfasteners.com
Website: juxinfasteners.com
MORE NEWS
Sep. 25, 2026
Sep. 25, 2026
Sep. 25, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
