Nylon Flat Washers & Insulating Shoulder Washers: Engineering Selection and OEM Sourcing Guide

Nylon flat washers, plastic washers, and insulating shoulder washers are used across industrial assemblies where designers need to distribute fastener bearing loads,

separate metallic components, protect sensitive surfaces, control spacing, or create a non-metallic interface around a screw, bolt, stud, or panel hole.

Typical applications can be found in electrical equipment, electronics, switchgear, power distribution systems, semiconductor equipment, medical equipment,

 telecommunications hardware, industrial automation, renewable energy systems, automotive electronics, lighting, instrumentation, AI servers, data center equipment, appliances, and other OEM assemblies.

Although a washer appears mechanically simple, its function can affect the complete bolted joint.

A plastic washer introduces an additional polymer layer between the fastener and mating component. Its behavior can therefore influence:

• bearing pressure

• local surface protection

• clamp-load distribution

• joint settlement

• electrical separation

• component spacing

• thermal conduction

• creep

• stress relaxation

• dimensional stack-up

• long-term joint behavior

For this reason, a nylon washer should not be selected only by nominal screw size.

A more useful engineering sequence is:

Joint Function → Screw or Bolt Size → Washer ID → Washer OD → Washer Thickness → Bearing Surface → Material → Environment → Clamp Load → Long-Term Validation

For insulating shoulder washers, additional interface dimensions must also be considered:

Screw Diameter → Shoulder ID → Shoulder OD → Panel Hole → Shoulder Length → Panel Thickness → Flange Geometry → Electrical / Mechanical Requirement

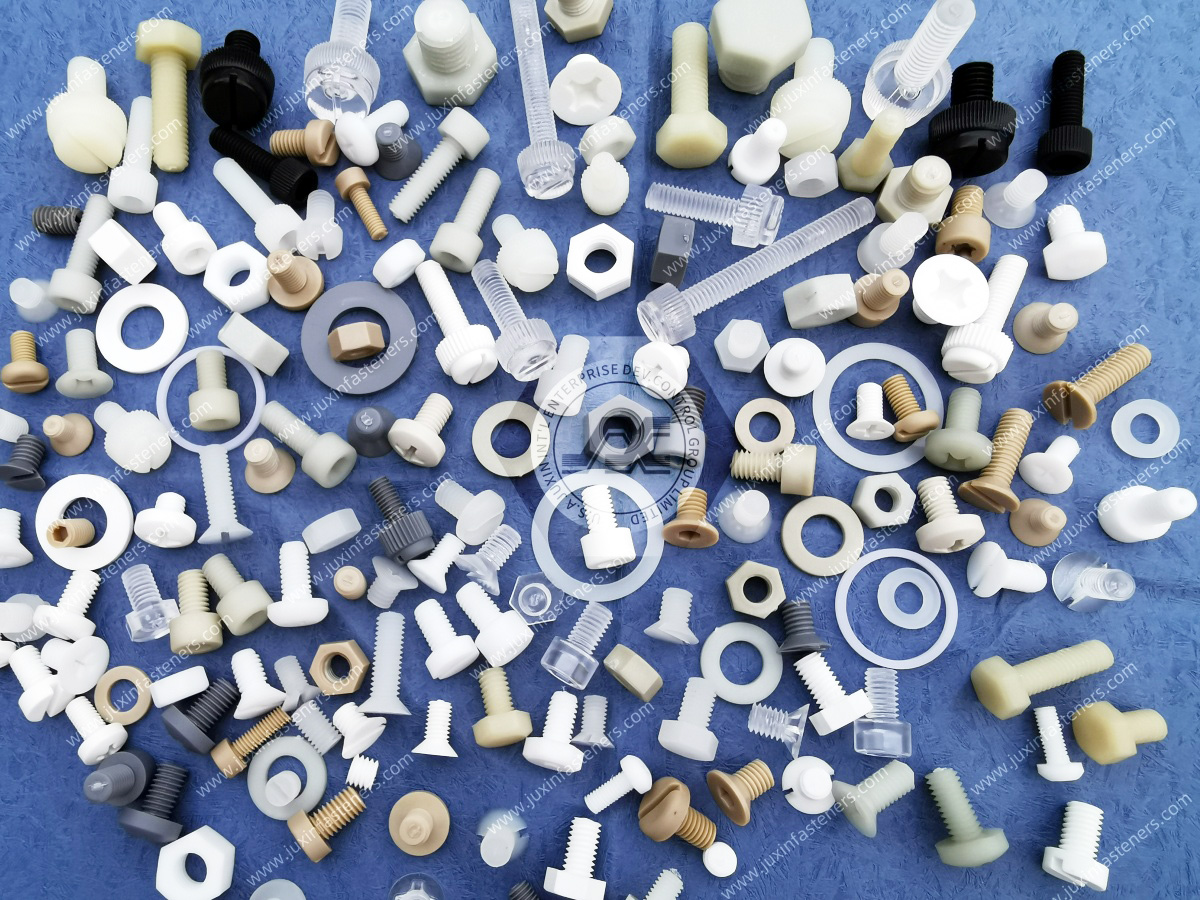

Juxin Fasteners supplies standard and custom nylon flat washers, plastic washers, insulating shoulder washers, finishing washers, nylon screws, plastic nuts,

spacers, standoffs, and drawing-based molded plastic components for industrial OEM applications.

Engineering and procurement teams can submit an existing manufacturer part number, physical sample, 2D drawing, 3D CAD model,

dimensional requirements, mating hardware, material specification, or application information for evaluation.

Why Use Nylon or Plastic Washers?

Plastic washers may provide useful engineering functions where a metallic washer is not the preferred interface.

Depending on material and joint design, these can include:

• load distribution over selected mating surfaces

• separation between metallic components

• protection of painted, plated, coated, polymer, or other sensitive surfaces

• reduced component mass

• non-metallic spacing

• reduced thermal conduction compared with many metals

• electrical separation in appropriately engineered assemblies

• compatibility with nylon screws and plastic nuts

• corrosion-sensitive assembly interfaces

• custom dimensional control

These benefits are application dependent.

A plastic washer should not automatically be treated as:

• a certified electrical insulator

• a universal galvanic-corrosion solution

• a vibration-locking device

• a spring element

• a direct replacement for a hardened steel washer

• a solution for every high-preload bolted joint

The complete joint must be evaluated.

Core Nylon and Plastic Washer Configurations

Plastic washers are available in multiple geometries because load distribution, electrical separation, spacing, screw isolation, appearance, and retention are different engineering functions.

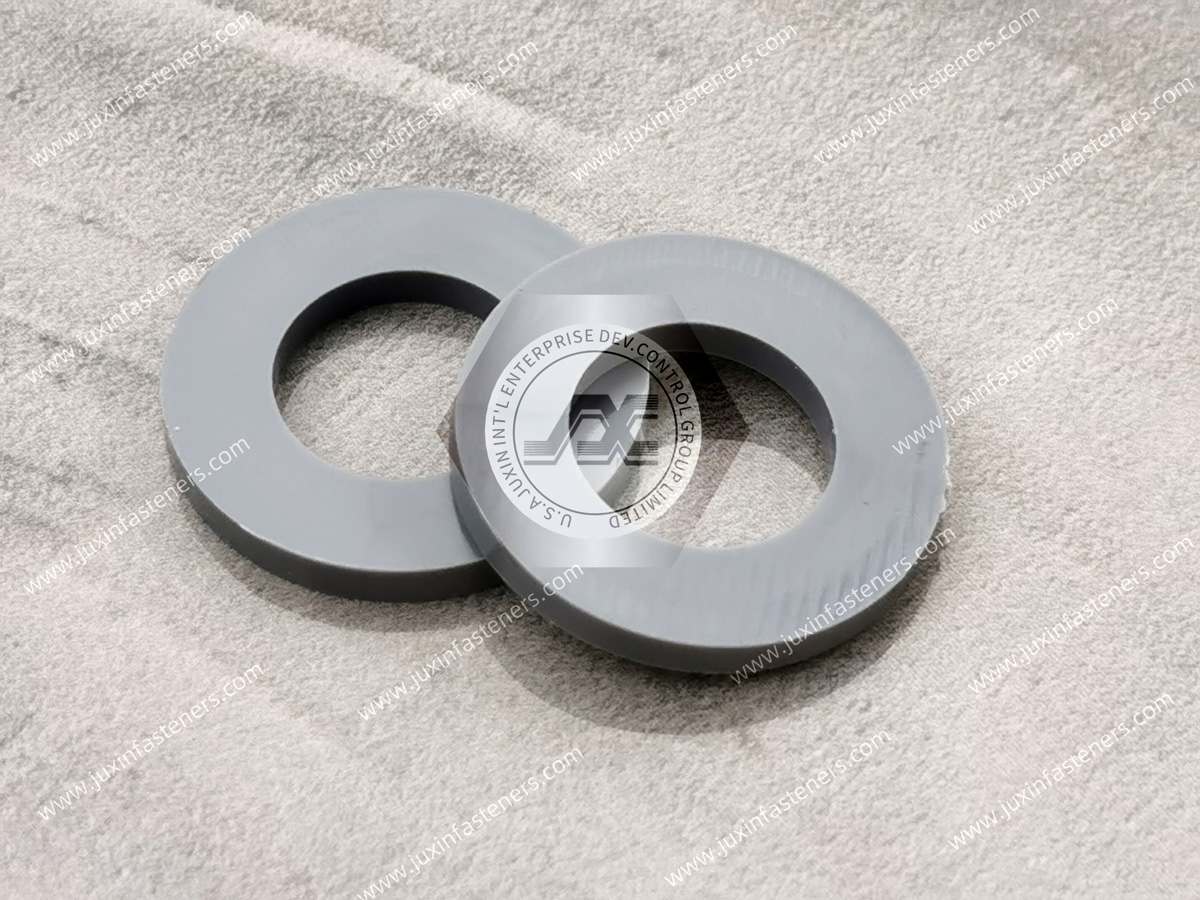

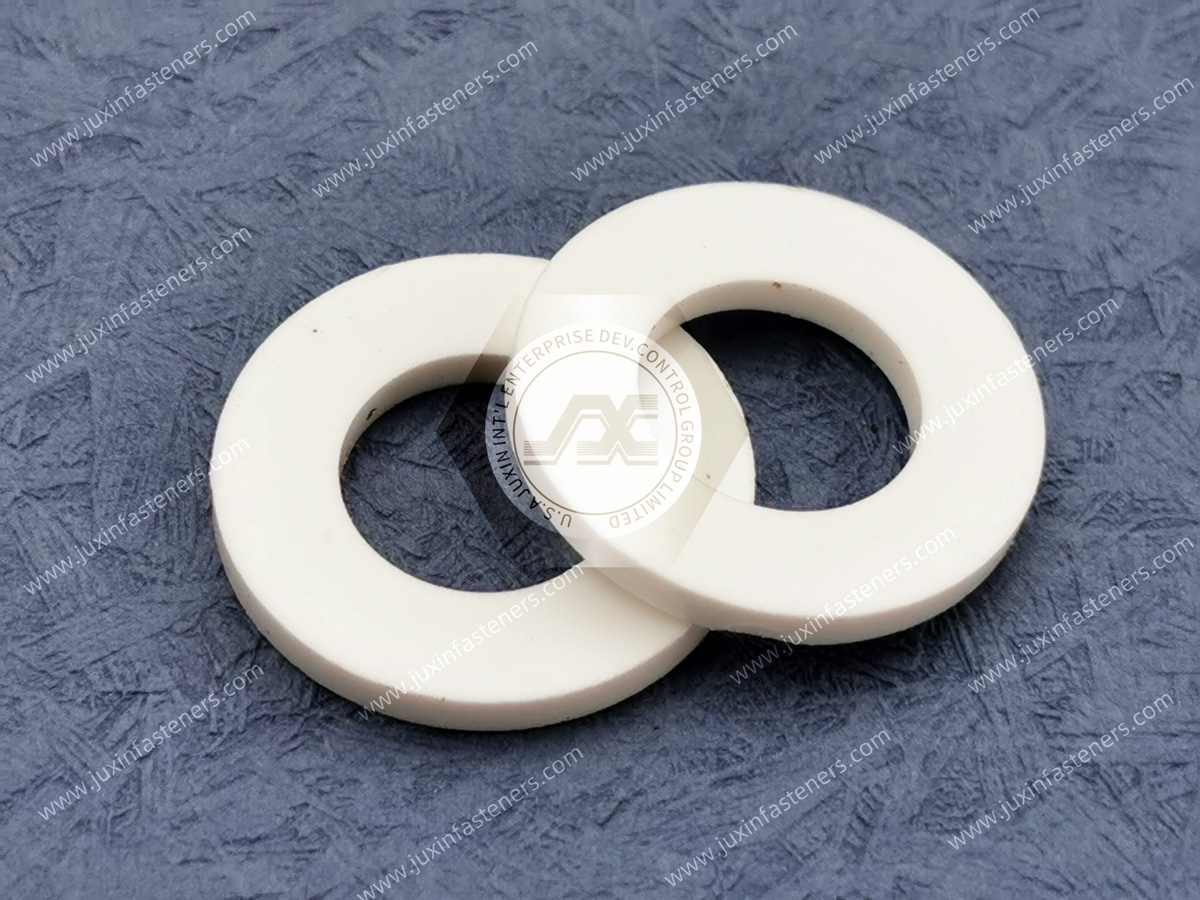

Standard Nylon Flat Washers

Nylon flat washers use a simple annular geometry defined primarily by:

• inside diameter

• outside diameter

• thickness

• material

They may be installed beneath:

• screw heads

• bolt heads

• hex nuts

• wing nuts

• threaded components

Their functions can include load distribution, spacing, surface protection, and creation of a non-metallic interface.

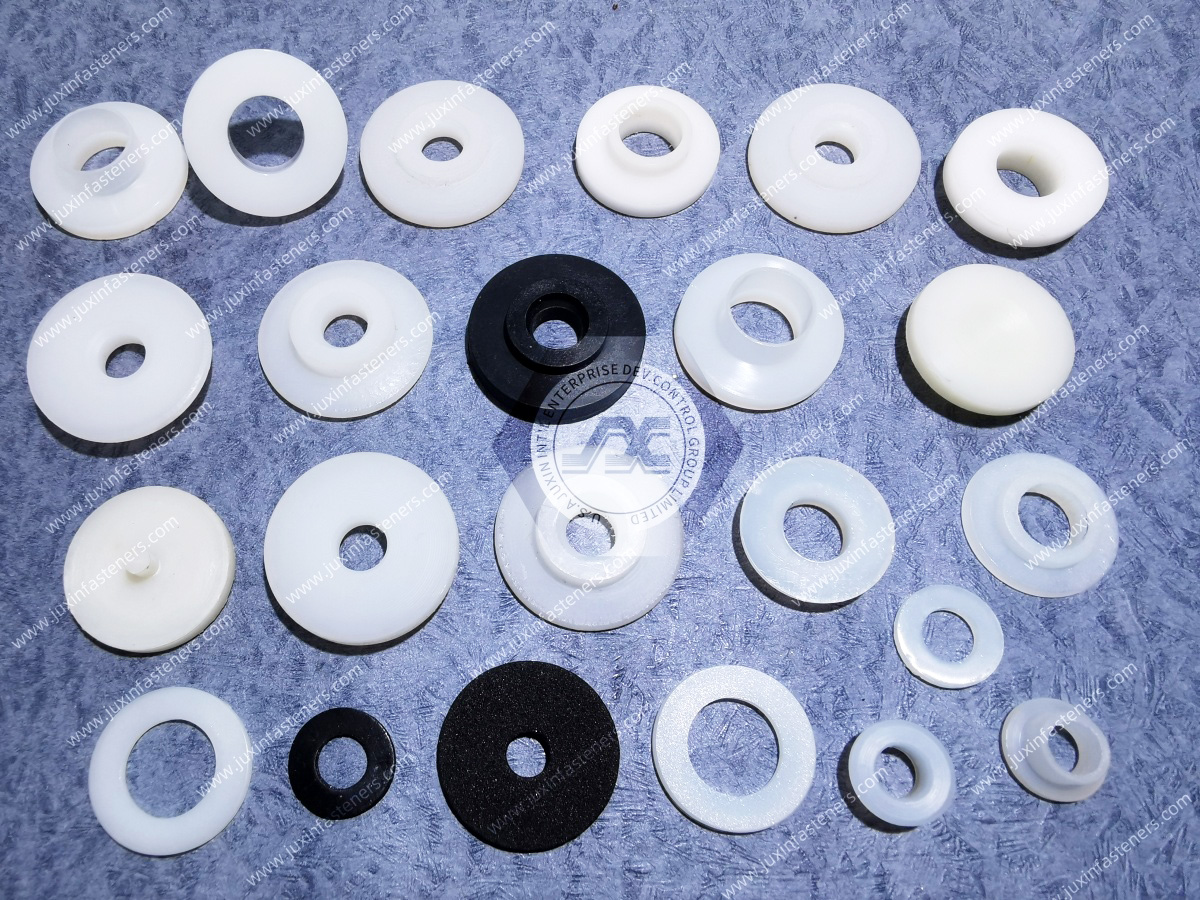

Insulating Shoulder Washers

Insulating shoulder washers—often called top hat washers, flanged insulating bushings, or shoulder insulating washers depending on geometry—combine a flange with an integral cylindrical shoulder.

The flange separates the fastener head or nut from the face of the panel.

The shoulder extends into the mounting hole and can separate the fastener shank from the edge of a conductive panel.

This creates both an axial and radial non-metallic interface.

However, the component's actual electrical performance depends on:

• polymer grade

• shoulder dimensions

• flange dimensions

• fastener geometry

• panel geometry

• voltage

• contamination

• environment

• complete equipment architecture

A shoulder washer should therefore not automatically be described as providing complete electrical safety simply because it is made from plastic.

Top Hat Washers

“Top hat washer” is a common search and procurement term for washer-bushing components with a flange and cylindrical shoulder.

For sourcing purposes, engineers should not rely on the name alone.

Critical dimensions should be specified because top hat washer geometries vary considerably between manufacturers.

Nylon Finishing Washers

Finishing washers can provide a shaped seat for selected screw-head geometries.

Depending on the design, they may be used to:

• increase bearing area

• protect the mating surface

• improve appearance

• provide a defined interface around the screw head

A finishing washer should be matched to the actual screw-head geometry.

Cup Washers

Plastic cup washers use a recessed or formed profile around the fastener head.

Applications may include equipment panels, covers, housings, instrumentation, and other assemblies where the fastener-head interface requires a shaped bearing surface.

Nylon Retaining Washers

Some molded plastic washer designs are intended to retain a screw or other component during handling or assembly.

Their geometry can differ significantly from a conventional flat washer.

Where retention is required, the component should be evaluated for:

• screw diameter

• interference

• installation

• removal

• repeated use

• material flexibility

Spacer Washers

A washer can also perform a spacing function.

In these applications, thickness becomes a functional dimension controlling the distance between components.

Where spacing is the primary requirement, engineers should also consider whether a dedicated Plastic Spacer or Standoff is more appropriate.

Washer ID, OD and Thickness: The Three Core Dimensions

For a standard flat washer, three dimensions control most of the mechanical interface:

ID = Inside Diameter

OD = Outside Diameter

T = Thickness

These dimensions should not be selected independently.

Together they determine:

• screw clearance

• available bearing area

• edge distance

• local stiffness

• joint stack height

• potential deformation

Inside Diameter: Screw Clearance Is Not Just Nominal Screw Size

A washer intended for an M4 screw, for example, does not necessarily have an ID of exactly 4.00 mm.

The washer requires sufficient clearance for the actual screw shank and assembly condition.

Relevant variables can include:

• screw nominal diameter

• screw tolerance

• washer ID tolerance

• alignment

• assembly method

• coating or surface condition

• required radial movement

Too little clearance may create:

• binding

• difficult assembly

• interference

• washer distortion

Excessive clearance may reduce useful bearing area or allow undesirable movement.

The required ID should therefore be selected from the actual mating fastener and joint requirements.

Outside Diameter Controls Bearing Area

Increasing washer OD generally increases the available area over which the fastener load can be transferred to the mating surface.

This can be useful when fastening against:

• plastic housings

• composite panels

• PCB materials

• thin sheet materials

• coated surfaces

• softer substrates

However, larger OD is not automatically better.

A larger washer may interfere with:

• ribs

• bosses

• nearby components

• electrical clearances

• connectors

• enclosure walls

• tooling access

Washer OD should therefore balance bearing-area requirements with available assembly space.

Thickness Influences More Than Washer Strength

Washer thickness can affect:

• compressive deformation

• joint stack height

• shoulder geometry

• dimensional tolerance stack-up

• stiffness

• spacing

• fastener engagement

In a polymer washer, thickness also interacts with material behavior under sustained compression.

Therefore, increasing thickness should not automatically be treated as a universal way to improve joint performance.

Bearing Area and Surface Pressure

One of the primary mechanical functions of a washer is to distribute force over a larger area.

At a simplified level:

Surface Pressure = Applied Compressive Load / Effective Bearing Area

Increasing effective bearing area can reduce average surface pressure.

This can be particularly useful when the mating substrate is softer than the screw head or nut.

However, the real pressure distribution is not perfectly uniform.

It can be influenced by:

• washer stiffness

• washer geometry

• fastener-head geometry

• substrate stiffness

• surface flatness

• hole geometry

• alignment

Therefore, simple area calculations are useful for screening, but critical joints may require assembly-level validation.

Why Plastic Washers Behave Differently from Steel Washers

A steel washer and a nylon washer with the same ID and OD do not create the same joint behavior.

Engineering polymers generally have substantially different:

• stiffness

• compressive behavior

• thermal expansion

• creep

• stress relaxation

• moisture response

A polymer washer can deform more under load.

This may be beneficial in some surface-protection or isolation applications but undesirable in joints requiring highly stable long-term preload.

The washer material must therefore be selected according to the joint function.

Clamp Load and Washer Compression

When a fastener is tightened, the washer becomes part of the compressed joint stack.

A simplified load path is:

Fastener Head / Nut → Washer → Mating Surface

If the polymer washer compresses significantly during tightening, the joint condition can change.

Possible effects include:

• washer thinning

• local indentation

• increased contact area

• clamp-load redistribution

• permanent set

The amount depends on:

• material

• washer dimensions

• bearing area

• fastener load

• temperature

• moisture

• substrate

Plastic Washer Creep and Stress Relaxation

Engineering polymers are viscoelastic.

Under sustained compressive load, a plastic washer can exhibit time-dependent deformation.

A simplified progression is:

Initial Tightening → Washer Compression → Time + Temperature → Creep / Stress Relaxation → Change in Joint Clamp Condition

This is particularly important where a thick polymer washer sits directly in a high-preload joint.

The effect should not be generalized as “plastic washers always loosen.”

Rather, the design question is:

How much time-dependent deformation can this joint tolerate?

Why Periodic Retightening Is Not a Universal Design Solution

It is tempting to solve polymer relaxation by specifying periodic retightening.

That is not always appropriate.

Many OEM assemblies are:

• inaccessible after production

• maintenance-free

• sealed

• installed in remote equipment

• not intended for periodic service

A more robust design may require evaluation of:

• lower initial compressive stress

• larger bearing area

• different washer geometry

• thinner polymer layer

• alternative polymer

• alternative joint architecture

• metal load path combined with separate electrical isolation

The correct solution depends on the actual function.

High Preload Requires Special Attention

Plastic washers should not automatically replace hardened metal washers in highly preloaded structural joints.

Where substantial bolt preload is required,

engineers should evaluate whether the polymer washer becomes a load-bearing compressive element that can affect long-term joint stiffness and clamp retention.

In some assemblies, the preferred design may separate the functions:

Metallic Structure Carries Mechanical Load

while

Polymer Component Provides Electrical or Surface Isolation

This can be more reliable than asking one soft polymer washer to perform both functions simultaneously.

Insulating Shoulder Washer Geometry

Shoulder washers require more dimensional information than flat washers.

Critical dimensions can include:

• flange outside diameter

• flange thickness

• shoulder outside diameter

• shoulder inside diameter

• shoulder length

• overall height

These dimensions must interact correctly with:

• screw shank

• panel hole

• panel thickness

• mating washer or insulating component

• available fastener engagement

Shoulder OD and Panel Hole

The shoulder OD must be compatible with the panel hole.

If the shoulder is too large:

• insertion may be difficult

• the washer may deform

• the shoulder may not seat fully

If the shoulder is too small:

• excessive radial clearance may exist

• the fastener may move toward the conductive hole edge

• centering may be reduced

The correct fit depends on the actual isolation and mechanical requirements.

Shoulder ID and Screw Shank

The shoulder ID must provide appropriate clearance around the fastener shank.

Too little clearance can cause:

• binding

• difficult installation

• shoulder damage

Too much clearance may reduce the intended radial separation.

The correct relationship should be defined from the screw dimensions and system requirements.

Shoulder Length and Panel Thickness

Shoulder length is another critical parameter.

If the shoulder is shorter than required for the panel interface, the desired radial separation may not extend through the complete thickness.

If the shoulder is unnecessarily long, it may interfere with:

• mating components

• opposite-side washers

• nut seating

• thread engagement

• assembly stack height

Shoulder length should therefore be evaluated against the actual panel thickness and complete joint stack.

One Shoulder Washer vs. Two-Sided Isolation

Some assemblies use insulating hardware on one side of a panel.

Others require separation on both sides.

The correct arrangement depends on:

• fastener geometry

• panel

• electrical architecture

• mechanical load path

• required spacing

• applicable equipment design

A single shoulder washer should not automatically be assumed to isolate every metallic contact path in the assembly.

Electrical Isolation: What a Plastic Washer Can Do

A plastic washer can create a non-metallic physical interface between selected conductive components.

This can be useful in electrical and electronic assemblies.

However:

Plastic Washer ≠ Complete Electrical Insulation System

The washer alone does not automatically establish:

• required creepage distance

• required clearance distance

• equipment dielectric withstand

• system insulation class

• touch-safe construction

• certified electrical safety

Those requirements depend on the complete equipment design.

Dielectric Performance Is Material- and Geometry-Specific

The electrical behavior of a polymer component depends on more than the generic material family.

Relevant factors can include:

• actual resin grade

• thickness

• moisture

• temperature

• contamination

• frequency

• voltage

• geometry

Therefore, generic statements such as “nylon is an electrical insulator” are not sufficient to establish compliance for a specific electrical system.

Galvanic Corrosion: Use System-Level Reasoning

Plastic washers are often placed between dissimilar metals to interrupt direct metal-to-metal contact.

This can contribute to galvanic isolation.

However, galvanic corrosion requires a combination of factors, including:

• dissimilar conductive materials

• electrical connection

• electrolyte

• environmental conditions

A nylon washer can modify one part of this system, but it should not be described as universally eliminating galvanic corrosion.

Other metallic contact paths may still exist through:

• the screw

• nut

• chassis

• brackets

• grounding features

The complete electrical and environmental path must be reviewed.

Surface Protection for Painted and Coated Components

A polymer washer can reduce direct contact between a metal screw head or nut and a sensitive surface.

This may be useful on:

• painted panels

• coated sheet metal

• selected aluminum surfaces

• polymer housings

• decorative panels

However, surface protection still depends on:

• washer material

• washer surface

• trapped debris

• clamp load

• relative movement

• temperature

A plastic washer should not be assumed to prevent every form of coating damage.

Material Selection for Nylon and Plastic Washers

There is no universal best washer material.

Selection should follow the application.

A useful decision sequence is:

Mechanical Load → Temperature → Moisture → Chemical Exposure → Electrical Requirement → Dimensional Stability → Friction / Wear Requirement → Material

PA66 Nylon Washers

PA66 is widely used for molded plastic fastening components.

Depending on grade, it can provide useful combinations of:

• strength

• toughness

• wear resistance

• moldability

• electrical properties

However, PA66 should not automatically be described as the default material for every plastic washer.

The actual material should be confirmed for the product.

PA6 Nylon Washers

PA6 may also be used in plastic washer applications.

Like PA66, it is hygroscopic.

The actual grade, mechanical requirements, moisture exposure, temperature, and dimensional requirements should be considered.

Moisture Absorption in Nylon Washers

PA6 and PA66 absorb moisture from the environment.

Moisture can influence:

• dimensions

• stiffness

• toughness

• compression behavior

• creep

• electrical properties

This is particularly important where a washer is part of a tightly controlled dimensional stack.

Moisture and Tolerance Stack-Up

Consider an assembly containing:

• screw

• nylon washer

• spacer

• PCB

• chassis

• nut

The final stack height depends on all component dimensions.

If a polymer component changes dimension with environmental conditioning, it contributes to the overall tolerance stack.

The significance may be small in one assembly and critical in another.

For precision equipment, tolerance analysis should therefore use realistic service conditions rather than nominal dimensions alone.

POM / Acetal Washers

POM can be considered for selected washer applications where properties such as:

• dimensional stability

• relatively low moisture absorption

• low friction

• wear behavior

are relevant.

However, suitability must still be evaluated against:

• temperature

• chemicals

• electrical requirements

• flame requirements

• mechanical load

PTFE Washers

PTFE may be selected for specialized applications involving low friction or particular chemical environments.

Its mechanical behavior differs significantly from nylon.

Design teams should consider characteristics such as:

• deformation under load

• creep

• stiffness

• temperature

• mating surfaces

PTFE should not be selected solely because it is widely described as chemically resistant or low friction.

PEEK Washers

PEEK may be considered for specialized applications requiring demanding combinations of thermal, chemical, mechanical, or electrical properties.

However, its higher material and processing costs mean it should be specified where the engineering requirement justifies it.

PEEK should not be treated as an automatic upgrade from nylon.

Glass-Filled Nylon Washers

Glass reinforcement can increase stiffness and modify dimensional behavior.

However, it can also affect:

• flexibility

• surface characteristics

• anisotropy

• shrinkage

• warpage

• brittleness

• interaction with sensitive mating surfaces

A glass-filled nylon washer should therefore not automatically be specified simply because a higher compressive load is present.

The complete joint and surface interface should be evaluated.

Chemical Compatibility

Plastic washers may be exposed to:

• lubricants

• oils

• coolants

• cleaning chemicals

• solvents

• process fluids

• humidity

• salt-containing environments

Compatibility should be evaluated using:

Polymer Grade + Chemical + Concentration + Temperature + Exposure Time + Mechanical Stress

Generic labels such as “chemical resistant” are insufficient for critical applications.

Temperature and Long-Term Washer Performance

Temperature affects polymer behavior.

Elevated temperature can influence:

• stiffness

• creep

• compression

• dimensions

• long-term clamp behavior

Applications near power electronics, lighting systems, motors, heat sinks, power supplies, or industrial heating equipment should therefore be reviewed using the expected operating environment.

Thermal Expansion

Plastic washers generally have different thermal expansion behavior from steel, stainless steel, aluminum, PCB laminates, and other surrounding materials.

Where temperature varies substantially, differential expansion may influence:

• joint stack

• contact pressure

• alignment

• spacing

The importance depends on the geometry and system.

Nylon Flat Washer vs. Shoulder Washer vs. Spacer

These components can look related but solve different problems.

Nylon Flat Washer

Primarily creates a flat bearing, spacing, or non-metallic interface.

Shoulder Washer

Adds a cylindrical shoulder to provide radial separation through a hole.

Plastic Spacer

Creates a defined distance between components.

PCB Standoff

Supports and positions a PCB relative to another structure.

Selecting the correct architecture is more important than forcing one component type to perform an unintended function.

Flat Washer vs. Shoulder Washer Selection Logic

Use a flat washer when the primary requirement is around the bearing face.

Evaluate a shoulder washer when the screw shank also needs a non-metallic interface through the panel hole.

A simplified decision path is:

Need Face Separation Only? → Flat Washer

Need Face + Hole-Wall Separation? → Shoulder Washer

Need Controlled Component Spacing? → Spacer / Standoff

This is a useful starting framework, but electrical and mechanical requirements still require system-level review.

Failure-Mode-Based Washer Selection

A stronger engineering approach is to ask what failure the washer is intended to prevent.

Substrate Crushing

Possible response:

• increase bearing area

• review OD

• review clamp load

• review substrate

Washer Creep

Possible response:

• reduce compressive stress

• review thickness

• review polymer

• redesign load path

Surface Damage

Possible response:

• review washer material

• increase contact area

• control debris and relative movement

Electrical Contact Through Panel Hole

Possible response:

• evaluate shoulder washer or insulating bushing architecture

Dimensional Stack Variation

Possible response:

• review thickness tolerance

• moisture

• thermal expansion

• mating components

Chemical Degradation

Possible response:

• select material using actual media and service conditions

This approach is more reliable than selecting a washer only by screw size.

Engineering Selection Matrix

This matrix is a design starting point, not a universal specification.

Applications in Electronics and Electrical Equipment

Nylon flat washers and insulating shoulder washers may be used in selected:

• control panels

• electronic enclosures

• PCB assemblies

• power supplies

• instrumentation

• terminal-related assemblies

• sensor systems

Selection should consider mechanical loading and the complete electrical architecture.

Switchgear and Power Distribution Equipment

Possible uses include selected:

• control hardware

• auxiliary electronics

• enclosure assemblies

• instrumentation

• non-structural insulating interfaces

The washer should not be assumed to establish the equipment's required insulation system by itself.

Semiconductor Equipment

Plastic washers can be used in specialized semiconductor manufacturing, inspection, or test equipment where the customer defines requirements for:

• material

• dimensional stability

• chemical exposure

• electrical behavior

• cleanliness

• temperature

Material selection should follow the actual equipment specification.

Medical Equipment

Potential applications include:

• electronic modules

• housings

• instrumentation

• lightweight internal hardware

• equipment panels

Cleaning environment, temperature, mechanical requirements, and equipment-specific regulatory requirements should be considered.

Renewable Energy and Energy Storage

Plastic washers may be considered for selected:

• electronics

• controls

• sensors

• auxiliary hardware

• enclosure assemblies

Outdoor and energy-storage applications may require additional evaluation of:

• temperature

• moisture

• UV

• chemical exposure

• flame-performance requirements

AI Servers and Data Center Equipment

Nylon and other polymer washers may be used in selected:

• PCB hardware

• electronics

• server chassis components

• cable-management hardware

• airflow assemblies

• serviceable modules

High-density equipment requires careful consideration of:

• dimensional stack

• temperature

• material requirements

• electrical architecture

• serviceability

Automotive Electronics and EV Equipment

Possible applications include selected:

• electronic control modules

• sensor assemblies

• auxiliary electrical hardware

• cable-management structures

• battery-management electronics

Automotive applications can introduce vibration, temperature cycling, moisture, chemical exposure, and customer-specific material requirements.

Telecommunications Equipment

Plastic washers may be used in:

• network equipment

• electronics

• rack hardware

• communication modules

• instrumentation

The actual mechanical and electrical requirements should control the selection.

Industrial Automation and Robotics

Potential uses include:

• sensor assemblies

• control hardware

• electronics

• cable-management systems

• machine enclosures

Vibration, oils, temperature, and maintenance requirements should be considered.

Lighting Equipment

Plastic washers can be used in selected lighting assemblies where the design requires:

• non-metallic interfaces

• surface protection

• component spacing

• lightweight hardware

Thermal exposure can be particularly important near LEDs, drivers, or other heat-generating components.

Procurement and Second-Source Qualification

Procurement teams may search for nylon washers because they need to:

• replace an existing supplier

• qualify a second source

• source a discontinued part

• consolidate vendors

• reduce supply-chain risk

• source a non-standard washer

• support a new OEM program

A technically responsible cross-reference should compare more than nominal screw size.

What Must Be Compared in a Flat Washer Cross-Reference?

Depending on the application, compare:

• inside diameter

• outside diameter

• thickness

• dimensional tolerances

• material

• color

• surface condition

• mating screw

• mating substrate

• application

A washer described as “for M5” is not automatically interchangeable with every other M5 plastic washer.

What Must Be Compared in a Shoulder Washer Cross-Reference?

For insulating shoulder washers, compare:

• shoulder ID

• shoulder OD

• shoulder length

• flange OD

• flange thickness

• overall height

• material

• panel hole

• panel thickness

• screw diameter

• mating hardware

These dimensions define the functional interface.

Why Physical Samples Matter

A physical sample can help evaluate:

• actual molded dimensions

• edge geometry

• surface condition

• flexibility

• shoulder fit

• seating

• assembly behavior

For second-source projects, the sample should ideally be reviewed together with the actual or representative mating hardware.

Sample Validation

Depending on the application, sample evaluation may include:

• screw clearance

• panel-hole fit

• shoulder engagement

• seating

• compression

• assembly

• removal

• dimensional stack

• environmental conditioning

• functional electrical evaluation by the customer where required

Validation requirements should come from the actual assembly.

Custom Nylon Flat Washers and Shoulder Washers

Standard washers do not satisfy every OEM design.

Custom molded plastic washers may be appropriate where the project requires:

• non-standard ID

• non-standard OD

• special thickness

• custom shoulder OD

• custom shoulder ID

• custom shoulder length

• unusual flange geometry

• integrated spacing features

• anti-rotation geometry

• special polymer

• customer-specific dimensions

Juxin Fasteners can review drawing-based washer components from:

• 2D engineering drawings

• 3D CAD models

• physical samples

• existing part numbers

• mating-component information

Custom development should evaluate material, geometry, tolerances, molding DFM, tooling, and assembly requirements.

Injection-Molded vs. Other Washer Manufacturing Methods

Depending on geometry, material, quantity, and dimensional requirements, plastic washer components may use different manufacturing approaches.

Simple flat washer geometry and complex shoulder-washer geometry do not necessarily require identical production methods.

For custom sourcing, manufacturing method should be selected according to:

• geometry

• material

• tolerance

• volume

• functional requirement

• commercial requirement

The manufacturing process should not be assumed from the product name alone.

Quality and Compliance Documentation

Depending on the project, procurement teams may require:

• material identification

• resin information

• dimensional inspection

• lot identification

• traceability

• RoHS documentation

• REACH documentation

• flammability information where applicable

• customer-specific documentation

Documentation should be specified during the RFQ and confirmed for the actual component.

RFQ Checklist for Nylon Flat Washers

For a flat washer project, provide as much of the following as available:

• existing manufacturer

• existing part number

• OEM internal part number

• nominal screw size

• screw specification

• inside diameter

• outside diameter

• thickness

• dimensional tolerances

• material

• color

• mating substrate

• required load-distribution function

• operating temperature

• moisture exposure

• chemical exposure

• electrical requirements

• required documentation

• sample quantity

• order quantity

• estimated annual volume

• packaging requirements

RFQ Checklist for Insulating Shoulder Washers

For shoulder washers, provide:

• screw diameter

• screw material

• shoulder ID

• shoulder OD

• shoulder length

• flange OD

• flange thickness

• panel-hole diameter

• panel thickness

• mating hardware

• material

• color

• operating environment

• electrical requirements

• required documentation

• drawing or physical sample

• sample quantity

• production quantity

• estimated annual volume

The panel drawing is particularly useful because a shoulder washer cannot be evaluated correctly from the washer dimensions alone.

From Engineering Requirement to Production RFQ

For a new flat washer application:

Joint Requirement → Screw Size → Bearing Surface → ID / OD / Thickness → Material → Environment → Clamp-Load Review → Sample → Assembly Validation → Production RFQ

For a shoulder washer:

Electrical / Mechanical Interface → Screw → Panel Hole → Panel Thickness → Shoulder Geometry → Flange Geometry → Material → Sample → Assembly Validation → Production RFQ

For a second-source project:

Existing Part → Dimensional Review → Material Review → Mating Hardware Review → Candidate Cross-Reference

→ Physical Sample → Assembly Validation → Supplier Qualification → Production RFQ

For a custom washer:

2D/3D Drawing + Mating Components → Engineering / DFM Review → Material & Tolerance Review → Sample → Customer Validation → Qualification → Production

Related Plastic Fastening Solutions

Plastic washers often function as one element within a larger fastening system.

Related Juxin Fasteners product pathways include:

• Nylon Machine Screws for non-metallic threaded fastening

• Nylon Hex Nuts for plastic threaded joint assemblies

• Plastic Spacers and Standoffs where controlled spacing is the primary function

• Snap-Fit PCB Supports for circuit-board positioning and support

• Custom Molded Plastic Fasteners for non-standard washer and integrated component geometries

• AI Server Plastic Hardware for electronics and high-density computing equipment

• EV Battery Pack Plastic Fasteners for selected EV electronics and cable-management applications

Internal linking should follow the engineering problem.

For example:

Need load distribution? → Nylon Flat Washer

Need radial screw-to-panel separation? → Insulating Shoulder Washer

Need controlled spacing? → Plastic Spacer / Standoff

Need threaded non-metallic assembly? → Nylon Machine Screw + Nylon Hex Nut

Need non-standard geometry? → Custom Molded Plastic Fasteners

Juxin Fasteners Support for Nylon Flat Washers and Insulating Shoulder Washers

Juxin Fasteners supplies standard and custom nylon flat washers, plastic washers, insulating shoulder washers, finishing washers,

 nylon screws, plastic nuts, spacers, standoffs, and other polymer fastening components for industrial OEM applications.

Engineering, procurement, supplier-development, and supply-chain teams can submit:

• existing manufacturer part numbers

• OEM internal part numbers

• 2D drawings

• 3D CAD models

• physical samples

• ID / OD / thickness requirements

• shoulder dimensions

• panel-hole dimensions

• panel thickness

• mating fastener information

• material requirements

• application conditions

• estimated annual volume

for technical and commercial evaluation.

For a flat washer, the key question is not simply:

“Which nylon washer fits this screw?”

A more useful question is:

“What bearing area, surface protection, spacing, material behavior, and long-term joint condition does this washer need to provide?”

For an insulating shoulder washer, the engineering question goes further:

“What interfaces must remain physically separated, what screw and panel geometry control the fit, and what mechanical and electrical requirements apply to the complete assembly?”

For second-source projects, matching the nominal screw size is only the beginning.

The more reliable qualification path is:

Dimensions + Material + Mating Hardware + Bearing Interface + Environment + Long-Term Behavior + Assembly Validation

This approach provides a clearer path from product search to engineering review, sample qualification, supplier approval, and production sourcing.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com
