Retaining rings are compact mechanical fasteners used to provide axial retention of components on shafts or inside bores. Depending on the design,
they may also be called circlips, snap rings, shaft retaining rings, bore retaining rings, internal retaining rings or external retaining rings.
They are widely used to retain bearings, bushings, gears, rollers, sleeves, pulleys and other mechanical components without requiring a threaded nut,
machined shoulder on both sides, or another larger retention mechanism.
However, “retaining ring” describes a broad product family.
Selecting the correct solution requires engineers and procurement teams to answer several fundamental questions:
Is the ring installed on a shaft or inside a bore?
What component is being retained?
What axial load must the retention system support?
What groove geometry and housing or shaft material are available?
Does the project require a standard DIN retaining ring, E-type retaining ring, another standard configuration, or a custom retaining ring?
For OEM, Tier-1, Tier-2 and industrial equipment programs, retaining-ring selection should therefore be treated as a system-level engineering decision rather than simply matching a ring to a nominal diameter.

A retaining ring is an elastic mechanical component designed to engage a groove and create an axial shoulder.
Two of the most common configurations are:
External Retaining Ring → Installed in a groove on a shaft
Internal Retaining Ring → Installed in a groove inside a bore or housing
The retained component contacts the ring when axial movement occurs. The ring then transfers that load into the groove.
This creates a compact retention system that can be represented as:
Retained Component → Retaining Ring → Groove → Shaft or Housing
This load path explains why the retaining ring cannot be evaluated independently from the groove and surrounding component.
The first selection decision is whether the ring is retaining a component externally on a shaft or internally inside a housing.

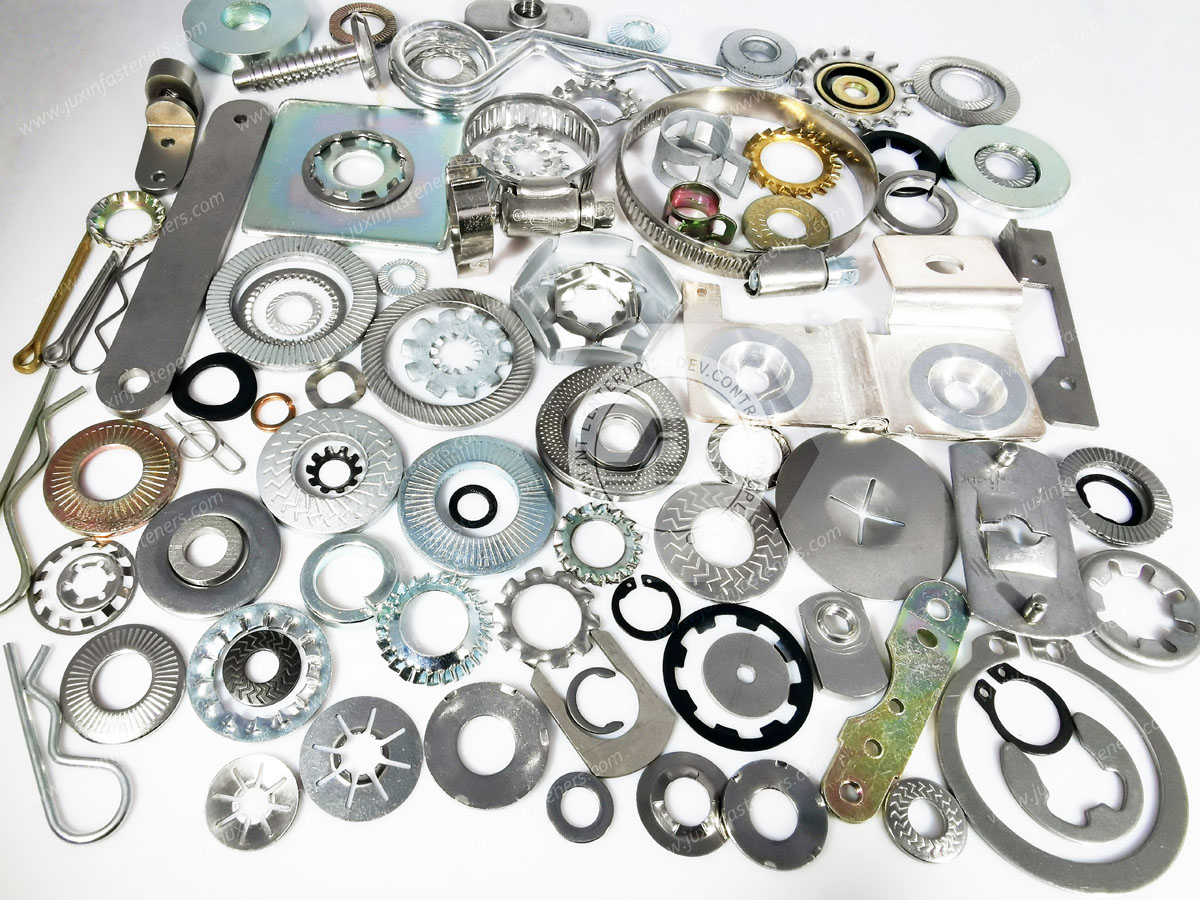

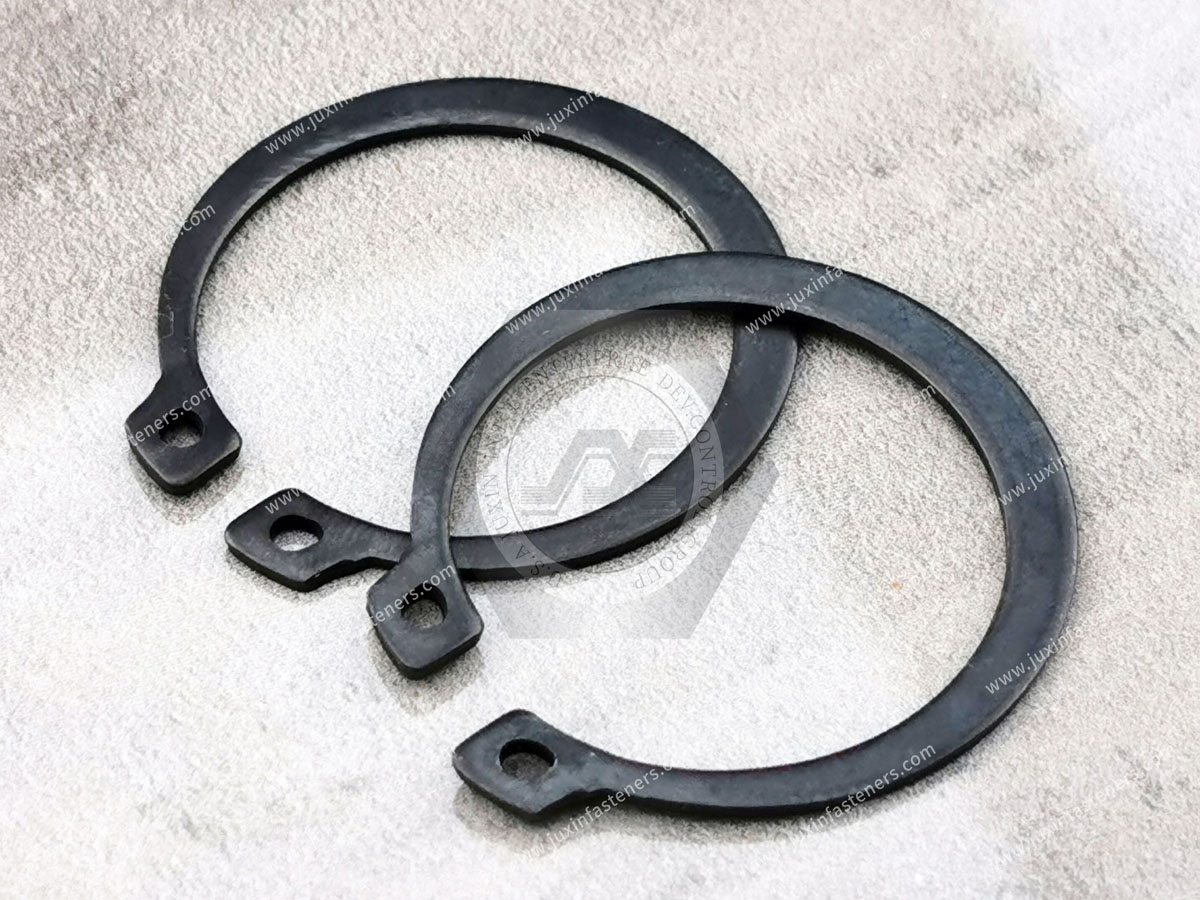

External retaining rings are installed into circumferential grooves machined around shafts.
They may retain components such as:
Bearings
Gears
Pulleys
Rollers
Bushings
Spacers
Levers
Wheels
Mechanical linkages
A common standardized product family is the DIN 471 retaining ring for shafts.
During installation, an external retaining ring is expanded sufficiently to pass over the shaft and then released into the groove.
Once installed, part of the ring extends beyond the shaft surface and forms an axial stop for the retained component.
Internal retaining rings are installed into circumferential grooves machined inside bores or housings.
Typical retained components include:
Bearings
Bushings
Sleeves
Pistons
Inserts
Internal mechanical components
A common standardized product family is the DIN 472 retaining ring for bores.
During installation, the internal retaining ring is compressed so that it can enter the bore. When it reaches the groove, it expands outward and seats into position.
DIN 471 and DIN 472 are closely related retaining-ring families, but they are not interchangeable.
DIN 471 → External retaining rings for shafts
DIN 472 → Internal retaining rings for bores
The difference affects:
Ring geometry
Installation direction
Groove geometry
Assembly tooling
Load transfer
Component interface
Purchasing specification
A sourcing request should therefore identify whether the application requires a shaft ring or a bore ring.
Simply requesting a “DIN retaining ring” is not sufficient for reliable OEM sourcing.
Installation mechanics are fundamentally different.
The ring must be expanded to pass over the shaft.
After reaching the groove, it contracts into position.
The ring must be compressed to enter the bore.
After reaching the groove, it expands into position.
Appropriate retaining-ring or circlip installation tools should be selected according to the ring configuration and assembly process.
For high-volume production, dedicated fixtures or automated assembly systems may be used to improve repeatability.
The primary engineering function of a retaining ring is:
Axial Retention
This distinction is important because retaining rings are sometimes incorrectly described as components that inherently provide sealing, waterproofing, vibration damping or torque transmission.
Those functions should not be assumed.
A retaining ring may operate successfully in an assembly exposed to vibration, but its primary role remains axial retention.
Likewise, a retaining ring installed near a seal does not itself become a sealing element.
Standard retaining rings should not be specified as substitutes for:
O-rings
Gaskets
Radial shaft seals
Mechanical seals
Dust seals
Dedicated environmental sealing systems
If an assembly requires both axial retention and environmental sealing, those functions should normally be engineered separately.
This distinction is especially important in automotive, EV thermal-management equipment, HVAC, food-service equipment, outdoor telecommunications systems and industrial machinery.
A retaining ring primarily reacts against axial movement.
Torque in a rotating assembly is normally transferred through other features such as:
Splines
Keys
Flats
Interference fits
Clamping systems
Bolted joints
Geometric engagement
Engineers should therefore avoid sizing a standard retaining ring as though its primary purpose were torque transmission.
A retaining ring cannot perform correctly without an appropriate groove.
The functional system is:
Ring + Groove + Shaft/Housing Material + Retained Component
Important groove characteristics can include:
Groove diameter
Groove width
Groove depth
Groove location
Edge condition
Surface condition
Manufacturing tolerance
Distance from the component edge
Shaft or housing material
A ring that is correctly manufactured can still fail to perform if the groove is incorrect.
A procurement request such as:
“Please quote a 25 mm retaining ring.”
does not fully define the application.
Engineering review may also require:
Shaft or bore application
Applicable standard
Groove dimensions
Retained component
Axial load
Shaft or housing material
Required axial clearance
Operating temperature
Corrosion environment
Installation method
Service requirements
This becomes particularly important for second-source development and custom retaining-ring projects.
The allowable axial load of a retaining-ring assembly should not automatically be treated as the strength of the ring alone.
Potential limiting factors include:
Ring Strength
The retaining ring must withstand the applied load without unacceptable deformation or disengagement.
Groove Strength
The groove edge must support the load transferred through the ring.
Shaft or Housing Material
A softer material may deform before the retaining ring reaches its own mechanical limit.
Retained Component Geometry
The contact surface must transfer load to the ring appropriately.
The practical retention capability of an assembly can therefore be limited by its weakest interface.
Bearings are among the most common components retained by shaft and bore rings.
Typical configurations include:
Shaft Shoulder → Bearing Inner Ring → External Retaining Ring
or
Housing Shoulder → Bearing Outer Ring → Internal Retaining Ring
These arrangements provide compact axial positioning.
However, engineers should consider the complete geometry.
Bearing rings often contain chamfers or edge radii.
The retaining ring and bearing contact geometry should therefore be checked so that the intended surfaces carry the axial load.
The final clearance depends on the tolerance stack of:
Shoulder location
Bearing width
Groove position
Groove width
Retaining-ring thickness
Spacers where used
A retaining ring provides an axial stop, but it does not automatically eliminate axial play.

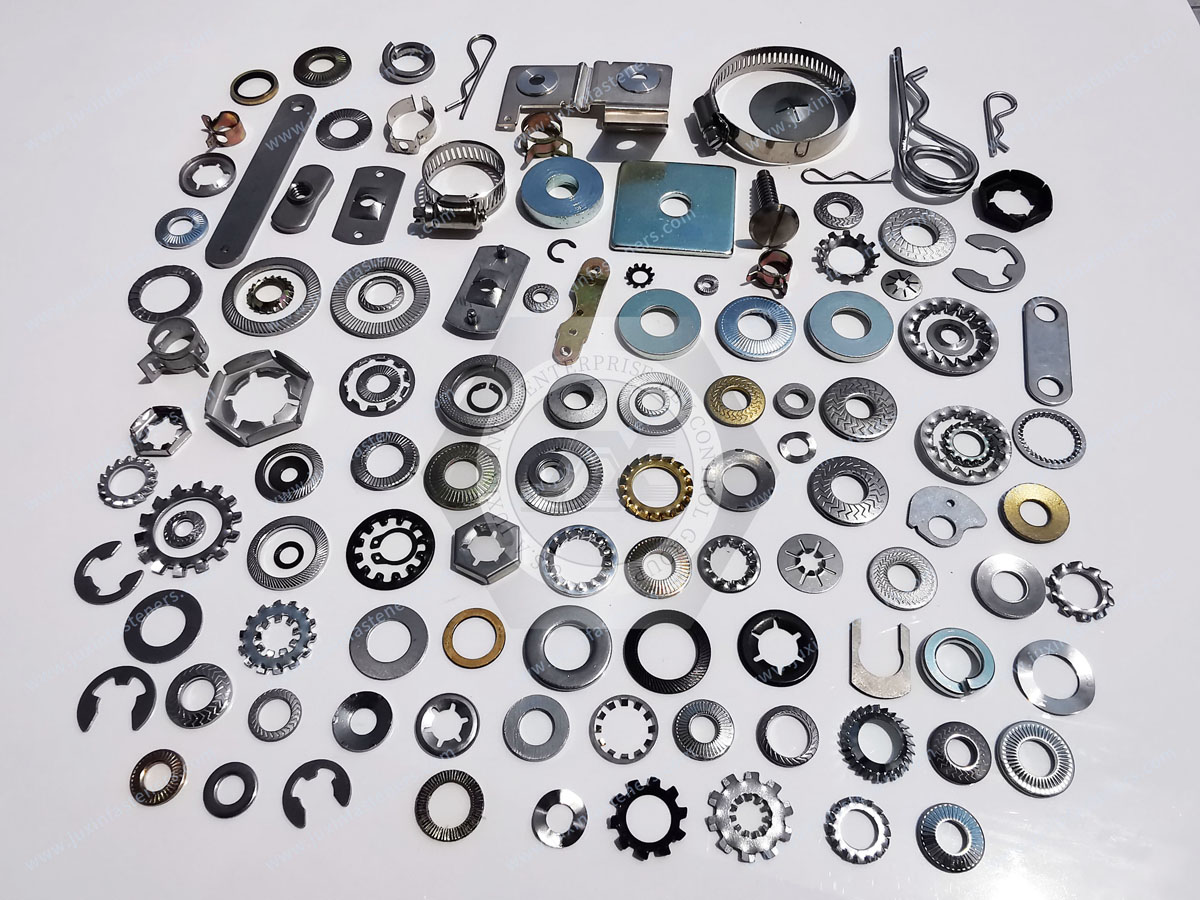

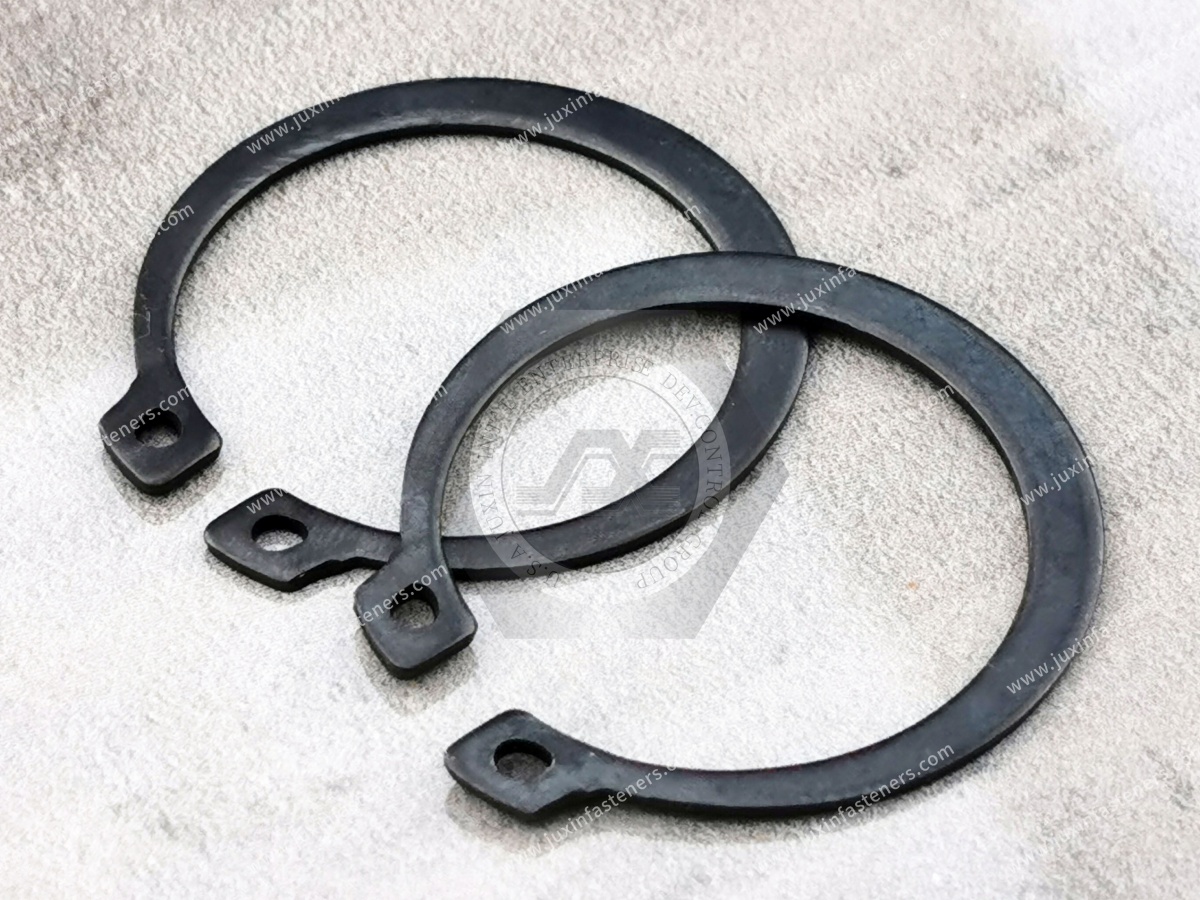

DIN 471 external retaining rings are widely used for grooved shaft applications.
They can provide compact axial retention in:
Bearing assemblies
Gear systems
Motors
Pumps
Rollers
Actuators
Transmission mechanisms
Industrial machinery
When sourcing DIN 471 rings, engineers and buyers should verify the applicable dimensions and requirements against the current project drawing or standard specification.
DIN 472 retaining rings are designed for internal grooves in bores and housings.
They are commonly used for retaining:
Bearings
Bushings
Sleeves
Pistons
Internal mechanical assemblies
Projects requiring detailed DIN 472 selection should also review the dedicated DIN 472 Retaining Rings for Bores technical guide,
including groove design, housing material, axial retention and OEM sourcing considerations.
E-type retaining rings, often called E-clips, provide another compact solution for shaft retention.
Unlike many conventional external circlips that are expanded axially over the shaft end, E-clips are generally installed radially into an appropriate shaft groove.
This can make them useful where:
Axial installation access is restricted
Fast assembly is required
Compact retention is needed
Small mechanical components are involved
High-volume assembly is required
Typical applications may include:
Automotive mechanisms
Appliances
Instruments
Small motors
Actuators
Robotics
Electronic equipment
Mechanical linkages
E-clips should be selected according to the actual groove, load and assembly conditions rather than treated as universal substitutes for DIN 471 shaft rings.
Standard retaining rings are often the most practical choice when the shaft or housing has been designed around an established standard.

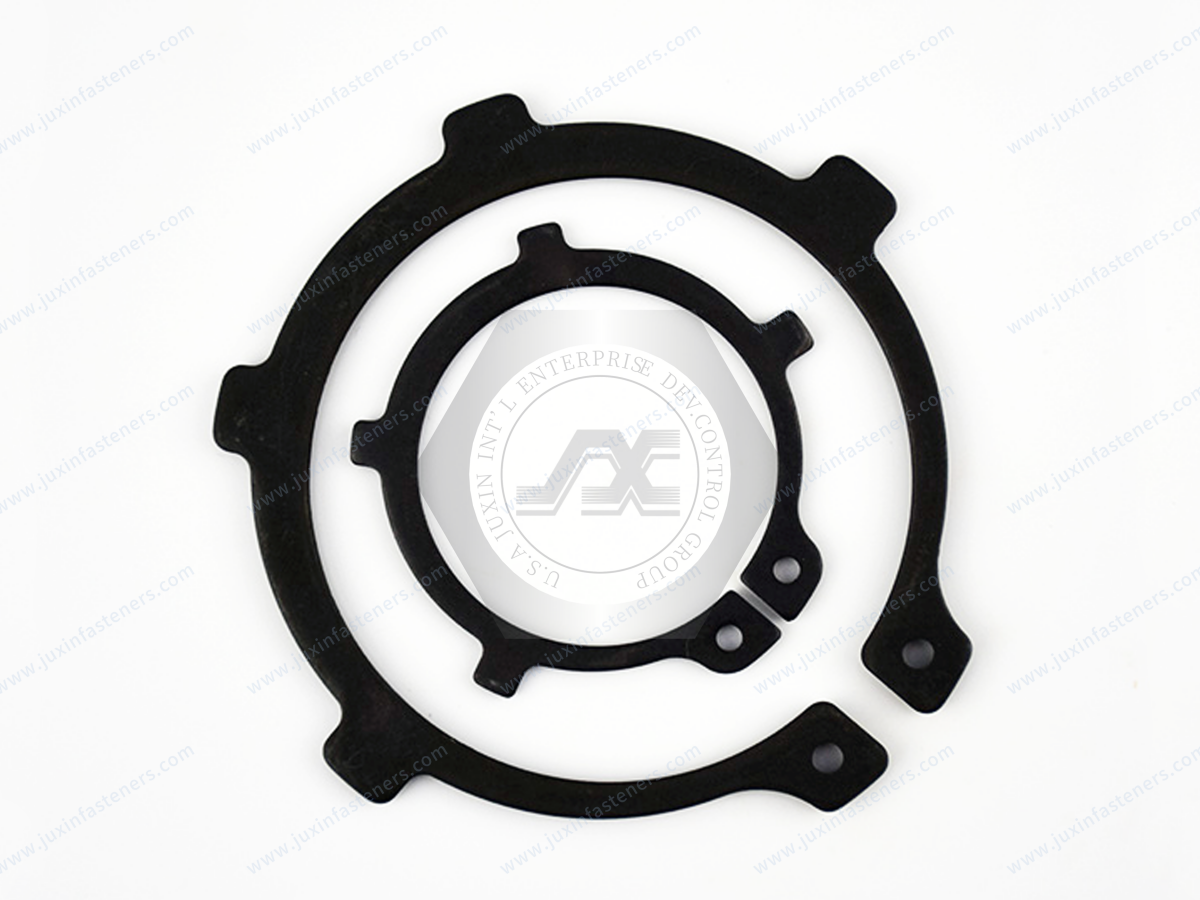

However, custom retaining rings may be required when the project includes:
Non-standard shaft diameter
Non-standard bore diameter
Special groove geometry
Restricted installation envelope
Special thickness
Modified lugs or installation features
Special material
Special corrosion requirement
Customer-specific geometry
Existing proprietary component replacement
The sourcing path should therefore distinguish between:
Standard Retaining Ring
Standard-Based Modified Retaining Ring
Fully Custom Retaining Ring
This distinction becomes important when requesting quotations from multiple suppliers.
Metal retaining rings require materials capable of controlled elastic deformation and recovery.
Depending on the product specification and application, suitable material families may include:
Carbon spring steels
Alloy spring steels
Stainless steels
Application-specific spring materials
Material selection should consider:
Elastic properties
Mechanical strength
Fatigue conditions
Heat-treatment response
Corrosion exposure
Operating temperature
Installation deformation
Customer requirements
The exact material should be confirmed against the relevant standard, approved drawing or application specification.
Spring steels are widely used because appropriate grades can provide the elasticity and mechanical strength required for retaining-ring applications.
Performance depends on more than the material designation alone.
Important manufacturing controls may include:
Material condition
Forming process
Heat treatment
Hardness
Geometry
Surface condition
Finish
For OEM projects, these characteristics should be controlled according to the approved product specification.
Stainless steel retaining rings may be selected where improved corrosion resistance is required.
Potential applications include:
Food-service equipment
HVAC systems
Medical and laboratory equipment
Outdoor telecommunications equipment
Electrical equipment
Instruments and meters
Semiconductor equipment
Selected automotive systems
However, stainless steel should not be treated as universally corrosion-proof.
The appropriate grade depends on moisture, chlorides, cleaning chemicals, temperature and other environmental conditions.
Carbon and alloy steel retaining rings may use different surface-protection systems depending on project requirements.
Possible finish families can include suitable:
Phosphate and oil systems
Black finishes
Zinc-based coatings
Zinc-nickel systems
Engineered protective coatings
Surface treatment selection should consider:
Base material
Product hardness
Corrosion target
Dimensional tolerance
Coating thickness
Installation deformation
Hydrogen-embrittlement risk where applicable
Restricted-substance requirements
Changing the coating can affect both corrosion performance and assembly behavior.
Retaining rings operate in closely controlled grooves.
Additional coating thickness can influence:
Ring thickness
Groove fit
Surface friction
Installation force
Seating behavior
Removal characteristics
For this reason, changing from one coating system to another may require engineering review rather than being treated as a purely cosmetic purchasing change.

Retaining rings are used in suitable automotive and EV mechanical assemblies involving:
Bearings
Motors
Pumps
Actuators
Seat mechanisms
Gear mechanisms
Auxiliary systems
Thermal-management equipment
Production equipment
For EV and battery-related manufacturing systems, retaining rings may also appear in pumps, cooling equipment, automation systems, fixtures and mechanical handling equipment.
The correct product should be selected according to the actual component and load rather than the industry label alone.
Potential applications include suitable:
Door mechanisms
Actuators
Motors
Pumps
Bearing assemblies
Auxiliary mechanical systems
Maintenance equipment
Production tooling
Rail projects may have additional requirements for documentation, vibration, fatigue, traceability or customer qualification.
These requirements should be defined by the specific program.
Retaining rings are widely used throughout industrial equipment.
Applications may include:
Machine tools
Pumps
Compressors
Gearboxes
Rollers
Bearings
Conveyors
Packaging equipment
Processing machinery
Material-handling systems
For high-load or cyclic applications, both ring and groove should be evaluated.
Retaining rings can provide compact axial retention in:
Robotic joints
Servo-related mechanical assemblies
Actuators
Gear mechanisms
Grippers
Rotary mechanisms
Conveyor systems
Automated production equipment
High-cycle automation applications may require additional attention to fatigue, dimensional consistency and installation repeatability.
Potential applications include mechanical assemblies in:
Fans
Blowers
Motors
Pumps
Compressors
Actuators
Valve mechanisms
Cooling equipment
Material and finish should be selected according to condensation, humidity, temperature and corrosion exposure.
The growth of high-density AI computing infrastructure is increasing demand for cooling and thermal-management equipment.
Retaining rings may be used where appropriate within mechanical components such as:
Pumps
Motors
Fans
Cooling distribution units
Actuators
Valve mechanisms
Liquid-cooling equipment
The actual retaining-ring specification should still be determined by the mechanical assembly, groove, load and operating environment.
Potential mechanical applications include:
Fans
Motors
Actuators
Switch mechanisms
Mechanical interlocks
Cabinet hardware
Control equipment
Retaining rings in these assemblies provide mechanical axial retention and should not automatically be described as electrical grounding components.
Potential applications include:
Antenna positioning mechanisms
Base-station equipment
Cooling equipment
Motors
Fans
Actuators
Mechanical adjustment systems
Outdoor equipment may require particular attention to corrosion resistance and long-term environmental exposure.
Retaining rings may be used in suitable mechanical systems associated with:
Automation
Robotics
Material handling
Pumps
Actuators
Motion-control equipment
Positioning mechanisms
A standard industrial retaining ring should not automatically be represented as cleanroom-, vacuum- or semiconductor-process-qualified.
Any such requirements must be specified separately.
Retaining rings may be used in suitable mechanical components within:
Commercial mixers
Refrigeration equipment
Dispensing equipment
Pumps
Motors
Conveyors
Processing machinery
For washdown or chemically cleaned equipment, material and surface requirements should reflect the actual exposure conditions.
Mechanical use in food-service equipment does not automatically mean the retaining ring is a food-contact component.
Potential non-implant mechanical applications include:
Diagnostic equipment
Laboratory automation
Pumps
Motors
Actuators
Positioning equipment
Sample-handling systems
Customer-specific requirements for material, cleanliness, traceability and documentation should be evaluated separately.
Small retaining rings are commonly useful where compact axial retention is required in:
Precision instruments
Measurement devices
Mechanical indicators
Sensors
Adjustment mechanisms
Bearing assemblies
Tolerance stack-up can be particularly important in these compact assemblies.
Retaining rings and E-clips can be used in suitable mechanical assemblies involving:
Motors
Fans
Hinges
Linkages
Rotating components
Adjustment mechanisms
High-volume appliance production may place particular emphasis on assembly speed, dimensional consistency and cost control.
Potential applications include:
Pumps
Gear systems
Actuators
Auxiliary mechanisms
Control assemblies
Material-handling equipment
For heavy-load applications, retaining-ring selection should be based on engineering analysis of the complete retention system.
Suitable applications may include:
Ground-support equipment
Manufacturing tooling
Test equipment
Laboratory systems
Automation
Non-flight-critical mechanical assemblies
unless the specific aerospace program defines additional qualification requirements.
A standard retaining-ring designation should not automatically be treated as aerospace qualification.
Understanding failure modes helps engineers and sourcing teams distinguish product problems from application problems.
Possible causes include:
Incorrect ring size
Incorrect groove
Excessive axial load
Incomplete installation
Ring deformation
Shaft or housing deformation
Possible causes include:
Insufficient groove strength
Soft shaft or housing material
Excessive axial load
Incorrect groove geometry
Insufficient edge support
Possible causes include:
Burrs
Contamination
Coating buildup
Incorrect dimensions
Installation-tool misalignment
Damaged ring
Possible causes include:
Groove width
Groove position
Ring thickness
Component tolerance
Shoulder position
Stack-up variation
Possible causes include:
Incorrect material
Unsuitable finish
Moisture
Chlorides
Chemicals
Coating damage
Failure analysis should therefore evaluate the complete ring-groove-component system.
A practical engineering selection process starts with the assembly.
Where is the ring installed?
→ On a shaft: evaluate an external retaining ring.
→ Inside a bore: evaluate an internal retaining ring.
Is an established standard specified?
→ DIN 471: evaluate the appropriate external shaft ring.
→ DIN 472: evaluate the appropriate internal bore ring.
Is radial installation preferred for a shaft application?
→ Evaluate an E-type retaining ring or another suitable radial-installation design.
Is the groove non-standard?
→ Evaluate a modified or custom retaining ring.
Then review:
Axial Load → Groove Geometry → Shaft/Housing Material → Retained Component → Clearance → Installation → Environment → Material → Finish → Validation
This sequence is more reliable than selecting from diameter alone.
Retaining-ring searches generally fall into two different intent groups.
Engineers may search for:
retaining ring for shaft
retaining ring for bore
DIN 471 vs DIN 472
retaining ring groove dimensions
circlip axial load
retaining ring for bearing
E-clip vs circlip
internal vs external retaining ring
Their main question is:
Which retention architecture will work in this assembly?
Procurement teams may search for:
retaining ring manufacturer
retaining ring supplier
DIN 471 supplier
DIN 472 supplier
stainless steel retaining rings
E-clip supplier
custom retaining ring manufacturer
retaining ring second source
retaining rings from drawing
Their main question is:
Can this supplier consistently manufacture and support the required product for our program?
An industrial product page should answer both.
Second-source programs should clearly define the sourcing objective.
The requirement is based on an established standard.
The new supplier follows an approved drawing or controlled specification.
Some characteristics may differ while maintaining the required assembly function, subject to customer engineering approval.
The existing design is intentionally changed.
A new component is developed around the application.
These categories should not be mixed during quotation or supplier qualification.
Where a customer has a physical part but no complete drawing, sample-based development may be possible.
A practical workflow is:
Sample → Dimensional Inspection → Application Review → Groove Review → Material / Finish Evaluation → Drawing Confirmation → Prototype → Assembly Validation → Production
A sample can reveal geometry and visible finish.
It does not necessarily reveal:
Original material specification
Heat-treatment specification
Hardness requirement
Coating specification
Design load
Fatigue target
Original engineering standard
Providing application information therefore improves the reliability of sample-based development.
For efficient engineering review and quotation, provide the available project information.
Retaining-ring type
Applicable standard
Customer part number
2D drawing
3D model where relevant
Physical sample where available
Shaft diameter or bore diameter
Groove diameter
Groove width
Groove location
Shaft or housing material
Bearing
Gear
Bushing
Sleeve
Roller
Pulley
Other component
Expected axial load
Static or dynamic loading
Vibration
Shock
Required service life
Acceptable axial clearance
Required material
Hardness where specified
Surface finish
Corrosion requirement
Restricted-substance requirements
Temperature
Humidity
Outdoor exposure
Chlorides
Cleaning chemicals
Other environmental factors
Sample quantity
Pilot quantity
Production quantity
Estimated annual demand
Packaging
Traceability
Delivery schedule
OEM and industrial retaining-ring projects may require supplier capabilities relevant to the specific program, including:
Drawing review
Material control
Tooling control
Forming-process control
Heat-treatment control where applicable
Dimensional inspection
Surface-treatment control
Prototype development
Production consistency
Automatic optical sorting where applicable
Packaging
Lot identification
Change management
Long-term supply support
Inspection technology should be matched to the characteristic being controlled.
Automatic optical sorting can support suitable externally measurable dimensions and visual characteristics in high-volume production, but it does not replace material or mechanical verification where these are required.
JUXIN FASTENERS supports standard, drawing-based and custom retaining-ring projects for industrial OEMs, engineering teams, procurement organizations, supplier-development teams and global supply chains.
Projects can be evaluated from:
DIN or other applicable standard designation
Engineering drawing
Physical sample
Shaft or bore dimensions
Groove dimensions
Material requirement
Surface-finish requirement
Application information
Production quantity
The project can first be classified as:
External Shaft Ring → Internal Bore Ring → E-Type Ring → Standard Part → Exact Replacement → Functional Equivalent → Modified Design → Custom Retaining Ring
This allows engineering and procurement teams to establish the correct sourcing path before tooling, samples or production are initiated.
A practical sourcing path is:
Shaft or Bore?
→ What component is being retained?
→ Which standard or drawing applies?
→ What groove is available?
→ What is the shaft or housing material?
→ What axial load reaches the ring?
→ What axial clearance is acceptable?
→ How will the ring be installed?
→ Is service removal required?
→ What material and surface finish are required?
→ What corrosion, temperature, vibration and environmental conditions apply?
→ Is a standard retaining ring sufficient?
→ Does the project require an exact replacement or custom solution?
→ How will samples be validated?
→ What are the pilot and production quantities?
This changes a generic request such as:
“Please quote retaining rings.”
into a useful industrial sourcing specification:
“Please evaluate the correct retaining ring, groove interface, material and finish for this shaft or bore assembly and its required axial retention.”
For DIN 471 retaining rings for shafts, DIN 472 retaining rings for bores, E-type retaining rings, E-clips, internal circlips, external circlips,
stainless steel retaining rings, spring steel retaining rings, drawing-based parts, custom retaining rings or second-source development,
send your available drawing, standard designation, sample, shaft or bore dimensions, groove information, material, finish, application requirements and quantity to:
JUXIN FASTENERS can review the available technical information and evaluate an appropriate manufacturing, sampling and production path for your project.

Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
