Small Countersunk Rivet Nuts | Low-Profile Blind Inserts

Nov. 07, 2023

Small Countersunk Rivet Nuts for Low-Profile Thin-Sheet Assembly

When an OEM assembly needs a reusable machine thread in thin sheet but cannot tolerate the projection of a conventional large-flange rivet nut,

a small countersunk head rivet nut can provide a compact blind-threaded fastening solution.

Also described as a low-profile rivet nut, countersunk blind rivet nut, countersunk nutsert, or low-profile blind threaded insert,

 this rivet nut family combines one-side installation with a reduced or countersunk head geometry.

Typical design objectives include:

  • minimizing fastener-head projection;

  • creating a cleaner panel surface;

  • reducing interference with mating components;

  • providing a reusable internal thread in thin material;

  • eliminating rear-side nut access;

  • avoiding welding where heat input is undesirable.

JUXIN FASTENERS supplies steel, stainless steel and aluminum small countersunk rivet nuts, together with custom blind threaded inserts for OEM sheet-metal and industrial assemblies.

Applications can include automotive and EV equipment, railway interiors, electrical enclosures, industrial machinery,

 HVAC and refrigeration equipment, elevators, instrumentation, electronics and commercial equipment.

The critical engineering point is that a small countersunk rivet nut should not be selected by appearance alone.

Reliable performance depends on:

Thread Size × Panel Thickness × Grip Range × Head Geometry × Hole Preparation × Parent Material × Installation Setting × Service Load

Small Countersunk Rivet Nuts | Low-Profile Blind Inserts

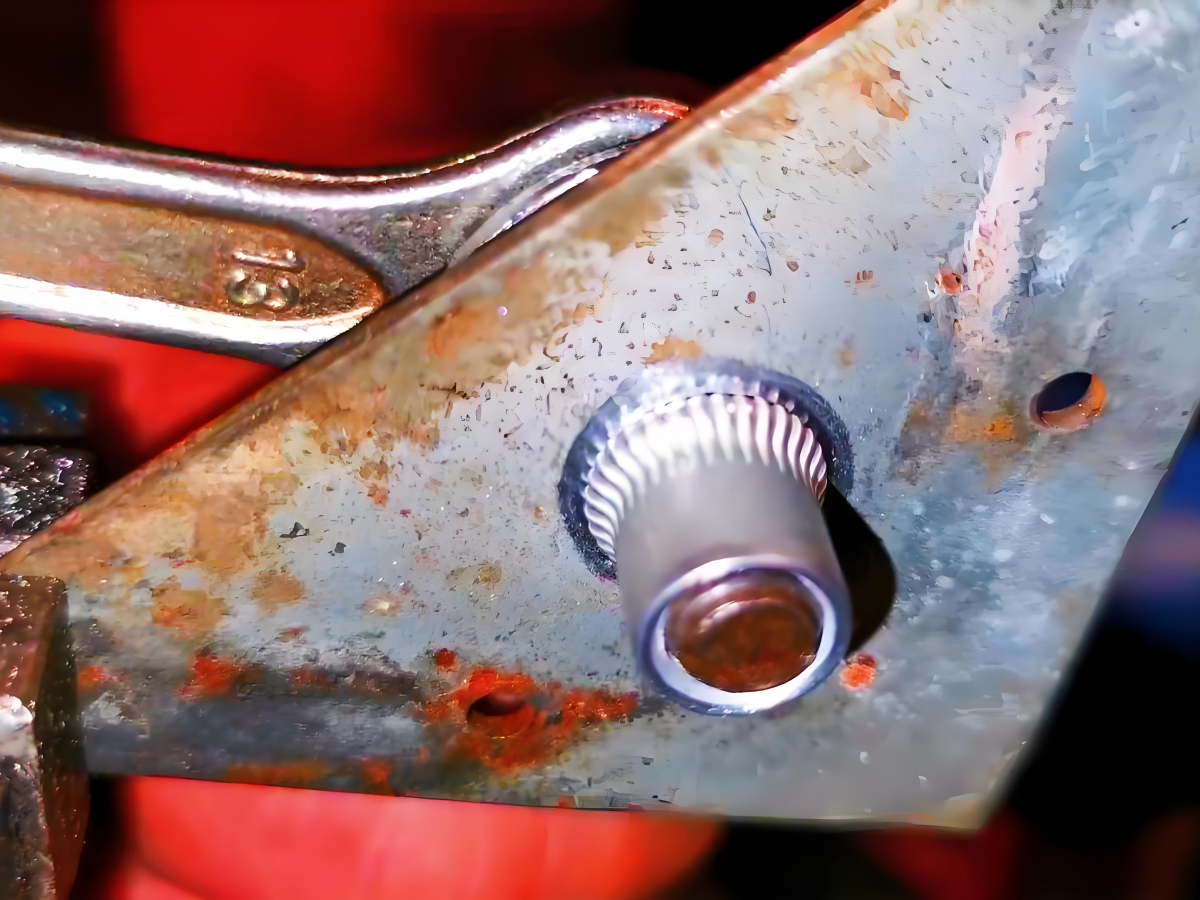

What Is a Small Countersunk Head Rivet Nut?

A small countersunk head rivet nut is an internally threaded blind fastener with a reduced-profile head designed to minimize projection above the parent material.

Like other blind rivet nuts, it is installed from one accessible side.

During setting, a controlled section of the body deforms behind the panel and clamps the insert into position. The internal thread remains available for subsequent assembly with a bolt or screw.

Its distinguishing feature is the head.

Compared with a conventional large-flange rivet nut, a small countersunk design reduces the amount of material projecting above the panel.

This makes it useful where surface clearance and assembly envelope are important.

Is a Small Countersunk Rivet Nut Really Flush?

Not necessarily.

This is one of the most important distinctions when specifying this product.

Terms such as:

  • small countersunk head;

  • reduced head;

  • low profile;

  • flush head;

are sometimes used loosely in commercial descriptions, but they should not automatically be treated as identical geometries.

The final installed height depends on:

  • actual head shape;

  • head thickness;

  • countersink geometry where required;

  • panel thickness;

  • prepared hole geometry;

  • setting condition;

  • supplier-specific product dimensions.

Therefore:

Small Countersunk Head ≠ Automatically Zero-Protrusion Installation

If a truly flush surface is functionally required, the drawing should define the permitted installed projection rather than relying only on the product name.

Small Countersunk vs. Large-Flange Rivet Nuts

Head geometry creates an engineering trade-off.

Design FactorSmall Countersunk / Low-Profile HeadLarge-Flange Head
Surface projectionLowerHigher
Bearing areaSmallerLarger
Space requirementLowerHigher
Panel surface supportMore limitedGreater
AppearanceCleaner / lower profileMore visible
Soft or weak substrateRequires careful evaluationOften provides more bearing area
Mating-part clearanceOften advantageousMay interfere in restricted assemblies

This means a smaller head is not universally better.

A large flange may be preferred when the parent material needs more bearing support.

A low-profile head becomes valuable when the assembly cannot accommodate that larger flange.

Small Countersunk vs. Reduced-Head Rivet Nuts

These terms can overlap depending on supplier terminology.

A reduced-head rivet nut typically emphasizes minimizing head diameter and/or thickness.

A countersunk rivet nut typically uses a head geometry intended to fit a corresponding prepared surface geometry.

Because manufacturer terminology varies, engineers should not approve substitutions based on naming alone.

Compare:

  • head diameter;

  • head thickness;

  • head angle/profile;

  • body diameter;

  • grip range;

  • required hole preparation;

  • installed projection.

For OEM purchasing, the drawing is more reliable than the marketing name.

Small Countersunk vs. Hex Rivet Nuts

Article 7 covers hex-body rivet nuts, where the primary engineering requirement is anti-rotation through geometric engagement.

This article addresses a different problem:

How do we create a blind reusable thread while minimizing head projection?

A small countersunk rivet nut can have different body geometries depending on the product family.

Therefore:

Head Geometry → Controls Surface Interface / Projection

Body Geometry → Influences Anti-Rotation and Installation Behavior

These functions should not be confused.

If both low profile and high rotational resistance are required, the complete head-and-body configuration must be evaluated.

Why Head Bearing Area Matters

Reducing head size has a mechanical consequence: less bearing area is available at the front surface of the panel.

This becomes important in:

  • very thin sheet;

  • aluminum panels;

  • plastics;

  • composites;

  • softer substrates.

A small head can satisfy the clearance requirement but place greater local demand on the surrounding material.

The design question therefore becomes:

How much surface projection can the assembly tolerate, and how much bearing area does the parent material require?

This is more useful than simply specifying the smallest available head.

Grip Range Is Still a Critical Specification

Like every blind rivet nut, a small countersunk rivet nut must match the thickness of the parent material.

The specified grip range identifies the thickness range over which the product is intended to set correctly.

Two M5 small countersunk rivet nuts may have the same internal thread but different:

  • body lengths;

  • grip ranges;

  • head dimensions;

  • installation requirements.

Therefore:

M5 + Stainless Steel + Countersunk Head

is still not a complete engineering specification.

The panel thickness or required grip range must also be defined.

Small Countersunk Rivet Nuts | Low-Profile Blind Inserts

Why the Correct Grip Range Matters

During installation, the deformable section of the rivet nut must form correctly behind the parent material.

If the selected grip range does not match the panel, potential problems can include:

  • incomplete backside formation;

  • poor clamping;

  • excessive deformation;

  • head seating problems;

  • reduced rotational resistance;

  • parent-material damage.

For multilayer assemblies, engineers should evaluate the actual material stack involved in the rivet nut installation.

For broader grip-range selection principles, link this article to the JUXIN FASTENERS Blind Rivet Nut Selection Guide.

Installation Hole Geometry Matters

The installation hole is part of the fastening system.

A hole that is too large can contribute to:

  • reduced rotational resistance;

  • poor positioning;

  • inconsistent installation;

  • movement during bolt assembly.

A hole that is too small can cause:

  • difficult insertion;

  • coating damage;

  • head-seating problems;

  • distortion.

For low-profile rivet nuts, the interface around the head deserves additional attention because the design has less visible flange area to mask irregularities.

The finished production hole should therefore meet the dimensions specified for the selected rivet nut.

Does the Panel Need a Countersink?

This depends on the specific rivet nut design.

Engineers should not automatically machine or form a countersink simply because the component is marketed as a countersunk rivet nut.

Some low-profile designs are intended for particular prepared holes or formed panel geometries,

while others minimize projection without requiring the same type of conventional screw-head countersink.

Always follow the actual component drawing and installation specification.

Unnecessary removal of material around a thin sheet-metal hole can weaken the local panel region.

Thin Sheet Creates a Design Trade-Off

A common reason for choosing a rivet nut is that the sheet is too thin to provide adequate direct tapped-thread engagement.

But very thin sheet also provides less structural support around the insert.

For a low-profile head, engineers should consider:

  • local panel stiffness;

  • head bearing area;

  • backside formation;

  • service torque;

  • pull-out loading;

  • vibration.

The objective is not simply to fit the rivet nut into the thinnest possible panel.

The objective is to create a reliable installed joint.

Steel Small Countersunk Rivet Nuts

Steel rivet nuts provide a useful combination of mechanical performance, manufacturability and cost.

They can be suitable for:

  • industrial machinery;

  • automotive assemblies;

  • fabricated equipment;

  • enclosures;

  • HVAC equipment;

  • general sheet-metal systems.

Possible surface treatments can include:

  • zinc plating;

  • zinc-nickel plating;

  • zinc-flake systems;

  • other project-specific finishes.

The coating should be selected according to corrosion and OEM requirements rather than simply requesting a particular plating color.

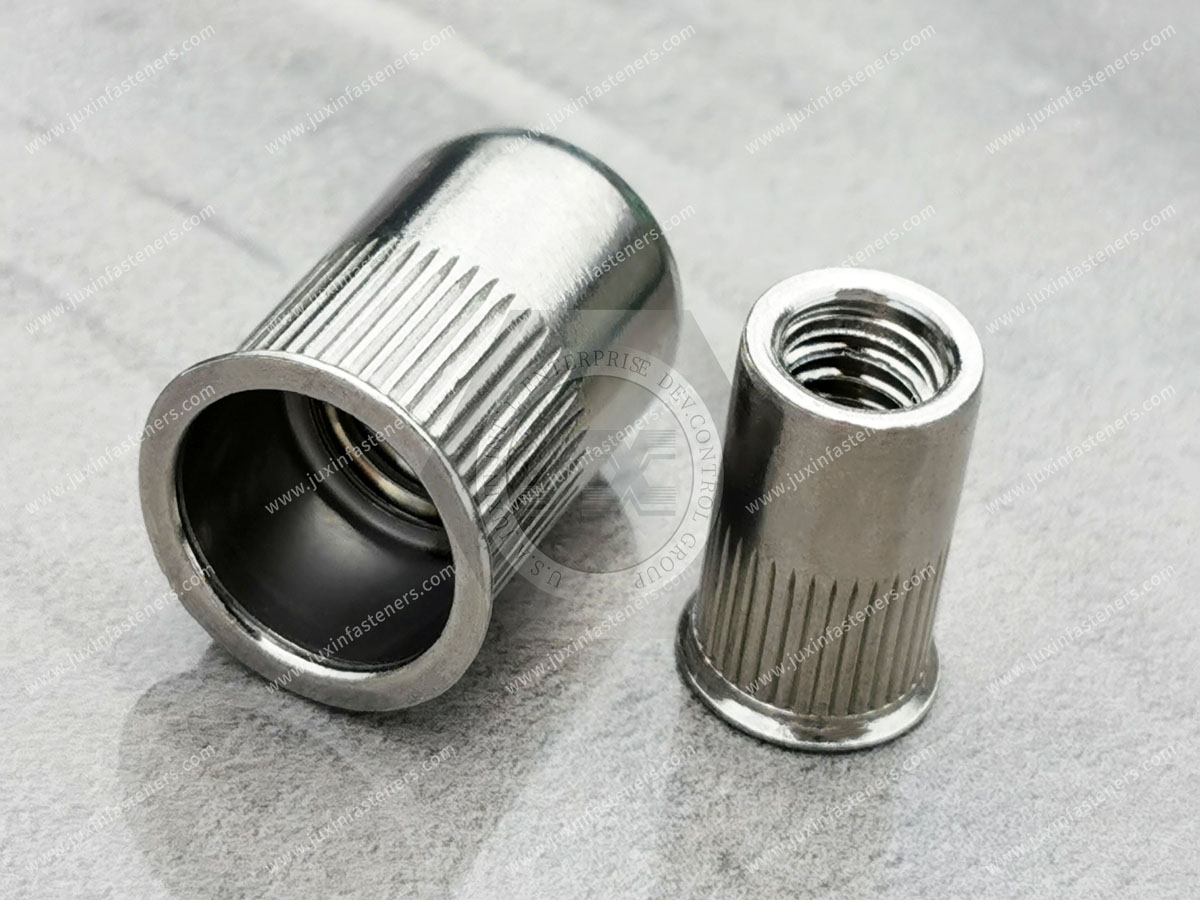

Stainless Steel Small Countersunk Rivet Nuts

Stainless steel low-profile rivet nuts can be considered where increased corrosion resistance is required.

Depending on product availability and specification, materials can include:

  • 304-type stainless steel;

  • 316-type stainless steel.

Potential applications include:

  • outdoor equipment;

  • food-processing machinery;

  • medical and laboratory equipment;

  • chemical-processing equipment;

  • transportation systems.

However, material substitution affects installation.

Stainless steel can require greater setting capability than softer materials.

Before changing from plated steel or aluminum to stainless steel, confirm that the production tooling can install the selected rivet nut consistently.

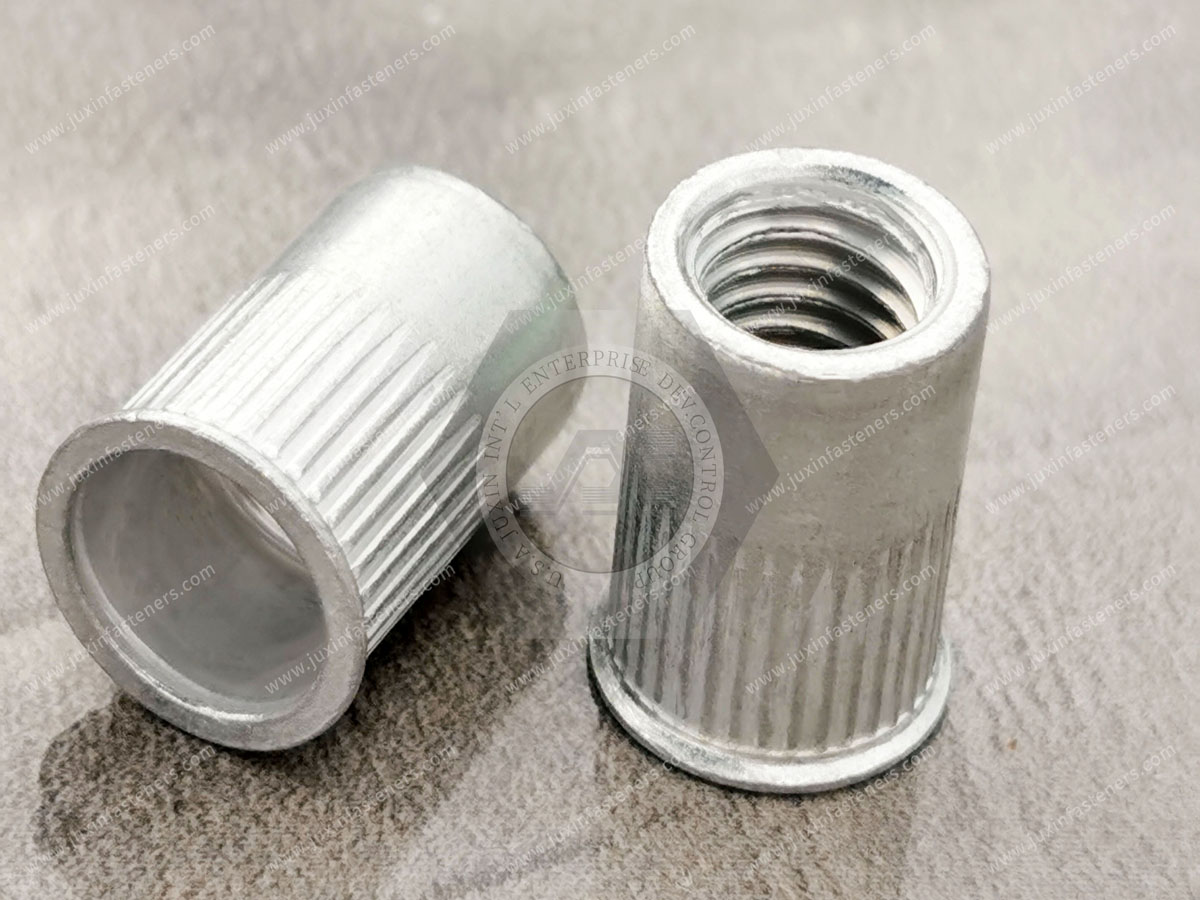

Aluminum Small Countersunk Rivet Nuts

Aluminum low-profile rivet nuts can be useful where reduced weight and lower setting force are important.

Applications may include:

  • lightweight transportation equipment;

  • electronic housings;

  • aluminum panels;

  • commercial equipment.

However:

Lightweight ≠ Suitable for Every Load

Service torque, axial load, parent material and expected assembly cycles should still be evaluated.

The rivet nut material should solve the application requirement rather than simply match the panel material.

Parent Material Is Part of the Fastening System

The same rivet nut can perform differently in:

  • carbon steel;

  • stainless steel;

  • aluminum;

  • plastic;

  • composite material.

Important substrate characteristics include:

  • thickness;

  • strength;

  • hardness;

  • ductility;

  • stiffness;

  • surface condition.

This becomes especially important with small-head designs because local bearing conditions can be more sensitive than with a large-flange rivet nut.

For critical applications, validation should use the actual or representative production panel.

Low-Profile Rivet Nuts in Plastic and Composite Panels

The original product family can be applied to selected plastics and composites, but these substrates require special attention.

Potential failure mechanisms include:

  • local crushing;

  • cracking;

  • creep;

  • pull-through;

  • rotation.

A small head may provide insufficient bearing area in a soft polymer even if the thread size and grip range appear correct.

Where the substrate is soft, a larger-flange design or another threaded-insert technology may provide better load distribution.

This should be determined through application-specific testing.

Anti-Rotation Requirements

Low-profile head geometry does not itself guarantee anti-rotation performance.

Resistance to spinning depends on factors including:

  • body geometry;

  • knurling or other external features;

  • installation hole;

  • parent material;

  • grip range;

  • setting condition;

  • final bolt torque.

Where anti-rotation is the dominant engineering requirement, evaluate:

  • knurled body rivet nuts;

  • half-hex rivet nuts;

  • full-hex rivet nuts;

  • other application-specific body designs.

For high-torque blind threaded joints, link internally to the JUXIN FASTENERS Hex Rivet Nut engineering article.

What Causes a Low-Profile Rivet Nut to Spin?

Potential causes include:

  • oversized installation hole;

  • unsuitable body geometry;

  • insufficient setting;

  • incorrect grip range;

  • weak parent material;

  • excessive final bolt torque;

  • damaged panel hole.

The troubleshooting sequence should be:

Check Hole → Check Grip Range → Check Body → Check Setting → Check Parent Material → Review Final Torque

Changing only the head style rarely solves a rotational-retention problem.

What Causes Pull-Through Around a Small Head?

Because a small head has less front-side bearing area, engineers should distinguish rivet nut pull-out from local panel pull-through or deformation.

Possible contributors include:

  • weak or very thin parent material;

  • excessive axial load;

  • insufficient head bearing area;

  • incorrect setting;

  • oversized hole;

  • local panel deformation.

If the substrate fails around the head, changing to a stronger rivet nut material alone may not solve the problem.

The correct solution may involve:

  • increasing bearing area;

  • strengthening the panel;

  • changing body/head geometry;

  • reducing joint load;

  • selecting another fastening technology.

Installation Setting: Controlled Deformation Matters

A blind rivet nut is installed through controlled deformation.

Under-setting can result in:

  • incomplete backside formation;

  • low retention;

  • possible spinning;

  • poor head seating.

Over-setting can result in:

  • thread distortion;

  • panel deformation;

  • damaged rivet nut body;

  • excessive local stress.

For a low-profile head, panel distortion can be especially visible and may defeat the original reason for selecting the product.

The target is therefore:

Controlled and Repeatable Setting — Not Maximum Setting Force

Small Countersunk Rivet Nuts | Low-Profile Blind Inserts

Surface Appearance Depends on Installation Quality

Low-profile rivet nuts are frequently chosen partly for appearance.

But a clean installed surface depends on more than the rivet nut itself.

Appearance can be affected by:

  • hole burrs;

  • panel distortion;

  • coating buildup;

  • tool alignment;

  • head seating;

  • countersink quality where applicable;

  • installation force.

For visible panels, cosmetic acceptance criteria should be considered during prototype approval.

Automotive and EV Applications

Small countersunk rivet nuts can be useful where automotive assemblies require blind reusable threads with limited surface projection.

Potential applications include:

  • interior panels;

  • equipment brackets;

  • electrical assemblies;

  • serviceable covers;

  • selected battery-system components;

  • lightweight body structures.

EV platforms can combine thin steel, aluminum, extrusions and enclosed assemblies where rear-side nut access is unavailable.

However, the fastener should be selected according to the actual OEM drawing, service load, environment and assembly process.

Railway Interior and Transportation Applications

Railway and transportation equipment can use low-profile blind threaded inserts in suitable:

  • interior panels;

  • lighting assemblies;

  • equipment cabinets;

  • partitions;

  • service panels;

  • electrical equipment.

Low projection can be valuable where the installed fastener must avoid interference with adjacent trim or equipment.

Rail projects may also impose requirements involving:

  • vibration;

  • corrosion;

  • traceability;

  • maintenance access;

  • project-specific documentation;

  • fire and smoke requirements for associated non-metallic components.

The project specification should govern final selection.

Electrical Enclosures and Industrial Electronics

Small countersunk rivet nuts can provide reusable threaded mounting points in:

  • control cabinets;

  • switchgear housings;

  • electronic enclosures;

  • instrument panels;

  • communication equipment.

Low-profile geometry can be useful where:

  • internal or external clearance is restricted;

  • covers must fit closely;

  • appearance matters;

  • repeated servicing is expected.

For outdoor equipment, corrosion and sealing requirements should be evaluated separately from head geometry.

HVAC and Refrigeration Equipment

HVAC and refrigeration assemblies frequently use fabricated sheet-metal housings.

Potential applications include:

  • equipment covers;

  • control boxes;

  • service panels;

  • fan and equipment housings;

  • mounting brackets.

Blind installation can simplify assembly when rear access is unavailable.

Where condensation or outdoor exposure is expected, material and coating selection should be based on the actual environment.

Elevators and Architectural Equipment

Low-profile threaded inserts can be useful in selected:

  • elevator panels;

  • control equipment;

  • decorative assemblies;

  • access panels;

  • metal interior systems.

Here the design requirement may combine:

Mechanical Attachment + Serviceability + Low Projection + Appearance

For visible assemblies, prototype evaluation should include the final coated or finished panel.

Industrial Machinery and Automation

Machinery manufacturers can use small countersunk rivet nuts in:

  • guards;

  • covers;

  • control panels;

  • access doors;

  • automation enclosures;

  • compact equipment assemblies.

The reusable internal thread supports maintenance while the reduced head minimizes interference with moving or adjacent components.

Commercial Furniture and Equipment

Metal furniture, office equipment and commercial fixtures may use low-profile rivet nuts where a conventional protruding flange would interfere with:

  • mating panels;

  • upholstery;

  • sliding components;

  • decorative surfaces.

The design should still verify that the reduced bearing area is adequate for the substrate and service load.

How Engineers Should Select a Small Countersunk Rivet Nut

A practical selection path is:

1. Define the Thread

Specify:

  • metric or inch;

  • diameter;

  • pitch or TPI;

  • thread requirement.

2. Define the Parent Material

Identify:

  • steel;

  • stainless steel;

  • aluminum;

  • plastic;

  • composite;

  • other substrate.

3. Measure Material Thickness

Use the actual finished panel thickness to determine the required grip range.

4. Define the Surface Requirement

Ask:

  • Is reduced projection sufficient?

  • Is near-flush installation required?

  • Is true flushness a functional requirement?

  • What maximum projection is permitted?

5. Select Head Geometry

Balance:

Low Projection vs. Required Bearing Area

6. Define Hole Preparation

Confirm:

  • hole diameter;

  • countersink/forming requirement if applicable;

  • burr control;

  • coating condition.

7. Evaluate Anti-Rotation

Determine whether a round, knurled, half-hex or other body design is appropriate.

8. Define Environment

Consider:

  • corrosion;

  • moisture;

  • chemicals;

  • temperature.

9. Review Installation Tooling

Confirm that the production tool can set the selected material and size consistently.

10. Validate the Complete Assembly

Test the actual:

Panel + Hole + Rivet Nut + Tool + Setting + Mating Bolt

before mass production.

When Not to Use a Small Countersunk Rivet Nut

A low-profile rivet nut may not be the best solution when:

  • the substrate requires a much larger bearing area;

  • the panel cannot support the head geometry;

  • very high anti-rotation performance is required but the selected body does not provide it;

  • the application requires a welded captive thread;

  • a cage nut provides better serviceability;

  • another insert technology is better suited to the substrate.

Selecting the correct fastening technology is more important than forcing a particular rivet nut into every blind-thread application.

Small Countersunk Rivet Nut vs. Weld Nut

A weld nut can be advantageous in suitable weldable sheet-metal production where:

  • welding is already part of the manufacturing process;

  • high-volume captive-thread installation is required;

  • heat input and coating sequence are controlled.

A low-profile rivet nut may be advantageous when:

  • welding is undesirable;

  • the fastener is installed after fabrication;

  • only one side is accessible;

  • dissimilar or non-weldable substrates are involved.

Link this section internally to the JUXIN FASTENERS Weld Nut Solutions cluster.

Small Countersunk Rivet Nut vs. Cage Nut

A cage nut may be preferable where:

  • the threaded component must be replaceable;

  • positional float is useful;

  • rack or enclosure serviceability is important.

A low-profile rivet nut may be preferable where:

  • the thread should remain permanently attached;

  • projection must be minimized;

  • a loose or replaceable captive nut is unnecessary.

This comparison is particularly relevant to electrical, telecommunications and equipment-enclosure designers.

What Should Be Specified on the Drawing?

Depending on the product, an OEM drawing should define:

  • internal thread;

  • thread tolerance;

  • body diameter;

  • body geometry;

  • overall length;

  • head diameter;

  • head thickness/profile;

  • grip range;

  • installation-hole dimensions;

  • countersink geometry where required;

  • material;

  • surface treatment;

  • dimensional tolerances;

  • burr requirements;

  • installed projection requirement where critical;

  • inspection requirements;

  • applicable international or customer specification.

If flushness is critical, specify a measurable installed condition instead of relying only on the phrase “small countersunk head.”

Procurement RFQ Checklist

For faster technical and commercial evaluation, provide:

  • drawing or exact product specification;

  • thread size;

  • metric or inch thread;

  • head style;

  • body style;

  • grip range;

  • panel material;

  • panel thickness;

  • installation-hole dimensions;

  • countersink requirements if applicable;

  • rivet nut material;

  • surface treatment;

  • corrosion requirement;

  • expected bolt tightening requirement;

  • application;

  • prototype quantity;

  • production quantity;

  • estimated annual demand;

  • inspection requirements;

  • documentation requirements;

  • packaging requirements.

A request such as:

“M5 countersunk rivet nut, stainless steel”

does not completely define the product.

Supplier Qualification for Low-Profile Rivet Nuts

Where surface projection is a functional requirement, supplier qualification should include more than thread and body dimensions.

Depending on the project, evaluation can include:

  • dimensional inspection;

  • thread inspection;

  • head geometry;

  • installation fit;

  • installed head projection;

  • backside formation;

  • spin resistance;

  • pull-out resistance;

  • bolt assembly;

  • corrosion requirement.

Testing should use representative production material whenever possible.

Prototype Validation: Test the Finished Panel

Low-profile designs are particularly sensitive to the actual panel interface.

Validation should reproduce:

Production Material + Finished Thickness + Hole Geometry + Countersink/Forming if Required + Coating + Rivet Nut + Setting Tool + Installation Parameters

For visible applications, use the actual finished surface where practical.

A rivet nut that looks flush in an uncoated laboratory coupon may sit differently after the production panel receives paint, powder coating or another finish.

This is a practical detail that should be resolved during prototype approval rather than after production begins.

Standard vs. Custom Small Countersunk Rivet Nuts

Standard products should be evaluated first where they satisfy the application.

Custom development may be appropriate when the OEM requires:

  • special head diameter;

  • controlled installed projection;

  • non-standard grip range;

  • special body geometry;

  • custom anti-rotation feature;

  • closed-end design;

  • special material;

  • special coating;

  • unusual thread;

  • restricted installation envelope.

The design objective should be clearly defined before customization.

For example:

“Maximum installed projection 0.3 mm”

is a more useful engineering requirement than:

“Make the head as small as possible.”

Internal Linking Architecture for the JUXIN Rivet Nut Cluster

This page should occupy the entity:

Small Countersunk Rivet Nut → Low-Profile / Flush Thin-Sheet Blind Thread

Link upward to:

Blind Rivet Nut Selection Guide — Article 6

for general rivet nut selection.

Link laterally to:

Hex Rivet Nuts — Article 7
for high anti-rotation requirements.

Also link to:

  • Large-Flange Rivet Nuts;

  • Knurled Rivet Nuts;

  • Closed-End Rivet Nuts;

  • Stainless Steel Rivet Nuts;

  • Aluminum Rivet Nuts;

  • Rivet Nuts for Plastic and Composite Materials.

Connect to alternative technologies:

  • Weld Nuts;

  • Cage Nuts;

  • Threaded Inserts;

  • Industrial Nut Selection Guide.

The search path becomes:

Blind Thread Requirement → Surface Clearance Requirement → Small Countersunk Rivet Nut → Grip / Head / Hole / Material → Product → RFQ

This prevents the page from competing directly with the broader blind rivet nut article.

OEM Small Countersunk Rivet Nut Supply

JUXIN FASTENERS supports industrial customers sourcing:

  • small countersunk head rivet nuts;

  • low-profile rivet nuts;

  • countersunk blind threaded inserts;

  • steel countersunk rivet nuts;

  • stainless steel countersunk rivet nuts;

  • aluminum countersunk rivet nuts;

  • anti-rotation rivet nut configurations;

  • custom made-to-drawing threaded inserts.

Project review can include:

  • drawing evaluation;

  • thread requirements;

  • head geometry;

  • installed projection requirements;

  • grip-range review;

  • body configuration;

  • installation-hole requirements;

  • parent-material information;

  • material and coating requirements;

  • sample requirements;

  • inspection requirements;

  • production quantities;

  • packaging;

  • repeat OEM supply.

Request an RFQ for Small Countersunk Rivet Nuts

If your project requires small countersunk rivet nuts, low-profile rivnuts, countersunk nutserts, stainless steel countersunk rivet nuts or custom blind threaded inserts,

send JUXIN FASTENERS your drawing or application requirements for review.

For faster engineering evaluation, provide:

Thread Size + Panel Material + Finished Panel Thickness + Grip Range + Hole Dimensions + Required Head Projection + Body Style + Material + Surface Treatment + Quantity

If the main problem is that an existing rivet nut projects too far above the panel, also provide the current fastener drawing or dimensions and the maximum permitted installed height.

This allows the solution to be evaluated from the actual assembly constraint rather than simply selecting a smaller-looking head.

JUXIN FASTENERS

Website: www.juxinfasteners.com

Email: info@juxinfasteners.com

Small Countersunk Rivet Nuts | Low-Profile Blind Inserts


Contact Us

Tel.:

+86 020 8621 0320

+86 020 3121 6067

Mobile: +86 136 6007 9809

Technical Support:

SEND INQUIREY

Copyright © Guangzhou Juxin Development Co., Ltd. All Rights Reserved | Sitemap
