Oct. 25, 2023
Rectangular push nuts for tapping screws are stamped sheet-metal fasteners designed to provide an efficient screw-retention or fastening interface in thin-sheet and panel assemblies.
Depending on geometry and market terminology, related products may also be described as push nuts, speed nuts, sheet metal nuts, spring steel nuts, or tapping screw nuts.
These terms can overlap across suppliers, so engineers and purchasing teams should identify the actual fastener by geometry, mating screw, material, panel interface, and drawing rather than by product name alone.
Unlike a conventional internally threaded machine nut, many push-nut designs use formed spring features that interact with a compatible tapping or thread-forming screw.
That distinction is critical.
A rectangular push nut should therefore be engineered and sourced as part of a screw-fastener interface, not simply selected as though it were a standard threaded nut.
This guide explains how rectangular push nuts work, which dimensions control their performance,
how to match them with tapping screws, and what engineers and procurement teams should define for OEM or second-source projects.

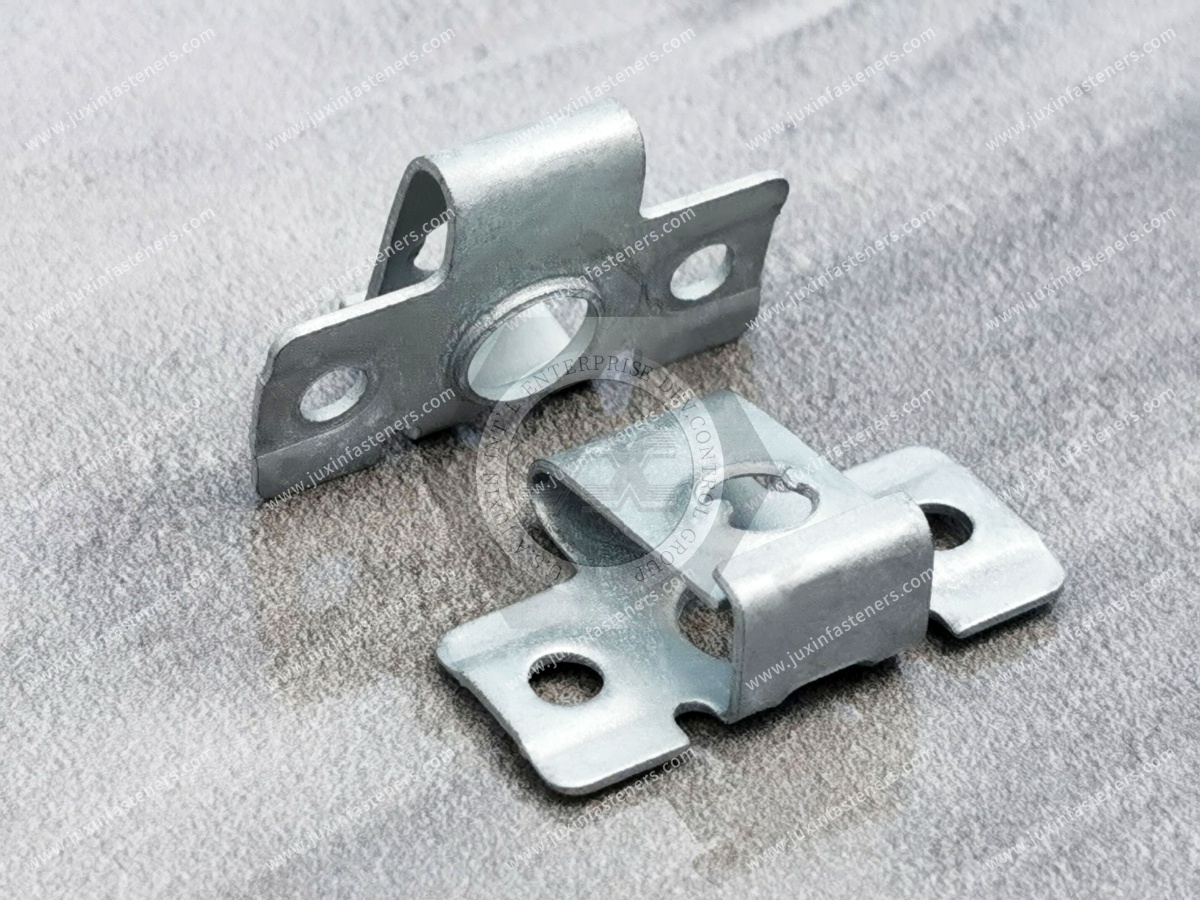

A rectangular push nut is typically manufactured from formed sheet material and incorporates one or more spring features around the screw-entry area.
When the appropriate screw is installed, these features interact with the screw to create the fastening connection according to the specific fastener design.
The rectangular body can provide an economical and compact fastening solution for suitable sheet-metal, bracket, housing, and equipment assemblies.
Potential benefits include:
Compact stamped construction
Rapid assembly
Reduced loose hardware
Compatibility with thin-sheet structures
Potential elimination of a separate conventional nut
Suitability for high-volume assembly
Custom geometry for OEM applications
However, performance depends on the actual push-nut design, mating screw, material, panel interface, installation process, and service conditions.
This is one of the most important distinctions for design engineers and sourcing teams.
A conventional nut normally contains a defined internal machine thread intended to mate with a corresponding bolt or screw thread.
A push nut or speed-nut style fastener may instead use formed spring features that engage a compatible screw.
Therefore, engineers should not assume:
“The screw diameter is correct, so the push nut is compatible.”
The complete interface matters.
Important variables can include:
Screw type
Screw diameter
Screw thread geometry
Screw material
Push-nut opening geometry
Spring-feature geometry
Push-nut material
Material thickness
Installation direction
Required engagement
Assembly loading
A screw that fits through the opening is not necessarily the correct mating screw.
The exact working principle depends on the push-nut geometry.
In a typical stamped spring-style design, formed features deflect as the compatible screw enters and establish engagement with the screw.
The fastener therefore relies on the controlled relationship between:
screw geometry + spring geometry + fastener material + dimensional tolerances.
It should not be described simply as a conventional nut containing an internal leaf spring.
Nor should every push nut be described as a universal vibration-locking fastener.
If vibration resistance is a critical requirement, the complete assembled joint should be evaluated under representative service conditions.
For OEM sourcing, specifying only “rectangular push nut” is insufficient.
The mating screw is part of the functional definition.
Useful screw information can include:
Screw drawing or specification
Nominal diameter
Thread form
Thread pitch where applicable
Point style
Material
Surface finish
Installation method
If an existing assembly uses a specific tapping screw, supplier development should ideally evaluate the push nut using the actual mating screw or a fully defined equivalent.
This is especially important for second-source qualification.
Tapping screws themselves exist in different designs for different mating materials and assembly requirements.
The correct screw-push-nut combination therefore cannot be determined from nominal diameter alone.
For example, changing the screw while retaining the same push nut may affect:
Engagement behavior
Installation torque
Strip-out behavior
Spring deformation
Thread formation
Removal behavior
Reassembly behavior
These effects are geometry- and application-dependent.
For critical applications, the mating pair should be validated together rather than qualifying the push nut and screw independently.
Engineers evaluating a push nut should look beyond overall length and width.
Functional dimensions may include:
Overall length
Overall width
Material thickness
Screw-entry opening
Spring-tab geometry
Formed height
Local bend geometry
Mounting or locating features
Orientation features
The exact critical dimensions depend on the design.
For custom or replacement projects, identifying which dimensions control screw engagement and assembly fit is more useful than treating every visible dimension as equally important.
Push nuts commonly depend on controlled elastic behavior in their formed features.
Material selection should therefore consider both manufacturing and functional requirements.
Depending on the design and customer specification, relevant considerations can include:
Formability
Spring behavior
Strength
Material thickness
Corrosion environment
Surface finish
Interaction with the mating screw
Service temperature
Production process
Suitable spring steels, carbon steels, stainless steels, or other specified materials may be considered depending on the component design.
The material should not be changed during second-source development solely because another grade appears commercially similar.
Material properties can affect how the spring features form and interact with the screw.
Surface treatment can provide corrosion protection and satisfy appearance or customer-specific requirements.
Depending on the application, finish selection should consider:
Service environment
Base material
Mating screw material
Panel material
Corrosion requirements
Dimensional effects
Frictional behavior
Customer specification
Plated, coated, or stainless configurations should not be assumed interchangeable without reviewing the complete application.
Where finish materially affects the screw-fastener interface, the finished components should be evaluated together.
There is no single installation torque that applies to all rectangular push nuts.
Required installation behavior depends on factors such as:
Screw geometry
Screw diameter
Push-nut material
Push-nut thickness
Formed geometry
Joint stack
Surface finish
Assembly equipment
For an OEM application, torque requirements should be established and validated for the specific fastening system rather than copied from an unrelated product.
This is particularly important when replacing either the screw or the push nut.
If the screw rotates without achieving the expected fastening condition, possible causes can include:
Incorrect mating screw
Damaged spring features
Excessive deformation
Incorrect material condition
Dimensional mismatch
Previous over-tightening
Assembly misalignment
The corrective action should begin with identifying the actual interface failure.
Simply replacing the screw with a larger one may alter the joint architecture and should not be treated as a universal repair.
If installation torque becomes unexpectedly high, investigate:
Screw mismatch
Incorrect fastener geometry
Surface-finish changes
Spring-feature deformation
Misalignment
Material changes
Dimensional variation
Comparing a known-good screw and push nut with the problem assembly can help isolate the cause.
Some elastic deformation may be part of the intended design.
Permanent or excessive deformation, however, can indicate an incompatible screw or an interface operating outside the intended condition.
Review:
Screw diameter
Screw thread geometry
Fastener material
Fastener thickness
Spring-tab geometry
Screw alignment
Installation method
The failed fastener should be compared with an unused approved sample where possible.
Pull-out or strip-out performance depends on the complete fastener geometry and assembly.
Potential contributing factors include:
Incorrect screw
Insufficient engagement
Fastener material
Material thickness
Formed-feature geometry
Over-tightening
Applied service load
Repeated assembly
Universal pull-out values should not be assumed across different push-nut designs.
Where retention is critical, the actual screw-fastener assembly should be validated against the application requirements.
Although the interface differs from a conventional machine nut, screw alignment remains important.
Problems can arise from:
Misaligned assembly components
Screw entering at an angle
Incorrect screw presentation
Push nut positioned incorrectly
Insufficient access
Variation in mating holes or brackets
For automated assembly, screw-axis control and fastener location can become especially important.
Reuse depends on the specific fastener design and the condition of the spring features after installation and removal.
Repeated screw installation can alter the formed engagement features.
Therefore, engineers should not assume unlimited reuse.
If service disassembly is part of the product lifecycle, the intended maintenance sequence should be evaluated and appropriate replacement criteria established where necessary.
Automotive manufacturing uses many stamped and formed components where compact, efficient fastening is valuable.
Depending on the vehicle design, push nuts and related speed-nut style fasteners may be considered for suitable:
Interior assemblies
Trim-related structures
Brackets
Covers
Sheet-metal subassemblies
Equipment mounting interfaces
Light-duty attachment points
The specific application should determine the fastener.
A push nut should not automatically be used for safety-critical structural connections simply because it is an automotive fastener.
Joint loads, service environment, assembly requirements, and OEM specifications must control the decision.
Rectangular push nuts can be useful in suitable equipment structures involving:
Electrical enclosures
Control equipment
Internal brackets
Covers
Equipment housings
Panel assemblies
Their compact stamped geometry can support efficient production where a compatible tapping screw is already part of the assembly architecture.
Electrical requirements such as grounding or bonding should be addressed separately by the equipment design where applicable.
HVAC equipment frequently contains sheet-metal housings, covers, fan assemblies, brackets, and access structures.
Potential applications can include:
Housing panels
Access covers
Internal brackets
Control enclosures
Fan-related sheet-metal structures
Serviceable components
Environmental conditions may include moisture, condensation, outdoor exposure, or temperature variation.
Material and finish should therefore be selected according to the equipment specification rather than using one coating universally.
Push nuts and related stamped fasteners may be considered for suitable:
Machine covers
Guards
Light-duty brackets
Equipment housings
Access panels
Control enclosures
They can simplify assembly where a conventional loose nut is unnecessary.
However, major structural joints or highly loaded machine connections require a fastening technology appropriate to those loads and should not automatically be converted to push-nut designs.
High-volume commercial equipment and appliance manufacturing can benefit from efficient stamped fastening components.
Potential uses include:
Equipment housings
Covers
Internal brackets
Service panels
Mounting structures
Sheet-metal assemblies
For high-volume production, seemingly small changes in screw engagement or installation torque can affect cycle time and rework.
Supplier qualification should therefore include assembly behavior, not just piece-part dimensions.
Suitable covers, housings, guards, and equipment panels in agricultural or outdoor machinery may also use push nuts or related stamped fasteners.
Environmental exposure becomes especially important in these applications.
Engineers should evaluate:
Moisture
Dirt and debris
Chemical exposure
Corrosion conditions
Vibration
Service access
Material and finish should be selected accordingly.
These terms can overlap commercially, but the fastening principles may differ.

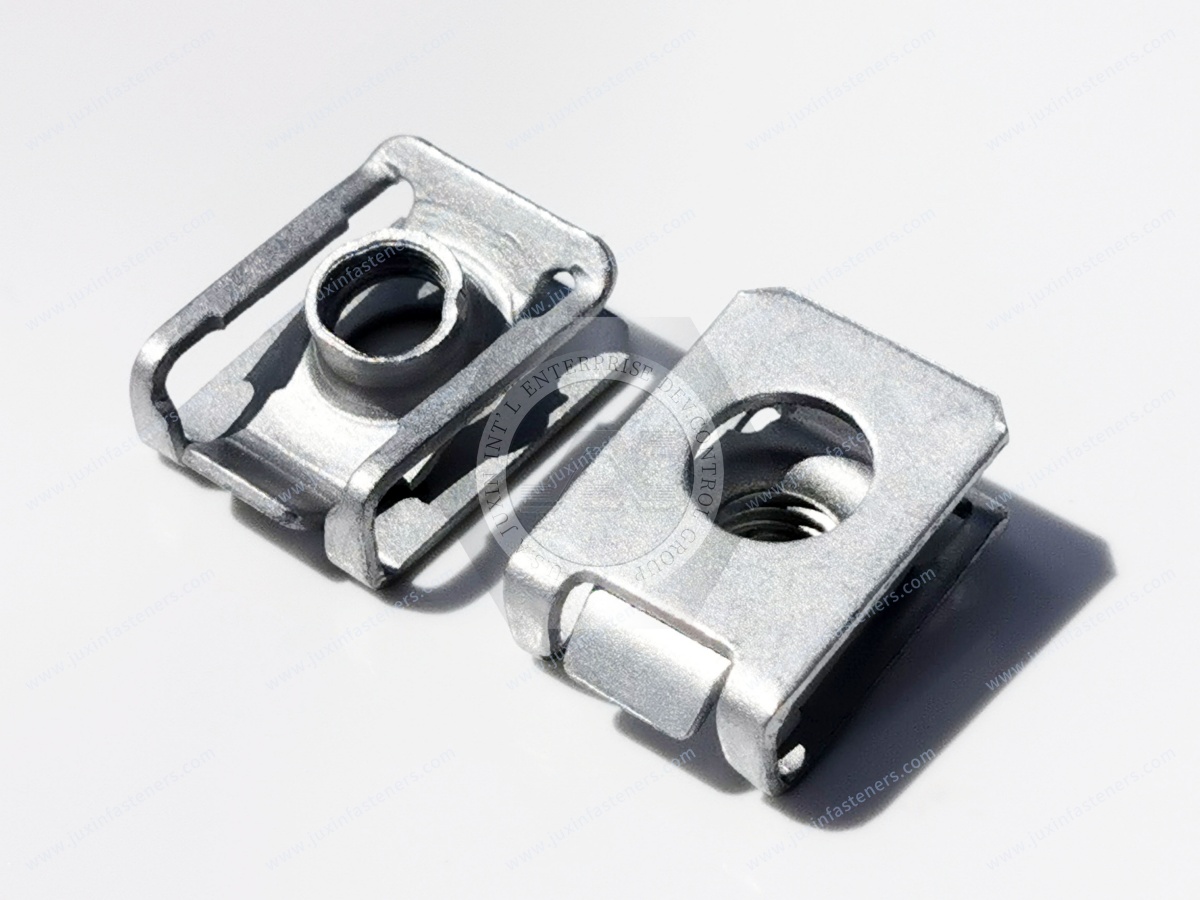

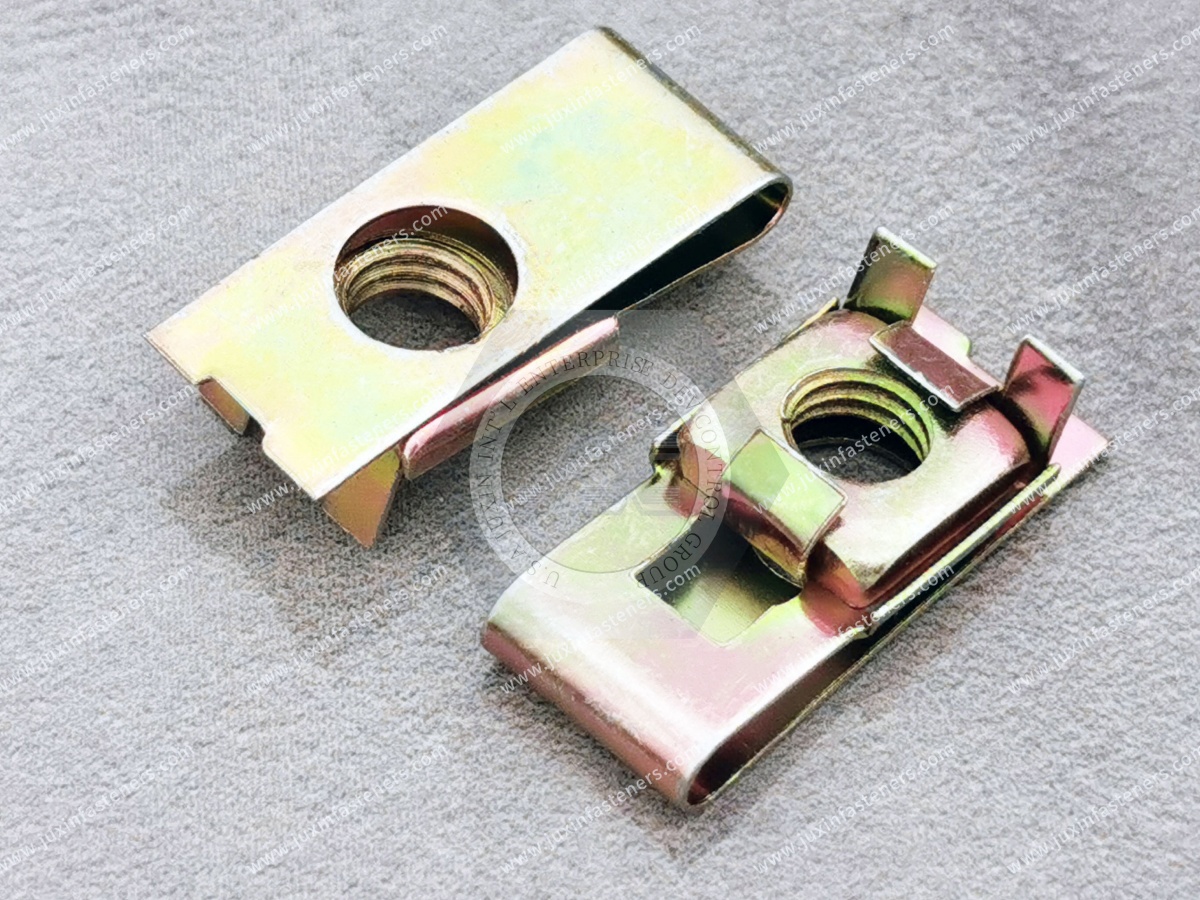

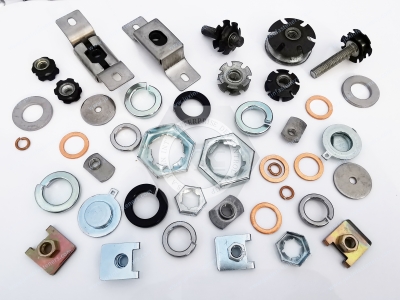

A U-nut or clip-on nut typically clips over the edge of a panel and positions a threaded or screw-engagement feature relative to a panel hole.
A rectangular push nut may instead be positioned within or behind an assembly and use formed spring features to engage a compatible screw.
Because supplier terminology varies, engineers should compare actual geometry rather than assuming that product names establish equivalence.
For sourcing, photographs can help identify the family, but drawings and mating components should control final qualification.
A conventional machine nut is appropriate where a defined internal thread mates with a corresponding bolt or machine screw and rear-side nut access is acceptable.
A push nut may offer a simpler stamped solution for a compatible screw-based assembly.
The two should not be substituted without considering:
Screw type
Load requirements
Assembly access
Service requirements
Joint geometry
Production method
Self-clinching nuts are installed into suitable sheet material using a controlled pressing operation and provide a retained machine-thread interface.
Push nuts use a different retention and screw-engagement principle.
A self-clinching nut may be considered when a permanently retained machine thread is required and the panel and manufacturing process support clinching.
A push nut may be considered where its stamped geometry and compatible tapping screw better match the production architecture.
Rivet nuts create an internally threaded attachment by installing and deforming the insert in a prepared hole.
They are particularly useful in applications requiring blind-side installation of a machine-threaded attachment.
Push nuts generally use a fundamentally different screw-engagement mechanism.
Selection should begin with the required thread system, panel architecture, access, loads, installation process, and service strategy.
Weld nuts create a welded threaded attachment and are appropriate for manufacturing architectures designed around welding.
A push nut can avoid a welding operation in suitable lighter-duty stamped assemblies.
The decision should consider:
Required load
Thread type
Manufacturing sequence
Panel material
Welding capability
Coating sequence
Service requirements
Production volume
For a new rectangular push-nut application, use the following sequence.
Identify:
Components being assembled
Load direction
Service requirements
Required removability
Available space
Specify:
Screw type
Diameter
Thread geometry
Material
Finish
Installation direction
Determine:
Required geometry
Material
Material thickness
Formed features
Installation orientation
Available envelope
Review:
Panel or bracket geometry
Hole location
Screw access
Assembly stack
Alignment tolerances
Consider:
Moisture
Chemicals
Corrosion
Temperature
Vibration
Indoor or outdoor service
Evaluate the actual push nut and screw together under representative assembly conditions.
This is especially important where installation behavior, stripping, pull-out, vibration, or repeated service is critical.
For procurement teams, this is one of the most important sourcing lessons.
When qualifying an alternative rectangular push-nut supplier, do not send only the existing push nut if the mating screw is available.
Ideally provide:
push nut + mating screw + drawing + assembly information.
Why?
Because two stamped fasteners can appear dimensionally similar but respond differently to the same screw due to small differences in:
Material thickness
Spring-tab angle
Formed geometry
Opening dimensions
Material condition
Surface finish
The mating screw exposes these functional differences during qualification.
A drawing provides controlled dimensions and specifications.
A physical sample provides information about the actual formed geometry.
For stamped spring fasteners, both can be valuable.
However, used samples should be treated carefully because previous screw installation may have altered the spring features.
For second-source development, the strongest reference package is often:
drawing + unused approved sample + mating screw + application information.
Depending on the design, important drawing information may include:
Overall dimensions
Material thickness
Screw-engagement geometry
Formed heights
Bend locations
Material
Finish
Critical tolerances
Mating screw specification
Installation orientation
Not every dimension needs the same control level.
Engineers should identify the characteristics that actually influence fit, screw engagement, and assembly function.
Some OEM assemblies require push-nut geometries that are specific to the surrounding product.
Custom development may be appropriate when the application requires:
Special overall dimensions
Specific screw engagement
Restricted installation space
Unique mounting features
Particular material or finish
Legacy replacement geometry
Drawing-controlled production
JUXIN FASTENERS supports standard and custom industrial fasteners, stamped components, spring nuts, clip nuts, push nuts, and drawing-controlled parts for OEM applications.
Projects can begin from customer drawings, approved samples, mating screws, and assembly requirements.
Please provide, where available:
Push-nut drawing
Unused approved sample
Mating screw
Screw drawing or specification
Material
Finish
Assembly drawing or interface dimensions
Current application
Annual or order volume
Please provide:
Application
Mating screw specification
Panel or bracket geometry
Available installation envelope
Required material
Finish requirements
Service environment
Expected loads or functional requirements
Expected production volume
For efficient supplier evaluation, provide:
existing push nut + drawing + approved sample + actual mating screw + assembly requirements + annual demand.
This gives the supplier a much stronger basis for evaluating functional equivalence than a photograph or generic product name.
Depending on the assembly design, engineers may also evaluate:
Spring Nuts and U-Nuts
Clip-On Nuts Selection Guide
Sheet Metal Fasteners
Tapping Screws
Custom Stamped Components
Cage Nuts
Self-Clinching Fasteners
Rivet Nuts
Custom Fasteners
Each solution uses a different method to create or retain the fastening interface and should be selected according to the actual joint architecture.
The most important sourcing principle for rectangular push nuts is simple:
Do not qualify the push nut by appearance alone.
A stronger specification defines:
push-nut geometry + material + finish + mating screw + assembly interface + environment + production requirements.
For design engineers, this reduces the risk of screw-engagement and assembly problems.
For purchasing and supplier-development teams, it creates a clearer basis for comparing standard parts, custom parts, and alternative suppliers.
JUXIN FASTENERS supports rectangular push nuts, spring-style stamped fasteners, custom stamped components, and other standard and custom industrial fasteners for OEM sourcing and second-source development.
For an existing part, send your drawing, unused approved sample, and mating screw where available.
For a new project, send the application, screw specification, assembly geometry, material and finish requirements, environmental conditions, and expected volume.
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
Previous: Benefits and Applications of Reed Nuts
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
