Stainless steel hex head screws, hex bolts and self-locking nuts are used in industrial fastening systems where corrosion resistance,

mechanical retention and resistance to unintended thread rotation are important.

A typical assembly combines a hexagon head fastener with a compatible locking nut and, where required, an appropriate washer.

Such fastening systems may be considered for industrial machinery, automation equipment, outdoor electrical enclosures, auxiliary vehicle components and selected renewable-energy equipment.

However, selecting a self-locking nut requires more than choosing a stainless steel grade and nominal thread diameter.

The locking mechanism, installation torque, temperature exposure, thread compatibility and joint loading must all be evaluated.

A self-locking nut provides resistance to relative thread rotation, but it does not automatically maintain clamp load or prevent every form of joint loosening.

This distinction is essential for design engineers evaluating vibration-sensitive joints, manufacturing engineers developing assembly processes and purchasing teams qualifying alternative suppliers.

Juxin Fasteners supplies industrial hex head fasteners, stainless steel nuts and related fastening components and welcomes drawing-based OEM inquiries.

What Is a Stainless Steel Self-Locking Nut?

A self-locking nut is designed to provide resistance to unintended rotation relative to its mating threaded fastener.

One common category is the prevailing-torque lock nut.

A prevailing-torque nut produces rotational resistance through a locking feature that remains active independently of the clamp load developed when the nut seats against the joint.

Common designs include:

• Nylon insert lock nuts

• All-metal prevailing-torque lock nuts

• Distorted-thread lock nuts

• Other specified prevailing-torque configurations

These designs use different mechanisms and are not automatically interchangeable.

Important Distinction

A conventional hex nut primarily relies on the joint design and installation preload for retention.

A prevailing-torque lock nut introduces an additional source of rotational resistance.

However, neither component can compensate for a fundamentally unsuitable joint.

How Hex Bolts and Self-Locking Nuts Work Together

In a typical through-bolted joint, the bolt passes through aligned holes in the clamped components.

The nut engages the bolt thread and is tightened to the specified installation condition.

A properly designed preloaded joint develops clamping force between the connected components.

The locking feature adds resistance to relative rotation.

Joint Performance Depends On

• Bolt and nut mechanical compatibility

• Thread engagement

• Joint stiffness

• Clamp load

• Bearing surfaces

• External loading

• Temperature

• Environmental exposure

• Installation process

Engineering Principle

The locking nut should be treated as one element of the fastening system rather than as a substitute for correct bolt sizing or preload design.

Nylon Insert Lock Nuts vs. All-Metal Lock Nuts

Nylon insert and all-metal prevailing-torque nuts are two important product categories.

They provide locking resistance through different mechanisms.

Important Limitation

All-metal lock nuts are not universally suitable for every high-temperature or high-vibration application.

The actual material, mechanical properties and locking performance must be verified.

Nylon Insert Stainless Steel Lock Nuts

Nylon insert lock nuts incorporate a polymer insert near one end of the nut.

As the mating bolt engages the insert, interference creates resistance to rotation.

Potential Applications

Subject to approval, nylon insert lock nuts may be considered for:

• Equipment covers

• Auxiliary mounting brackets

• Industrial automation assemblies

• Electrical enclosure hardware

• Selected non-safety-critical vehicle components

Engineering Considerations

• Operating temperature

• Chemical exposure

• Bolt thread geometry

• Required prevailing torque

• Installation process

• Reuse expectations

Temperature Limitation

The usable temperature range depends on the polymer insert, nut design and applicable product specification.

It should not be inferred solely from the stainless steel nut body.

Installation Consideration

The bolt must engage the locking feature sufficiently according to the approved assembly requirements.

A nut that does not properly engage its insert may not provide the intended locking resistance.

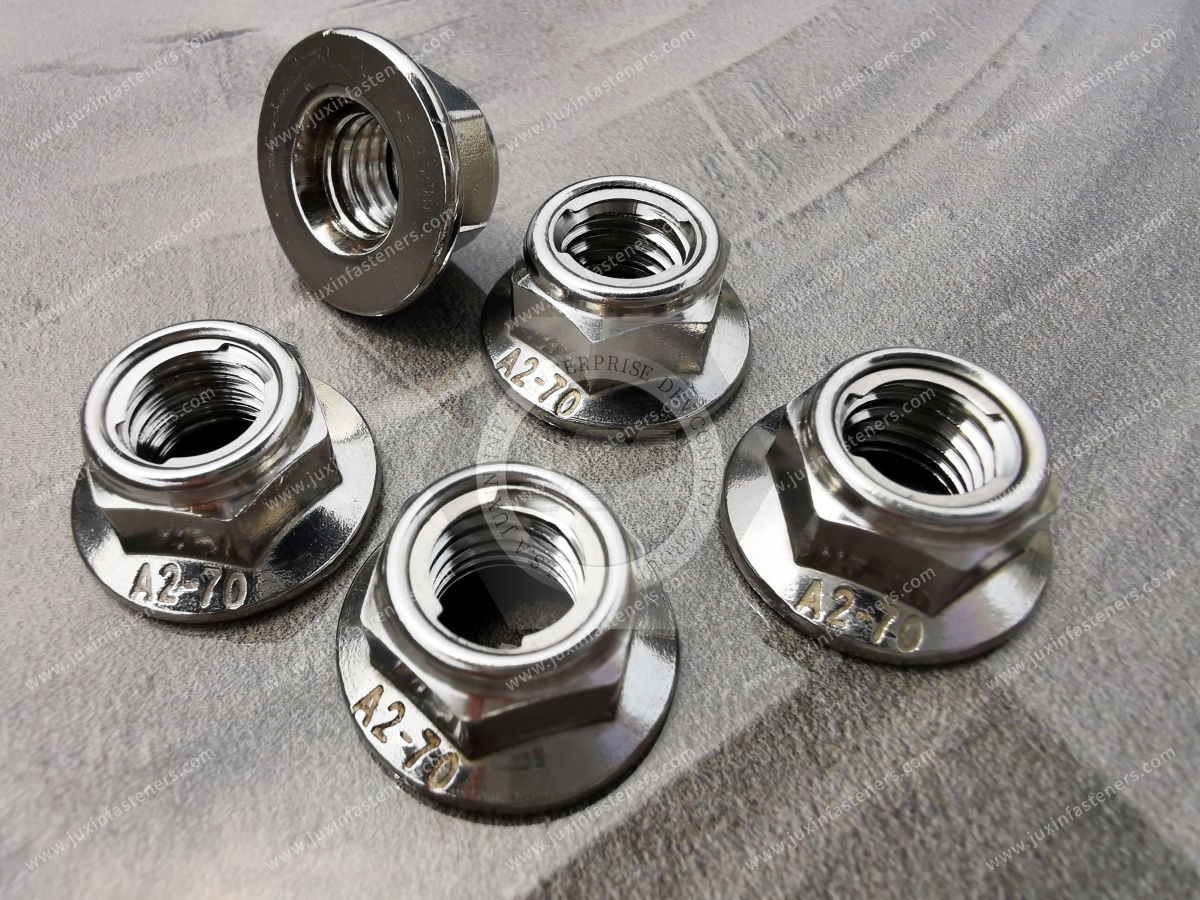

All-Metal Stainless Steel Lock Nuts

All-metal prevailing-torque lock nuts generate rotational resistance through a metallic locking feature.

Common mechanisms involve controlled deformation of part of the nut or its internal thread.

Potential Applications

Subject to engineering approval:

• Industrial equipment

• Automation machinery

• Outdoor mechanical assemblies

• Selected high-temperature equipment accessories

• Other assemblies requiring a metallic locking feature

Engineering Considerations

• Prevailing-torque characteristics

• Nut material

• Bolt material

• Thread condition

• Installation speed

• Galling risk

• Reuse requirements

Important Distinction

The term all-metal lock nut describes a broad product category.

Different designs may have different torque behavior, installation characteristics and dimensional requirements.

Distorted-Thread Lock Nuts

Distorted-thread lock nuts use controlled thread deformation to create interference with the mating bolt.

They may be manufactured in different geometries.

Examples include certain top-lock, center-lock and other specified all-metal locking designs.

Engineering Insight

Two distorted-thread lock nuts with the same nominal thread size may not provide identical prevailing-torque performance.

Their locking feature location, geometry and material condition can affect installation behavior.

Supplier Qualification Recommendation

When evaluating a replacement locking nut, compare the complete product specification and required performance—not merely the external dimensions.

Prevailing Torque vs. Tightening Torque vs. Clamp Load

These terms describe different aspects of fastening performance.

Prevailing Torque

Prevailing torque is the torque required to rotate the locking nut relative to its mating thread before the nut seats against the clamped components, under specified conditions.

Tightening Torque

Tightening torque is the torque applied during installation.

Clamp Load

Clamp load is the compressive force developed in the joint as the fastener is tightened.

Why This Matters

Part of the applied torque may be consumed by the prevailing-torque feature.

Therefore, a locking nut can change the relationship between applied tightening torque and achieved clamp load.

Engineering Recommendation

Do not automatically apply a standard-nut tightening specification to a prevailing-torque lock nut.

The correct assembly process should be established using the actual bolt, nut, surface condition and joint.

Illustrative Engineering Scenario

Consider two assemblies using the same stainless steel hex bolt.

One uses a standard hex nut.

The other uses a prevailing-torque lock nut.

Even if both assemblies are tightened to the same indicated torque, the resulting clamp loads may differ because the locking nut introduces additional rotational resistance.

This is why locking-nut installation must be evaluated as a system.

Can Self-Locking Nuts Prevent Vibration-Induced Loosening?

Self-locking nuts can provide resistance to unintended thread rotation.

However, joint reliability under vibration depends on more than the locking feature.

Potential Causes of Joint Problems

• Insufficient preload

• Transverse joint movement

• Surface embedding

• Joint relaxation

• Thermal cycling

• Inadequate thread engagement

• Unsuitable fastener geometry

Important Engineering Distinction

A nut may resist rotation while the joint still loses clamp load through settling, relaxation or other mechanisms.

Design Recommendation

For vibration-sensitive equipment, validate the complete joint under representative loading conditions.

Where required, testing should evaluate both locking behavior and joint performance.

Selecting the Correct Stainless Steel Grade

Stainless steel material selection should reflect the actual corrosion environment and mechanical requirements.

304 Stainless Steel

304 may be considered for general industrial equipment and selected outdoor applications where its corrosion resistance and mechanical properties are appropriate.

316 Stainless Steel

316 generally provides improved resistance to certain localized corrosion mechanisms compared with 304.

It may be considered for more demanding chloride or moisture exposure.

A2 and A4 Material Groups

A2 and A4 are material groups used in relevant ISO stainless steel fastener specifications.

Mechanical-property classes must be specified separately.

410 Stainless Steel

410 is a martensitic stainless steel that can be heat treated.

Its properties differ from those of common austenitic stainless steels.

Important Limitation

The stainless steel grade alone does not establish the strength, prevailing torque or temperature capability of a complete locking-nut assembly.

Bolt and Lock Nut Mechanical Compatibility

A stainless steel hex bolt and locking nut must be compatible in both thread geometry and mechanical properties.

Thread Compatibility

Verify:

• Thread system

• Nominal diameter

• Pitch

• Tolerance

• Engagement length

Metric Threads

ISO metric threads are commonly used in international equipment.

Unified Inch-Series Threads

UNC and UNF are separate inch-series thread systems.

Legacy British Threads

BSW and BSF are distinct thread systems.

Critical Rule

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

Approximate diameter similarity does not establish compatibility.

Mechanical Compatibility

The selected nut must satisfy the approved mechanical requirements for the mating bolt.

Engineering Recommendation

Specify the bolt and locking nut as a matched fastening system when their combined performance is important.

Stainless Steel Thread Galling and Lock Nut Installation

Galling is a significant concern in some stainless steel threaded assemblies.

It involves adhesive surface damage during relative sliding and may cause the threads to seize.

Potential Contributing Factors

• Stainless steel material pairing

• High thread contact pressure

• Thread surface condition

• Installation speed

• Misalignment

• Unsuitable lubrication conditions

Why Lock Nuts Need Special Attention

Prevailing-torque nuts intentionally introduce thread interference.

This can increase contact pressure and installation resistance.

For certain stainless steel combinations, galling risk must be evaluated carefully.

Potential Engineering Measures

Depending on the application:

• Suitable bolt-and-nut material pairing

• Appropriate thread finish

• Controlled installation speed

• Correct tool alignment

• Approved lubrication or coating

• Assembly testing

Important Limitation

Lubricants and coatings can change friction and achieved preload.

They should not be introduced without reviewing the tightening specification.

Production Manager's Perspective

A locking nut that frequently seizes during installation may create:

• Assembly stoppages

• Scrap

• Rework

• Tooling damage

• Increased cycle time

Supplier evaluation should therefore include actual assembly behavior, not only dimensional inspection.

Temperature Limits of Nylon Insert and All-Metal Lock Nuts

Temperature exposure can influence locking performance.

Nylon Insert Lock Nuts

The polymer insert establishes an important temperature limitation.

The acceptable range depends on the specific insert material and product specification.

All-Metal Lock Nuts

All-metal designs eliminate the polymer insert but remain subject to material and performance limitations.

Thermal Cycling

Repeated expansion and contraction can affect joint preload and locking behavior.

Engineering Recommendation

Specify both the operating temperature range and any relevant thermal cycling conditions in the RFQ.

Can Stainless Steel Lock Nuts Be Reused?

Lock-nut reuse is not determined by stainless steel grade alone.

Prevailing-torque characteristics may change after installation and removal.

Relevant Factors

• Locking mechanism

• Number of installation cycles

• Thread wear

• Insert condition

• Galling

• Product specification

• Customer approval requirements

Engineering Recommendation

Use the applicable product specification and customer requirements to determine whether reuse is permitted.

Where reuse is allowed, the required performance criteria should be defined.

Important Limitation

Do not assume that nylon insert nuts or all-metal lock nuts are reusable for a fixed number of cycles without supporting qualification data.

Washer Selection With Locking Nuts

A washer may be included in a hex bolt and lock nut assembly where the joint design requires it.

Potential functions include:

• Bearing surface management

• Load distribution

• Surface protection

• Spacing

Important Distinction

A standard flat washer does not automatically provide a locking function.

Engineering Considerations

• Washer geometry

• Material

• Hardness

• Bearing surface

• Corrosion compatibility

• Joint stack thickness

Engineering Recommendation

Adding or changing a washer may alter the friction conditions and joint behavior.

Any change should be evaluated against the approved installation specification.

Industrial Machinery and Automation Applications

Stainless steel hex bolts and locking nuts may be considered for suitable industrial equipment.

Potential applications include:

• Equipment housings

• Automation brackets

• Conveyor accessories

• Machinery guards

• Instrument mounting hardware

• Auxiliary mechanical assemblies

Engineering Priorities

• Vibration exposure

• Mechanical loading

• Installation access

• Corrosion conditions

• Maintenance requirements

Production Priorities

• Consistent installation

• Reduced galling

• Reliable tool access

• Controlled tightening

• Efficient assembly

Important Limitation

Critical rotating equipment, lifting systems and safety-related machinery connections require application-specific engineering qualification.

Electrical Equipment and Outdoor Enclosures

Potential applications include:

• Electrical cabinets

• Outdoor control enclosures

• Telecommunication equipment

• Auxiliary power distribution hardware

• Instrument mounting assemblies

Engineering Priorities

• Corrosion exposure

• Mechanical retention

• Electrical clearance

• Material compatibility

• Service access

Important Electrical Limitation

Stainless steel is electrically conductive.

Fastener selection must not compromise grounding, electrical isolation or other applicable safety requirements.

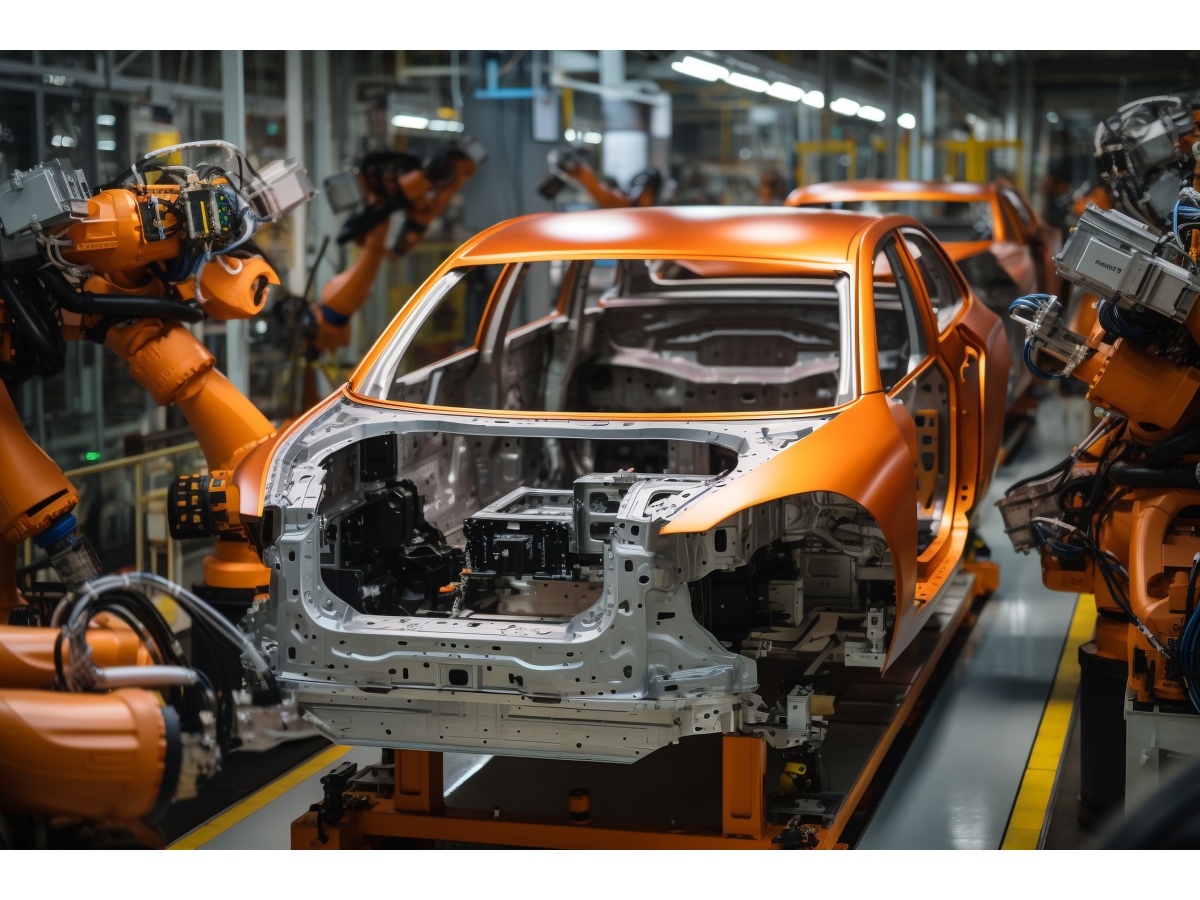

Automotive and EV Auxiliary Assemblies

Selected non-safety-critical automotive components may use locking nuts where approved.

Potential applications include:

• Auxiliary equipment brackets

• Nonstructural enclosure hardware

• Selected sensor mounting assemblies

• Service-access equipment

Engineering Priorities

• Vibration

• Environmental exposure

• Assembly consistency

• Customer-specific approval requirements

Important Safety Limitation

Brake, steering, suspension, primary chassis and structural battery connections require separate engineering qualification.

A standard stainless steel locking nut should not be substituted into these joints without approval.

Construction and Outdoor Equipment

Potential applications include:

• Outdoor equipment housings

• Architectural accessories

• Instrument mounting hardware

• Nonstructural brackets

Engineering Priorities

• Corrosion exposure

• Mechanical loading

• Joint movement

• Installation access

• Maintenance

Important Structural Limitation

Building structural connections, curtain wall retention and safety-critical architectural systems may be subject to specific codes and approvals.

General-purpose stainless steel locking nuts should not be substituted without appropriate engineering review.

Marine and Coastal Equipment

Stainless steel fastening systems may be considered for selected coastal equipment.

Potential applications include:

• Marine instrumentation

• Coastal electrical enclosures

• Auxiliary equipment brackets

• Port equipment accessories

Material Selection

316 may offer improved resistance to certain localized corrosion conditions compared with 304.

However, crevice corrosion, chloride exposure and joint geometry must be evaluated.

Important Limitation

316 stainless steel is not universally suitable for every seawater or offshore application.

Food-Processing and Laboratory Equipment

Selected equipment assemblies may require corrosion-resistant fastening components.

Potential applications include:

• Equipment covers

• Instrument mounting hardware

• Non-product-contact brackets

• Laboratory equipment housings

Engineering Priorities

• Cleaning chemical compatibility

• Corrosion resistance

• Service access

• Hygienic design

• Material documentation

Important Limitation

Stainless steel material designation alone does not establish food-contact, medical-device or sterilization compliance.

Renewable Energy and Energy Storage Equipment

Potential applications include:

• Solar equipment accessories

• Outdoor electrical cabinets

• Energy-storage equipment housings

• Auxiliary instrumentation

• EV charging equipment accessories

Engineering Priorities

• Environmental exposure

• Mechanical loading

• Galvanic compatibility

• Thermal cycling

• Installation reliability

Important Limitation

Primary structural solar connections, wind turbine critical joints and battery safety-related connections require separate qualification.

International Standards for Stainless Steel Hex Bolts and Lock Nuts

The applicable standards depend on the exact product and required properties.

ISO 3506-1

Covers specified mechanical-property requirements for corrosion-resistant stainless steel bolts, screws and studs.

ISO 3506-2

Covers specified mechanical-property requirements for corrosion-resistant stainless steel nuts.

ISO 4017

Defines dimensional requirements for fully threaded metric hexagon head screws.

ISO 4014

Defines dimensional requirements for certain partially threaded metric hexagon head bolts.

ISO 10511

Defines dimensional requirements for certain prevailing-torque-type hexagon thin nuts with non-metallic inserts.

ISO 7040

Defines dimensional requirements for certain prevailing-torque-type hexagon regular nuts with non-metallic inserts.

ASTM F593

May apply to specified stainless steel bolts, screws and studs within its scope.

ASTM F594

May apply to specified stainless steel nuts within its scope.

Important Standards Distinction

Dimensional standards and mechanical-property standards serve different purposes.

A nut that matches a dimensional standard does not automatically satisfy every material, prevailing-torque or application requirement.

OEM Drawings

Customer drawings may define additional requirements, including:

• Locking feature geometry

• Prevailing-torque performance

• Material

• Surface treatment

• Inspection criteria

• Installation requirements

Supplier Qualification for Stainless Steel Lock Nut Assemblies

Procurement and supplier development teams should evaluate the complete bolt-and-nut combination.

Product Definition

Confirm the correct bolt and nut standards or approved drawings.

Material Verification

Identify the required stainless steel grades and mechanical properties.

Thread Compatibility

Confirm the thread system, diameter, pitch and fit.

Locking Performance

Define any required prevailing-torque criteria and applicable test method.

Assembly Validation

Evaluate installation behavior using representative mating bolts and production conditions.

Inspection

Define dimensional and functional acceptance requirements.

Change Control

Material, geometry or locking-feature changes should be reviewed against the approved customer specification.

Commercial Evaluation

Review:

• MOQ

• Sample requirements

• Production quantities

• Packaging

• Delivery schedule

• Recurring supply requirements

• Total assembly cost

Supplier Development Insight

A replacement locking nut may fit the same bolt but behave differently during installation.

Dimensional compatibility alone is insufficient for supplier approval.

Custom Stainless Steel Lock Nuts and OEM Fasteners

Some OEM projects require locking nuts or mating bolts that differ from standard catalog products.

Potential custom requirements include:

• Special nut height

• Flange configurations

• Nonstandard thread geometry

• Specific locking feature

• Special bolt lengths

• Custom head dimensions

• Defined surface treatment

• Critical tolerances

Engineering Review

The project should consider:

• Joint loading

• Thread compatibility

• Locking performance

• Material

• Manufacturing feasibility

• Inspection requirements

Commercial Review

Sample quantities, MOQ, tooling considerations and production schedules should be confirmed during quotation.

Important Limitation

A custom locking nut is not automatically qualified for a regulated or safety-critical application.

Any required testing and customer approval must be completed separately.

Preparing an OEM Hex Bolt and Self-Locking Nut RFQ

A complete RFQ helps suppliers evaluate both technical and commercial requirements.

Hex Bolt Information

• Drawing or standard

• Head configuration

• Thread designation

• Length

• Material

• Mechanical properties

Lock Nut Information

• Locking mechanism

• Product standard or drawing

• Thread designation

• Material

• Mechanical requirements

• Prevailing-torque requirements

Joint Information

• Clamped materials

• Joint loading

• Operating temperature

• Corrosion environment

• Installation method

• Reuse expectations

Quality Requirements

• Dimensional inspection

• Material documentation

• Functional acceptance criteria

• Sample approval requirements

• Customer-specific documentation

Commercial Requirements

• Sample quantity

• Annual demand

• Production quantity

• Packaging

• Target delivery schedule

Practical Procurement Recommendation

When purchasing hex bolts and locking nuts together, specify whether they must be supplied as matched components or separate line items.

This can affect assembly trials, inspection, packaging and production handling.

Frequently Asked Questions

What is the difference between a standard hex nut and a self-locking nut?

A self-locking nut incorporates a feature that provides additional resistance to unintended thread rotation.

Are nylon insert lock nuts suitable for high temperatures?

Their temperature capability is limited by the insert material and approved product specification.

Are all-metal lock nuts always better than nylon insert lock nuts?

No. Selection depends on temperature, locking performance, assembly conditions, material compatibility and cost.

Do stainless steel self-locking nuts prevent all loosening?

No. They resist rotation but do not eliminate every mechanism of clamp-load loss.

Can stainless steel lock nuts be reused?

Reuse depends on the product specification, locking performance and customer requirements.

Why can stainless steel lock nuts seize during installation?

Galling, excessive interference, misalignment or unsuitable surface conditions may contribute.

Can a stainless steel lock nut replace a carbon steel lock nut?

Not automatically. Mechanical properties, locking performance and application requirements must be reviewed.

Can metric lock nuts replace UNC or UNF lock nuts?

No. These thread systems are not directly interchangeable.

What should OEM buyers specify for stainless steel locking nuts?

The locking mechanism, thread specification, material, mechanical properties, prevailing-torque requirements and intended assembly conditions.

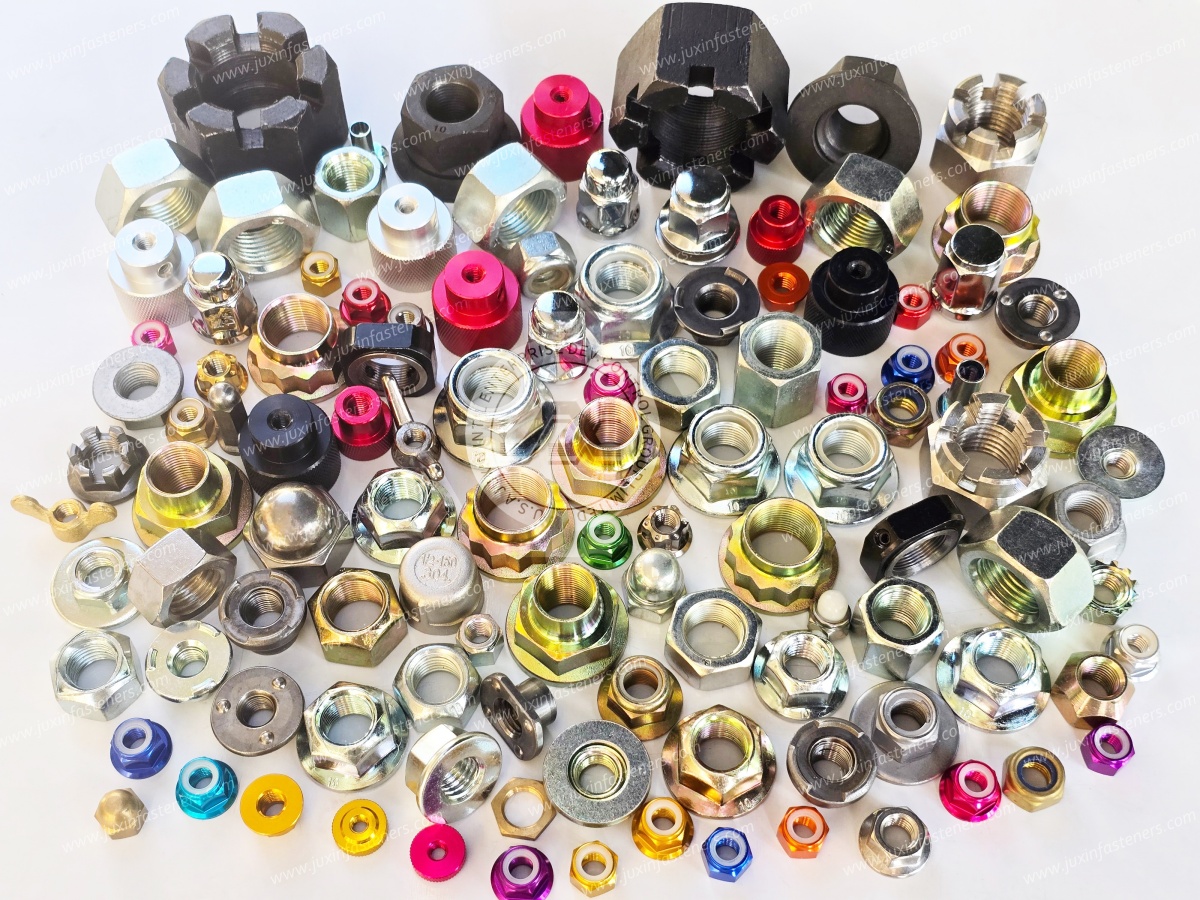

Juxin Fasteners: Stainless Steel Hex Bolts and Self-Locking Nuts

Juxin Fasteners supplies industrial fastening components and welcomes drawing-based inquiries for stainless steel hex head fasteners and locking nut assemblies.

Relevant product categories include:

• Stainless steel hexagon head screws and bolts

• Stainless steel hex nuts

• Stainless steel nylon insert lock nuts

• Stainless steel all-metal lock nuts

• Stainless steel distorted-thread lock nuts

• Stainless steel flange nuts

• Stainless steel washers

• Custom threaded components

Specific product configurations, materials, locking performance, dimensions, samples, MOQ,

inspection requirements and delivery schedules are subject to technical and commercial confirmation.

Request a Stainless Steel Hex Bolt and Lock Nut RFQ

Are you sourcing stainless steel hex bolts and prevailing-torque lock nuts for industrial machinery, automation equipment, electrical enclosures or outdoor equipment?

Do you need to qualify an alternative supplier for nylon insert lock nuts, all-metal lock nuts or custom distorted-thread locking nuts?

Juxin Fasteners welcomes inquiries from mechanical engineers, structural engineers, design engineers, manufacturing engineers, production managers,

purchasing specialists, procurement managers, supplier development teams and supply chain managers.

For technical review and quotation, please provide:

Bolt drawing or standard + nut drawing or standard + locking mechanism + thread designation + material and mechanical-property requirements

+ prevailing-torque criteria + joint loading + operating temperature + corrosion environment + installation requirements + reuse expectations

 + inspection criteria + sample quantity + annual demand + production quantity + packaging requirements + target delivery schedule.

For replacement projects, include the existing approved bolt-and-nut specification and identify any proposed material or locking-feature changes.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your stainless steel hex bolt and self-locking nut drawings and OEM RFQ to Juxin Fasteners for technical review and quotation.
