Aug. 08, 2023
In municipal infrastructure, electrical equipment, unattended outdoor systems, public transportation hardware, telecommunications enclosures and industrial equipment,
unauthorized access can create maintenance, vandalism, theft and asset-protection concerns.
Tamper-resistant security screws address this requirement by changing the interface between the fastener and the installation tool.
Instead of relying only on conventional Phillips, slotted, hex or standard Torx drives, security fasteners use specialized drive geometries that require a matching tool for installation and,
where designed for serviceability, authorized removal.
The engineering objective is not simply to make a screw difficult to remove. A successful security fastening system must balance removal resistance,
installation reliability, joint requirements, corrosion environment, maintenance access, fastener material, head geometry, thread engagement and production tooling.
For OEM design engineers, structural engineers and procurement teams, this distinction is important: tamper resistance is primarily a fastener-interface function.
It does not automatically increase the structural strength or preload capacity of the joint.
JUXIN FASTENERS provides custom screws, security fasteners and industrial fastening components for application-specific OEM requirements, with more than 20 years of fastener experience.
Tamper-resistant security screws are fasteners designed with specialized drive interfaces or head geometries that make unauthorized removal more difficult than removal of conventional screws.

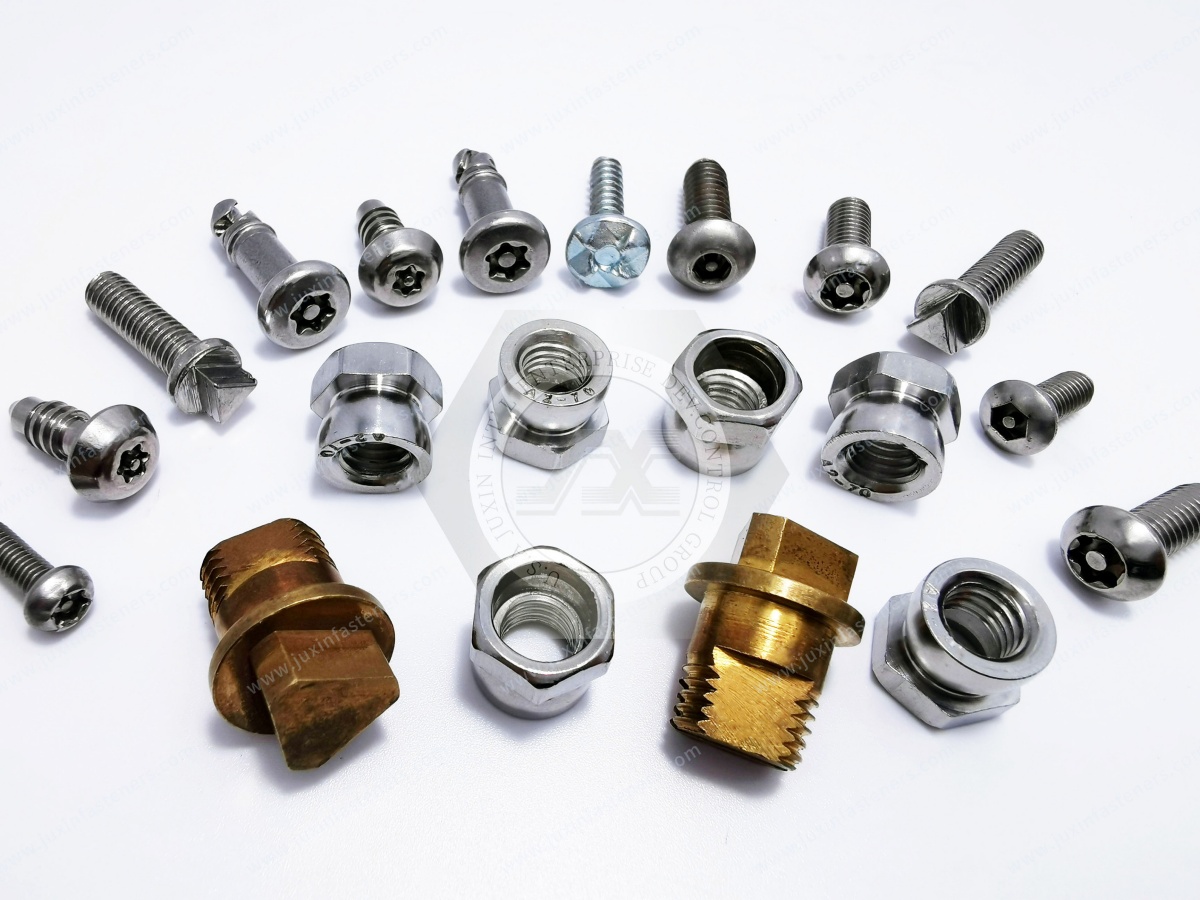

Common security configurations include:
Pin-in Torx or security Torx drives
One-way or clutch-head screws
Triangular security drives
Asymmetrical or specialized drive profiles
Custom security drive configurations
Security machine screws
Security sheet-metal and thread-forming screws
The correct configuration depends on the intended security objective.
For example, an electrical enclosure that must be opened by authorized maintenance personnel may require a reusable security drive.
A permanent public installation may instead use a one-way configuration where routine removal is not expected.
This means that the first design question should not simply be:
“Which security screw is the most difficult to remove?”
A better engineering question is:
“What level of unauthorized removal resistance is required, and how should authorized installation and maintenance be performed?”
A conventional screw normally uses a widely available drive such as:
Phillips
Slotted
Hex socket
Standard Torx
External hex
A tamper-resistant screw modifies the drive interface so that the correct mating tool becomes less commonly available or requires controlled access.
| Fastener Type | Typical Drive Concept | Authorized Removal | Typical Security Objective |
|---|---|---|---|
| Standard screw | Phillips, slotted, hex or Torx | Easy with common tools | General fastening |

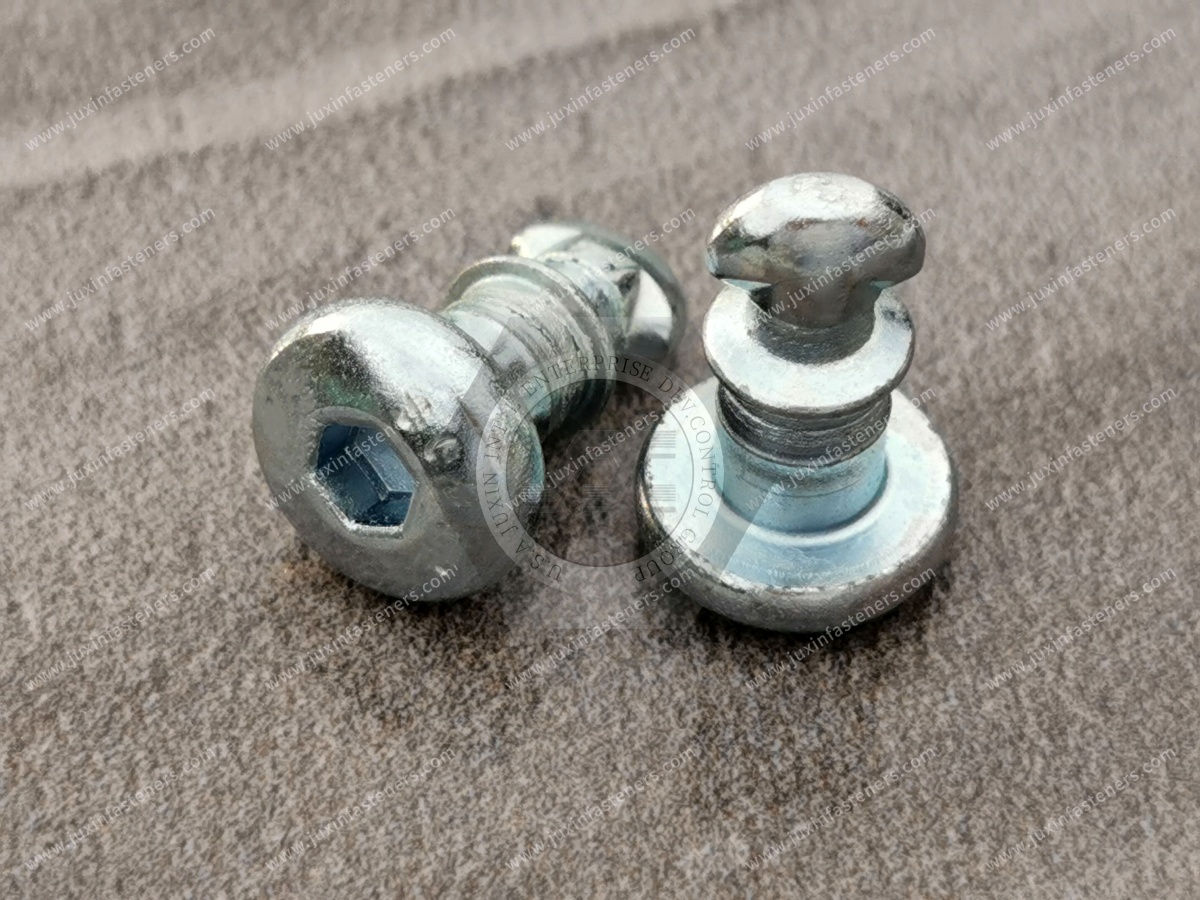

| Pin Torx screw | Torx recess with center pin | Requires matching security bit | Controlled maintenance access |
| Triangular security screw | Triangular drive | Requires matching tool | Reduced unauthorized access |
| One-way screw | Ramped one-way drive | Normally difficult with conventional tools | Permanent or semi-permanent installation |
| Custom security screw | Application-specific geometry | Controlled by dedicated tooling | Specialized security requirements |
The important engineering distinction is that security drive geometry changes tool accessibility; it does not automatically change the mechanical strength class of the screw.
A high-strength screw with a conventional drive can still be easy to remove.
A security screw made from a corrosion-resistant material can still be structurally unsuitable if the thread engagement, joint design or installation method is inadequate.
The drive is the mechanical interface through which installation torque is transferred from the tool into the fastener.
For a security screw, the drive must provide sufficient engagement between the fastener and its matching tool.
Important variables include:
Drive geometry
Recess depth
Contact area
Tool engagement
Drive symmetry
Head geometry
Fastener material
Tool condition
Installation torque
Thread friction
Joint resistance
The security objective and the installation objective therefore have to be considered together.
A drive that is extremely resistant to unauthorized removal but difficult for production operators to engage consistently can create assembly problems.
Likewise, a drive that provides excellent installation access may provide less deterrence against unauthorized removal.

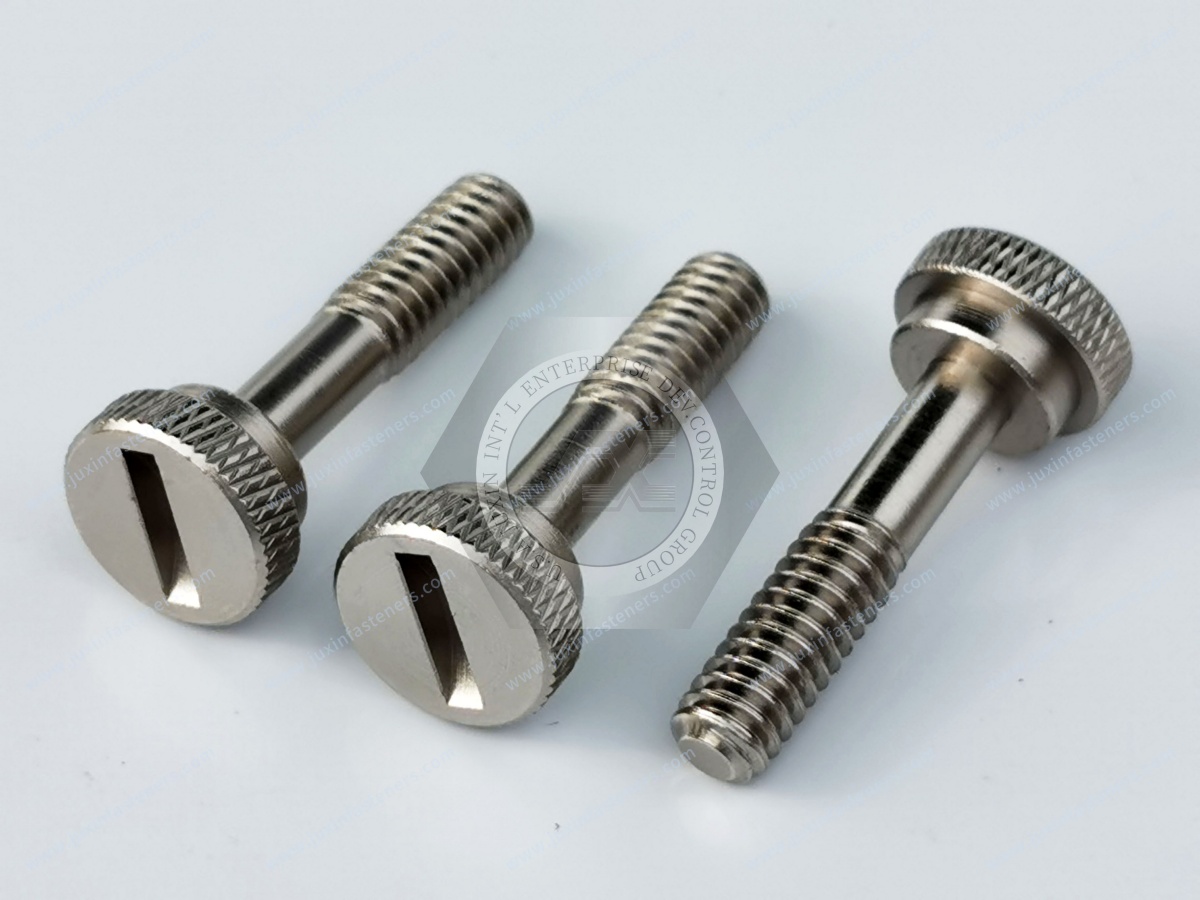

Asymmetrical security screws use a drive geometry that differs from common symmetrical fastening interfaces.
The unusual geometry can restrict access using standard tools and require a dedicated mating driver.
For engineering applications, the important consideration is not simply the shape itself but the quality of the tool-fastener interface.
The design should consider:
Correct driver engagement
Available installation torque
Recess accessibility
Head clearance
Tool alignment
Installation angle
Risk of driver slip
Maintenance requirements
Custom asymmetrical security fasteners can be evaluated when a standard security drive does not provide the required combination of security and assembly access.

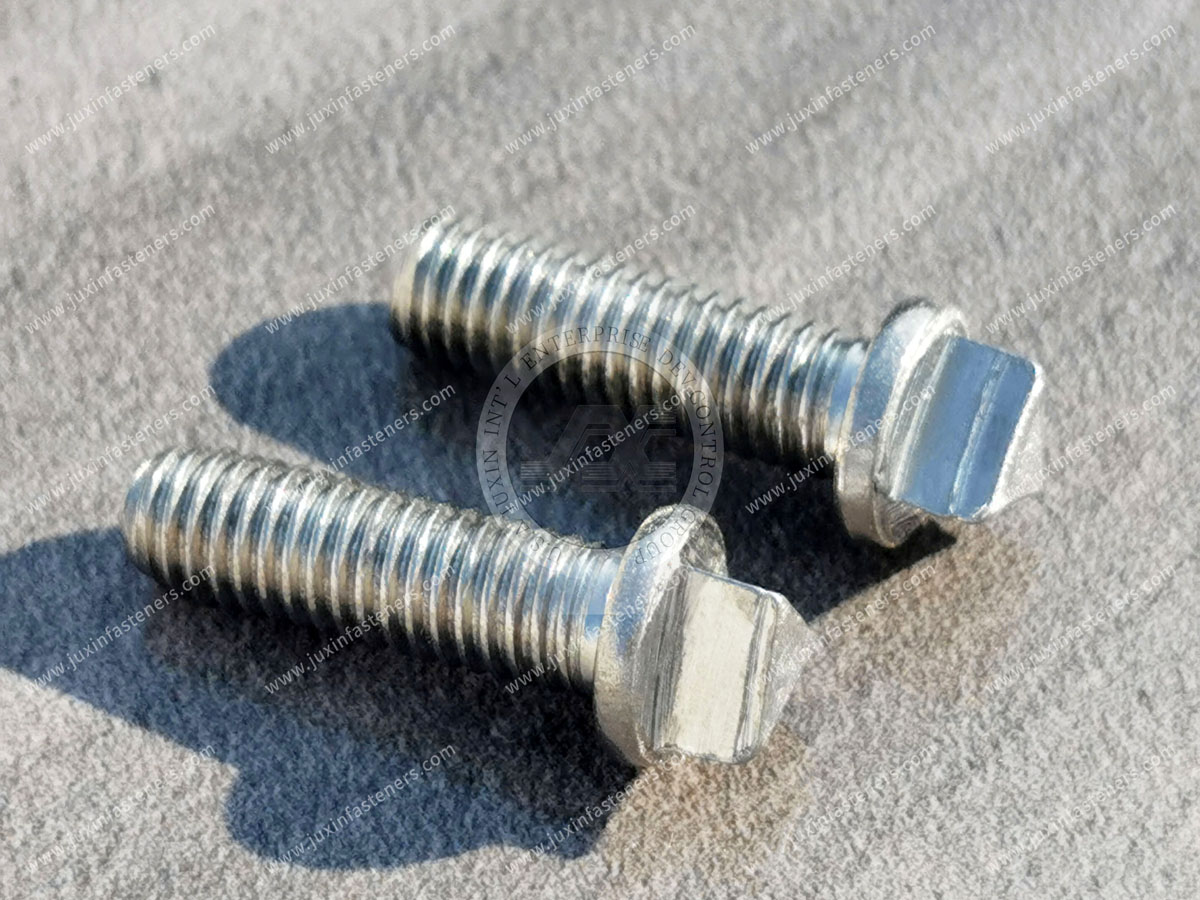

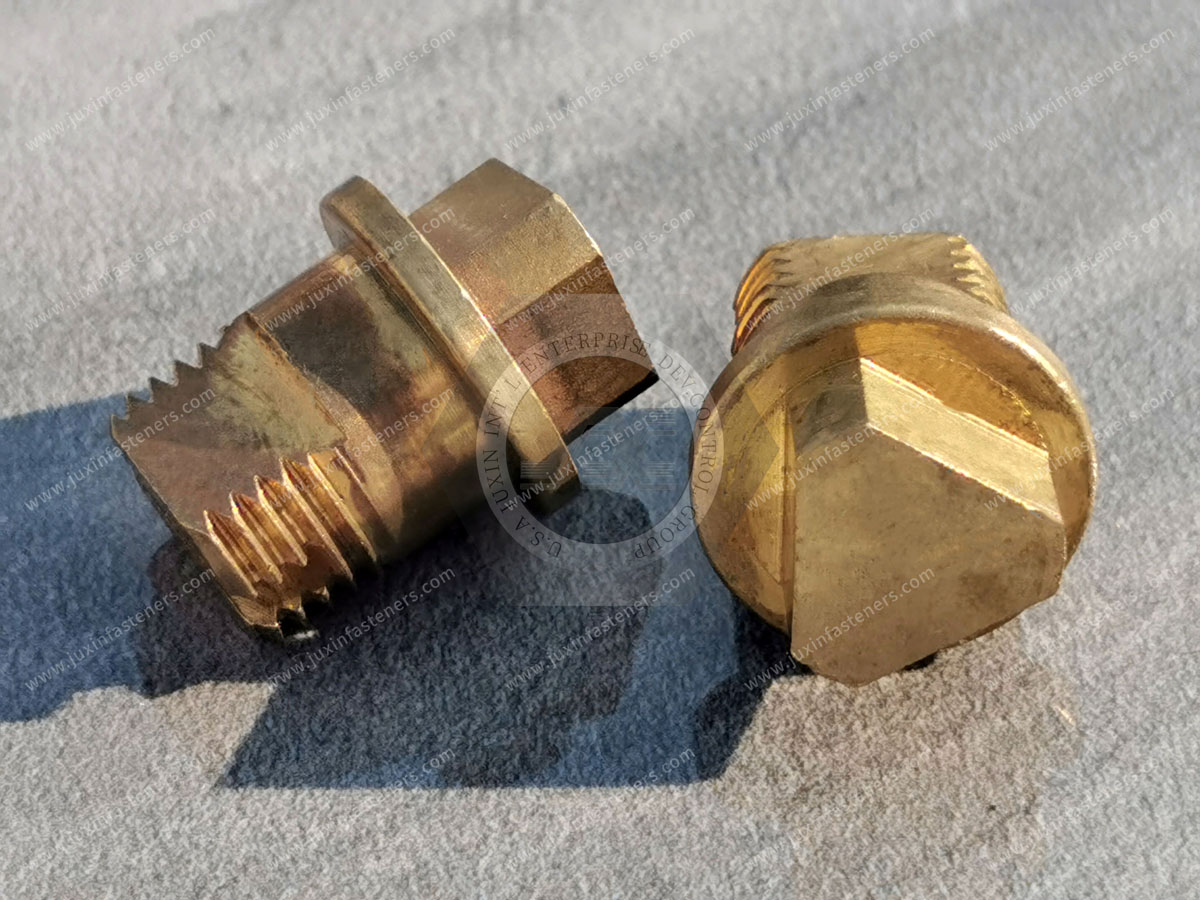

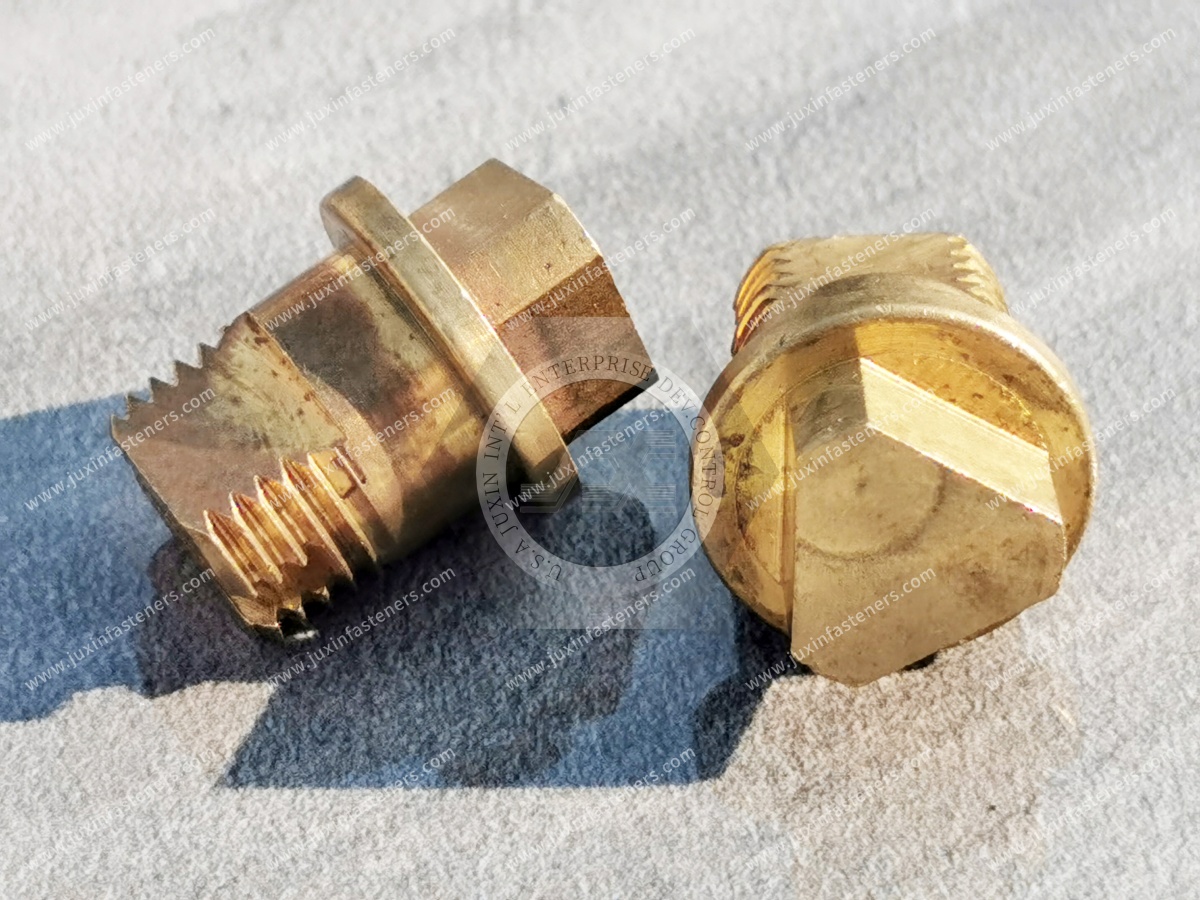

Triangular security screws use a triangular drive profile rather than a conventional cross, slot, hex or standard Torx interface.
Depending on the configuration, the triangular profile can be internal or external.
These fasteners may be considered for applications where:
Conventional hand tools should not provide easy access
Authorized technicians require a dedicated tool
Equipment is installed in public or semi-public environments
Controlled maintenance access is desirable
A standard security drive does not fit the equipment design
The triangular drive should be evaluated together with the available mating tool and installation torque.
A security screw should never be selected only from a catalog photograph. The actual drive dimensions, head style, thread specification and tool interface need to match the assembly.
One-way security screws are designed to facilitate installation while making conventional reverse removal difficult.
The drive geometry typically incorporates ramped surfaces that allow a standard driver to rotate the fastener in the installation direction but reduce conventional tool engagement during attempted reverse rotation.
This configuration can be useful when:
Permanent installation is preferred
Routine field removal is not required
Public access creates a tampering concern
Equipment covers or panels are intended to remain closed
Dedicated removal tooling is not part of normal maintenance
The trade-off is serviceability.
If an enclosure must be opened regularly, a one-way screw can increase maintenance complexity.
Therefore:
One-way security screws are not automatically the right choice for every security application.
The maintenance strategy should be defined before the fastener is released for production.
One of the most important design considerations is that a security screw is only one part of the security system.
Unauthorized access may still be possible through:
An exposed adjacent fastener
A removable panel
A weak enclosure
An accessible hinge
A conventional fastener used elsewhere
A gap around the assembly
An accessible cable or connector
An alternative mechanical access route
For this reason, engineers should evaluate the complete enclosure or equipment architecture rather than treating the security screw as an isolated component.
A security fastener can increase the difficulty of unauthorized removal, but it does not create an absolute tamper-proof system.
This distinction is particularly important for public infrastructure, electrical equipment and outdoor equipment.
Security drive geometry must provide sufficient torque transfer during authorized installation.
The installation process can be affected by:
Tool-to-drive fit
Tool wear
Misalignment
Drive depth
Recess contamination
Operator technique
Fastener material
Coating or lubrication
Joint resistance
Required tightening torque
If the mating tool does not fully engage the drive, the available torque-transfer area can decrease and the risk of drive damage can increase.
This can result in:
Cam-out
Drive deformation
Tool wear
Installation delays
Difficulty removing damaged fasteners
Inconsistent assembly
For production applications, the security drive should therefore be treated as a controlled manufacturing interface.
A common misunderstanding is that a security screw is automatically a high-strength fastener.
These are separate engineering characteristics.
Security function relates primarily to:
Drive accessibility
Unauthorized removal resistance
Tool control
Service strategy
Structural fastening function relates to:
Material
Mechanical property
Thread engagement
Joint design
Preload
Tensile loading
Shear loading
Fatigue
Installation conditions
A security screw used in a structural assembly therefore still needs to be specified according to the mechanical requirements of that assembly.
If higher mechanical strength is required, the appropriate material and property class should be specified independently of the security drive.
The head style should be selected according to the joint geometry and security objective.
Common configurations include:
Button head security screws provide a rounded external profile and are often suitable where a relatively low-profile but visible fastening point is acceptable.
Countersunk security screws allow the head to sit approximately flush with the mating surface when the component is correctly designed for the countersink geometry.
This can be useful for:
Equipment panels
Covers
Enclosures
Public-facing assemblies
Sheet-metal structures
Round or pan-head configurations provide a larger bearing surface and may be used for sheet-metal or general equipment applications depending on the joint design.
One-way heads are selected when the installation is intended to be difficult to reverse using conventional tools.
Head selection should consider not only appearance but also:
Bearing surface
Material thickness
Clearance
Countersink geometry
Tool access
Joint load
Service requirements
The thread design must match the parent material and joint architecture.
Machine screws are normally used with a prepared internal thread, threaded insert, nut or other threaded component.
Typical applications include:
Electrical enclosures
Industrial machinery
Equipment panels
Electronics
Telecommunications equipment
Transportation hardware
Sheet-metal or thread-forming security screws may be considered when the fastener forms or engages the mating material directly.
Selection depends on:
Sheet thickness
Material hardness
Hole diameter
Thread geometry
Required clamp load
Installation torque
Expected service conditions
A machine screw should not simply be substituted for a sheet-metal screw because the nominal diameter appears similar.
For self-tapping or thread-forming security screws, the pilot-hole diameter is an important design parameter.
The appropriate hole size depends on:
Screw thread geometry
Nominal diameter
Sheet material
Material thickness
Required thread engagement
Forming or cutting behavior
Installation torque
A pilot hole that is too small can increase installation torque and material damage.
A hole that is too large can reduce thread engagement and holding performance.
For this reason, pilot-hole dimensions should be established from the selected screw design and mating material rather than copied from a generic chart without validation.
Where applicable, standards such as ISO 1478 and the customer's engineering specifications can be used as references for tapping and thread-forming screw requirements.
Austenitic stainless steels such as A2 and A4 stainless fasteners are commonly considered when corrosion resistance is important.
Typical material choices include:
A2 stainless steel
A4 stainless steel
Other stainless grades according to application requirements
ISO 3506 provides an important international framework for mechanical and physical properties of corrosion-resistant stainless steel fasteners where applicable to the selected fastener type.
However, stainless steel selection should still consider the actual environment.
Important factors include:
Chloride exposure
Outdoor weather
Humidity
Chemical exposure
Temperature
Contact with dissimilar metals
Cleaning chemicals
Surface condition
Stainless steel should therefore be selected based on the application environment rather than simply specified because an application is outdoors.
Austenitic stainless steel fasteners can be susceptible to thread galling under certain installation conditions.
The risk can be influenced by:
Thread condition
Surface finish
Installation speed
Applied torque
Repeated assembly
Lubrication
Material pairing
For applications involving repeated installation, engineers should consider the complete installation process rather than relying only on the stainless material designation.
Where a customer specification permits, appropriate installation practices or compatible lubrication strategies may be evaluated.
This is particularly relevant when security screws are installed using controlled tooling at production volume.
Carbon steel and alloy steel provide additional material options where mechanical requirements, cost, geometry or application conditions call for steel fasteners.
For higher-strength applications, the required property class should be specified according to the applicable fastener standard and joint design.
Possible considerations include:
Tensile strength
Yield or proof requirements
Hardness
Thread size
Head geometry
Required preload
Corrosion protection
Operating environment
Higher strength is not automatically better.
Increasing fastener strength without considering the mating material, joint stiffness, thread engagement and installation process can create an unbalanced joint.
For carbon and alloy steel security screws, surface treatment may be required to achieve the required corrosion and appearance characteristics.
Possible finishes include:
Zinc-based coatings
Zinc-nickel alloy coatings
Black finishes
Other customer-specified protective systems
The correct coating depends on the fastener material, operating environment, required appearance and applicable specification.
For corrosion-sensitive applications, engineers should evaluate the complete system:
Fastener material + coating + mating material + environment + joint design + maintenance
Coating thickness alone should not be treated as a complete indicator of field corrosion performance.
When a stainless steel security screw is installed into a different metal, galvanic corrosion considerations may arise depending on the environment and material combination.
Potential variables include:
Fastener material
Mating material
Electrochemical potential
Moisture
Salt or chloride exposure
Joint geometry
Surface coatings
Electrical isolation
For outdoor equipment, the engineer should therefore specify both the security fastener and the mating structure.
A stainless steel screw does not automatically eliminate corrosion risk from the entire assembly.
Electrical cabinets and equipment enclosures may require controlled access to internal components.
Security fasteners can be considered for:
Electrical control cabinets
Power equipment enclosures
Outdoor electrical boxes
Industrial control panels
Telecommunications cabinets
Equipment covers
The design should balance:
Unauthorized access resistance
Authorized maintenance access
Panel thickness
Thread configuration
Environmental exposure
Corrosion resistance
Installation tooling
For frequently serviced cabinets, a reusable security drive may be more practical than a one-way configuration.
HVAC equipment may contain accessible panels, controls, electrical components and service areas.
Security screws can be considered where equipment design requires greater resistance to unauthorized panel removal.
Relevant engineering factors include:
Sheet-metal thickness
Thread-forming requirements
Outdoor exposure
Condensation
Maintenance frequency
Tool accessibility
Fastener corrosion resistance
The security fastener should be integrated into the panel design rather than selected independently after the enclosure has already been finalized.
Public infrastructure can include:
Street lighting
Signage
Public transportation equipment
Outdoor control cabinets
Utility equipment
Public facilities
Infrastructure access panels
These applications may have limited supervision and repeated exposure to the public.
Security fasteners can help reduce unauthorized access by requiring specialized tools.
However, engineers should also consider:
Authorized service procedures
Emergency access
Replacement strategy
Corrosion environment
Tool availability
Fastener replacement requirements
A security design should protect the equipment without creating unnecessary maintenance obstacles.
Outdoor electronic equipment may be exposed to:
Rain
Humidity
Condensation
Temperature cycling
Dust
UV exposure
Salt-containing atmospheres
Security screws can be used to control access to:
Communication equipment
Outdoor electronics
Monitoring systems
Network cabinets
Industrial sensors
Equipment housings
The fastener itself should be selected according to the environmental requirements of the assembly.
A security screw is not automatically a sealing fastener.
If the enclosure requires a specific ingress-protection level, that requirement must be addressed through the enclosure design, gasket, sealing interface and applicable testing—not simply through the use of a security screw.
Industrial machinery may require controlled access to guards, covers, electrical cabinets and service panels.
Security fasteners can be considered where unauthorized removal creates:
Equipment access concerns
Maintenance-control issues
Asset protection requirements
Production interruption risks
The design engineer should also consider whether the fastener needs to be removed during normal maintenance.
Where repeated service is expected, a reusable security drive with controlled tooling can provide a different maintenance strategy from a permanent one-way fastener.
Transportation applications may include:
Rail equipment
Transit infrastructure
Vehicle equipment
Passenger-facing hardware
Outdoor transportation cabinets
Signage and control systems
Fastener selection should consider:
Vibration
Environmental exposure
Maintenance requirements
Material compatibility
Thread engagement
Installation tooling
Where the fastening joint has a structural or safety-critical function, the security requirement should be treated separately from the required mechanical qualification of the joint.
This is one of the most important decisions in a security fastener project.
Examples include:
Pin Torx
Security Torx
Triangular drives
Specialized reusable drives
These are suitable when authorized technicians need controlled access.
The design benefit is serviceability.
The engineering consideration is that the correct security tool must remain available throughout the product life cycle.
One-way screws are more appropriate when removal is not part of normal service.
The design benefit is reduced conventional removal access.
The engineering consideration is future maintenance.
Before selecting a one-way screw, the OEM should answer:
Who will need to remove this fastener, and under what circumstances?
That question often determines the correct security drive more effectively than a generic “security level” label.
The security drive is not simply a cosmetic feature.
It is the interface between:
Fastener ↔ Tool ↔ Assembly Process ↔ Maintenance Process
Therefore, the OEM drawing should control the relevant characteristics.
Depending on the design, these may include:
Drive type
Drive dimensions
Recess geometry
Head dimensions
Thread specification
Nominal diameter
Thread pitch
Material
Surface finish
Overall length
Under-head length
Special dimensional requirements
For custom security fasteners, uncontrolled changes to the drive geometry can affect both installation and serviceability.
This is why drive geometry should be included in the engineering drawing and revision-control process.
A security screw is only as reliable as the interface between the fastener and its mating tool.
Production teams should control:
Correct driver type
Tool size
Tool condition
Alignment
Installation speed
Torque setting
Access angle
Tool replacement
For high-volume OEM production, tool wear should also be considered because a worn security bit may increase the risk of drive damage.
For one-way screws, the installation tool may be relatively conventional, but the replacement/removal strategy should be established separately.
For an engineered security fastening system, validation may include several different objectives.
Verify:
Head dimensions
Drive dimensions
Thread dimensions
Length
Critical drawing features
Evaluate:
Tool engagement
Installation torque
Drive integrity
Assembly consistency
Operator accessibility
Where applicable, evaluate:
Authorized removal using the specified tool
Resistance to conventional tools
Fastener condition after installation
Repeated service requirements
For outdoor or aggressive environments, the complete fastener assembly may require environmental evaluation according to the customer's application requirements.
The exact test method should be selected according to the application and customer specification rather than applying one universal security test to every fastener.
Security screws require dimensional inspection beyond basic thread measurement because the drive geometry is itself a functional feature.
Depending on the drawing and production requirements, inspection may include:
Thread diameter
Thread pitch
Thread gauge verification
Head dimensions
Overall length
Drive geometry
Drive depth
Critical dimensional features
Surface condition
Material verification
Coating or finish verification where specified
For custom security screws, the inspection plan should be aligned with the customer drawing and critical-to-function characteristics.
For OEM procurement, documentation requirements should be established before production.
Depending on the project, purchasing teams may request:
Material designation
Applicable fastener standard
Mechanical property requirements
Surface treatment specification
Dimensional inspection records
Material documentation where required
Certificate of Conformance
Lot or batch traceability
Packaging identification
Drawing revision
Change-control requirements
The required documentation should match the actual customer quality agreement and purchase specification.
A supplier should not promise documentation that has not been agreed or validated for the specific program.
Electrical, electronics and industrial OEM customers may have regulatory and material-information requirements applicable to their products and supply chains.
RoHS and REACH are regulatory frameworks rather than fastener product standards.
For applicable projects, procurement teams may require material and substance information supporting their compliance processes.
Security fastener sourcing should therefore consider:
Base material
Surface treatment
Restricted substances
Customer declarations
Material documentation
Applicable regulatory requirements
The exact documentation should follow the customer's product and market requirements.
A practical selection process can be organized as follows:
Determine whether the objective is:
Reduced unauthorized removal
Controlled maintenance access
Permanent installation
Public-access protection
Equipment protection
Determine whether authorized technicians need:
Frequent removal
Occasional removal
Specialized tooling
No routine removal
Possible choices include:
Pin Torx
Security Torx
Triangular
Asymmetrical
One-way
Custom drive
Consider:
Button head
Pan/round head
Countersunk head
One-way head
Custom head geometry
Specify:
Metric or inch thread
Nominal diameter
Pitch
Thread length
Thread-forming or machine-screw configuration
Consider:
Carbon steel
Alloy steel
A2 stainless steel
A4 stainless steel
Other customer-specified materials
Consider:
Indoor
Outdoor
Humidity
Salt exposure
Chemicals
Temperature
Dissimilar-metal contact
Specify:
Mating security tool
Installation torque where applicable
Access requirements
Production tooling
Maintenance tooling
Identify critical dimensions and functional characteristics before production release.
Provide the supplier with the complete technical specification rather than only a nominal screw size.
Sheet-metal enclosure applications require particular attention to the relationship between screw thread, sheet thickness and hole preparation.
A security screw for sheet metal may use:
Machine screw + captive nut
Machine screw + threaded insert
Self-tapping screw
Thread-forming screw
Custom screw geometry
The best configuration depends on the enclosure architecture.
For thin sheet, thread engagement may be more important than simply increasing screw length.
For repeated servicing, a threaded insert or captive threaded component may provide a more controlled solution.
This is where security screw selection connects with broader industrial fastening systems.
In sheet-metal assemblies, security screws can be combined with other fastening components such as:
Self-clinching nuts
Self-clinching studs
Rivet nuts
Threaded inserts
Custom nuts
Captive fastening components
This approach can improve serviceability where a panel needs to be repeatedly removed but unauthorized access should remain controlled.
For example, a reusable security screw combined with a permanent threaded component can create a controlled-access panel without requiring a one-way screw.
JUXIN FASTENERS supplies self-clinching fasteners, rivet nuts, threaded fastening components and custom screws for industrial sheet-metal applications.
Security and specialized screws can also be considered in selected automotive and industrial applications where controlled access or specialized assembly requirements exist.
Potential applications include:
Equipment covers
Electronic modules
Service panels
Interior equipment
Industrial control systems
Battery-related equipment
Transportation equipment
Machinery guards
For automotive or other regulated applications, the fastener specification should follow the OEM drawing, application requirements and applicable industry/customer standards.
The security function should not be confused with vehicle-level safety or regulatory compliance.
For procurement and supplier development teams, security fasteners create an additional qualification issue compared with standard screws.
The supplier should be able to work from a controlled specification covering:
Fastener geometry
Security drive
Material
Thread
Surface treatment
Packaging
Inspection requirements
Documentation
Drawing revision
Change control
Procurement teams should also confirm that the supplier can maintain consistency of the security drive because drive variation can affect production tooling and authorized maintenance.
For OEM programs, supplier qualification should therefore evaluate both fastener quality and security-interface consistency.
Security fasteners are sometimes evaluated primarily by piece price.
That can overlook the total cost of the fastening system.
For example, a low-cost one-way screw may create higher maintenance costs if authorized technicians later need to remove it.
A reusable security screw may have a higher component cost but provide a more practical maintenance strategy.
Similarly, a low-cost drive geometry may create production problems if the mating tool is difficult to engage consistently.
Total cost can include:
Fastener price
Installation tooling
Tool replacement
Assembly labor
Maintenance labor
Replacement fasteners
Field service
Inventory
Documentation
Quality inspection
The correct procurement decision therefore depends on the complete lifecycle requirement rather than unit price alone.
For a security screw RFQ, provide as much of the following information as possible:
Part number
2D drawing
3D CAD model if available
Fastener type
Security drive type
Head style
Nominal diameter
Thread pitch
Thread length
Overall length
Material
Mechanical property requirement
Surface treatment
Corrosion environment
Mating material
Installation method
Required installation torque if specified
Authorized removal requirement
Reuse requirement
Annual volume
Order quantity
Packaging requirements
Inspection requirements
Documentation requirements
Regulatory or material-information requirements
Drawing revision
Target application
Delivery destination
A complete RFQ allows the supplier to evaluate the fastener as an engineered component rather than quoting only a visually similar catalog item.
JUXIN FASTENERS supports OEM and industrial customers with custom screws and fastening components for application-specific requirements.
Our security fastener solutions can be evaluated around the actual engineering requirement, including:
Tamper-resistant security screws
Pin Torx security screws
Specialized security drive screws
Triangular security screws
One-way security screws
Custom machine screws
Security sheet-metal screws
Stainless steel security screws
Carbon steel and alloy steel screws
Custom head and thread configurations
Other custom fastening components
The final material, dimensions, drive geometry, finish and inspection requirements are established according to the customer's drawing, specification and application.
A successful security fastener project can follow a clear engineering path:
Security Requirement
↓
Unauthorized Removal Risk
↓
Maintenance Strategy
↓
Drive Geometry
↓
Head and Thread Configuration
↓
Material and Surface Treatment
↓
Installation Tool
↓
Application Validation
↓
Dimensional and Functional Inspection
↓
Supplier Qualification
↓
Production RFQ
This process reduces the risk of selecting a security screw based only on appearance or a generic product name.
For engineering teams, the key question is whether the fastener works within the complete assembly.
For procurement teams, the key question is whether the supplier can consistently manufacture and control the specified interface at production volume.
Both requirements should be addressed before final supplier selection.
If you are developing a security fastening system for electrical equipment, public infrastructure, transportation equipment, outdoor electronics,
HVAC systems, industrial machinery or other OEM applications, JUXIN FASTENERS can review your requirements.
Please provide your drawing, specification, sample, fastener dimensions or application information where available.
Our engineering and sourcing team can evaluate:
Security drive type
Head configuration
Thread design
Material
Surface treatment
Application environment
Installation requirements
Inspection requirements
Production and procurement specifications
For OEM and industrial sourcing:
JUXIN FASTENERS
20+ Years of Fastener Experience
Custom Screws, Security Fasteners and Industrial OEM Components
Website: www.juxinfasteners.com
Email: info@juxinfasteners.com
MORE NEWS
Sep. 25, 2026
Sep. 25, 2026
Sep. 25, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
