Automotive interior engineering must balance lightweight construction, passenger comfort, component durability, manufacturing efficiency and long-term serviceability.

Modern vehicle interiors combine engineering plastics, reinforced polymers, decorative trim, electronic modules and lightweight supporting structures.

These components may be exposed to vehicle vibration, temperature changes, repeated maintenance operations and dimensional movement throughout their service life.

Directly formed threads in some plastic components may experience wear, stripping or reduced performance after repeated screw installation.

Threaded inserts for automotive interior panels provide reusable metal internal threads in appropriately designed host components.

Potential applications include dashboard modules, instrument panel assemblies, electronic housings, infotainment systems and selected serviceable trim components.

However, the presence of a metal insert does not automatically guarantee improved vibration resistance, elimination of interior noise or structural safety.

Successful automotive fastening depends on the complete insert–plastic–screw–joint design.

For design and mechanical engineers, the main considerations include material compatibility, boss geometry, retention strength, screw engagement and thermal behavior.

For manufacturing engineers and production managers, insertion process control, cycle time, assembly consistency and defect prevention are critical.

For automotive purchasing and supplier development teams, drawing compliance, material traceability where required,

production readiness, commercial terms and supply continuity influence sourcing decisions.

Juxin Fasteners welcomes inquiries for automotive threaded inserts and drawing-specific OEM fastening components.

Why Automotive Interior Components Use Threaded Inserts

Automotive interiors increasingly incorporate:

• Lightweight thermoplastic components

• Glass-fiber-reinforced polymers

• Electronic control housings

• Modular dashboard structures

• Serviceable instrument assemblies

• Decorative and functional trim components

These materials can reduce weight and support complex molded geometries, but fastening performance must be evaluated for each component.

Common Engineering Challenges

Thread Wear

Repeated screw removal may damage directly formed plastic threads.

Plastic Creep

Under sustained loading, some polymers gradually deform, potentially reducing joint compression.

Thermal Expansion

Differences in thermal expansion between metal fasteners and plastic components may affect local stress and joint preload.

Vehicle Vibration

Dynamic loading can contribute to joint movement or loosening if the connection is not properly designed.

Assembly Variation

Inconsistent insert installation may affect seating depth, alignment and retention.

Potential Benefits of Threaded Inserts

• Reusable internal metal threads

• Reduced wear during repeated screw installation

• Greater flexibility in machine screw selection

• Consistent mating thread geometry

• Potentially improved serviceability

• Suitability for controlled OEM assembly processes

Actual benefits depend on insert geometry, host material and installation conditions.

Automotive Interior Applications

Dashboard and Instrument Panel Assemblies

Dashboard systems may incorporate molded structural supports, electronic modules and removable service components.

Potential threaded insert applications include:

• Instrument cluster housings

• Display support components

• Selected dashboard brackets

• Serviceable control modules

• Auxiliary plastic mounting structures

Engineering Priorities

• Dimensional stability

• Insert retention

• Screw tightening consistency

• Temperature exposure

• Vibration-related joint behavior

• Maintenance access

Important Limitation

Safety-critical dashboard structures and occupant protection components require dedicated engineering validation.

Threaded inserts should not be assumed suitable for these connections solely because they provide metal threads.

Interior Trim Panel Assemblies

Vehicle trim components may require a combination of permanent and removable fastening methods.

Potential applications include:

• Selected door trim supports

• Decorative panel attachments

• Serviceable interior covers

• Console components

• Auxiliary interior brackets

Engineering Priorities

• Appearance

• Assembly speed

• Low installation damage

• Repeated servicing

• Buzz, squeak and rattle control

Engineering Recommendation

Not every trim panel benefits from a threaded insert.

For high-speed assembly or low-load applications, clips, snap-fit features or other validated fastening systems may be more appropriate.

Automotive Electronic Module Housings

Modern vehicles incorporate multiple electronic systems inside the passenger compartment.

Potential applications include:

• Infotainment module housings

• Instrument electronics

• Sensor support structures

• Interior control units

• Display mounting components

Engineering Priorities

• Precise insert positioning

• Stable screw engagement

• Electrical clearance

• Thermal behavior

• Serviceability

Important Clarification

Metal threaded inserts are electrically conductive.

They should not be assumed to provide electrical insulation simply because they are embedded in plastic.

Automotive NVH and Buzz, Squeak and Rattle (BSR)

Noise, vibration and harshness (NVH) are important considerations in vehicle interior engineering.

Buzz, squeak and rattle (BSR) problems can occur when components move relative to one another under vehicle excitation.

Buzz

Buzzing may arise from vibration of lightweight components or localized contact.

Squeak

Squeaking may result from frictional movement between contacting surfaces.

Rattle

Rattling may occur when components have insufficient restraint or clearance control.

How Threaded Inserts Relate to BSR

A properly designed threaded connection may help maintain component positioning and support controlled assembly.

However, threaded inserts do not independently eliminate BSR.

Noise performance also depends on:

• Joint stiffness

• Clamp load

• Surface contact

• Component geometry

• Clearance

• Material damping

• Temperature

• Vibration frequency

Engineering Recommendation

Evaluate the complete interior assembly rather than treating insert retention as a direct measure of NVH performance.

Important Distinction

An insert may remain securely retained in plastic while the mating screw loosens or adjacent trim surfaces generate noise.

These are separate failure mechanisms.

Material Selection for Automotive Interior Threaded Inserts

Insert material influences mechanical performance, corrosion behavior, manufacturing cost and installation compatibility.

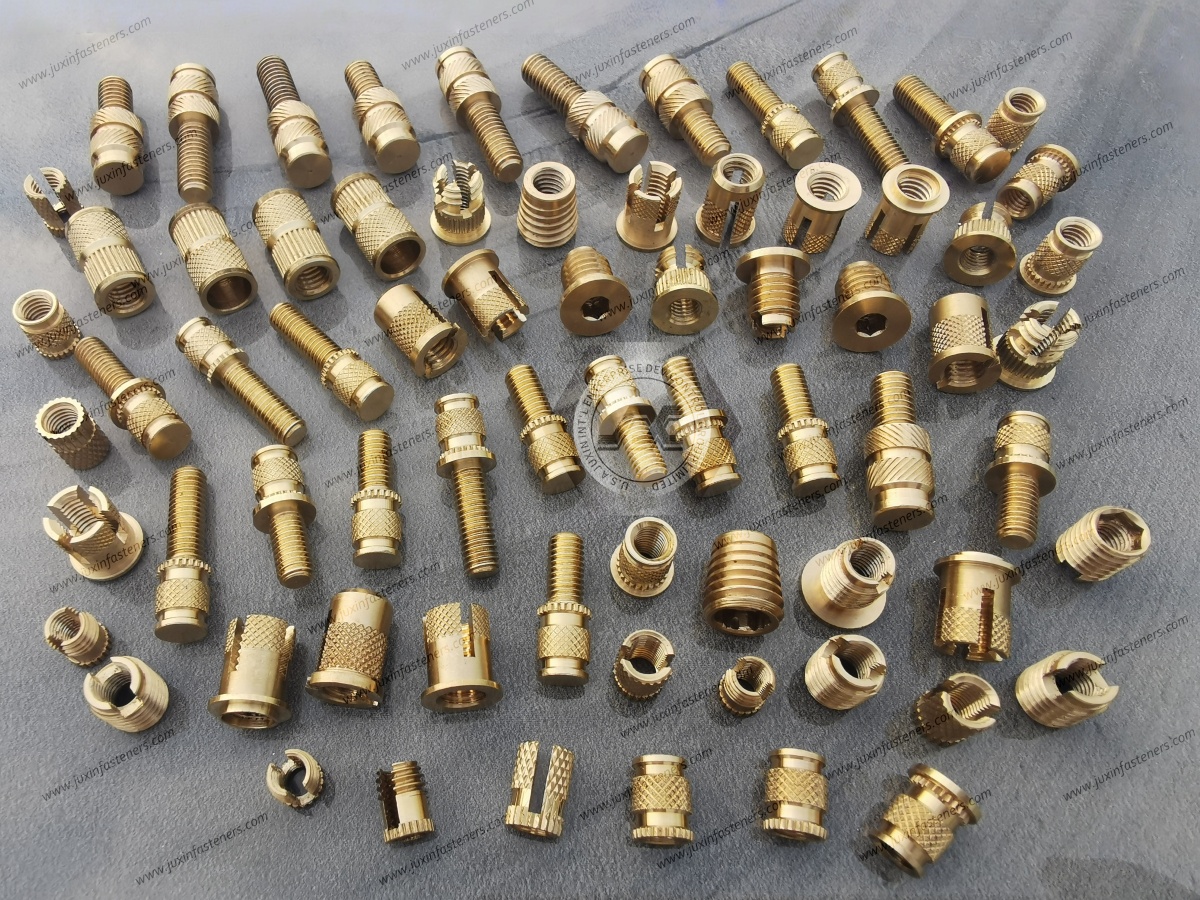

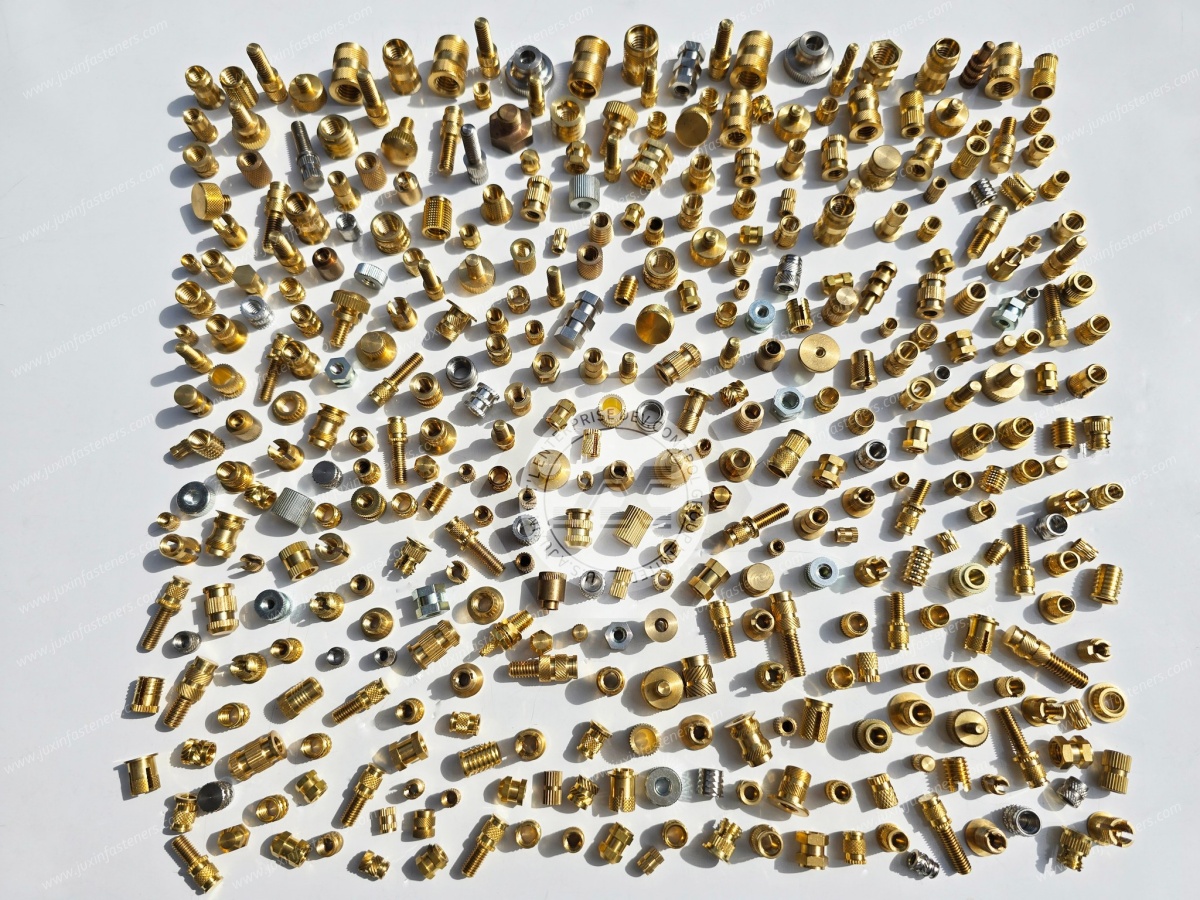

Brass Threaded Inserts

Brass is commonly used for threaded inserts in suitable thermoplastic components.

Potential Advantages

• Good machinability

• Durable internal metal threads

• Compatibility with many established heat-insertion designs

• Useful corrosion resistance in appropriate environments

Potential Applications

• Dashboard electronics housings

• Instrument panels

• Infotainment components

• Plastic mounting structures

• Selected interior covers

Engineering Considerations

• Host polymer grade

• Boss dimensions

• Installation process

• Thermal expansion

• Pull-out resistance

• Torque-out resistance

Brass does not automatically provide superior thermal stability for every automotive plastic assembly.

The complete insert–polymer system must be evaluated.

Stainless Steel Threaded Inserts

Stainless steel may be considered for selected applications requiring particular mechanical or corrosion properties.

Engineering Considerations

• Stainless steel grade

• Mating screw material

• Thread galling

• Corrosion environment

• Installation compatibility

• Cost

Stainless steel is not automatically required for every automotive interior application.

Zinc-Plated Carbon Steel Inserts

Carbon steel inserts with suitable surface protection may offer an alternative for certain applications.

Potential Advantages

• Material cost options

• Mechanical properties appropriate to selected designs

• Established coating processes

Engineering Considerations

• Steel grade

• Coating specification

• Corrosion requirements

• Coating thickness

• Thread fit

• Host material compatibility

Zinc plating does not guarantee corrosion resistance under every operating condition.

Material Selection Comparison

Engineering Recommendation

Specify the exact material and finish on the approved product drawing.

Do not select an insert solely on the basis of material category.

Heat-Set Threaded Inserts for Automotive Plastics

Heat-set inserts are installed into suitable thermoplastic components using controlled heating.

The surrounding plastic softens and flows around the insert's retention features.

Potential Advantages

• Post-molding installation

• Reusable metal threads

• Compatibility with many engineering thermoplastics

• Established insertion equipment

Engineering Limitations

• Heating conditions must be controlled

• Hole geometry affects retention

• Excessive heat can damage the component

• Incomplete insertion may affect screw engagement

• Not suitable for every polymer

Potential Applications

• Electronic housings

• Display mounting components

• Instrument assemblies

• Selected interior plastic structures

Manufacturing Recommendation

Define the insertion process window using the actual polymer grade and production component.

Molded-In Threaded Inserts

Molded-in inserts are positioned inside the mold before injection molding.

Plastic flows around the insert and its retention features.

Potential Advantages

• Integrated insert placement

• No separate post-molding insertion operation

• Suitability for certain high-volume processes

• Potential for effective mechanical retention

Engineering Limitations

• Insert positioning must be controlled

• Mold loading affects production workflow

• Plastic flow may be influenced

• Insert movement can cause defects

• Tooling complexity may increase

Important Clarification

Molded-in inserts do not automatically provide the highest retention strength.

Pull-out and torque-out performance depend on geometry, polymer material and molding conditions.

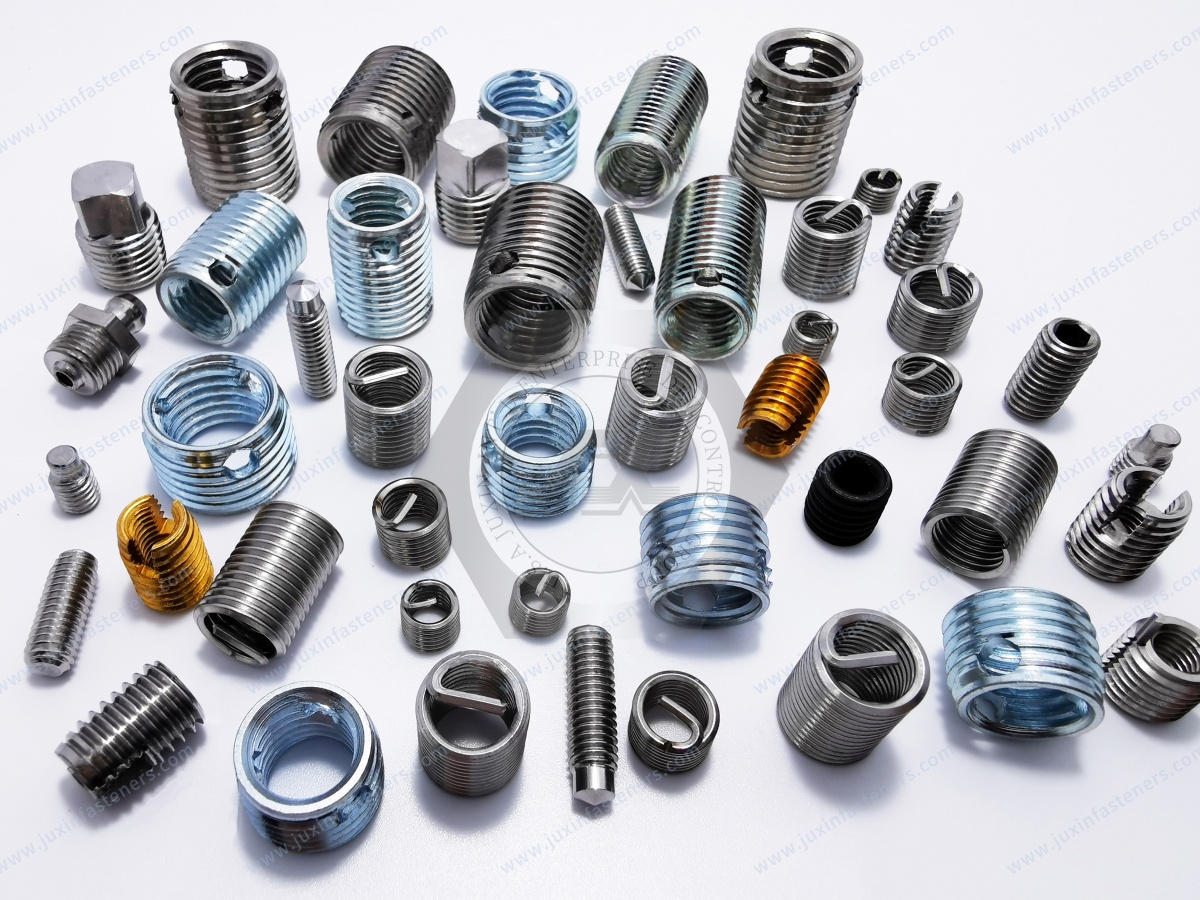

Self-Tapping Threaded Inserts

Self-tapping threaded inserts contain premanufactured internal machine threads.

During installation, their external cutting or forming features establish engagement with a compatible host material.

Potential Advantages

• Post-molding installation

• Mechanical engagement in suitable materials

• No separate heating process for compatible designs

• Flexibility in selected assembly processes

Engineering Limitations

• Pilot hole dimensions are critical

• Installation torque must be controlled

• Brittle plastics may crack

• Thin bosses may deform

• Misalignment may damage the component

Important Clarification

Self-tapping inserts do not normally create their own internal machine threads during installation.

Selecting the Installation Method

No installation method is universally best for every automotive interior component.

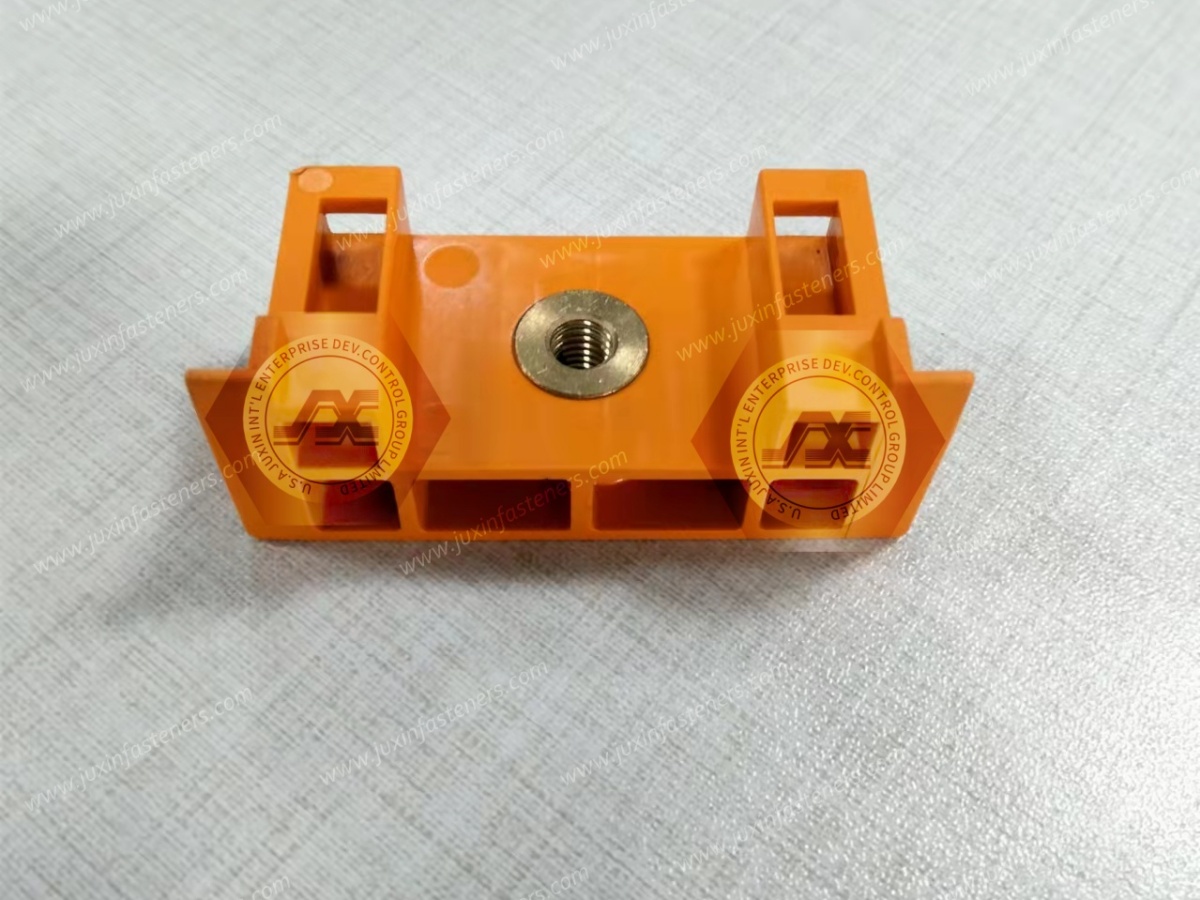

Plastic Boss Design for Automotive Threaded Inserts

The surrounding plastic boss is a critical part of the fastening system.

A strong metal insert cannot compensate for an inadequately designed plastic component.

Pilot Hole Diameter

An oversized hole may reduce retention.

An undersized hole may cause excessive insertion stress or cracking.

Boss Outside Diameter

The boss must provide enough surrounding material to withstand insertion and service loads.

Boss Height

Boss height influences available insert engagement and screw depth.

Hole Depth

Blind holes must provide sufficient clearance for the insert and mating screw.

Edge Distance

Inserts placed too close to unsupported edges may create local stress concentrations.

Reinforcing Ribs

Ribs may improve stiffness but require careful design to avoid molding defects and local stress.

Engineering Recommendation

Confirm the following before tooling release:

• Insert outside diameter

• Insert length

• Pilot hole diameter

• Hole depth

• Boss outside diameter

• Boss height

• Edge distance

• Screw engagement depth

• Clearance beneath the screw

Polymer Material Compatibility

Automotive interior components may use different engineering plastics.

ABS

May be suitable for selected interior components, depending on mechanical and temperature requirements.

Polycarbonate (PC)

Requires consideration of residual stress, chemical exposure and cracking risk.

Polyamide (PA / Nylon)

Properties may change with moisture absorption and temperature.

PBT

May be used in selected automotive electronics components where its material properties are appropriate.

Glass-Fiber-Reinforced Plastics

Reinforcement can influence stiffness, local stress and installation behavior.

Engineering Recommendation

Specify the exact polymer grade, reinforcement content and relevant conditioning state.

Generic material names are not sufficient for final production validation.

Pull-Out Resistance and Torque-Out Resistance

Installed insert performance is often evaluated using pull-out and torque-out testing.

Pull-Out Resistance

Pull-out resistance describes the ability of the insert to resist axial extraction from the host material.

Torque-Out Resistance

Torque-out resistance describes the ability of the insert to resist rotation within the host material.

Why Both Matter

An insert may resist axial extraction but rotate during screw tightening.

Another insert may resist rotation but pull out under service loading.

Engineering Recommendation

Validate both characteristics where required using representative production components.

Screw Tightening and Clamp Load

The internal metal thread of an insert supports engagement with a mating machine screw.

However, the complete joint may still include compressible or creep-sensitive plastic components.

Relevant factors include:

• Screw material

• Thread engagement

• Tightening torque

• Friction

• Under-head bearing area

• Joint stiffness

• Plastic creep

• Temperature

Potential Failure Modes

• Insert rotation

• Insert pull-out

• Plastic boss cracking

• Thread stripping

• Excessive plastic compression

• Loss of clamp load

Engineering Recommendation

Establish screw tightening torque through application-specific testing.

Insert installation torque and mating screw tightening torque are different process parameters.

Vehicle Vibration and Joint Loosening

Automotive interiors are exposed to repeated vibration during vehicle operation.

Potential causes of joint loosening include:

• Inadequate preload

• Transverse vibration

• Joint settlement

• Thermal expansion

• Plastic creep

• Insufficient joint stiffness

Important Engineering Distinction

Threaded inserts do not inherently prevent screw loosening.

Where required, the joint may need a suitable locking feature or another validated retention method.

Thermal Cycling and Plastic Creep

Vehicle interiors can experience substantial temperature changes during parking, operation and seasonal exposure.

Metals and polymers generally have different thermal expansion characteristics.

Potential effects include:

• Local stress changes

• Reduced insert retention

• Boss cracking

• Joint relaxation

• Changes in screw preload

Plastic Creep

Under sustained load, some polymers gradually deform.

This may reduce joint compression over time.

Engineering Recommendation

Evaluate the complete joint under representative temperature cycling and sustained loading where required.

Repeated Assembly and Serviceability

Some interior components require removal during vehicle servicing.

Examples include:

• Electronic module replacement

• Display servicing

• Instrument repairs

• Sensor replacement

• Interior component maintenance

Threaded inserts can reduce wear associated with repeated screw installation in plastic.

However, service-cycle performance depends on:

• Insert retention

• Mating screw condition

• Thread alignment

• Tightening torque

• Operator procedures

• Host material condition

Engineering Recommendation

Define the expected service-cycle requirement and validate the installed connection.

Automotive OEM Installation and Production Control

For manufacturing engineers and production managers, repeatable installation is essential.

Heat-Set Process Variables

• Insert temperature

• Heating method

• Insertion force

• Insertion speed

• Seating depth

• Cooling conditions

Molded-In Process Variables

• Insert positioning

• Mold loading

• Plastic flow

• Insert retention during injection

• Mold temperature

• Part removal

Self-Tapping Process Variables

• Pilot hole diameter

• Installation torque

• Alignment

• Insertion depth

• Tool condition

Production Quality Indicators

• Installation cycle time

• Seating depth variation

• Reject rate

• Rework rate

• Tool wear

• Dimensional consistency

• Retention test results

Information Gain: Installation Consistency Is a Separate Quality Requirement

A threaded insert may achieve satisfactory prototype retention results but perform inconsistently in production if the installation process varies.

For example, changes in pilot hole diameter or heat-insertion conditions may produce different retention levels across otherwise similar molded components.

Engineering Recommendation

Validate the production process window and monitor critical installation parameters.

Automotive Quality Control and Validation

Automotive fastening quality should be evaluated against the actual component requirements.

Incoming Insert Inspection

Potential characteristics include:

• Material grade

• Internal thread dimensions

• Outside diameter

• Insert length

• Retention geometry

• Surface condition

• Visual defects

Installed Insert Inspection

Potential checks include:

• Position

• Seating depth

• Perpendicularity

• Boss damage

• Insert movement

• Thread condition

Mechanical Validation

Depending on the application:

• Pull-out testing

• Torque-out testing

• Repeated assembly testing

• Screw tightening trials

• Joint load testing

Environmental and Vehicle Validation

Where relevant:

• Thermal cycling

• Temperature aging

• Humidity exposure

• Vibration testing

• BSR evaluation

• Corrosion assessment

Important Qualification Principle

A correctly manufactured insert is not automatically suitable for every automotive interior component.

The complete assembly must meet the applicable OEM requirements.

Thread Standards and Dimensional Compatibility

The internal insert thread must match the mating screw.

Metric Threads

ISO 261 and the ISO 965 series may be relevant to applicable metric thread dimensions and tolerances.

Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF designations.

Metric-to-Inch Diameter References

These are dimensional conversions only.

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

Specific thread availability must be confirmed against the drawing.

Common Automotive Interior Insert Failure Modes

Total Installed Cost for Automotive OEM Production

For automotive OEMs and Tier 1 suppliers, the lowest insert purchase price does not always produce the lowest assembly cost.

Relevant cost elements include:

• Insert purchase cost

• Mold or tooling allocation

• Installation equipment

• Assembly labor

• Inspection

• Scrap and rework

• Maintenance

• Warranty-related costs

Information Gain: Compare Cost per Accepted Assembly

A useful production comparison is:

Total relevant production, installation, inspection and rework costs ÷ accepted assembly quantity

Use a consistent production period and avoid double-counting costs.

Engineering Recommendation

Compare insert alternatives using actual production volume, cycle time, defect rate and lifecycle requirements.

Custom Threaded Inserts for Automotive OEM Projects

Different interior components may require drawing-specific insert dimensions and materials.

Potential custom requirements include:

• Internal thread diameter

• Thread pitch

• Insert length

• Outside diameter

• Retention geometry

• Material grade

• Surface finish

• Installation method

• Packaging requirements

Engineering Recommendation

Provide the complete insert drawing and surrounding plastic component information.

The host material and installation method are essential for evaluating actual performance.

Supplier Qualification and Procurement Requirements

Purchasing and supplier development teams should evaluate both technical and commercial factors.

Technical Requirements

• Drawing compliance

• Material specification

• Thread accuracy

• Retention geometry

• Surface finish

• Inspection criteria

Production Requirements

• Dimensional consistency

• Process control

• Traceability where required

• Engineering change management

• Packaging compatibility

Commercial Requirements

• Prototype quantities

• MOQ

• Annual demand

• Unit price

• Lead time

• Production planning

• Supply continuity

Specific commercial conditions must be confirmed for each RFQ.

OEM RFQ Checklist

Frequently Asked Questions

What are threaded inserts used for in automotive interior panels?

They provide reusable internal metal threads in selected plastic and lightweight components such as dashboards,

 electronic housings and serviceable trim assemblies.

Are brass threaded inserts suitable for automotive plastics?

They may be suitable for compatible engineering thermoplastics, subject to retention, temperature and installation requirements.

Do threaded inserts prevent interior rattling?

Not automatically. BSR performance depends on the complete joint, component geometry, clearances and vibration behavior.

Which insert type has the highest pull-out strength?

No installation method is universally strongest. Performance depends on insert geometry, host material and installation conditions.

Can threaded inserts be used in door trim panels?

They may be suitable for selected mounting points, but clips, snap-fit features or other fastening systems may be more appropriate for some applications.

Do threaded inserts prevent screw loosening under vibration?

Not inherently. Screw loosening and insert retention are separate engineering considerations.

Can automotive inserts use UNC or UNF threads?

Such requirements can be reviewed against the drawing.

Availability must be confirmed, and Unified inch threads are not interchangeable with metric threads.

What tests should an automotive OEM request?

Depending on the application, testing may include pull-out, torque-out, repeated assembly, thermal cycling, vibration and BSR evaluation.

What information is needed for an OEM quotation?

Provide the insert drawing, material, host polymer, installation method, performance requirements, annual volume and delivery schedule.

Juxin Fasteners: Automotive Interior Threaded Insert Solutions

Juxin Fasteners welcomes inquiries for automotive threaded inserts and custom fastening components.

Relevant product categories include:

• Brass threaded inserts

• Stainless steel threaded inserts

• Carbon steel threaded inserts

• Heat-set threaded inserts

• Molded-in threaded inserts

• Self-tapping threaded inserts

• Custom threaded inserts for plastic components

• Drawing-specific OEM fastening components

Specific material grades, dimensions, installation requirements, inspection criteria, MOQ and delivery schedules require confirmation.

Request an Automotive Interior Threaded Insert Quotation

Are you developing a dashboard assembly, instrument panel, infotainment housing,

interior trim component or automotive electronics module requiring durable threaded connections?

Juxin Fasteners welcomes inquiries from:

• Automotive design engineers

• Mechanical engineers

• Structural engineers

• Manufacturing engineers

• Production managers

• Purchasing specialists

• Procurement managers

• Supplier development teams

• Supply chain managers

For technical review, please provide:

Insert drawing + thread specification + material grade + surface finish + host polymer + boss geometry

+ installation method + loading requirements + temperature range + vibration conditions + NVH requirements

+ validation criteria + prototype quantity + annual demand + packaging + delivery schedule.

Our team can review the requirements and confirm suitable product options, technical feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your automotive interior threaded insert drawings and OEM RFQ to Juxin Fasteners for technical confirmation and quotation.
