Plastic components are widely used in automotive electronics, electrical enclosures, industrial machinery,

robotics and precision equipment because they support lightweight construction, design flexibility and efficient manufacturing.

However, creating reliable threaded connections in plastic requires different engineering considerations from fastening metal components.

Directly formed or tapped plastic threads may be suitable for certain assemblies, but repeated screw installation,

elevated temperatures, sustained loading and limited thread engagement can introduce performance risks.

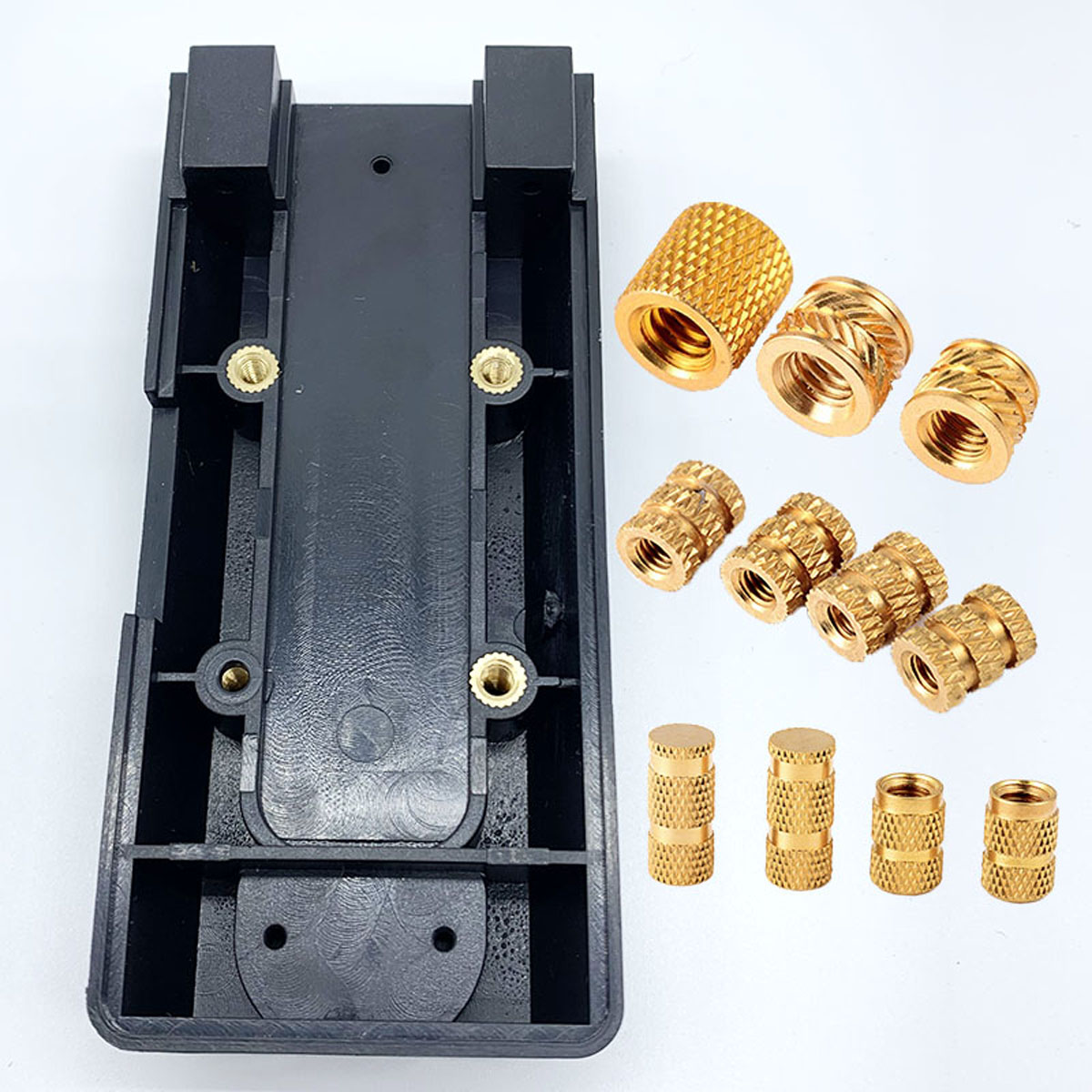

Threaded inserts for plastic provide a metal internal thread within a plastic component,

allowing designers to use machine screws while transferring fastening loads through the insert-to-polymer interface.

Depending on the application, engineers may select heat-set threaded inserts, ultrasonic inserts, self-tapping inserts, press-in inserts or molded-in threaded inserts.

Each installation method requires different hole geometry, material compatibility, production equipment and validation procedures.

This guide explains how to select and design threaded inserts for plastic components, with particular attention to boss dimensions, pilot holes,

pull-out resistance, torque-out performance, installation repeatability and total assembly cost.

Juxin Fasteners welcomes inquiries for thread insert nuts, plastic threaded inserts,

custom threaded bushings and OEM fastening components, with product specifications and manufacturing feasibility confirmed against customer drawings.

Why Use Threaded Inserts in Plastic Components?

Plastic materials generally behave differently from metals under concentrated mechanical loading.

Their strength, stiffness, creep resistance and thermal expansion characteristics depend on polymer chemistry, reinforcement, temperature, moisture and manufacturing conditions.

A screw installed directly into plastic may create or engage threads in the surrounding polymer.

For certain applications, this is an economical solution.

However, applications involving frequent servicing or machine-screw connections may benefit from a separate threaded insert.

Common Problems with Direct Plastic Threads

• Thread stripping during assembly

• Progressive thread wear after repeated removal

• Boss cracking from excessive installation stress

• Reduced joint preload caused by polymer creep

• Dimensional changes caused by temperature or moisture

• Inconsistent assembly torque

• Damage caused by cross-threading or incorrect screw engagement

How a Threaded Insert Changes the Load Path

A threaded insert provides a metal internal thread for the mating screw.

The screw engages the metal insert, while the insert transfers load into the surrounding plastic through external knurls, threads, ribs, undercuts or molded retention features.

The load path can be described as:

Machine screw → Internal insert thread → Insert retention geometry → Plastic boss or surrounding component

This distinction is important.

Although a metal insert may improve internal thread durability, the overall joint can still fail through insert pull-out, insert rotation or cracking of the surrounding plastic.

Engineering Principle

The strength of a threaded insert assembly is determined by both the metal insert and the polymer structure retaining it.

Key Benefits of Threaded Inserts for Plastic

Improved Internal Thread Durability

Metal internal threads can better tolerate repeated engagement with suitable machine screws than many directly formed plastic threads.

This is especially useful in serviceable products.

Improved Assembly Repeatability

A properly selected insert can provide a more consistent internal thread interface.

However, consistent tightening torque does not automatically guarantee consistent clamp load.

Joint friction, plastic compression and assembly conditions must also be considered.

Potentially Higher Pull-Out and Torque-Out Resistance

Appropriate insert retention geometry can improve resistance to axial extraction and rotation compared with unsuitable direct-thread designs.

Actual performance depends on the plastic material, insert geometry, hole preparation and installation process.

Repeated Maintenance and Repair

Threaded inserts are useful for:

• Removable electrical enclosure covers

• Electronic module mounting

• Equipment access panels

• Serviceable machine guards

• Industrial control housings

• Replaceable mechanical components

Important Limitation: Plastic Creep Remains Relevant

Installing a metal insert does not eliminate creep or stress relaxation in the surrounding polymer.

If the joint compresses plastic under sustained load, clamp force may still decrease over time.

For critical assemblies, engineers should consider load distribution, compression limiters, washers, joint geometry and appropriate preload validation.

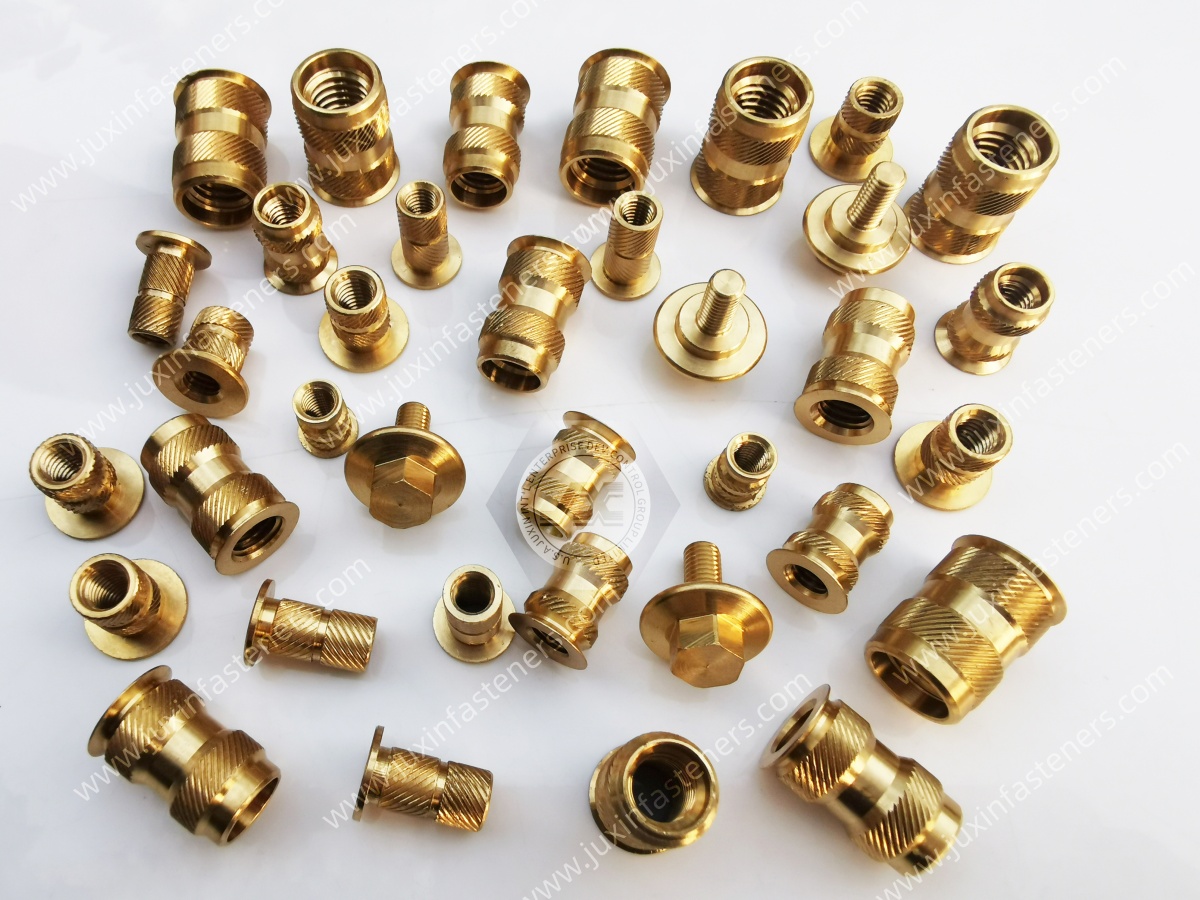

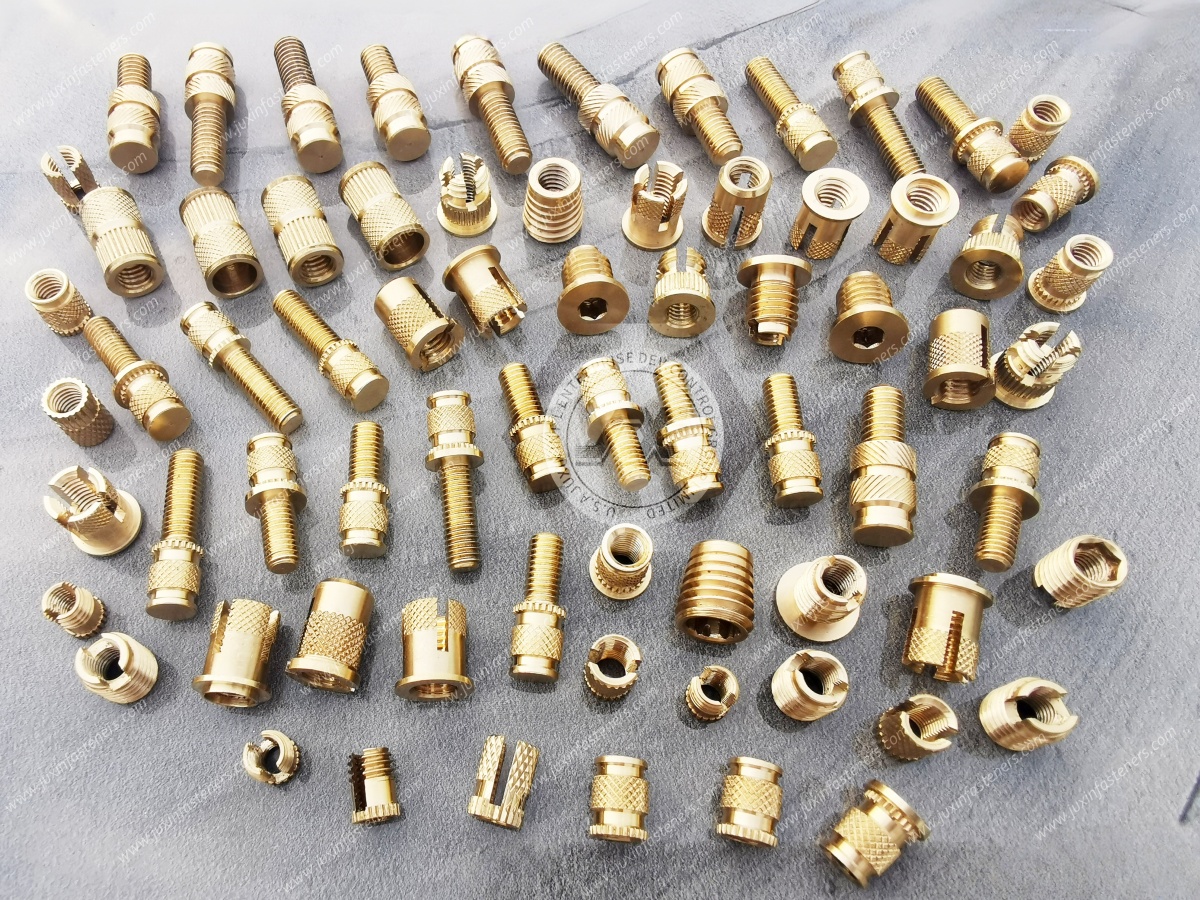

Common Types of Threaded Inserts for Plastic

Different insert designs serve different manufacturing processes.

Heat-Set Threaded Inserts

Heat-set inserts are generally designed for compatible thermoplastic components.

A heated installation tip transfers heat to the metal insert, softening the surrounding polymer.

The insert is pressed into a prepared hole, allowing softened plastic to flow around its external retention features.

After cooling, the surrounding material helps retain the insert.

Typical Advantages

• Suitable for selected thermoplastics

• Controlled installation depth

• Compatibility with automated insertion equipment

• Potentially good pull-out and torque-out performance

• Post-molding installation

Engineering Considerations

• Polymer softening behavior

• Insert temperature

• Installation force

• Dwell time

• Cooling conditions

• Boss geometry

• Insert alignment

• Tool-tip design

Common Failure Risks

Excessive temperature or pressure may damage the boss.

Insufficient heat may prevent adequate polymer flow around the insert.

Incorrect installation depth can affect mating-component fit.

Typical Applications

• ABS electronic housings

• Polycarbonate enclosures

• Suitable nylon components

• Automotive interior electronics

• Industrial control modules

Compatibility must be established for the actual polymer grade.

Ultrasonic Threaded Inserts

Ultrasonic insertion uses high-frequency mechanical vibration to generate localized heat at the insert-to-plastic interface.

The softened polymer flows around the insert retention features during installation.

Potential Advantages

• Integration into automated manufacturing

• Short installation cycles in suitable applications

• Controlled insertion depth

• Reduced need for externally heated installation tips

Engineering Considerations

• Ultrasonic frequency and amplitude

• Applied force

• Insert geometry

• Polymer behavior

• Installation time

• Equipment tuning

• Boss support

Potential Failure Risks

Incorrect process parameters may produce incomplete insertion, local material degradation, boss cracking or inconsistent retention.

Heat-Set vs Ultrasonic Inserts

Both methods can be effective.

The best process depends on the polymer, insert geometry, equipment availability, production volume and required retention performance.

Neither method should be described as universally stronger without comparative testing.

Self-Tapping Threaded Inserts

Self-tapping inserts are installed into prepared holes using an external cutting or thread-forming geometry.

Depending on the design, the insert cuts or forms engagement features in the surrounding plastic.

Typical Advantages

• Post-molding installation

• No dedicated heating process

• Suitability for selected repair and industrial assembly applications

• Potential use in suitable plastics and soft materials

Engineering Considerations

• Pilot hole diameter

• Hole depth

• External insert thread geometry

• Installation torque

• Polymer hardness

• Boss wall thickness

• Installation alignment

Common Failure Risks

• Boss splitting

• Excessive installation torque

• Incomplete seating

• Insert rotation

• Reduced pull-out resistance

• Damage caused by incorrect pilot hole dimensions

Important Selection Point

A self-tapping insert is not necessarily the best choice for every plastic.

Brittle polymers, thin bosses and highly reinforced materials may require special evaluation.

Press-In Threaded Inserts

Press-in inserts use external knurls, ribs or interference features to engage a prepared plastic hole.

They are installed through mechanical pressure.

Potential Advantages

• Simple installation process

• No external heating operation

• Suitability for selected production-line applications

• Possible low equipment complexity

Engineering Limitations

Press-in installation introduces radial stresses into the plastic.

If the boss is too thin or the interference is excessive, cracking or deformation may occur.

Typical Applications

• Plastic equipment housings

• Electrical components

• Lightweight assemblies

• Selected low- or moderate-load threaded attachment points

Performance depends on the insert and substrate design.

Molded-In Threaded Inserts

Molded-in inserts are positioned in the injection mold before the plastic is injected.

Molten polymer flows around the insert and its retention geometry.

After cooling, the insert becomes mechanically retained within the molded component.

Potential Advantages

• No separate post-molding insertion operation

• Integration into injection molding production

• Potentially robust retention geometry

• Suitability for selected high-volume manufacturing programs

Engineering Considerations

• Mold insert positioning

• Core pin design

• Insert orientation

• Polymer flow

• Weld lines in molded plastic

• Cooling shrinkage

• Insert retention geometry

• Mold cycle time

• Risk of displaced inserts

Important Limitation

Molded-in inserts are not automatically stronger than heat-set or ultrasonic inserts.

Retention depends on the complete design and molding process.

Production Trade-Off

Molded-in inserts may reduce secondary assembly operations but introduce insert feeding, mold handling and production control requirements.

Threaded Insert Design Guidelines for Plastic Components

Reliable threaded insert performance begins with the surrounding plastic geometry.

Engineers should define the insert, pilot hole, boss, mating screw and expected loads as one system.

Pilot Hole Diameter

The pilot hole must match the selected insert design and installation method.

A hole that is too small may cause excessive installation force or boss cracking.

A hole that is too large may reduce retention or allow the insert to rotate.

Factors Affecting Pilot Hole Selection

• Insert outside diameter

• External knurl or thread geometry

• Plastic type

• Reinforcement content

• Molding shrinkage

• Installation temperature

• Required retention performance

Engineering Recommendation

Use the dimensional requirements for the specific insert design and validate them in the actual molded component.

There is no universal pilot hole diameter suitable for all threaded inserts of the same internal thread size.

Hole Depth Requirements

Blind-hole depth must accommodate the insert, installation process and mating screw.

Insufficient depth can cause bottoming during insertion or final assembly.

Excessive depth may reduce support or complicate installation control.

Check the Following

• Insert overall length

• Insert installation depth

• Blind-hole bottom clearance

• Mating screw engagement

• Screw tip clearance

• Molded-hole tolerance

• Any required counterbore

Engineering Note

Generic hole-depth multipliers should not replace the drawing requirements for the selected insert.

Plastic Boss Diameter

The boss must contain sufficient material around the insert to resist radial installation stress and service loading.

Important Variables

• Insert outside diameter

• Boss outside diameter

• Minimum wall thickness

• Polymer strength

• Reinforcement

• Installation method

• Expected pull-out load

• Applied tightening torque

A larger boss may improve structural support, but excessive wall thickness can also introduce injection-molding defects such as sink marks or uneven cooling.

Design Trade-Off

The boss must be strong enough to retain the insert while remaining manufacturable.

Why a Universal Boss Diameter Rule Is Unreliable

Two inserts with the same internal thread can have different outside diameters and retention geometries.

Likewise, an unfilled ABS boss and a glass-filled nylon boss may respond differently to the same installation conditions.

Therefore, boss diameter should be determined from the insert design, polymer data and application testing rather than from one fixed multiplier.

Boss Height and Insert Engagement

Boss height must support the insert's intended engagement length.

Insufficient boss height may reduce retention or leave inadequate surrounding material.

Excessive height may increase material consumption, molding complexity or dimensional variation.

Boss Reinforcement and Rib Design

Supporting ribs may improve boss stability.

However, ribs should be designed with appropriate wall thickness, fillets and molding considerations.

Poor rib geometry can introduce stress concentration, sink marks or warpage.

Counterbores and Recessed Installation

Some inserts require a counterbore or lead-in feature.

These may support:

• Insert alignment

• Headed insert seating

• Flush installation

• Controlled insertion depth

Counterbore dimensions must follow the selected product geometry.

Flush Installation and Protrusion Control

Insert height affects the fit between the plastic component and the mating part.

A protruding insert may interfere with assembly.

An excessively recessed insert may reduce available screw engagement or create unintended joint geometry.

Engineering Recommendation

Specify allowable insert protrusion or recess in the component drawing.

Do not apply a universal protrusion tolerance without confirming the assembly requirements.

Thread Engagement and Screw Length

The mating screw must engage enough internal threads to support the required loading without bottoming.

Verify

• Screw thread specification

• Insert internal thread length

• Effective engagement

• Mating component thickness

• Washer thickness, if applicable

• Screw tip clearance

• Installation tolerance

Metric and Inch Thread Compatibility

Metric internal threads should be specified using the applicable ISO metric thread system.

Unified inch threads should be identified using the applicable ASME B1.1 designation.

Metric and UNC/UNF threads are not directly interchangeable.

For reference only, M4 nominal diameter is approximately 0.157 inch and M6 is approximately 0.236 inch.

These conversions do not establish interchangeability or confirm the availability of an inch-thread equivalent.

Plastic Threaded Insert Installation Methods

Installation process control is critical for consistent production.

Mechanical Installation

Mechanical methods include press-in and self-tapping insertion.

Key Process Variables

• Hole dimensions

• Installation force

• Installation torque

• Tool alignment

• Insertion depth

• Component support

Potential Production Issues

• Misalignment

• Boss cracking

• Excessive installation force

• Inconsistent seating

• Insert rotation

Heat Installation

Heat-set installation requires a controlled thermal process.

Key Process Variables

• Tip temperature

• Contact time

• Applied force

• Installation depth

• Cooling behavior

Potential Production Issues

• Overheating

• Polymer degradation

• Incomplete material flow

• Insert tilt

• Boss deformation

Ultrasonic Installation

Ultrasonic insertion requires equipment settings appropriate to the polymer and insert.

Key Process Variables

• Vibration amplitude

• Installation force

• Process time

• Energy input

• Insertion depth

• Component support

Potential Production Issues

• Local cracking

• Incomplete insertion

• Thermal degradation

• Inconsistent retention

Molded-In Installation

Molded-in inserts require coordination with the injection molding process.

Key Process Variables

• Insert positioning

• Mold temperature

• Injection pressure

• Polymer flow

• Cooling conditions

• Insert retention in the mold

Potential Production Issues

• Insert movement

• Molded-in stress

• Incorrect orientation

• Poor polymer filling

• Dimensional variation

Plastic Material Compatibility

Plastic threaded insert performance depends strongly on the actual polymer grade.

ABS — Acrylonitrile Butadiene Styrene

ABS is commonly used in electronics housings, automotive interior components and industrial enclosures.

Design Considerations

• Boss wall thickness

• Heat-set installation conditions

• Dimensional stability

• Impact resistance

• Service temperature

PC — Polycarbonate

Polycarbonate is used where impact resistance and dimensional performance are important.

Design Considerations

• Installation stress

• Stress cracking

• Thermal process compatibility

• Chemical exposure

• Boss geometry

PA — Polyamide / Nylon

Polyamide is common in engineering components.

Design Considerations

• Moisture absorption

• Dimensional changes

• Reinforcement content

• Installation temperature

• Long-term creep

POM — Polyoxymethylene

POM is used in precision mechanical components.

Design Considerations

• Material-specific insert retention

• Installation method

• Low-friction behavior

• Dimensional requirements

PP and PE — Polypropylene and Polyethylene

These polymers may require special attention because their stiffness, creep behavior and retention characteristics differ from those of many engineering plastics.

Design Considerations

• Creep

• Boss deformation

• Thermal behavior

• Insert retention

• Long-term load performance

Glass-Filled Engineering Plastics

Glass reinforcement may improve stiffness and dimensional performance.

However, it can also influence:

• Local brittleness

• Installation force

• Material flow around the insert

• Boss cracking

• Tool wear

Engineering Principle

Compatibility should be evaluated for the specific polymer grade, reinforcement level and molding conditions—not simply the general material family.

Mechanical Performance: Pull-Out, Torque-Out and Joint Reliability

Threaded insert qualification should focus on the installed assembly.

Pull-Out Resistance

Pull-out resistance measures the force required to extract the insert from the surrounding plastic under defined test conditions.

Factors Affecting Pull-Out Performance

• Insert geometry

• Engagement length

• Polymer strength

• Boss dimensions

• Hole geometry

• Installation quality

• Temperature

• Loading rate

Torque-Out Resistance

Torque-out resistance measures resistance to rotation of the insert relative to the surrounding plastic.

Factors Affecting Torque-Out Performance

• Knurl geometry

• External thread design

• Insert outside diameter

• Polymer behavior

• Installation process

• Boss support

Important Distinction

Torque-out resistance is not the same as recommended screw tightening torque.

A safe assembly torque must consider the screw, internal thread, insert retention, plastic component and complete joint.

Repeated Assembly Performance

Threaded inserts may improve serviceability when machine screws are repeatedly installed and removed.

However, repeated assembly performance still depends on:

• Screw material

• Thread geometry

• Tightening torque

• Thread wear

• Insert retention

• Plastic creep

• Maintenance practices

Vibration Resistance

A metal threaded insert does not inherently prevent screw loosening.

Vibration resistance depends on the complete joint design, preload, loading conditions and any specified locking method.

Thermal Cycling

Plastic and metal expand at different rates.

Repeated temperature changes can influence insert retention, stress distribution and joint preload.

Design Considerations

• Coefficient of thermal expansion

• Operating temperature range

• Polymer creep

• Insert geometry

• Assembly preload

• Environmental exposure

Common Failure Modes and Prevention

Information Gain: Why a Stronger Metal Insert Does Not Always Produce a Stronger Joint

A metal insert may have sufficient internal thread strength while the surrounding plastic remains the limiting element.

For example, increasing the screw property class may not improve the joint if the boss fails first.

Engineering Lesson

Evaluate the weakest element in the complete load path.

Information Gain: Why Larger Inserts Are Not Always Better

A larger insert may provide more external contact area.

However, it also requires a larger hole and may increase radial stress or reduce the available boss wall thickness.

In compact housings, this can create new failure risks.

Engineering Lesson

Insert size must be balanced against the available plastic geometry.

Information Gain: Why Installation Temperature Matters

For heat-set inserts, insufficient heat may prevent adequate polymer flow.

Excessive heat may degrade the polymer or distort the boss.

The best setting depends on the actual insert and polymer.

Engineering Lesson

Installation temperature should be qualified as a process parameter rather than copied from a generic recommendation.

Information Gain: Why Tightening Torque Alone Cannot Define Joint Reliability

A tightening torque value does not directly reveal the actual clamp force.

Friction, thread condition, screw geometry and compression of plastic components influence the resulting joint.

Engineering Lesson

Where clamp force matters, validate the complete assembly rather than relying only on nominal screw torque.

Industrial Applications of Threaded Inserts for Plastic

Automotive Interior and Electronics

Plastic threaded inserts may be used in:

• Dashboard assemblies

• Electronic control housings

• Interior mounting brackets

• Switch housings

• Serviceable modules

Engineering Priorities

• Repeated assembly

• Vibration

• Thermal cycling

• Dimensional stability

• Production repeatability

Electric Vehicle Electronics

EV systems contain plastic and composite components that require threaded mounting points.

Potential Applications

• Battery management electronics housings

• Electrical covers

• Charging equipment enclosures

• Control module housings

• Auxiliary component mounting

Engineering Priorities

• Material compatibility

• Thermal exposure

• Electrical insulation requirements

• Vibration

• Service access

• Assembly reliability

Important Limitation

Electrical and battery-related applications may require additional safety and environmental qualification.

General industrial inserts should not be assumed suitable for safety-critical EV assemblies without validation.

Electrical Cabinets and Electronic Equipment

Common applications include:

• ABS control boxes

• Polycarbonate enclosures

• Sensor housings

• Circuit board support structures

• Industrial electronics modules

Engineering Priorities

• Compact boss design

• Assembly access

• Screw retention

• Serviceability

• Enclosure integrity

Medical and Laboratory Equipment

Threaded inserts may be considered for suitable noncritical equipment housings and serviceable mechanical assemblies.

Potential Applications

• Diagnostic equipment enclosures

• Laboratory instrument housings

• Equipment access panels

• Precision mechanical covers

Engineering Priorities

• Material compatibility

• Cleaning exposure

• Repeated servicing

• Dimensional accuracy

• Customer-specific qualification

Medical-device use requires appropriate application-specific approval and documentation.

Industrial Machinery and Robotics

Automation equipment frequently includes plastic covers, sensor mounts and electronic housings.

Potential Applications

• Robot controller enclosures

• Machine guards

• Sensor housings

• Equipment access covers

• Automated inspection equipment

Engineering Priorities

• Repeated maintenance

• Installation repeatability

• Vibration

• Component replacement

• Production efficiency

Aerospace-Related and Lightweight Equipment

Suitable threaded inserts may be evaluated for lightweight equipment housings and noncritical support applications.

However, aerospace use requires customer approval and applicable qualification.

A general industrial threaded insert specification does not establish aerospace certification.

How to Select the Right Threaded Insert for Plastic

A structured selection process can reduce engineering changes and production problems.

Step 1: Identify the Plastic Material

Specify:

• Polymer type

• Exact grade

• Reinforcement content

• Relevant material properties

• Service temperature

Step 2: Define the Connection Requirements

Determine:

• Internal thread size

• Screw specification

• Required load

• Tightening torque

• Maintenance frequency

• Environmental conditions

Step 3: Select the Installation Method

Evaluate:

• Heat-set insertion

• Ultrasonic insertion

• Self-tapping insertion

• Press-in installation

• Molded-in installation

Step 4: Design the Boss and Pilot Hole

Confirm:

• Hole diameter

• Hole depth

• Boss diameter

• Boss height

• Wall thickness

• Counterbore

• Installation clearance

Step 5: Validate Mechanical Performance

Consider:

• Pull-out testing

• Torque-out testing

• Assembly torque verification

• Repeated assembly

• Thermal cycling

• Environmental conditioning

• Vibration where relevant

Step 6: Evaluate Production Compatibility

Consider:

• Equipment availability

• Cycle time

• Tooling cost

• Operator requirements

• Automation potential

• Inspection

• Rework procedures

Step 7: Confirm Commercial Requirements

Evaluate:

• Material options

• Drawing conformity

• MOQ

• Prototype quantities

• Annual volume

• Packaging

• Lead time

• Long-term supply requirements

Manufacturing Efficiency: Choosing the Best Insert Installation Process

For production managers, installation method can influence total manufacturing cost.

Total Installed Cost

The cost of a threaded insert assembly includes more than the insert purchase price.

Total Installed Cost = Insert Cost + Hole/Boss Preparation + Installation Labor + Equipment Allocation + Inspection + Expected Rework

This is a practical cost-model framework rather than a fixed formula for every application.

Production-Line Considerations

• Insert feeding and orientation

• Installation cycle time

• Tool changeover

• Process monitoring

• Installation depth verification

• Scrap and rework

• Equipment maintenance

• Operator training

Example Decision

For a low-volume service component, a suitable self-tapping insert may reduce dedicated equipment requirements.

For a high-volume thermoplastic housing, automated heat-set or ultrasonic installation may be commercially attractive.

For an injection-molded component with appropriate mold design, molded-in inserts may eliminate a secondary insertion step.

The final choice should be based on validated performance and total production cost.

Quality Control and Inspection for OEM Threaded Inserts

A reliable OEM supply program should define inspection requirements for both the insert and the installed assembly.

Insert-Level Inspection

Potential characteristics include:

• Internal thread dimensions

• Outside diameter

• Overall length

• Knurl or external thread geometry

• Material

• Surface finish

• Visual defects

Assembly-Level Inspection

Potential characteristics include:

• Installation depth

• Insert alignment

• Boss condition

• Pull-out resistance

• Torque-out resistance

• Screw engagement

• Repeated assembly performance

Relevant Technical References

Depending on the product and customer drawing, applicable standards may include:

• ISO 261 and ISO 965 series: Metric thread selection and tolerances

• ASME B1.1: Unified inch screw threads

• ISO 2859-1: Sampling procedures for inspection by attributes, when specified

• ISO 9227: Salt spray testing of metallic materials and coatings, when corrosion testing is relevant

These standards address specific technical subjects. They do not replace insert-specific installation instructions or customer-defined mechanical acceptance criteria.

Supplier Qualification and OEM Sourcing

Procurement teams should confirm whether a proposed insert supplier can meet the drawing, material and quality requirements of the project.

Product Requirements

• Internal thread designation

• Insert geometry

• Material

• Surface finish

• Drawing tolerances

• Installation method

Technical Requirements

• Plastic substrate

• Pilot hole dimensions

• Boss geometry

• Mechanical loads

• Installation process

• Inspection and testing requirements

Commercial Requirements

• Prototype quantity

• Annual demand

• MOQ

• Production schedule

• Packaging

• Delivery destination

• Required lead time

Important Procurement Consideration

Two inserts with the same internal thread may not be interchangeable.

Differences in external geometry, installation method and retention performance can require changes to the plastic boss or production tooling.

OEM RFQ Checklist for Plastic Threaded Inserts

Frequently Asked Questions

What are threaded inserts for plastic?

Threaded inserts are fastening components installed into plastic parts to provide internal machine threads.

Are brass threaded inserts suitable for plastic?

Brass inserts are commonly used in plastic assemblies because of their machinability and compatibility with various insert geometries.

Suitability depends on the application and environment.

Can stainless steel threaded inserts be used in plastic?

Yes, suitable stainless steel inserts may be used where material requirements justify their selection.

 Geometry, installation method and polymer compatibility must be verified.

Which is better: heat-set or self-tapping inserts?

Neither is universally better. Heat-set inserts are often considered for compatible thermoplastics,

while self-tapping inserts may suit applications where mechanical installation is preferred.

How do I determine the correct pilot hole diameter?

Use the selected insert's dimensional requirements and validate the hole in the actual plastic component.

What boss diameter should I use for a threaded insert?

Boss diameter depends on insert outside diameter, polymer properties, installation method and required loads.

A universal multiplier is not sufficient for final design.

How can threaded insert pull-out strength be improved?

Possible measures include optimizing insert retention geometry, boss dimensions, polymer selection, hole preparation and installation parameters.

Do threaded inserts prevent screw loosening?

Not inherently. Joint preload, vibration, loading conditions and any locking method must be evaluated separately.

Are threaded inserts suitable for repeated assembly?

They can improve internal thread durability, but repeated assembly performance must be validated for the complete joint.

Can metric threaded inserts replace UNC or UNF inserts?

No. Metric and unified inch thread systems are not directly interchangeable.

Juxin Fasteners: OEM Threaded Insert Solutions for Plastic Components

Juxin Fasteners welcomes drawing-based inquiries for industrial threaded inserts and customized fastening components.

Relevant product categories include:

• Thread insert nuts

• Plastic threaded inserts

• Self-tapping threaded inserts

• Press-in threaded inserts

• Molded-in insert designs

• Custom threaded bushings

• OEM precision fastening components

Availability of particular materials, dimensions, insert geometries, installation designs and production quantities must be confirmed against project requirements.

Request a Custom Threaded Insert RFQ

Are you developing a plastic housing, sourcing brass threaded inserts for injection-molded parts, evaluating self-tapping threaded inserts,

or looking for a supplier of custom OEM thread insert nuts?

Juxin Fasteners welcomes inquiries from design engineers, mechanical engineers, manufacturing engineers, production managers,

purchasing specialists, procurement managers, supplier development teams and supply chain managers.

For technical evaluation and quotation, please provide:

Product drawing + internal thread specification + insert material + plastic material + boss geometry + pilot hole dimensions

+ installation method + load requirements + environmental conditions + inspection requirements + prototype quantity + annual demand + packaging + delivery schedule.

Our team can review the supplied requirements and confirm product availability, technical feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your drawings and OEM RFQ to Juxin Fasteners for threaded insert selection, technical confirmation and quotation.
