Pre-Applied Thread-Locking Phillips Pan Head Screws for Electronic Assembly
Thread-locking Phillips pan head screws are used in electronic equipment and industrial assemblies where conventional threaded joints may be exposed to vibration,
handling loads or repeated operating cycles.
These screws combine a familiar pan head and cross-recess drive with a specified locking feature applied to the threaded portion.
Depending on the product design, the locking feature may be a prevailing-torque polymer patch or a pre-applied adhesive system.
These technologies are not identical. They generate resistance to loosening through different mechanisms and may have different installation, curing, removal and reuse requirements.
For electronic equipment manufacturers, the objective is not simply to increase friction between mating threads.
It is to achieve a reliable threaded connection without damaging small components, reducing required clamp load or creating problems in automated assembly.
JUXIN FASTENERS supplies industrial machine screws, stainless steel screws and drawing-based OEM fastening components.
Customers can submit pre-applied locking requirements for product compatibility and quotation review.
This guide focuses on the engineering and purchasing requirements of pre-applied thread-locking Phillips pan head screws for electronics,
rather than repeating general screw selection principles.
What Is a Pre-Applied Thread-Locking Phillips Pan Head Screw?
A pre-applied thread-locking screw is a screw supplied with a locking material or feature already positioned on a defined portion of its external thread.
The screw may incorporate:
A Phillips-type cross recess
A pan head
A metric or other specified machine thread
A defined locking patch or adhesive coating
A selected base material and surface finish
The locking feature is intended to influence the behavior of the assembled threaded joint.
Its effectiveness depends on the mating internal thread and installation conditions.
Important Engineering Distinction
The locking feature does not automatically guarantee the required joint preload or prevent every possible loosening mechanism.
Joint design, installation torque and service conditions remain critical.
Two Common Pre-Applied Thread-Locking Technologies
Prevailing-Torque Polymer Patches
A polymer patch creates interference or frictional resistance between the screw and the mating thread.
This produces resistance to rotation even when the screw is not fully seated against the joint.
The resulting resistance is commonly described as prevailing torque.
Potential advantages include:
A pre-positioned locking feature
No separate liquid adhesive dispensing step
Compatibility with selected automated assembly operations
Defined installation characteristics when properly specified
Engineering Limitation
A prevailing-torque patch is not automatically equivalent to an adhesive threadlocker.
Its performance depends on patch geometry, material, thread fit and engagement.

Pre-Applied Adhesive Threadlockers
Some screws are supplied with a pre-applied adhesive system intended to develop locking performance after installation.
Depending on the chemistry, performance may depend on:
Thread contact
Mating materials
Surface condition
Installation conditions
Curing or activation requirements
Service temperature
The applicable product data and assembly procedure must be reviewed.
Engineering Limitation
Not every pre-applied adhesive behaves like a polymer prevailing-torque patch.
The installation and removal requirements may differ significantly.
How to Choose Between a Locking Patch and an Adhesive System
| Selection factor | Prevailing-torque patch | Pre-applied adhesive |
|---|---|---|
| Primary mechanism | Mechanical interference or friction | Adhesive locking after activation or cure |
| Installation behavior | Adds resistance during thread engagement | Depends on adhesive formulation |
| Cure requirement | Generally no chemical curing for a mechanical patch | May require curing or activation |
| Reuse | Depends on design and qualification | Often requires renewal after removal |
| Performance verification | Prevailing and removal torque testing | Breakaway and prevailing torque or other specified testing |
| Key purchasing requirement | Patch specification and torque behavior | Adhesive grade, application and cure requirements |
Neither technology is universally superior.
The correct choice depends on the mating thread, assembly process and required service performance.
Why Pan Head Phillips Screws Are Used in Electronics
Pan head Phillips screws are familiar fastening components used in many electronic housings, brackets and equipment assemblies.
Potential applications include:
Electronic enclosure covers
Industrial controller housings
Equipment brackets
Communication modules
Selected PCB support hardware
Instrument panels
Auxiliary electronic components
The pan head provides a bearing surface for suitable joints.
The cross recess allows installation using compatible driver bits.
Important Manufacturing Consideration
Phillips drive systems can be sensitive to bit alignment, axial force and torque.
A pre-applied locking feature may increase the torque required during installation.
The combined effect should be evaluated with the intended screwdriving equipment.
Thread-Locking Screws for Electronic Enclosures
Electronic enclosures may experience vibration during transportation, installation or service.
Thread-locking screws may be considered for suitable metal-threaded joints.
Examples include:
Control box covers
Instrument housings
Industrial communication enclosures
Equipment access panels
Internal mounting brackets
Key Design Questions
What is the mating thread material?
How much thread engagement is available?
Is the joint subjected to vibration?
Will the screw be removed for maintenance?
Is automated installation required?
What temperature range will the joint experience?
Serviceability Consideration
A locking screw that requires excessive removal torque may damage a small threaded insert or enclosure component.
The locking requirement should therefore be balanced with maintenance needs.
PCB Mounting and Precision Electronic Assemblies
Pre-applied locking screws may be considered for selected PCB mounting systems using suitable metal threads.
However, the locking feature should not be treated as a substitute for proper board support.
A typical mounting system may include:
A screw
A threaded standoff
A spacer
A mounting bracket
A supported PCB mounting hole
Engineering Risk
The additional installation resistance of a locking screw can make torque-based assembly control more complex.
If the screwdriving system reaches its torque limit before the joint is properly seated, the assembly may have inadequate clamp load.
Production Recommendation
Verify seating and clamp-load requirements using the actual mounting arrangement.
Heat Sink and Thermal Assembly Applications
Selected heat sink mounting systems may require resistance to fastener loosening.
However, thermal assemblies often rely on carefully controlled contact pressure.
A locking feature should not be selected without considering:
Required mounting load
Thermal interface material
Component package limits
Thermal cycling
Spring or washer arrangements
Installation torque
Important Distinction
Thread-locking resistance and heat sink clamping force are not the same performance characteristic.
A screw may resist rotation while the thermal joint still has inadequate contact pressure.
Understanding Prevailing Torque
Prevailing torque is the torque required to rotate a locking fastener through its mating thread, excluding the torque associated with clamping a seated joint.
For a prevailing-torque screw, resistance may be present before the head contacts the assembly.
This matters because the torque measured by an installation tool includes multiple contributions.
Simplified Engineering Concept
During tightening, the measured torque may include:
Locking feature resistance
Thread friction
Bearing-surface friction
Torque associated with developing clamp load
The actual relationship is more complex and depends on the joint.
Why This Matters
If a standard screw is replaced with a locking screw without reviewing the tightening procedure, the same indicated installation torque may produce a different clamp load.
Engineering Recommendation
Do not assume that adding a locking patch allows the original tightening torque to remain unchanged.
Validate the complete assembly.
Installation Torque vs. Removal Torque
These measurements serve different purposes.
Installation Torque
Indicates the resistance encountered during assembly.
It is influenced by the locking feature, thread friction and joint seating.
Breakaway Torque
May refer to the initial torque needed to initiate loosening after installation, according to the defined test procedure.
Prevailing Removal Torque
Describes rotational resistance during removal after the joint has been loosened.
Important Testing Consideration
A breakaway torque result should not automatically be interpreted as a direct measurement of retained clamp load.
Test methods and acceptance criteria must be clearly defined.
Relevant Testing Framework
ISO 2320 addresses prevailing-torque type steel nuts and is not a universal performance standard for every pre-applied locking screw.
For pre-applied locking screws, the appropriate test procedure should be agreed according to the locking technology and customer specification.
Thread-Locking Coating Position and Coverage
The location of the locking material can affect installation and performance.
Important specification details may include:
Distance from the screw end
Coated thread length
Circumferential coverage
Coating thickness or application characteristics
Required engagement with the mating thread
Why Coating Position Matters
A locking patch located outside the engaged thread region may not provide the intended locking function.
A patch positioned too close to the screw end may affect initial thread engagement.

Engineering Recommendation
Define coating location relative to the actual mating thread engagement.
Screw Length and Locking Engagement
The screw must provide sufficient engagement for both the threaded joint and the locking feature.
Potential problems include:
Insufficient engaged threads
Locking material outside the mating thread
Screw bottoming in a blind hole
Excessive protrusion
Incomplete joint seating
Drawing Recommendation
Specify screw length, thread length, mating hole depth and locking feature location as a coordinated system.
Stainless Steel Thread-Locking Screws
Stainless steel screws may be selected for electronic equipment requiring suitable corrosion resistance.
Potential materials include specified A2 or A4 stainless steel grades.
However, stainless steel selection must consider:
Mechanical properties
Thread galling
Surface condition
Coating compatibility
Installation torque
Service environment
Why Locking Coatings Require Additional Review
A polymer patch or adhesive may change thread friction and installation behavior.
For stainless steel joints, this interaction should be considered alongside the potential for galling.
Carbon Steel Thread-Locking Screws
Carbon steel screws may provide a cost-effective solution for suitable electronic and industrial assemblies.
Potential surface finishes include:
Zinc plating
Black oxide
Phosphate coatings
Other specified protective finishes
The finish must be compatible with the locking material and intended service environment.
High-Strength Alloy Steel Screws
Higher-strength screws may be considered where the joint requires appropriate mechanical properties.
However, higher strength does not automatically improve resistance to loosening.
The locking feature, joint design and installation process must still be evaluated.
Material and Finish Compatibility
A pre-applied locking system should be evaluated with the selected screw material and finish.
Potential considerations include:
Coating adhesion
Thread friction
Corrosion exposure
Temperature resistance
Chemical compatibility
Storage conditions
Important Procurement Principle
A change in screw plating or surface finish may affect the behavior of a previously approved locking system.
Such changes should be reviewed before substitution.
Temperature and Environmental Limits
Electronic equipment may experience:
Elevated internal temperatures
Thermal cycling
Humidity
Chemical exposure
Transportation vibration
Long service periods
The locking material may have its own temperature and environmental limitations.
Engineering Recommendation
Obtain the applicable locking material specification rather than assuming that the base screw material determines the temperature capability of the complete fastener.
Reuse and Maintenance
Some electronic products require periodic access for inspection or repair.
A locking screw may be removed and reinstalled during maintenance.
Prevailing-Torque Patches
Locking performance may change after repeated installation cycles.
Adhesive Systems
The locking function may require renewed adhesive after removal, depending on the product.
Service Recommendation
Specify whether reuse is permitted and what inspection or replacement procedure is required.
Do not assume that every pre-applied locking screw is reusable.
Automated Screwdriving with Thread-Locking Screws
Automated assembly systems may install pre-applied locking screws.
However, the locking feature can influence:
Feeding
Initial thread engagement
Torque monitoring
Driver bit performance
Cycle time
Seating detection
Rejection criteria
Production Manager Considerations
A production line optimized for ordinary machine screws may require validation before introducing a locking screw.
Potential Assembly Problems
Premature torque-limit activation
Incomplete seating
Drive recess damage
Cross-threading
Inconsistent installation time
Locking coating damage
Manufacturing Recommendation
Evaluate the actual screw, mating thread, driver and tightening program together.
Common Thread-Locking Screw Failures
| Problem | Possible cause | Recommended review |
|---|---|---|
| Screw loosens in service | Inadequate locking performance or joint design | Locking system and preload |
| Screw cannot be fully seated | Excessive installation resistance | Patch, thread and torque settings |
| Mating thread strips | Excessive load or unsuitable engagement | Mating material and thread design |
| Locking effect is inconsistent | Coating variation | Coating specification and inspection |
| Removal damages insert | Excessive removal resistance | Serviceability and torque requirements |
| Automated installation rejects parts | Torque profile variation | Driver program and fastener consistency |
| Locking material degrades | Temperature or chemical exposure | Environmental compatibility |
| Reused screw loses performance | Locking feature deterioration | Reuse specification |
| Screw bottoms out | Incorrect length or hole depth | Assembly stack-up |
Quality Inspection of Pre-Applied Locking Screws
Incoming inspection may include:
Thread dimensions
Head geometry
Drive recess
Screw length
Material specification
Surface finish
Locking material position
Coating appearance
Functional verification may require:
Installation torque testing
Prevailing torque testing
Breakaway torque testing
Removal torque testing
Repeated installation testing where specified
Environmental conditioning where required
The applicable test procedure and acceptance criteria must be agreed between the customer and supplier.
Important Quality Principle
A visually acceptable locking patch does not automatically demonstrate functional locking performance.
OEM Drawing Requirements
A drawing-based specification may include:
Base Screw
Thread designation
Screw length
Head style
Drive recess
Material
Mechanical property requirements
Surface finish
Locking Feature
Locking technology
Material or product specification
Coating location
Coverage requirements
Installation torque limits
Removal or prevailing torque requirements
Reuse requirements
Application
Mating thread material
Thread engagement
Installation method
Service temperature
Environmental exposure
Commercial Requirements
Sample quantity
Initial order quantity
Annual forecast
Packaging
Delivery schedule
Metric and Inch Thread Systems
Metric machine screws should use the applicable ISO thread designation and tolerance requirements.
Relevant references include ISO 261 and ISO 965.
Unified inch threads may be specified according to ASME B1.1.
Metric, UNC, UNF, BSW and BSF thread systems are distinct and should not be treated as directly interchangeable.
A locking coating does not compensate for an incompatible mating thread.
Industry Applications
Industrial Electronics
Control module housings
Instrument enclosures
Communication equipment
Electronic brackets
Automotive Electronics
Electronic control unit housings
Sensor brackets
Interior electronic assemblies
Selected auxiliary modules
EV Battery Systems
Suitable protective covers
Electronic control housings
Auxiliary brackets
Safety-critical battery applications require project-specific engineering validation.
Robotics and Automation
Sensor mounts
Control enclosures
Precision equipment brackets
Electrical Cabinets
Equipment covers
Control panel assemblies
Industrial electrical housings
HVAC Equipment
Controller housings
Electronic brackets
Service panels
Rail Equipment
Selected electronic assemblies may require additional vibration and industry-specific qualification.
Medical Equipment
Applications may require additional cleanliness, material and regulatory considerations.
Aerospace Equipment
Aerospace applications require applicable qualification and approval. General industrial locking screws should not be assumed suitable.
Supplier Qualification for Pre-Applied Locking Screws
Purchasing teams should evaluate more than the base screw specification.
Base Fastener Conformance
Confirm dimensions, material and finish.
Locking Technology
Confirm whether the design uses a mechanical patch or adhesive system.
Functional Performance
Agree on installation and removal torque requirements.
Production Compatibility
Review screwdriving and feeding requirements.
Quality Documentation
Define inspection, traceability and sample approval requirements.
Commercial Conditions
Review MOQ, annual demand, packaging and lead time.
Second-Source Qualification
A replacement supplier should not be approved solely because the screw dimensions match.
The locking system must also be evaluated for functional equivalence.
Total Assembly Cost
Pre-applied locking screws may reduce separate assembly operations in suitable applications.
However, the commercial comparison should include:
Fastener unit price
Locking treatment cost
Installation cycle time
Assembly rejects
Inspection
Rework
Maintenance
Supplier qualification
The lowest screw price does not necessarily provide the lowest total assembly cost.

Frequently Asked Questions
What is a thread-locking Phillips pan head screw?
It is a pan head screw with a Phillips-type drive and a specified locking feature intended to resist unwanted rotation in a threaded joint.
Are all pre-applied thread-locking screws adhesive-based?
No. Some use mechanical prevailing-torque patches, while others use adhesive systems.
Can a thread-locking screw replace a standard machine screw?
Possibly, but the installation torque, mating thread, joint requirements and locking performance must be evaluated.
Does a locking patch guarantee vibration resistance?
No. Joint design and actual service conditions remain important.
Can thread-locking screws be installed automatically?
Yes, where the screw geometry, locking feature and installation equipment are compatible.
Can locking screws be reused?
Reuse depends on the locking technology and approved performance requirements.
Are stainless steel locking screws better than carbon steel versions?
Not universally. Material selection depends on the required mechanical and environmental characteristics.
What should be specified on a locking screw drawing?
The base screw requirements, locking technology, coating location and functional acceptance criteria.
Can JUXIN FASTENERS review a custom locking screw RFQ?
Yes. Customers can submit drawings and locking performance requirements for technical feasibility and quotation review.

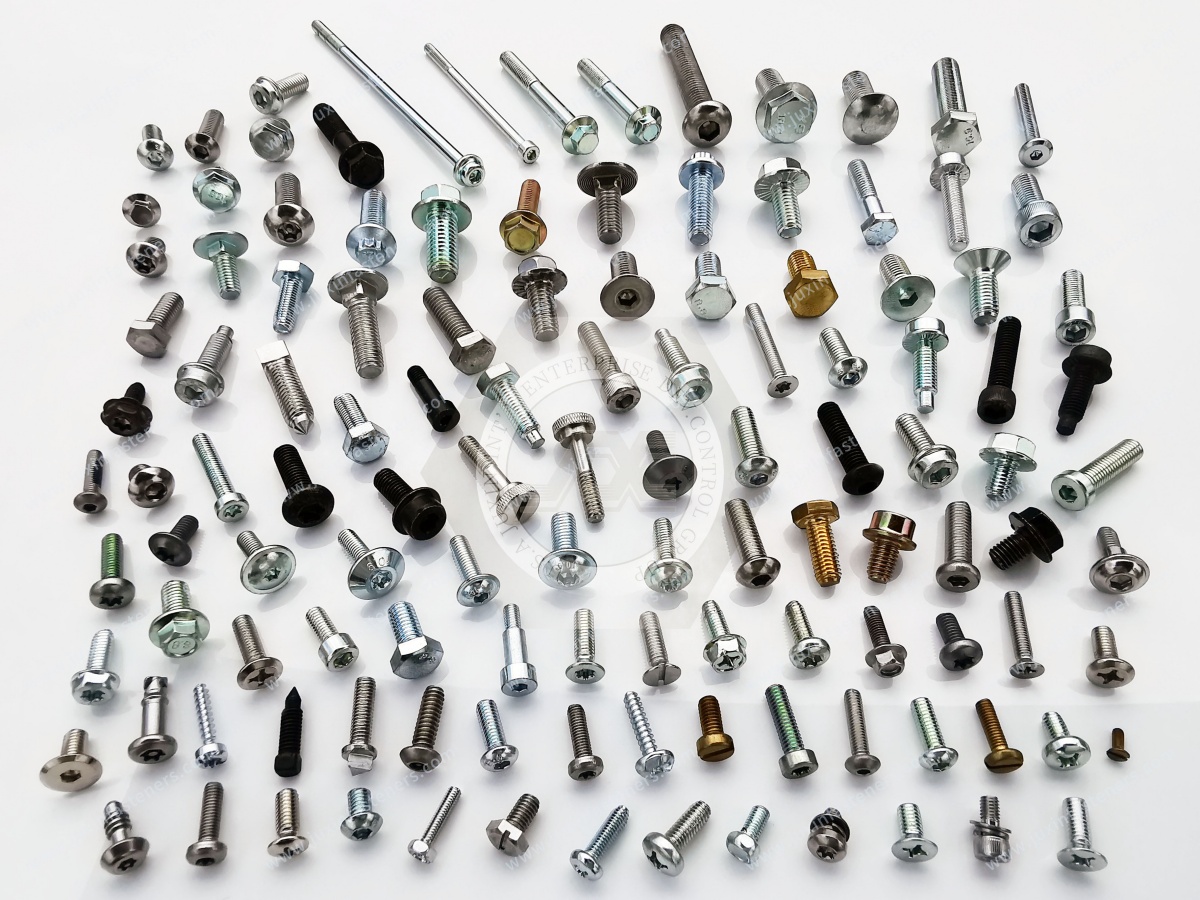

JUXIN FASTENERS: OEM Thread-Locking Screw Supply
JUXIN FASTENERS supplies industrial screws and drawing-based fastening components for international OEM applications.
Relevant products include:
Phillips pan head machine screws
Stainless steel machine screws
Carbon steel machine screws
Metric precision screws
Custom drawing-based screws
Screws with specified locking requirements, subject to technical feasibility review
Material options, surface finishes, locking technology and functional performance requirements should be confirmed for each project.
Request a Thread-Locking Screw Drawing Review and RFQ
If you are sourcing pre-applied thread-locking screws for electronic enclosures, control modules or industrial equipment, contact JUXIN FASTENERS.
For efficient technical review, provide:
Screw drawing + mating thread specification + locking technology + required torque performance + installation method + annual purchasing volume
JUXIN FASTENERS can review the submitted requirements and discuss suitable standard or drawing-based fastening options.
Company: JUXIN FASTENERS
Website: https://www.juxinfasteners.com/
Email: info@juxinfasteners.com
Send your thread-locking screw drawings and OEM RFQ requirements to JUXIN FASTENERS for technical evaluation and quotation.
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
