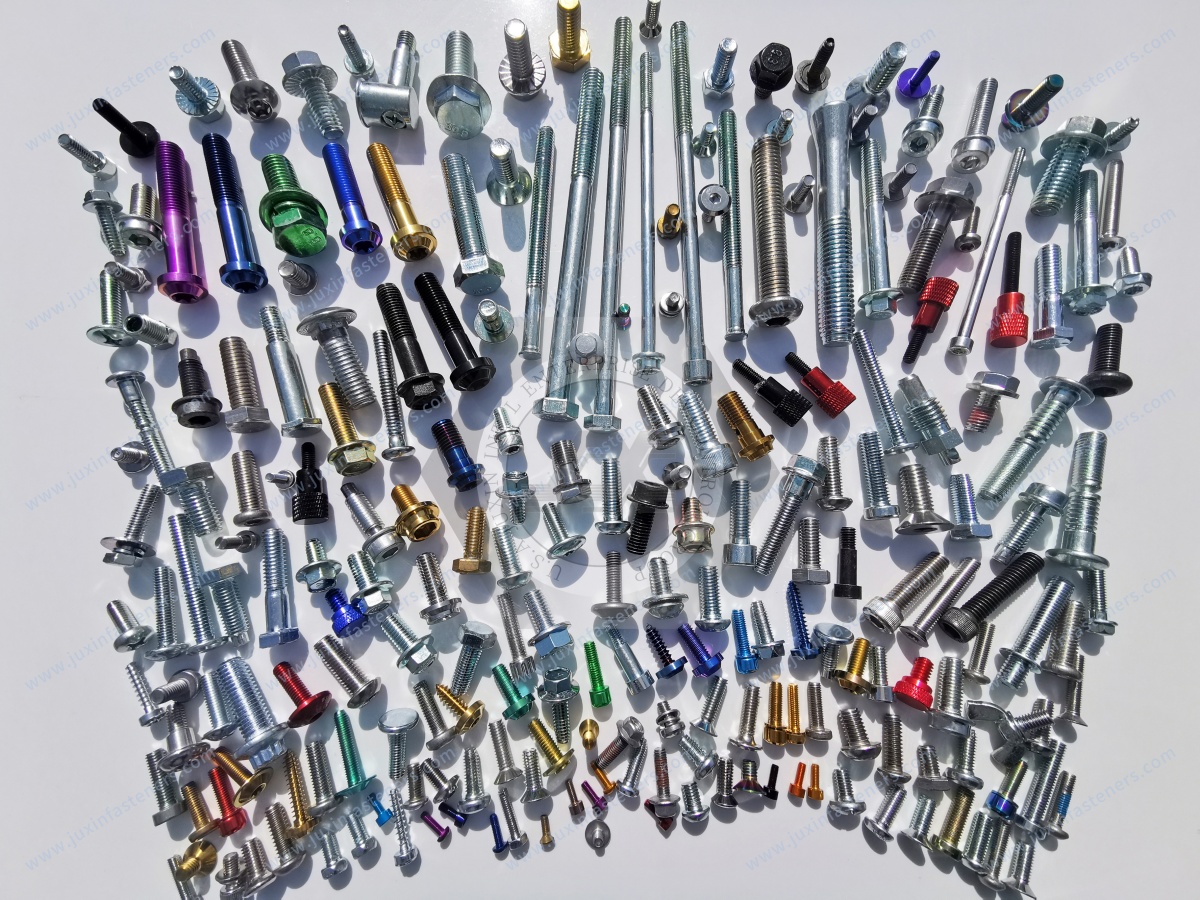

What Are Industrial Fastener Bolts?

An industrial bolt is an externally threaded fastener used in a mechanical joint.

Depending on the design, it may engage with:

• A compatible nut

• A tapped hole

• A threaded insert

• Another approved internally threaded component

The complete assembly may also incorporate washers, spacers, locking elements or other fastening components.

Main Functions of Bolted Joints

Bolted joints may be designed to:

• Clamp components together

• Transfer mechanical loads

• Maintain alignment

• Permit controlled assembly and disassembly

• Support equipment maintenance

• Resist specified operating conditions

Important Engineering Principle

The bolt alone does not determine joint reliability.

Performance depends on the complete assembly, including the fastener, mating components, preload, friction, joint stiffness and operating environment.

How Are Industrial Bolts Classified?

Industrial bolts can be classified according to several engineering characteristics.

Head Geometry

Examples include:

• Hexagonal head

• Hexagonal flange head

• Square head

• Countersunk head

• T-head

Shank Configuration

Examples include:

• Fully threaded

• Partially threaded

• Precision-fit shank

• Reduced or special shank

• Drawing-specific geometry

Drive Configuration

Examples include:

• External hexagonal drive

• Cross recess

• Hexagonal socket

• Hexalobular recess

• Combined drive features

Locking Configuration

Examples include:

• Drilled head for safety wire

• Drilled shank for a specified pin arrangement

• Other engineered locking features

Mechanical Property Class

Metric steel bolts may be specified according to applicable ISO mechanical property classes.

Application Requirements

The final selection depends on the joint function rather than the product name alone.

Industrial Bolt Classification Overview

The last two categories require particular attention to the relevant engineering standards and product qualification.

Hexagonal Head Bolts: General Industrial Fastening

Hex head bolts are among the most widely used industrial threaded fasteners.

Their six-sided heads allow installation using suitable sockets or wrenches.

Common Dimensional Standards

• ISO 4014 — Hexagon head bolts, product grades A and B

• ISO 4017 — Hexagon head screws, product grades A and B

• DIN 931 — Traditional designation for partially threaded hexagon bolts

• DIN 933 — Traditional designation for fully threaded hexagon screws

The applicable standard and edition should be specified.

Typical Applications

• Machinery assembly

• Industrial equipment frames

• Mechanical brackets

• Equipment mounting

• Selected automotive auxiliary assemblies

Engineering Selection Considerations

• Required bolt diameter

• Thread pitch

• Bolt length

• Thread length

• Mechanical property class

• Tool clearance

• Joint loading

• Surface treatment

Full Thread vs. Partial Thread

Fully threaded and partially threaded hex bolts may serve different joint requirements.

The position of the unthreaded shank relative to loaded interfaces can be important.

A substitution should not be approved solely because nominal diameter and overall length match.

Hex Flange Bolts: Integrated Bearing Surface

Hex flange bolts combine an external hexagonal head with an integrated flange.

DIN 6921 is a recognized dimensional reference for metric hexagon flange bolts.

Potential Advantages

• Defined underhead bearing surface

• Possible reduction in separate washer handling

• Conventional external hex tooling

• Suitable geometry for selected industrial assemblies

Important Limitation

A larger flange does not automatically generate higher preload or prevent vibration loosening.

Smooth vs. Serrated Flanges

A smooth flange provides a comparatively continuous bearing surface.

A serrated flange incorporates teeth that may affect resistance to rotation at the contact interface.

These configurations should not be treated as interchangeable.

Typical Applications

• Automotive auxiliary equipment

• Industrial machinery

• Heavy equipment

• Equipment mounting structures

Engineering Decision

Choose a flange bolt when its bearing geometry and installation characteristics are compatible with the approved joint.

Do not automatically replace a conventional hex bolt and washer with a flange bolt without evaluating the contact and tightening conditions.

Drilled-Head Bolts and Mechanical Locking Arrangements

Some bolts incorporate drilled features for a specified mechanical locking system.

The location of the hole determines the intended locking arrangement.

Drilled-Head Bolts

A drilled-head bolt may be used with properly installed safety wire to provide a mechanical restraint against rotation.

Cross-Drilled Shank Bolts

A cross-drilled shank may be used with an appropriate pin or another approved retention arrangement.

Important Distinction

A head-drilled bolt for safety wire is not the same as a shank-drilled bolt for a cotter pin.

The hole location, diameter, edge distance and installation requirements must be defined.

Potential Applications

• Specialized machinery

• Selected transportation equipment

• Engine-related assemblies

• Approved aerospace or maintenance applications

Safety-Critical Qualification

A general industrial drilled bolt is not automatically qualified for aerospace or safety-critical use.

The exact approved specification and installation procedure must govern the application.

Precision-Fit Bolts and Reamed-Hole Applications

Precision-fit bolts may be used where controlled alignment or specified shear transfer is required.

These designs are sometimes associated with fitted bolts or reamed-hole bolt applications.

How the Joint Works

The shank and mating hole are dimensioned to achieve a specified fit.

This may help control relative movement between connected components.

Important Engineering Requirements

• Hole diameter

• Hole tolerance

• Shank diameter

• Shank tolerance

• Surface finish

• Alignment

• Joint loading

• Assembly method

Why Ordinary Hex Bolts May Be Unsuitable

A conventional clearance-hole joint may permit more movement before bearing contact occurs.

Where the design requires a controlled fit, substituting an ordinary bolt can compromise the intended function.

Potential Applications

• Precision machinery

• Industrial couplings

• Heavy equipment

• Specialized mechanical connections

Structural Applications

Any use in bridges or other structural connections requires the applicable structural design and approved bolting specification.

Cross-Recessed Hexagon Head Bolts

These fasteners combine an external hexagonal drive with a cross-recessed drive feature.

Potential Benefits

• Alternative tool access

• Compatibility with selected assembly tools

• Flexibility in manual assembly

• Suitable use in certain equipment designs

Engineering Limitations

The cross recess has its own drive capacity and tool engagement requirements.

The presence of two drive features does not mean that both are suitable for the same tightening torque.

Potential Applications

• Electrical equipment

• Instrument housings

• Light machinery

• Equipment panels

• Selected precision assemblies

Production Considerations

For automated assembly, the actual drive geometry, tool alignment and required tightening conditions must be validated.

Square Head Bolts

Square head bolts have a four-sided external head.

They may be used in specialized machinery or equipment where the square head provides a required wrenching or holding configuration.

Potential Applications

• Industrial machinery

• Maintenance equipment

• Specialized fixtures

• Drawing-specific mechanical assemblies

Engineering Considerations

• Head dimensions

• Tool clearance

• Required tightening torque

• Mating geometry

• Installation access

Important Limitation

A square head does not automatically prevent rotation in every assembly.

Anti-rotation performance depends on how the head interacts with the mating structure.

Countersunk Head Bolts and Screws

Countersunk fasteners are designed to seat in a compatible countersunk feature.

They may reduce head projection above the component surface.

Potential Applications

• Machinery covers

• Equipment panels

• Precision assemblies

• Selected furniture and industrial hardware

• Specialized mechanical structures

Engineering Considerations

• Countersink angle

• Countersink diameter

• Head dimensions

• Material thickness

• Bearing geometry

• Drive type

• Installation torque

Countersunk Does Not Mean Square Neck

Some countersunk fasteners incorporate a square neck or another anti-rotation feature.

However, a square neck is not a universal feature of countersunk bolts.

The head geometry and anti-rotation design must be specified separately.

Thin Material Considerations

Countersinking can reduce the remaining material thickness.

This may affect local strength and bearing performance.

T-Slot Bolts for Modular Machinery and Fixtures

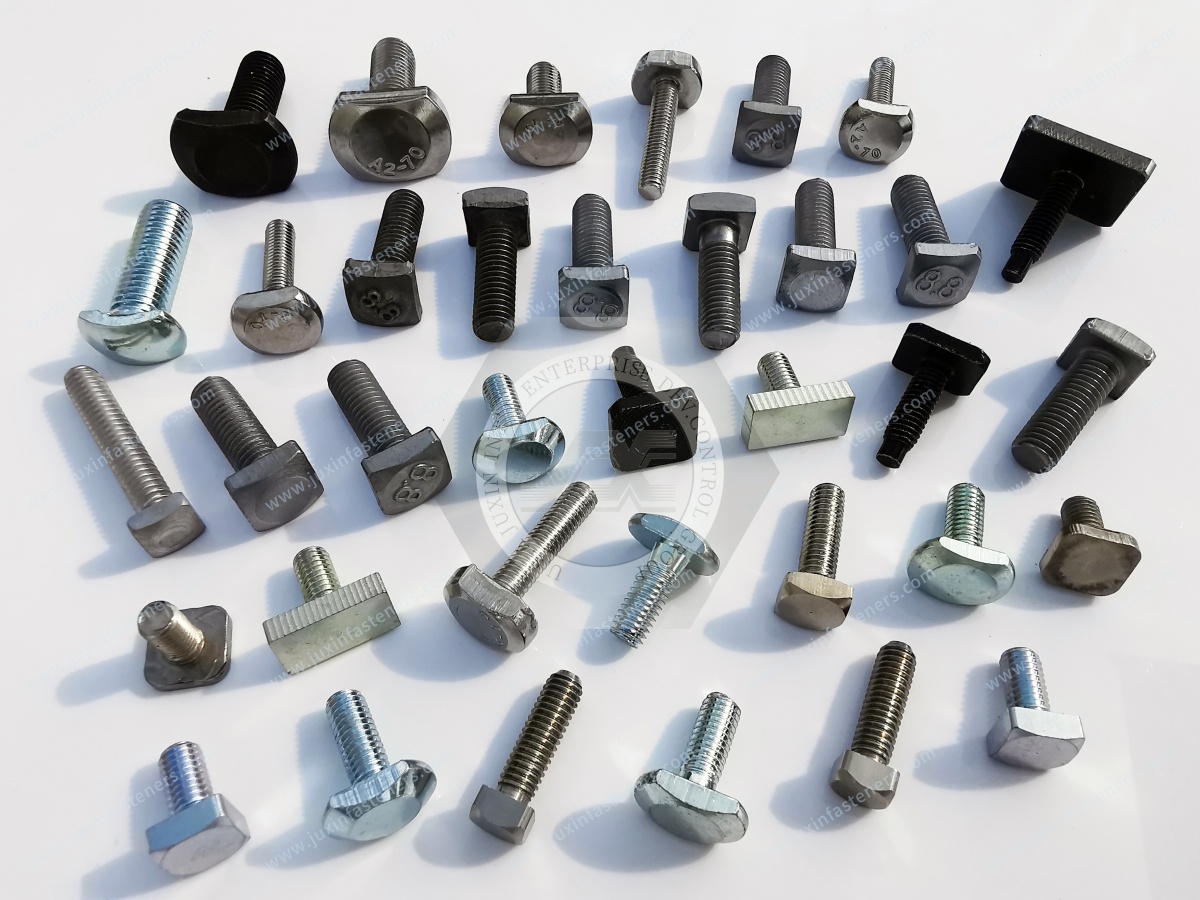

T-slot bolts are designed for use with a compatible T-slot geometry.

They are commonly associated with adjustable mounting arrangements.

Potential Applications

• Machine tool tables

• Industrial fixtures

• Aluminum extrusion systems

• Automation equipment

• Workstations

• Production tooling

Engineering Benefits

• Adjustable component positioning

• Reconfigurable mounting

• Serviceable connections

• Compatibility with suitable modular systems

T-Slot Geometry Must Be Verified

Different T-slot systems may have different dimensions and retention mechanisms.

Some bolts are inserted from the slot end, while other designs may be installed or rotated into position.

The installation method depends on the actual product.

Critical Selection Requirements

• Slot width

• Slot undercut geometry

• Bolt head dimensions

• Thread designation

• Material

• Required load

• Installation method

T-Slot Bolts vs. T-Nuts

A T-slot bolt and a T-nut are different components.

The correct fastening arrangement depends on the equipment design.

Anchor Bolts and Foundation Bolting Systems

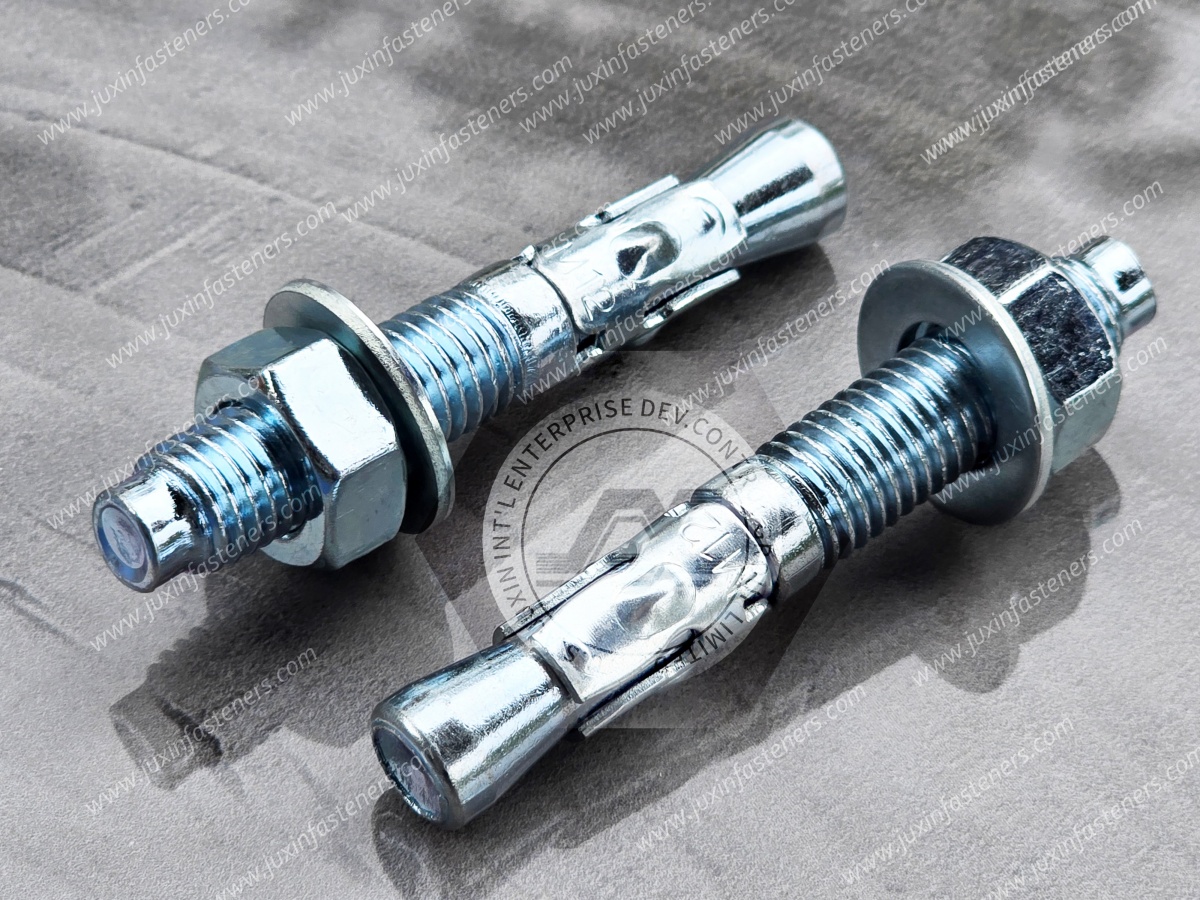

Anchor bolts are used to secure equipment or structural components to concrete foundations.

They are a specialized fastening category rather than a direct substitute for general-purpose machine bolts.

Common Anchorage Approaches

Depending on the project, anchorage may involve:

• Cast-in-place anchor rods

• Mechanical anchors

• Adhesive anchoring systems

• Other engineered foundation connections

Potential Applications

• Industrial machinery bases

• Equipment foundations

• Building structures

• Mechanical support systems

Engineering Requirements

• Concrete properties

• Embedment depth

• Edge distance

• Anchor spacing

• Tension and shear loads

• Installation method

• Applicable structural design requirements

Supplier Qualification Limitation

Anchor bolts and anchoring systems may require dedicated standards, testing and approval.

JUXIN FASTENERS' availability for a particular foundation-bolting project must be confirmed through drawing and specification review.

High-Strength Structural Bolting Assemblies

Structural bolting assemblies are used in specified steel construction connections.

They should not be confused with general industrial high-strength bolts.

Potential Applications

• Steel buildings

• Bridges

• Infrastructure

• Industrial structural frameworks

Relevant Structural Bolting Specifications

Depending on the jurisdiction and project, structural bolting may require specifications such as:

• EN 14399 series for applicable high-strength structural bolting assemblies for preloading

• EN 15048 series for applicable non-preloaded structural bolting assemblies

• ASTM F3125/F3125M for specified structural bolts

The applicable assembly, nut, washer, installation and inspection requirements must be considered.

Important Engineering Principle

A general ISO property class 10.9 or 12.9 industrial bolt is not automatically an approved structural bolting assembly.

Structural approval depends on the complete applicable specification.

JUXIN FASTENERS Supply Scope

For specialized structural bolting requirements, manufacturing feasibility, applicable standards, documentation and qualification must be confirmed before quotation or supply commitments.

How to Select the Correct Industrial Bolt Type

The most effective selection process begins with the function of the joint.

Step 1: Define the Mechanical Function

Determine whether the joint primarily requires:

• Clamping

• Positioning

• Shear transfer

• Adjustable mounting

• Mechanical locking

• Structural anchorage

Step 2: Identify the Loading Conditions

Review:

• Static loads

• Cyclic loads

• Vibration

• Shock

• Temperature changes

• Environmental exposure

Step 3: Review the Connected Materials

Consider:

• Carbon steel

• Stainless steel

• Aluminum

• Sheet metal

• Other specified materials

The mating material affects bearing strength, thread engagement and corrosion compatibility.

Step 4: Define the Thread System

Specify:

• Metric thread

• UNC thread

• UNF thread

• Other required thread systems

Metric, UNC, UNF, BSW and BSF threads are not interchangeable.

Step 5: Select the Mechanical Properties

For applicable metric carbon steel and alloy steel bolts, ISO 898-1 defines mechanical property classes.

Common designations include:

• 4.8

• 8.8

• 10.9

• 12.9

The property class must be appropriate for the joint.

Step 6: Select the Surface Treatment

Review:

• Corrosion exposure

• Coating compatibility

• Friction

• Temperature

• Mechanical property class

• Maintenance conditions

Step 7: Evaluate Assembly Requirements

Consider:

• Tool access

• Installation sequence

• Tightening method

• Production volume

• Inspection

• Rework

Step 8: Confirm the Purchasing Specification

The approved drawing and purchase order should clearly define the required product.

Bolt Selection Matrix by Joint Function

Automotive and EV Fastening Applications

Automotive and electric vehicle equipment may require fasteners that perform under vibration, cyclic loading, thermal expansion and corrosion exposure.

Potential Bolt Types

• Hex head bolts

• Hex flange bolts

• High-strength industrial bolts

• Drawing-specific locking bolts

• Special mechanical fasteners

Potential Applications

• Equipment brackets

• Motor mounting structures

• Battery equipment frames

• Auxiliary chassis components

• Production fixtures

Engineering Considerations

• Joint preload

• Material compatibility

• Vibration

• Corrosion protection

• Tightening process

• Assembly access

Safety-Critical Limitation

Braking, steering, suspension and other safety-critical applications require specific engineering approval and qualification.

A general industrial bolt is not automatically suitable.

Heavy Machinery and Construction Equipment

Heavy equipment may experience shock loading, vibration and demanding environmental conditions.

Potential Bolt Types

• High-strength hex bolts

• Hex flange bolts

• Drawing-specific precision-fit bolts

• Special locking bolts

Potential Applications

• Excavators

• Loaders

• Agricultural machinery

• Mining equipment

• Industrial gearboxes

• Equipment mounting structures

Engineering Priorities

• Mechanical property class

• Joint stiffness

• Bearing pressure

• Fatigue

• Corrosion

• Maintenance access

Construction and Steel Structures

Construction projects may involve mechanical equipment connections and specialized structural bolting.

General Industrial Applications

• Equipment mounting

• Auxiliary brackets

• Noncritical mechanical structures

Structural Applications

Buildings, bridges and other structural systems require the applicable structural specifications and approved bolting assemblies.

Procurement Principle

Do not substitute a general industrial high-strength bolt for a qualified structural bolting assembly without formal engineering approval.

Rail Transit and Transportation Equipment

Rail equipment may involve vibration, cyclic loading and project-specific quality requirements.

Potential Applications

• Auxiliary mechanical assemblies

• Equipment mounting brackets

• Electrical equipment supports

• Maintenance structures

Potential Fastening Solutions

• Hex head bolts

• Hex flange bolts

• Drawing-specific locking bolts

• Precision-fit bolts where approved

Engineering Requirements

• Vibration assessment

• Fatigue considerations

• Corrosion protection

• Traceability where required

• Application-specific qualification

Industrial Machinery and Automation

Industrial equipment often requires removable and serviceable fastening systems.

Potential Applications

• CNC machinery

• Robotics

• Conveyors

• Production lines

• Packaging equipment

• Mechanical frames

Bolt Selection Considerations

• Tool access

• Assembly cycle time

• Thread engagement

• Alignment

• Maintenance

• Production repeatability

T-Slot Fastening

T-slot bolts may be useful in modular machine frames and adjustable fixtures.

Precision-Fit Fastening

Precision-fit bolts may be relevant where controlled alignment is required.

Electrical Equipment and Power Distribution

Industrial electrical equipment may require fastening solutions for mechanical supports and enclosures.

Potential Applications

• Electrical cabinets

• Power distribution equipment

• Control panels

• UPS equipment

• Industrial support frames

Fastening Considerations

• Mechanical loading

• Sheet metal thickness

• Thread engagement

• Electrical clearance

• Corrosion

• Maintenance access

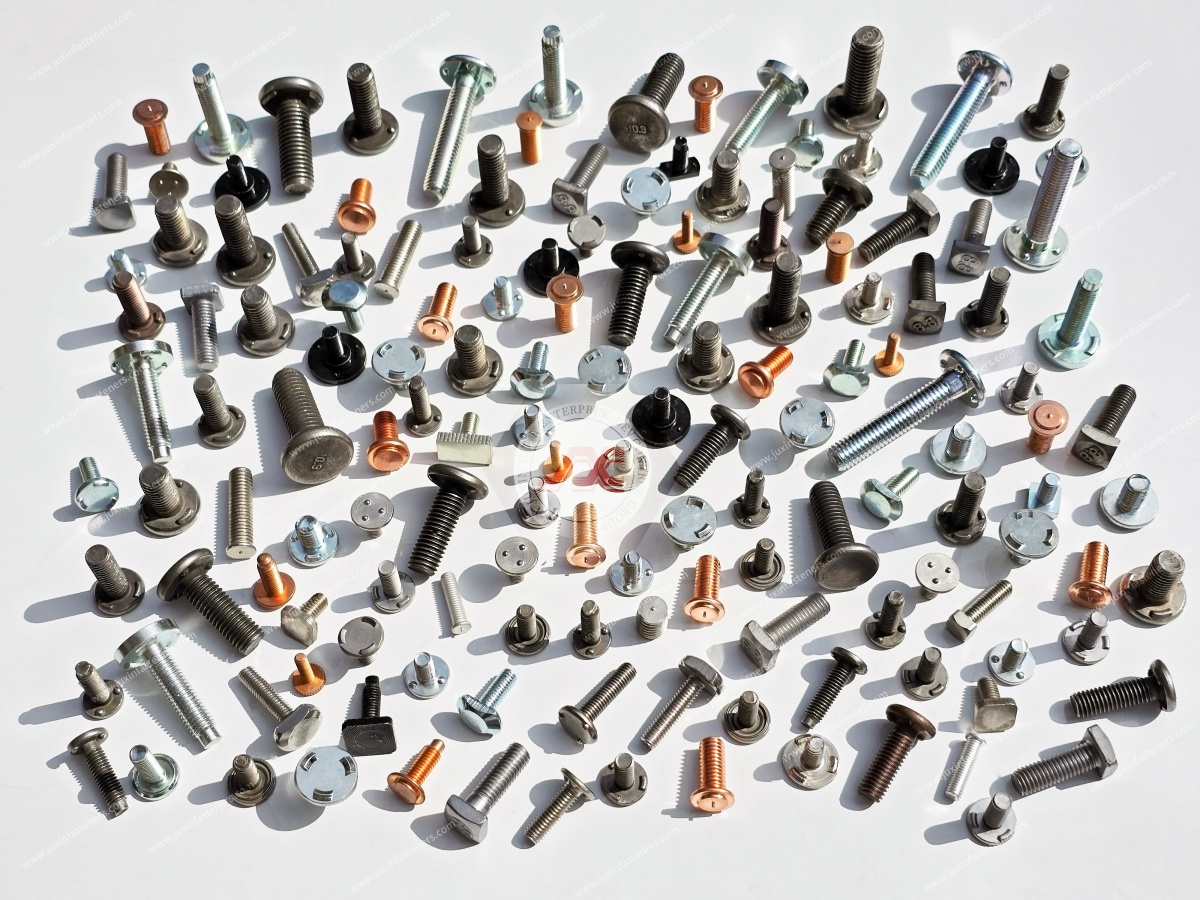

Alternative Fastening Components

Where a conventional bolt-and-nut arrangement is unsuitable, other products may be more appropriate.

Examples include:

• Self-clinching nuts

• Weld studs

• Blind rivet nuts

• Cage nuts

• Clip-on nuts

• Threaded standoffs

JUXIN FASTENERS supplies these industrial fastening categories for suitable applications.

Materials for Industrial Bolts

Material selection should reflect the mechanical and environmental requirements.

Carbon Steel

May be suitable for general industrial applications.

Alloy Steel

May be selected where higher specified mechanical properties are required.

Stainless Steel

May be considered for selected corrosion-resistant applications.

Common material families include A2 and A4, subject to the applicable specification.

Special Materials

Drawing-specific applications may require selected special materials.

Manufacturing feasibility and suitability must be confirmed.

Surface Treatment Selection

Common industrial surface treatment approaches include:

• Zinc plating

• Zinc-nickel coating

• Zinc-flake coating

• Black oxide

• Phosphate coating

• Other drawing-specified finishes

Important Considerations

• Corrosion requirements

• Coating thickness

• Thread fit

• Friction

• Hydrogen embrittlement risk for susceptible high-strength steel fasteners

• Galvanic compatibility

• Operating environment

A coating should be selected according to the actual specification rather than appearance alone.

Production Engineering: Selecting Bolts for Efficient Assembly

Production managers must consider the complete installation process.

Tool Access

The bolt head must be accessible using the approved installation tool.

Component Handling

An integrated flange may reduce separate washer handling where permitted.

Tightening Consistency

The selected fastener and coating must be compatible with the approved tightening process.

Alignment

Precision-fit fasteners may require controlled hole preparation.

Automated Assembly

Drive geometry, fastener feeding and installation repeatability should be evaluated.

Inspection

Relevant characteristics may include:

• Head dimensions

• Shank dimensions

• Thread dimensions

• Length

• Material

• Mechanical properties

• Surface treatment

Rework

The procedure should define how damaged threads, heads or coatings are handled.

Total Installed Cost

A suitable purchasing decision should consider:

• Fastener price

• Installation labor

• Tooling

• Inspection

• Rework

• Inventory

• Maintenance

• Supplier qualification

Common Bolt Selection and Substitution Risks

Incorrect Thread System

Metric and inch-series threads may appear similar but are not interchangeable.

Incorrect Head Geometry

May cause tool-access problems or assembly interference.

Incorrect Thread Length

May affect engagement or joint loading.

Incorrect Mechanical Property Class

May result in unsuitable joint performance.

Unapproved Coating Change

May alter corrosion protection and tightening friction.

Incorrect Locking Feature

A drilled head and drilled shank may serve different retention systems.

Incorrect Precision Fit

May compromise alignment or shear-transfer requirements.

Unqualified Structural Substitution

May violate the applicable structural bolting requirements.

Engineering Recommendation

Approve alternatives against the complete technical specification, not only the product name or nominal diameter.

OEM Bolt Supplier Qualification and RFQ Requirements

For an accurate quotation, provide:

Standard vs. Custom Bolt Sourcing

Standard products may be appropriate where the approved design matches the applicable standard.

Custom bolts may be required for:

• Special head geometry

• Custom shank dimensions

• Drilled locking features

• Precision-fit requirements

• Special thread lengths

• Selected materials

• Drawing-defined coatings

Manufacturing feasibility, tooling, MOQ, samples and lead time depend on the project.

Frequently Asked Questions

What are the main types of industrial bolts?

Common categories include hex head bolts, hex flange bolts, drilled locking bolts, precision-fit bolts, cross-recessed hex bolts, square head bolts,

 countersunk bolts and T-slot bolts. Anchor bolts and structural bolting assemblies are specialized categories.

What is the difference between a hex bolt and a flange bolt?

A hex flange bolt includes an integrated flange beneath the head. A conventional hex bolt has a different underhead geometry and may use a separate washer.

Are high-strength bolts always better?

No. The correct property class depends on the complete joint, mating materials and operating conditions.

Do flange bolts prevent loosening?

Not inherently. Vibration resistance depends on the joint and any specified locking features.

What is a drilled-head bolt used for?

A drilled-head bolt may be used with an approved safety-wire arrangement to provide mechanical rotation restraint.

What is a precision-fit bolt?

It is a bolt with a controlled shank-to-hole fit for an application requiring specified alignment or load-transfer behavior.

Are countersunk bolts always square-neck bolts?

No. Countersunk head geometry and square-neck anti-rotation features are separate design characteristics.

Can a general industrial bolt replace a structural bolt?

Not automatically. Structural applications require the applicable approved bolting specifications.

Can metric bolts replace UNC or UNF bolts?

No. These thread systems are not interchangeable.

Can JUXIN FASTENERS review custom bolt drawings?

Yes. Drawing-based inquiries can be reviewed for dimensions, materials, mechanical properties, coatings, manufacturing feasibility and quotation.

JUXIN FASTENERS: Industrial Bolts and Custom OEM Fastening Solutions

JUXIN FASTENERS supplies industrial fastening products and supports drawing-based OEM inquiries for international manufacturers.

Relevant product categories include:

• Hex head bolts

• Hex flange bolts

• High-strength industrial bolts

• Drawing-specific locking bolts

• Custom threaded components

• CNC-machined fastening parts

• Industrial locking nuts

• Self-clinching fasteners

• Weld studs and weld nuts

• Blind rivet nuts

Specialized anchor bolts, structural bolting assemblies and safety-critical fasteners require separate specification and supply confirmation.

Request an Industrial Bolt Selection Review and OEM RFQ

Are you developing an automotive assembly, EV equipment structure, industrial machine, robotics system, electrical cabinet, heavy equipment connection or another OEM mechanical product?

JUXIN FASTENERS welcomes inquiries from design engineers, mechanical engineers, structural engineers, manufacturing engineers, production managers,

procurement specialists, purchasing managers, supplier development teams and supply chain managers.

For an efficient technical and commercial review, please provide:

2D drawing or applicable standard + bolt type + thread designation + dimensions + material + mechanical property class + coating + application +

 inspection requirements + sample quantity + annual purchasing volume + target delivery schedule

Our team can review your requirements, discuss suitable fastening options, confirm sample arrangements and provide quotation information.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your industrial bolt drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
