Electric vehicle battery packs contain structural, mechanical, electrical and thermal management components that must remain securely assembled throughout the intended vehicle service life.

Depending on the battery architecture, these components may include:

• Battery module support brackets

• Battery enclosure panels

• Cooling system mounting brackets

• Cable and harness supports

• Battery management electronics housings

• Protective covers

• Auxiliary equipment mounting points

EV battery pack weld studs provide threaded attachment points on compatible metal components through a qualified welding process.

They may offer advantages where conventional through-bolting, separate captive nuts or additional drilling operations create assembly or access difficulties.

However, weld studs must be selected as part of the complete battery assembly rather than as isolated high-strength fasteners.

Critical design considerations include:

• Weld stud geometry

• Parent metal compatibility

• Battery tray material

• Panel thickness

• Welding heat input

• Mechanical load path

• Joint preload

• Vibration

• Thermal cycling

• Corrosion protection

• Enclosure sealing

• Electrical insulation

• Production process capability

• Inspection and traceability

For battery structural and mechanical engineers, the challenge is to establish a reliable attachment that satisfies the required loads and service conditions.

For manufacturing engineers and production managers, the challenge is to produce consistent welds without compromising the surrounding battery structure or manufacturing process.

For procurement and supplier development teams, the challenge is to source drawing-conforming weld studs with appropriate material,

dimensional control, inspection requirements and supply planning.

Juxin Fasteners welcomes drawing-based inquiries for automotive weld studs and customized threaded fastening components for suitable EV battery applications.

What Are Weld Studs for EV Battery Packs?

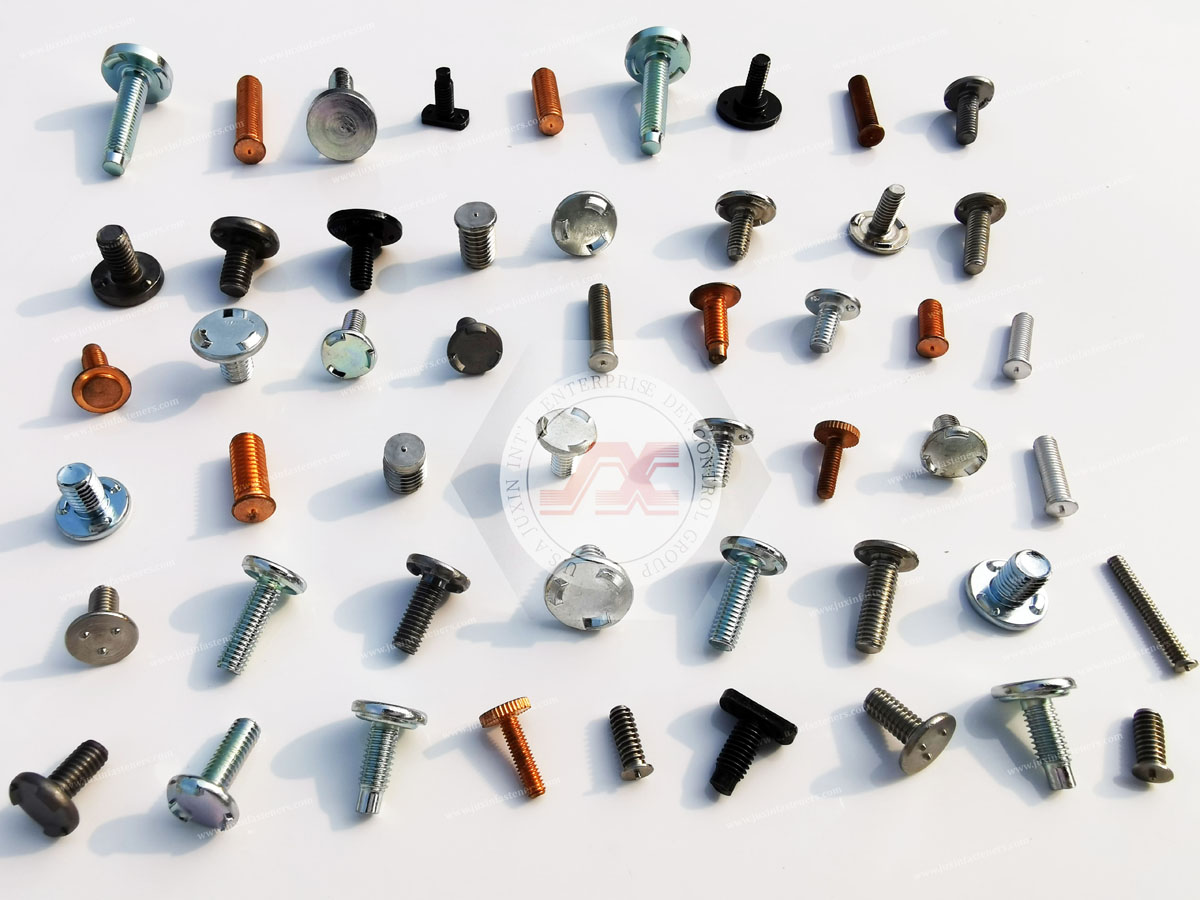

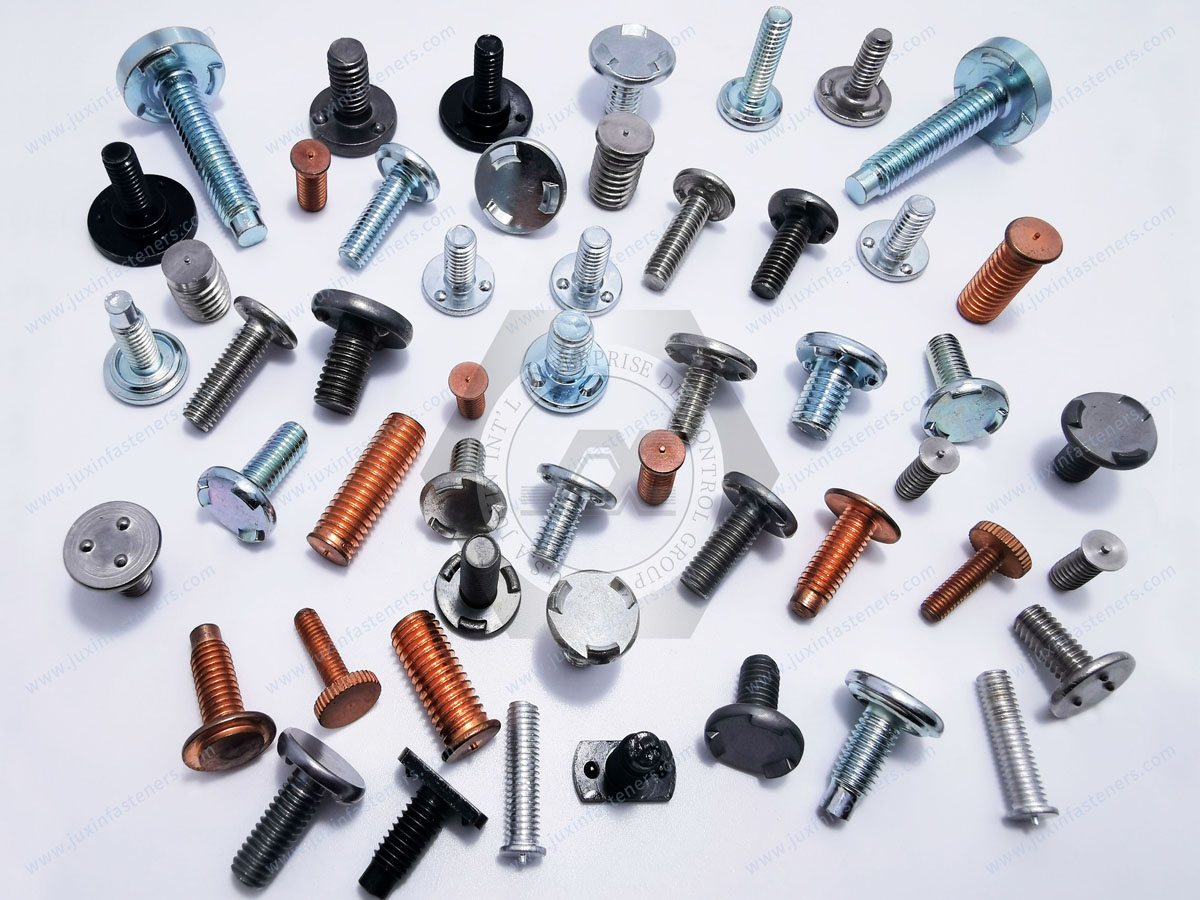

Weld studs are externally threaded fasteners designed to be attached to a compatible metal component through welding.

Once installed, the stud provides a threaded mounting point for a mating nut or other specified fastening component.

In EV battery manufacturing, a welded stud may be used to attach a bracket, cover support or auxiliary component to a suitable metal structure.

Typical Assembly Load Path

Mating nut → Weld stud thread → Stud body → Weld interface → Parent metal → Battery structure

The complete joint must be designed around this load path.

Important Engineering Limitation

A high-strength stud does not guarantee a high-strength welded attachment.

The weld and parent material may determine the limiting load capacity.

Why Weld Studs May Be Selected for Battery Assemblies

Potential advantages include:

• Threaded mounting points without conventional through-holes at selected locations

• Reduced need for backside access

• Compatibility with suitable automated welding processes

• Potential reduction in separate attachment hardware

• Repeatable stud positioning

• Serviceable mating components

These advantages depend on the battery architecture and qualified manufacturing process.

Important Limitation

Weld studs do not automatically eliminate mating nuts, additional brackets or other assembly components.

They also do not inherently provide vibration-proof fastening, electrical grounding or enclosure sealing.

Battery Module Mounting and Support Brackets

Battery modules must be positioned and retained according to the battery pack's mechanical and safety design.

Depending on the architecture, suitable threaded weld studs may be considered for selected module-related support brackets or auxiliary mounting components.

Potential Applications

• Module support brackets

• Internal equipment mounts

• Cable support brackets

• Auxiliary structural attachments

• Battery electronics supports

Engineering Considerations

• Static loading

• Dynamic loading

• Fatigue

• Thermal expansion

• Assembly access

• Parent material strength

• Welding location

• Mating nut preload

Important Safety Limitation

A weld stud should not be assumed suitable for battery module retention,

crash-critical structures or cell restraint systems without application-specific engineering validation and OEM approval.

Information Gain: Module Retention Is a System-Level Design Problem

The required performance is not determined by the stud's tensile strength alone.

The complete assembly may be limited by:

• Stud body strength

• Thread engagement

• Weld attachment

• Bracket stiffness

• Parent sheet strength

• Joint preload

• Battery structure deformation

Engineering Recommendation

Evaluate the complete attachment system under the defined service and safety load cases.

Cooling Plates and Battery Thermal Management Components

Battery thermal management systems control the temperature of cells and associated components.

Depending on the design, weld studs may be considered for mounting suitable cooling system brackets and auxiliary equipment.

Potential Applications

• Cooling system support brackets

• Thermal management equipment mounts

• Heat shield attachments

• Auxiliary cooling module supports

• Sensor and control brackets

Engineering Considerations

• Thermal cycling

• Differential thermal expansion

• Vibration

• Corrosion

• Assembly preload

• Cooling system access

• Fluid line clearance

Important Limitation

Weld studs should not be assumed suitable for direct attachment to a pressure-containing cooling plate or coolant passage without specific design and process validation.

Information Gain: Thermal Expansion Can Change Joint Loading

Battery cooling systems may combine materials with different coefficients of thermal expansion.

As temperature changes, relative movement can affect:

• Bracket loading

• Joint preload

• Weld interface stress

• Fatigue performance

• Component alignment

Engineering Recommendation

Review the complete material stack and operating temperature range before selecting stud geometry and joint configuration.

Battery Covers and Protective Enclosures

EV battery enclosures protect internal components from environmental exposure and mechanical damage.

Some designs may use threaded weld studs for suitable cover-related brackets or attachment points.

Potential Advantages

• Avoidance of certain through-holes

• Defined threaded mounting locations

• Assembly access

• Potential simplification of selected attachment arrangements

Important Limitation: Weld Studs Do Not Automatically Provide IP67 or IP68 Protection

Ingress protection depends on the complete enclosure design.

Relevant factors include:

• Cover gasket

• Sealing compression

• Enclosure geometry

• Weld integrity

• Penetrations

• Fastener locations

• Assembly conditions

IEC 60529

IEC 60529 defines ingress-protection classifications for enclosures.

An IP67 or IP68 rating must be supported by testing of the relevant enclosure configuration.

Engineering Recommendation

Treat the welded stud as one component within the enclosure sealing design.

Do not claim that a weld stud independently provides a specified IP rating.

Electrical Connector Panels and Battery Electronics

EV battery packs contain electrical interfaces and electronic control components.

Weld studs may be considered for suitable mechanical mounting of:

• Connector brackets

• Battery management electronics supports

• Cable routing brackets

• Protective panels

• Auxiliary electrical equipment

Engineering Considerations

• Electrical clearance

• Insulation

• Mechanical stability

• Vibration

• Corrosion

• Service access

Important Limitation

A mechanical weld stud should not automatically be used as an electrical grounding or bonding point.

Electrical Grounding and Bonding

Reliable electrical bonding requires a qualified conductive path.

Potential considerations include:

• Contact resistance

• Surface coatings

• Corrosion

• Joint preload

• Electrical continuity

• Service conditions

Engineering Recommendation

Where a stud is intended for electrical bonding, specify and validate the electrical function separately from mechanical attachment.

Carbon Steel Weld Studs for EV Battery Structures

Carbon steel weld studs may be suitable for selected steel battery structures and auxiliary mounting components.

Potential Advantages

• Useful mechanical properties when correctly specified

• Compatibility with selected steel welding processes

• Commercial practicality

• Suitability for specified corrosion-protection systems

Engineering Considerations

• Steel grade

• Chemical composition

• Weldability

• Mechanical properties

• Parent material

• Surface condition

• Welding procedure

• Coating sequence

Important Limitation

Not every carbon steel weld stud is suitable for every steel panel or welding process.

Material compatibility must be established for the actual combination.

Stainless Steel Weld Studs for Corrosion-Sensitive Applications

Stainless steel weld studs may be considered for suitable corrosion-sensitive applications.

Potential Applications

• Moisture-exposed equipment brackets

• Selected underbody equipment

• Special vehicle components

• Industrial battery equipment

Engineering Considerations

• Stainless steel grade

• Parent metal compatibility

• Welding procedure

• Corrosion environment

• Mating nut material

• Thread galling

Important Limitation

Stainless steel is not universally corrosion-proof.

It is also not automatically interchangeable with carbon steel weld studs.

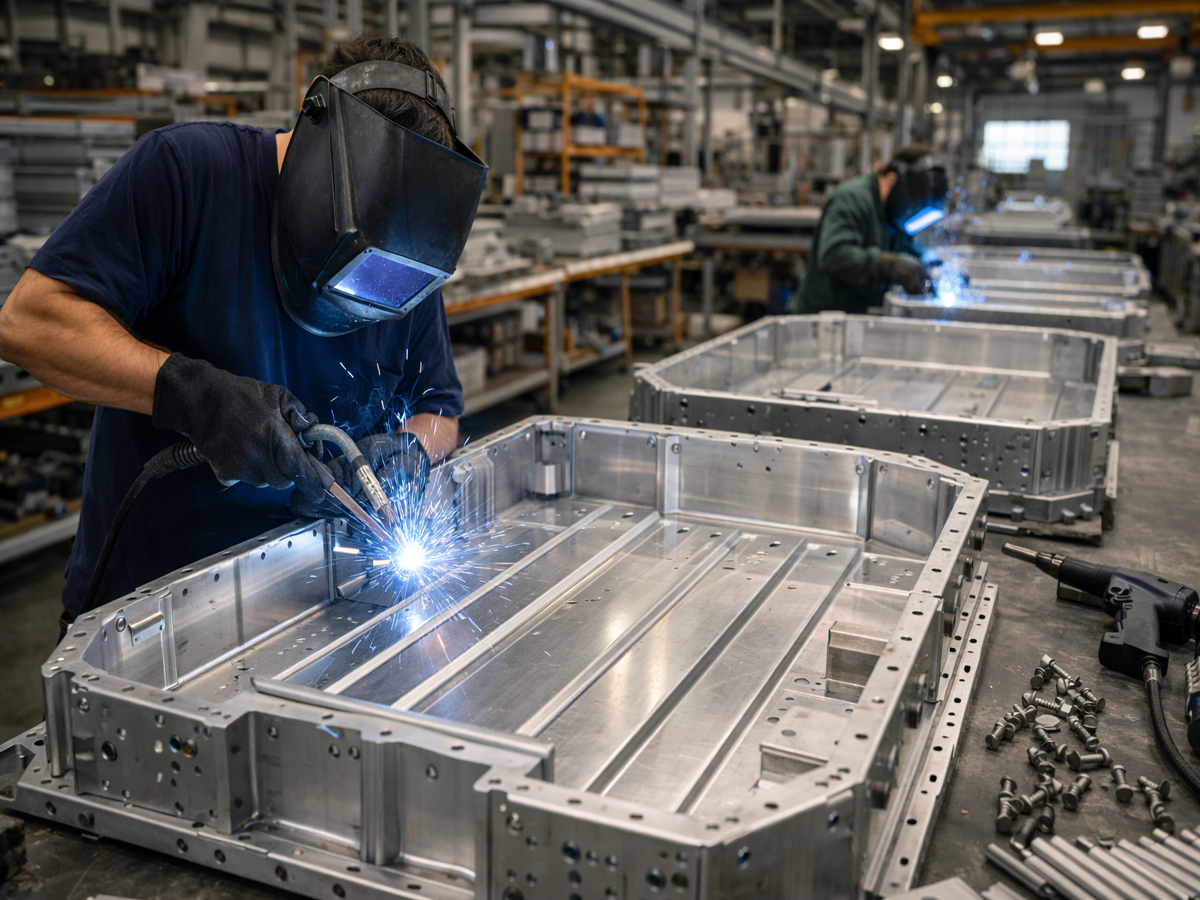

Aluminum Battery Trays: Welding Compatibility and Alternatives

Many EV battery enclosures use aluminum structures.

This creates an important material selection issue.

A conventional steel weld stud cannot simply be assumed suitable for direct welding onto an aluminum battery tray.

Steel and aluminum have different physical and metallurgical characteristics.

Joining dissimilar metals may require specialized processes and qualification.

Potential Engineering Alternatives

Depending on the design:

• Qualified aluminum-compatible weld studs

• Specialized dissimilar-metal joining systems

• Blind rivet nuts

• Mechanical clinch fasteners

• Drawing-specific captive fastening systems

• Other approved attachment methods

Engineering Recommendation

Select the fastening technology based on the actual parent material and manufacturing process.

Information Gain: Battery Tray Material Should Be Confirmed Before the Weld Stud Is Quoted

A buyer may request an M6 or M8 weld stud without specifying whether the battery tray is steel or aluminum.

That information is essential.

The same nominal thread size does not establish welding compatibility.

Engineering Lesson

Material compatibility must be reviewed before treating two weld stud designs as substitutes.

Mechanical Property Classes: 8.8 and 10.9

Some threaded automotive fasteners use property classes such as 8.8 and 10.9.

However, a higher property class does not automatically make a weld stud more suitable for an EV battery assembly.

Class 8.8

May be relevant to certain specified steel threaded fasteners.

Class 10.9

May be relevant to higher-strength threaded fastener requirements.

Important Engineering Limitation

The applicable property class must be confirmed for the actual weld stud specification.

Higher-strength material may introduce different welding and heat-treatment considerations.

Safety-Critical Applications

A property class designation alone does not qualify a weld stud for:

• Crash-critical battery structures

• High-voltage safety-related interfaces

• Battery module retention

• Cell restraint systems

These applications require dedicated engineering validation and OEM approval.

EV Battery Weld Stud Installation Processes

The welding method must be compatible with the stud and parent material.

Potential processes include:

• Capacitor discharge stud welding

• Drawn arc stud welding

• Short-cycle stud welding

• Other customer-qualified welding methods

Important Limitation

Not every weld stud geometry is suitable for every process.

The correct method must be established using the actual product drawing and welding procedure.

Relevant Welding Standards

ISO 14555

Arc stud welding of metallic materials, where applicable.

ISO 13918

Studs and ceramic ferrules for arc stud welding, where applicable.

The applicable standards depend on the actual stud and welding method.

Welding Process Variables

Potential parameters include:

• Welding current

• Welding time

• Stud lift or movement

• Contact pressure

• Parent material thickness

• Surface condition

• Stud position

• Equipment condition

Engineering Recommendation

Develop and qualify the welding process using production-representative materials and equipment.

Welding Heat and Battery Manufacturing Sequence

Battery systems contain heat-sensitive components.

Stud welding introduces localized thermal energy.

Important Manufacturing Considerations

• Welding before cell installation

• Welding access

• Nearby sensitive components

• Heat-affected zones

• Parent material distortion

• Manufacturing sequence

Important Safety Limitation

Welding near installed battery cells, coolant circuits or energized components requires a dedicated safety and manufacturing assessment.

Engineering Recommendation

Where practical and required by the design, establish the welding operation within an approved manufacturing sequence before heat-sensitive battery components are introduced.

Weld Quality Inspection and Validation

Automotive battery assemblies may require mechanical and process validation.

The exact requirements depend on the OEM specification and component function.

Dimensional Inspection

May include:

• Thread dimensions

• Stud length

• Stud angle

• Stud position

• Installed height

• Welding-end geometry

Visual Inspection

May identify:

• Misalignment

• Abnormal weld appearance

• Surface damage

• Visible defects

Visual inspection alone does not establish the full mechanical integrity of the weld.

Mechanical Testing

Depending on the design and specification:

• Pull-off testing

• Bend testing

• Torque testing

• Other qualified tests

Environmental Validation

Where required:

• Thermal cycling

• Corrosion exposure

• Vibration

• Fatigue

• Moisture exposure

Important Testing Principle

Acceptance criteria must be defined by the customer or applicable engineering specification.

A generic test result should not be applied to a different stud, parent material or welding process.

Common EV Battery Weld Stud Failure Modes

Information Gain: Weld Integrity and Mating Nut Retention Are Different Requirements

A welded stud may remain securely attached to the battery structure while the mating nut loses preload.

Conversely, a properly tightened nut cannot compensate for an inadequate weld.

Engineering Recommendation

Validate the weld attachment and threaded joint as separate interfaces.

Vibration Resistance and Fatigue

EV battery packs experience dynamic loading from road conditions and vehicle operation.

Weld studs may be used in suitable assemblies exposed to vibration.

However, the complete joint must be evaluated for:

• Weld fatigue

• Parent material fatigue

• Stud bending

• Thread engagement

• Nut loosening

• Joint preload

• Bracket stiffness

Important Limitation

A welded stud does not automatically create a vibration-proof threaded joint.

Engineering Recommendation

Use a qualified joint design and appropriate locking method where required.

Battery Enclosure Corrosion Protection

Battery packs may experience exposure to:

• Road moisture

• Salt contamination

• Condensation

• Temperature variation

• Industrial environments

Corrosion protection must consider the complete assembly.

Potential Factors

• Stud material

• Parent material

• Surface treatment

• Welding damage

• Coating sequence

• Galvanic interaction

• Mating nut material

Important Engineering Limitation

A corrosion-resistant stud does not eliminate corrosion risk at the weld interface or surrounding structure.

Engineering Recommendation

Evaluate corrosion protection after welding and final assembly.

Automated EV Battery Weld Stud Production

Automated welding systems may improve repeatability when properly configured and maintained.

Production Variables

• Stud feeding

• Stud positioning

• Welding parameters

• Equipment condition

• Fixture accuracy

• Cycle time

• Inspection

• Traceability

Production Manager's Priorities

• Stable welding quality

• High first-pass yield

• Controlled cycle time

• Low rework

• Equipment uptime

• Consistent stud dimensions

• Packaging compatibility

• Supply continuity

Information Gain: Weld Stud Packaging Can Affect Production Efficiency

Automated feeding systems may require specific packaging and handling conditions.

Inconsistent stud orientation, damage or contamination can affect feeding reliability.

Engineering Recommendation

Include production equipment and packaging requirements in the supplier qualification process.

Weld Studs vs Alternative Battery Fastening Methods

Not every battery attachment point requires welding.

Depending on the structure, alternatives may include:

• Blind rivet nuts

• Weld nuts

• Self-clinching fasteners

• Captive nuts

• Through-bolts

• Drawing-specific mechanical fasteners

Selection Comparison

Total Installed Cost

A weld stud's purchase price is only one element of the assembly cost.

Potential Cost Elements

• Stud cost

• Welding equipment

• Tooling

• Fixture requirements

• Cycle time

• Inspection

• Rework

• Scrap

• Corrosion protection

• Assembly labor

Engineering Recommendation

Compare alternatives using the cost of an accepted and qualified attachment point rather than unit fastener price alone.

Relevant International Standards

Depending on the product and application:

• ISO 261: General-purpose metric screw thread plan

• ISO 965 series: Metric screw thread tolerances

• ASME B1.1: Unified inch screw threads

• ISO 14555: Arc stud welding of metallic materials, where applicable

• ISO 13918: Studs and ceramic ferrules for arc stud welding, where applicable

• IEC 60529: Enclosure ingress-protection classifications

• ISO 9227: Salt spray testing where specified

These references serve different purposes.

They do not independently establish suitability for an EV battery safety-critical application.

Metric and Inch Thread Selection

EV battery weld studs may be specified with metric or unified inch threads depending on the approved drawing.

For nominal diameter reference only:

• M5 ≈ 0.197 inch

• M6 ≈ 0.236 inch

• M8 ≈ 0.315 inch

These are dimensional reference values only.

Metric, UNC, UNF, BSW and BSF thread systems are not directly interchangeable.

OEM Supplier Qualification for EV Battery Weld Studs

Automotive OEM and Tier suppliers may require:

• Approved product drawings

• Material specifications

• Dimensional inspection

• Welding compatibility review

• Mechanical validation

• Corrosion requirements

• Traceability

• Change control

• Customer-specific documentation

Important Procurement Principle

A weld stud supplier's product qualification does not automatically qualify the customer's welding process.

The fastener and welding procedure must be evaluated together.

OEM RFQ Checklist for EV Battery Weld Studs

Frequently Asked Questions

Are weld studs suitable for EV battery packs?

They may be suitable for selected compatible metal structures and auxiliary mounting applications when the welding process and complete joint are qualified.

Can weld studs be used for battery module mounting?

Potentially, but module retention and safety-related attachments require application-specific validation and OEM approval.

Can steel weld studs be welded directly to aluminum battery trays?

Not by assuming a conventional steel-to-steel stud welding process. Dissimilar-metal joining requires specialized evaluation and qualification.

Do weld studs provide IP67 or IP68 protection?

No. Ingress protection applies to the complete tested enclosure configuration.

Can weld studs be used as electrical grounding points?

Only when the conductive path and electrical bonding performance are specifically designed and validated.

Are property class 10.9 weld studs always better than class 8.8?

No. Material compatibility, weldability and complete joint requirements determine suitability.

Do weld studs prevent vibration loosening?

No. The mating nut joint must be evaluated separately for preload retention and loosening.

What tests are required for EV battery weld studs?

Depending on the application, tests may include dimensional inspection, pull-off, bend, torque, vibration, fatigue, corrosion and thermal cycling.

Can weld studs be installed after battery cells are assembled?

That requires a dedicated manufacturing and safety assessment because welding introduces localized heat and other process hazards.

What information should be included in an EV battery weld stud RFQ?

Provide the drawing, stud material, parent material, welding method, loading, assembly requirements,

environmental conditions, quality documentation and forecast demand.

Juxin Fasteners: EV Battery Weld Studs and OEM Fastening Solutions

Juxin Fasteners welcomes inquiries for suitable automotive and industrial weld stud applications.

Relevant product categories include:

• Automotive threaded weld studs

• Carbon steel weld studs

• Stainless steel weld studs

• Drawing-specific weld stud designs

• Custom OEM threaded welding fasteners

• Related industrial fastening components

Specific product geometry, materials, mechanical properties, coatings, manufacturing feasibility, inspection documentation,

MOQ and lead times require confirmation against the customer's approved drawings.

Request an OEM EV Battery Weld Stud Quotation

Are you developing an EV battery enclosure, sourcing threaded weld studs for auxiliary mounting points,

evaluating welding compatibility or qualifying a fastening supplier for automotive production?

Juxin Fasteners welcomes drawing-based inquiries from battery structural engineers, mechanical engineers, manufacturing engineers,

 production managers, purchasing specialists, procurement managers, supplier development teams and supply chain managers.

Please provide:

Stud drawing + thread designation + stud material + parent metal grade and thickness + welding process + load requirements

 + mating nut assembly + electrical and sealing requirements + corrosion conditions + quality documentation + prototype quantity + annual volume + packaging + delivery schedule.

Our team can review the supplied information and confirm available product options, technical feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your EV battery weld stud drawings and OEM RFQ to Juxin Fasteners for technical confirmation and quotation.
