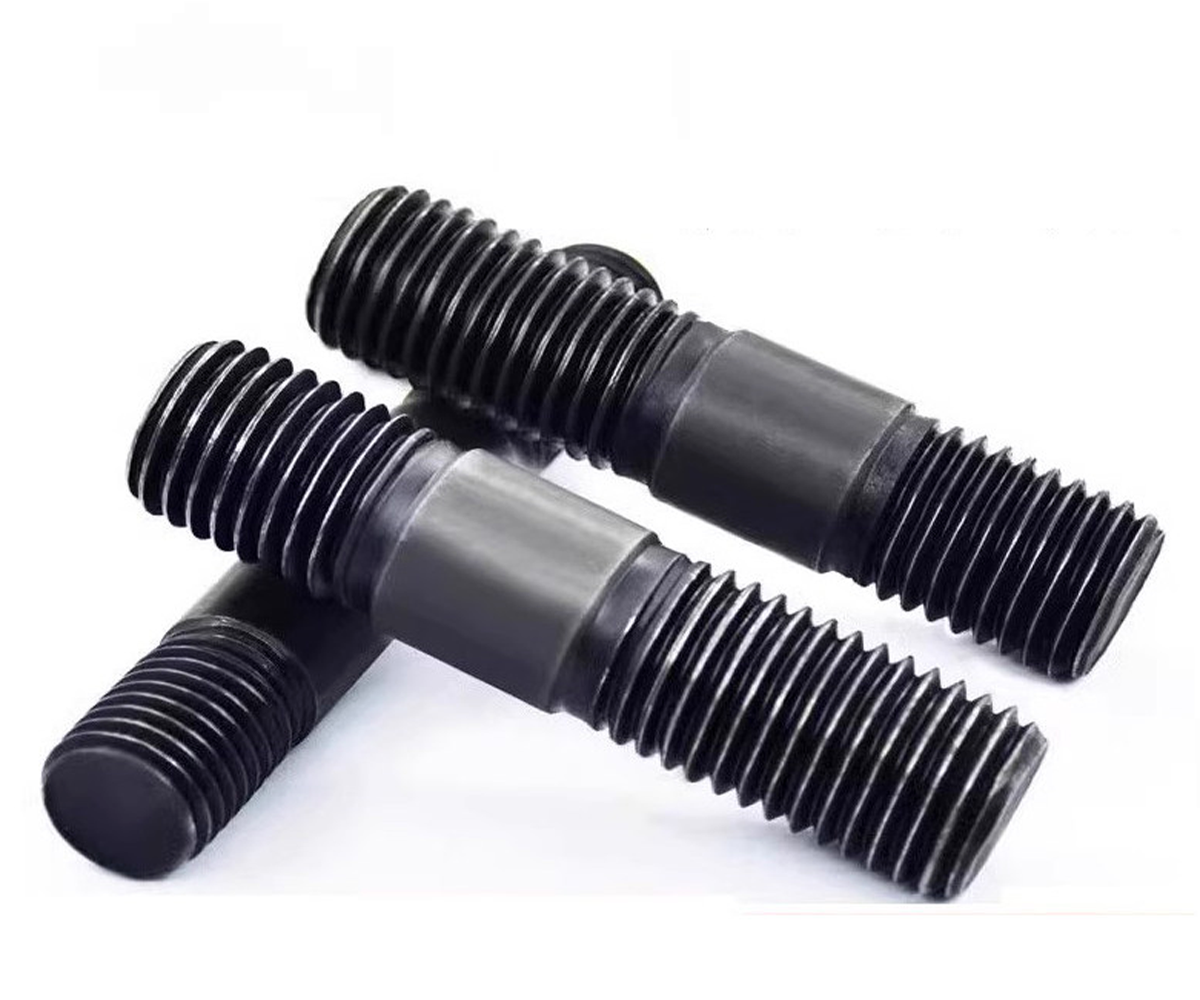

Automotive Double-Ended Studs

Automotive Double-Ended Studs

High-Strength Fastening & Alignment Solutions for Engine and Mechanical Assemblies

Meta Description:
Automotive double-ended studs for engine, chassis, and mechanical assemblies. High-strength fastening, precise alignment, and reliable performance under vibration and repeated assembly.

 Overview of Automotive Double-Ended Stud Solutions

In automotive engineering, double-ended studs are essential high-strength fasteners designed to provide secure connections, precise alignment, and structural spacing in critical assemblies. Featuring threads on both ends and a smooth or partially threaded shank, these automotive studs are widely used where traditional bolts are not suitable.

At JUXIN FASTENERS, we supply automotive double-ended studs engineered for engine systems, chassis structures, and mechanical assemblies, ensuring reliable fastening performance under dynamic loads, vibration, and repeated maintenance cycles.

Key Applications of Double-Ended Studs in Automotive Systems

1. Engine Block & Cylinder Head Mounting

Double-ended studs for engines are widely used in engine block and cylinder head connections, where accurate positioning and consistent clamping force are critical. Studs help reduce thread wear in the base material and improve sealing reliability.

2. Brackets for Electrical & Hydraulic Systems

In automotive electrical modules and hydraulic assemblies, studs provide a stable mounting interface for brackets, sensors, and auxiliary components, allowing easy replacement without damaging the main structure.

3. Chassis Alignment & Structural Assemblies

Automotive studs for chassis components ensure precise alignment and spacing, especially in complex assemblies where multiple parts must be accurately positioned before final fastening.

 Engineering Insight: Precision Alignment & Reusable Fastening

Compared to traditional bolts, double-ended studs offer significant engineering advantages:

• Accurate component positioning during assembly

• Reduced wear on internal threads of base materials

• Capability to handle repeated assembly and disassembly

• Improved load distribution and joint stability

This makes them ideal for OEM automotive manufacturing and maintenance-intensive applications.

 Application-Specific Solutions for Automotive Double-Ended Studs

1. Connection of Main Components and Removable Accessories

In assemblies such as engine blocks, transmission housings, and structural frames, double-ended studs enable:

• One end permanently installed into the main body

• The other end used for fastening removable components with nuts

• Easy replacement of accessories without affecting base threads

This design significantly improves serviceability and maintenance efficiency.

 2. Thick Plate & Multi-Layer Structure Fastening

When the total thickness of connected components exceeds the effective length of standard bolts, high-strength double-ended studs provide:

• Extended clamping capability

• Stable fastening across multi-layer structures

• Improved mechanical performance in heavy-duty applications

Typical use cases include chassis systems, suspension assemblies, and structural reinforcements.

 3. High-Vibration & Sealing-Critical Applications

In demanding environments such as engines, transmissions, and lighting systems, automotive double-ended studs are designed to deliver:

• Excellent vibration resistance

• Enhanced sealing performance

• Long-term fastening reliability under thermal cycling

Advanced Anti-Loosening Technologies for Stud Fasteners

Automotive environments involve continuous vibration, shock, and temperature variation, which can lead to loosening of threaded connections. Modern double-ended stud solutions integrate advanced anti-loosening designs:

1. Mechanical Locking Stud Design

• Integrated locking blocks and threaded sleeves

• Mechanical interlock between stud and nut

• Prevents rotational loosening under dynamic loads

2. Spring-Loaded Anti-Loosening Mechanisms

• Built-in spring and pressure ring systems

• Continuous axial force applied to resist loosening

• Suitable for high-frequency vibration environments

3. Enhanced Thread Friction Solutions

• Optimized thread profiles

• Optional thread-locking coatings

• Increased resistance to relative motion

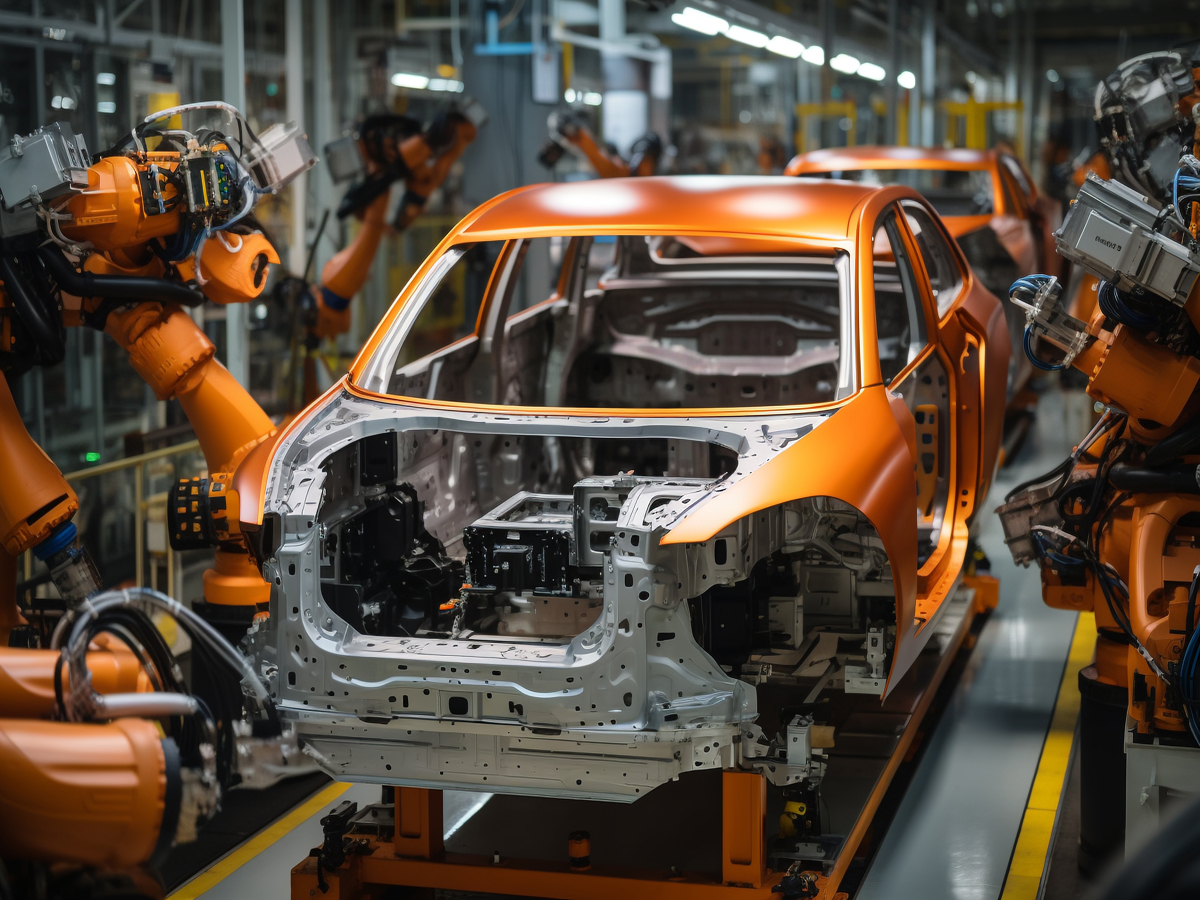

 Automation-Ready Design for High-Efficiency Assembly

With the rise of automated automotive production lines, double-ended studs must support high-speed, error-free assembly.

Key Innovations Include:

• Different thread lengths on both ends for functional optimization

• Compatibility with automated feeding systems

• Integration with vision recognition systems to ensure correct orientation

These features enable accurate, consistent installation and reduce assembly errors in mass production.

 Manufacturing Standards & Surface Treatment

1. Precision Manufacturing

High-quality automotive double-ended studs are produced through:

• Cold forming and thread rolling processes

• Strict control of thread accuracy and mechanical properties

• Compliance with international standards (e.g., strength grades 8.8, 10.9)

 2. Surface Treatment & Corrosion Resistance

Surface finishing is critical for both durability and torque performance:

• Zinc plating and passivation

• Corrosion-resistant coatings for harsh environments

• Controlled friction coefficient for consistent tightening

All treatments comply with RoHS and global automotive standards.

 3. Installation & Maintenance Best Practices

To ensure optimal performance of automotive studs:

• Use torque-controlled tightening tools

• Follow specified torque values strictly

• Inspect threads and shank for wear or deformation during maintenance

• Replace damaged studs to maintain joint safety

 Lean Manufacturing & Cost Efficiency Benefits

Implementing optimized double-ended stud fastening solutions provides:

• Reduced damage to base materials (longer service life)

• Faster assembly and disassembly

• Lower maintenance costs

• Improved production efficiency

• Enhanced reliability in safety-critical systems

 Why Choose JUXIN Double-Ended Studs?

• 21+ years of expertise in automotive fasteners manufacturing

• Full range of high-strength double-ended studs

• Custom solutions for engine, chassis, and mechanical assemblies

• Advanced anti-loosening and automation-compatible designs

• Stable global supply for OEM and Tier suppliers

 Conclusion

Automotive double-ended studs are more than simple fasteners—they are a critical engineering solution for achieving precise alignment, high-strength connections, and long-term reliability in modern vehicles.

By combining advanced anti-loosening technology, automation-ready design, and strict manufacturing standards, JUXIN FASTENERS delivers high-performance stud-fastening solutions that meet the automotive industry's evolving demands.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
