Introduction: Why DIN 929 Hex Weld Nut Is Essential in Automotive Seating and Bracket Manufacturing

In modern automotive manufacturing, seating systems and structural brackets must meet increasingly strict requirements for strength, vibration resistance, and production efficiency. Components such as seat frames, seat rails, crossbeams, recliner mechanisms, and seatbelt anchor points are typically made from thin sheet-metal structures, where traditional threaded solutions are often impractical.

The DIN 929 Hex Weld Nut provides a standardized, highly reliable solution for creating permanent threaded inserts directly on thin-gauge steel components via resistance projection welding.

By integrating a nut directly into the sheet metal structure, the DIN 929 Hex Weld Nut enables a “one-time welding, lifetime threads” fastening concept, which is widely adopted in automotive seating systems and bracket assemblies.

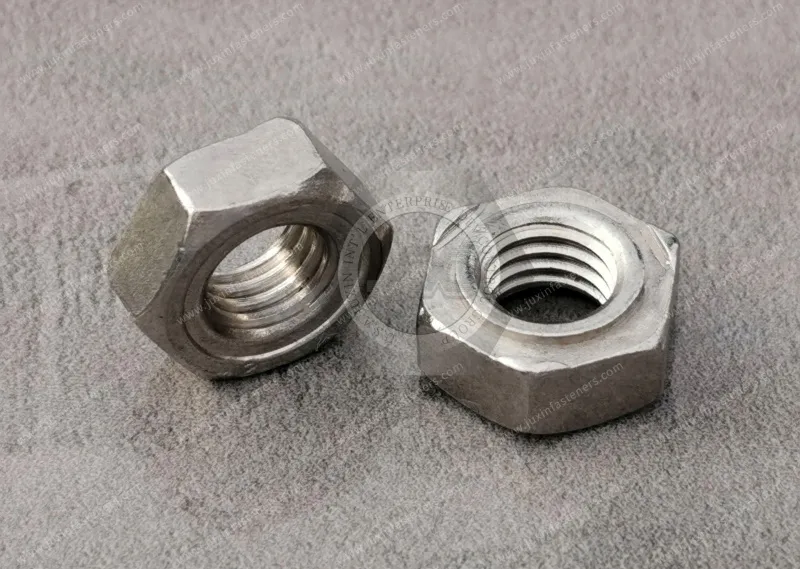

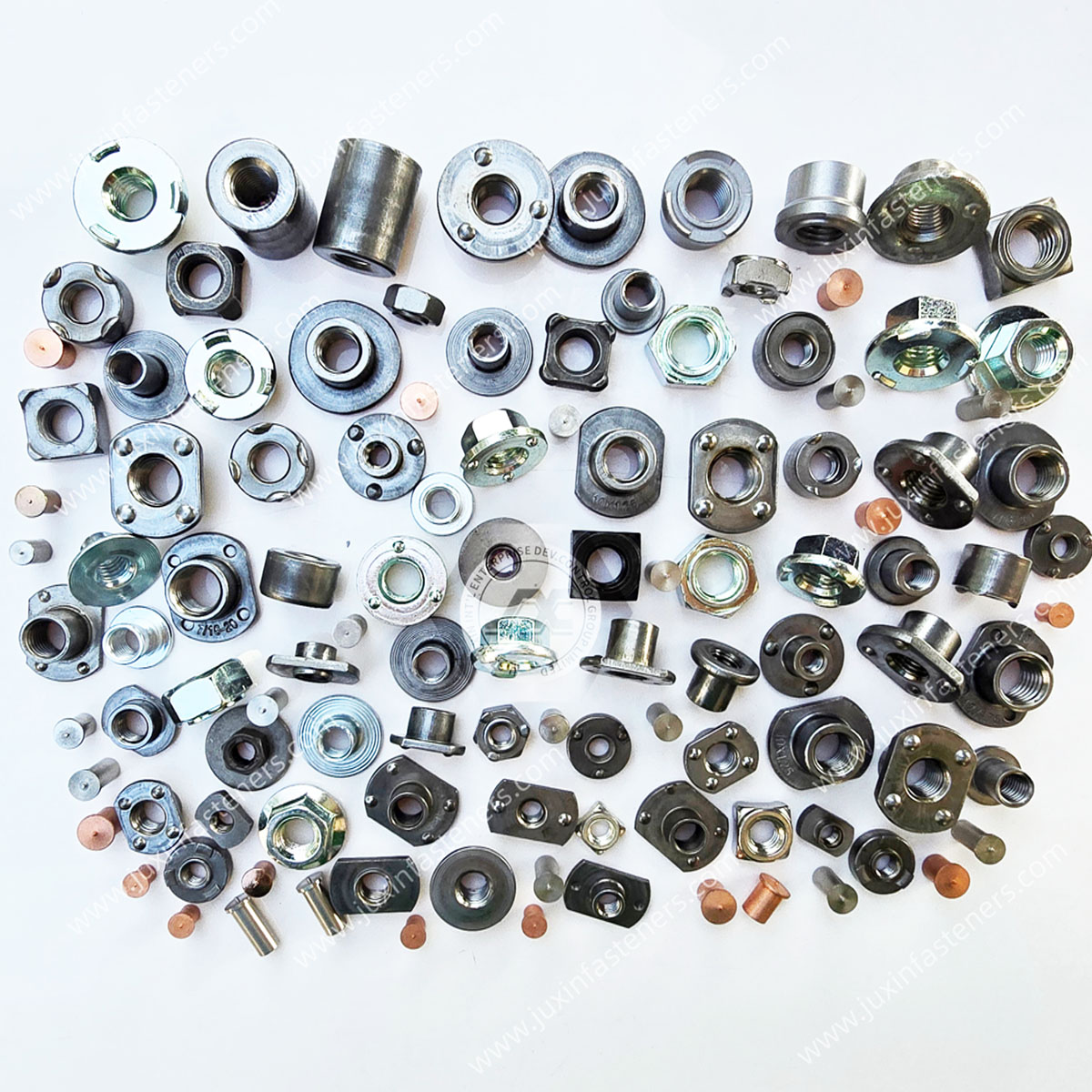

Structural Design of DIN 929 Hex Weld Nut

A standard DIN 929 Hex Weld Nut is engineered specifically for projection welding applications in automotive production environments.

Its structure includes:

• Hexagonal nut body for torque application

• Three welding projections for controlled energy concentration

• Centering boss for precise positioning during automated welding

• Internal metric thread (typically M5–M12)

• Low-carbon steel or stainless steel construction

The centering boss ensures accurate alignment with pre-punched holes in sheet metal, significantly improving welding consistency in robotic production lines.

Once welded, the DIN 929 Hex Weld Nut becomes a permanent, non-removable threaded insert embedded into the sheet metal component.

This design is especially suitable for steel brackets and seat frame structures with thicknesses of up to 6 mm.

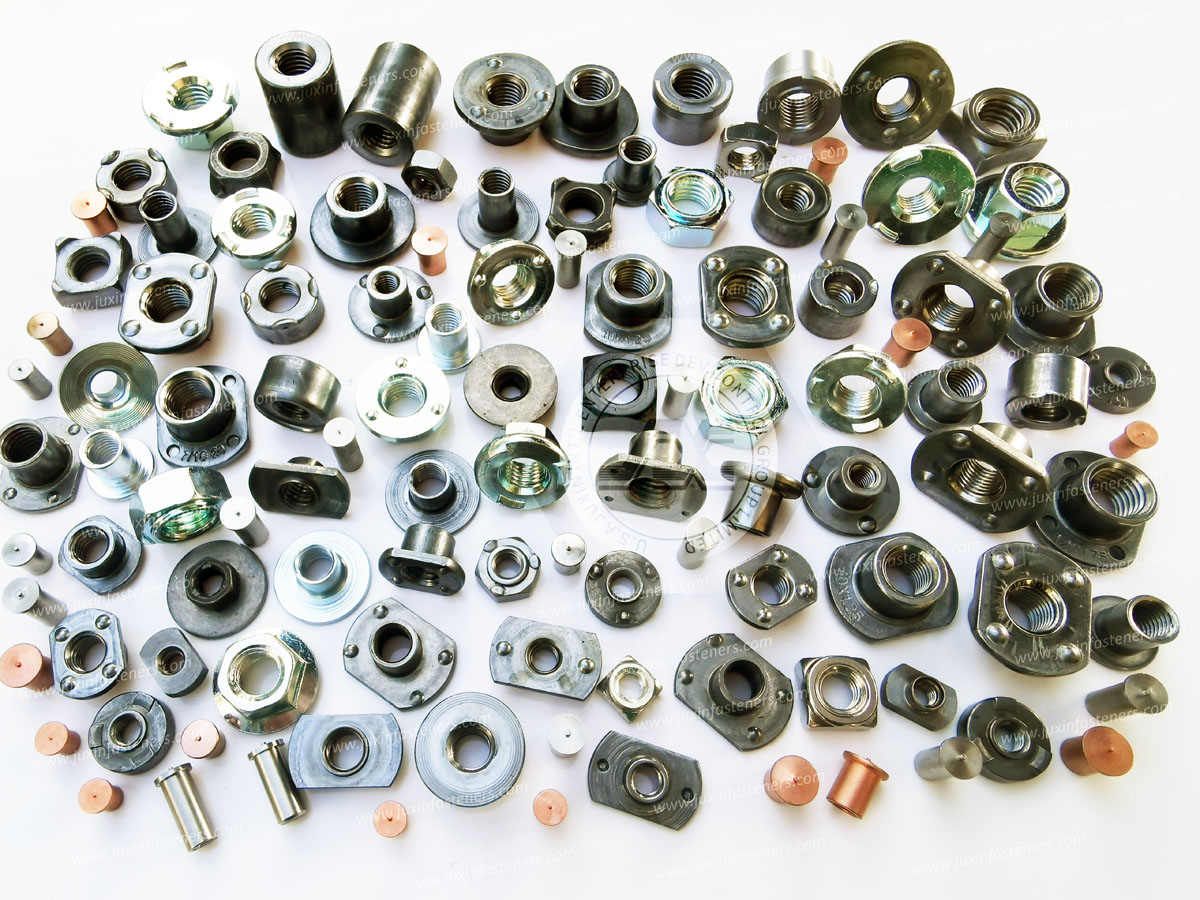

Material Selection and Engineering Requirements

The performance of a DIN 929 Hex Weld Nut depends heavily on material selection and compatibility with the base metal.

Low-Carbon Steel DIN 929 Hex Weld Nut

Low-carbon steel is the most widely used material due to its excellent weldability.

Advantages include:

• Stable projection welding performance

• High metallurgical bonding strength

• Cost-effective mass production

• Compatibility with automotive sheet metal structures

This type is commonly used in:

• Seat rail brackets

• Seat crossbeam structures

• General automotive BIW components

 Stainless Steel DIN 929 Hex Weld Nut

For corrosion-sensitive environments, stainless steel variants are used.

Typical applications include:

• Seatbelt anchor systems

• High-humidity interior structures

• Corrosion-prone chassis areas

Stainless steel provides improved durability in long-term service conditions.

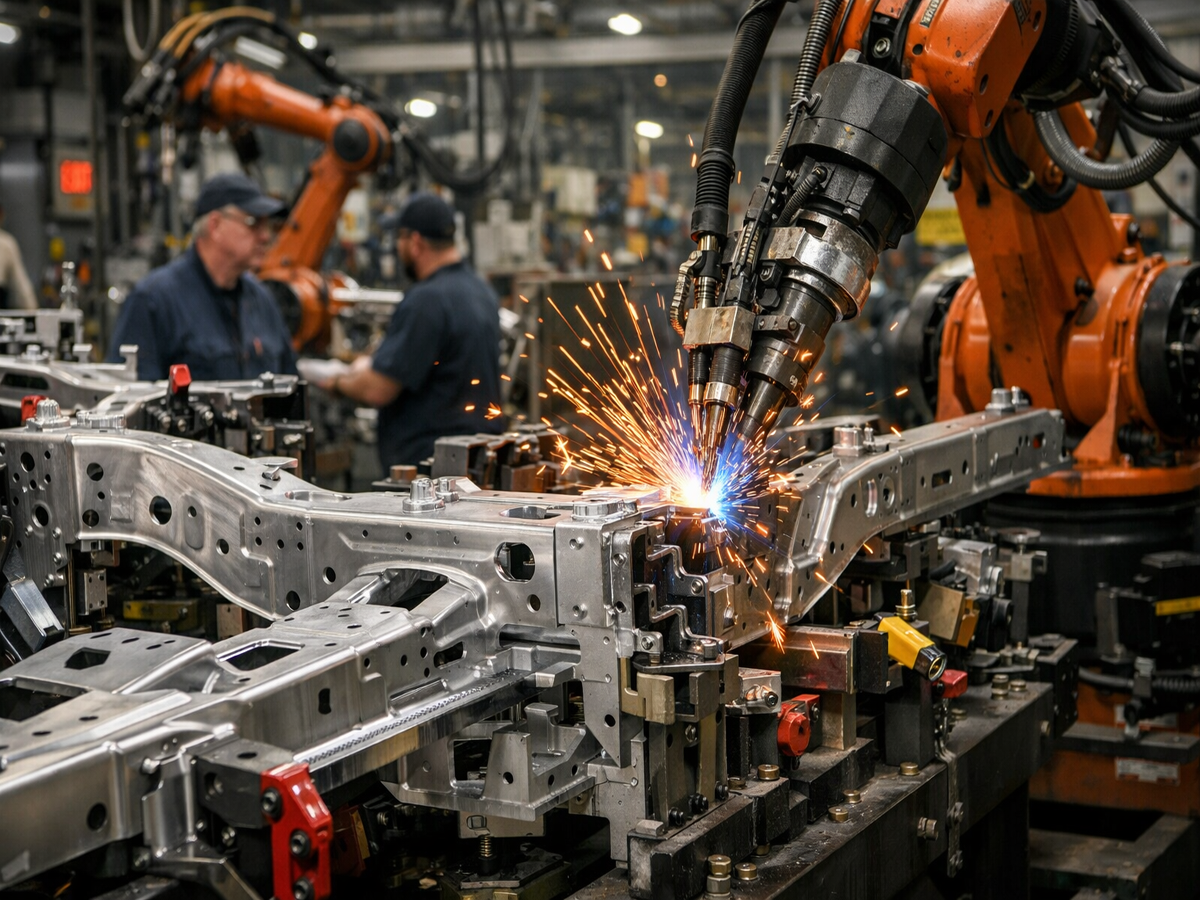

 Resistance Projection Welding Process for DIN 929 Hex Weld Nut

The installation of a DIN 929 Hex Weld Nut relies on resistance projection welding (spot welding process).

During welding:

1. The nut is positioned using the centering boss

2. Welding electrodes apply pressure and current

3. Current concentrates at the three projections

4. The projections melt and form a metallurgical bond with the sheet metal

5. A permanent threaded insert is created

This process ensures a welding success rate of over 98%, significantly reducing defects such as cold welds or missed welds.

Key Process Parameters

• Welding equipment: dedicated projection welding machine

• Process type: resistance spot welding

• Sheet thickness: typically ≤ 6 mm

• Alignment: precise projection-to-hole positioning required

Proper control ensures:

• No thread deformation

• No burn-through of sheet metal

• Stable weld nugget formation

• High repeatability in automated production

 Automotive Application Scenarios of DIN 929 Hex Weld Nut

Seat Rail and Seat Frame Systems

The DIN 929 Hex Weld Nut is widely used in automotive seating systems, where high strength and vibration resistance are required.

Applications include:

• Seat rail mounting brackets

• Seat frame crossbeams

• Recliner mechanism assemblies

By welding directly onto the seat structure, the DIN 929 Hex Weld Nut eliminates the need for backside access or additional fastening hardware.

 Seatbelt Anchor Brackets

Safety-critical seatbelt anchor points require extremely reliable fastening solutions.

The DIN 929 Hex Weld Nut provides:

• Permanent threaded engagement

• High pull-out resistance

• Stable torque performance under dynamic loads

This makes it a preferred solution for OEM safety systems.

Automotive Crossbeams and Structural Brackets

In BIW (Body-in-White) structures, the DIN 929 Hex Weld Nut is used in:

• Crossbeam mounting points

• Floor reinforcement brackets

• Structural seat support systems

It replaces traditional tapped flanges or pre-inserted nuts, improving production efficiency and structural consistency.

 Recliner and Adjustment Mechanisms

Seat recliner systems require precise fastening points with high fatigue resistance.

A DIN 929 Hex Weld Nut ensures:

• Stable thread engagement

• Long-term vibration resistance

• Reliable torque transmission

This is essential for repeated-mechanical-movement systems.

 Advantages of DIN 929 Hex Weld Nut in Automotive Production

The DIN 929 Hex Weld Nut offers several key engineering and manufacturing advantages:

✔ Permanent non-removable threaded connection
✔High-strength metallurgical bonding
✔ No need for reverse-side access
✔ Compatible with automated robotic welding systems
✔ High production efficiency in mass manufacturing
✔ Improves vibration resistance in seat and bracket systems
✔ Eliminates the need for tapping or secondary assembly operations

This makes it a preferred solution in modern automotive assembly lines.

 Key Engineering Considerations for DIN 929 Hex Weld Nut Applications

To ensure optimal performance of the DIN 929 Hex Weld Nut, several engineering factors must be considered:

Welding Heat Control

Excessive heat input can cause:

• Sheet metal deformation

• Internal thread damage

• Reduced joint strength

Proper welding parameters are essential for maintaining structural integrity.

 Thread Inspection Requirements

After welding, quality control must include:

• Thread GO/NO-GO gauge inspection

• Random sampling verification

• Torque consistency testing

This ensures the DIN 929 Hex Weld Nut maintains precise thread functionality.

Material Compatibility

When used with:

• High-strength steel

• Advanced lightweight alloys

• Aluminum structures

Weldability must be carefully evaluated. In some cases, alternative solutions such as weld studs or embedded fasteners may be required.

 Alternative and Optimization Solutions

For applications with high load concentration or irregular geometries, engineers may consider alternatives or upgrades.

A common optimization is the use of:

Hexagon Flange Weld Nuts

Compared to standard DIN 929 Hex Weld Nut designs, flange-type weld nuts offer:

• Larger contact area

• Reduced stress concentration

• Improved load distribution

In applications such as subframe connections or high-load brackets, flange weld nuts combined with washers may provide enhanced performance.

Conclusion: “One-Time Welding, Lifetime Threads” Engineering Principle

The DIN 929 Hex Weld Nut represents a core fastening technology in automotive seating systems and bracket manufacturing.

It delivers:

• Permanent threaded integration

• High vibration resistance

• Excellent automation compatibility

• Reliable performance in thin sheet metal structures

• High production efficiency for OEM assembly lines

From seat rails and crossbeams to seatbelt anchors and structural brackets, the DIN 929 Hex Weld Nut enables a robust and efficient fastening solution based on the principle of:

“One-time welding, lifetime threads.”

For automotive engineers and procurement specialists seeking DIN 929 Hex Weld Nut suppliers, automotive weld nut solutions, or projection weld nut systems for seating assemblies, this technology remains one of the most reliable choices in modern vehicle manufacturing.
