How is corrosion resistance evaluated for industrial weld fasteners?
Fastener corrosion resistance is commonly evaluated using standardized laboratory corrosion tests such as neutral salt spray (NSS), including the method described by ASTM B117.
Salt spray testing can provide a controlled way to compare coating systems, identify corrosion tendencies, and verify whether a fastener meets a specified corrosion-test requirement.
Product Specification
How is corrosion resistance evaluated for industrial weld fasteners?
Fastener corrosion resistance is commonly evaluated using standardized laboratory corrosion tests such as neutral salt spray (NSS), including the method described by ASTM B117.
Salt spray testing can provide a controlled way to compare coating systems, identify corrosion tendencies, and verify whether a fastener meets a specified corrosion-test requirement.
However, ASTM B117 should not be interpreted as a direct prediction of real-world service life.
A salt-spray exposure result is influenced by:
Fastener material
Surface treatment
Coating system
Coating thickness
Surface preparation
Fastener geometry
Edges and recesses
Thread configuration
Welded condition
Test orientation
Test specimen preparation
Test duration
Corrosion evaluation criteria
For weld fasteners, corrosion engineering is even more important because the fastener becomes part of a larger sheet-metal assembly.
The final corrosion behavior may depend on the interaction between:
Fastener + Parent Sheet + Welded Interface + Surface Treatment + Assembly Geometry + Environment
This is particularly important in automotive, electrical equipment, outdoor machinery, agricultural equipment, energy systems,
and other applications exposed to humidity, condensation, salt, chemicals, or cyclic environmental conditions.
A useful engineering model is:
FASTENER CORROSION PERFORMANCE | +------------------+------------------+ | | | Material Coating Environment | | | Carbon Steel Zinc / Zn-Ni Humidity Stainless Steel Other Systems Salt Other Alloys Post-Coating Chemicals | | | +------------------+------------------+ | Joint Configuration | Welding Condition | Corrosion Testing | Acceptance Criteria
The important procurement question is therefore not simply:
“How many salt-spray hours can this fastener achieve?”
A more useful question is:
“Does the specified fastener, coating system, welding process, and complete assembly meet the customer's required corrosion-performance criteria for the intended environment?”
JUXIN FASTENERS can discuss corrosion-control requirements for industrial weld fasteners based on customer drawings, coating specifications, environmental requirements, and applicable testing criteria.
Corrosion occurs when a material reacts with its surrounding environment.
For steel fasteners, the major concern is often oxidation of the underlying steel, but the corrosion behavior can be modified substantially by a protective surface-treatment system.
Potential environmental factors include:
Atmospheric humidity
Condensation
Salt contamination
Industrial pollutants
Chemical exposure
Temperature cycling
Water retention
Crevice conditions
Dissimilar-metal contact
The actual corrosion mechanism depends on the complete system.
A fastener installed inside a dry indoor electrical cabinet is exposed to a very different environment from a weld nut used underneath an outdoor agricultural machine.
Therefore, “corrosion-resistant fastener” is not a complete engineering specification.
The required question is:
Corrosion-resistant against what environment, for what application, and according to what acceptance criterion?
Neutral salt spray, commonly abbreviated as NSS, exposes specimens to a controlled saline mist under defined laboratory conditions.
ASTM B117 describes a standardized apparatus and operating environment for salt spray testing.
The purpose is to create a repeatable corrosive exposure that can be used for comparative evaluation or specification-based testing.
However, ASTM B117 itself does not establish a universal acceptance criterion for every fastener or coating.
A customer specification may define:
Test duration
Specimen preparation
Corrosion evaluation method
Permitted corrosion products
Red-rust acceptance criteria
White-corrosion-product acceptance criteria
Number of specimens
Inspection intervals
Applicable coating specification
Therefore:
ASTM B117 defines a test method; it does not automatically define how many hours every fastener must pass.
The ASTM B117 method establishes controlled test conditions involving a saline spray environment.
The commonly referenced test setup includes a sodium-chloride solution and controlled chamber conditions, but the actual laboratory must follow the current applicable standard and its specified procedures.
For engineering documentation, the correct approach is to state the applicable standard and test configuration rather than treating one simplified number as a universal guarantee.
For example:
“Tested according to ASTM B117 for the customer-specified exposure duration and acceptance criteria.”
is more technically meaningful than:
“ASTM B117 certified for X hours.”
One of the most common misunderstandings in fastener procurement is treating salt-spray hours as a direct measure of outdoor service life.
They are not directly interchangeable.
For example:
720 hours of salt spray does not automatically mean 720 hours, 720 days, or a specific number of years in outdoor service.
The real-world corrosion rate can differ substantially because field exposure involves:
Wet/dry cycles
Temperature changes
UV exposure
Atmospheric pollutants
Salt deposition
Mechanical damage
Water retention
Drainage
Crevice conditions
Cleaning
Actual coating thickness
Assembly geometry
Salt spray is therefore best understood as a controlled corrosion-test result, not a universal service-life conversion.
This distinction is especially important when procurement teams compare different coating suppliers.
A higher salt-spray number may be useful evidence under a particular test method, but it should not be treated as the only criterion for selecting a coating.
For zinc-based coatings, early corrosion products may appear as white or light-colored deposits.
These products are often associated with corrosion of the zinc-based protective layer.
However, the appearance and composition of corrosion products can vary according to:
Coating chemistry
Surface treatment
Exposure conditions
Test environment
Moisture history
Therefore, visual color alone should not be used as the complete corrosion diagnosis.
Red rust generally indicates corrosion of iron or steel substrate material.
When the protective coating no longer adequately isolates or protects the steel, oxidation of the underlying steel can become visible.
For many steel fasteners, red rust is therefore a significant failure criterion when the customer specification prohibits base-metal corrosion.
However, the exact acceptance criterion must come from the applicable coating or customer specification.
A zinc-based coating can show corrosion products before the steel substrate begins to corrode.
This means that a test report should clearly identify:
Type of coating
Test method
Exposure duration
White-corrosion-product observation
Red-rust observation
Inspection method
Acceptance criteria
This provides procurement teams with much more useful information than a single salt-spray-hour number.
Zinc-based coatings can provide protection through a combination of barrier protection and sacrificial behavior.
When zinc is used to protect steel, the zinc can preferentially corrode under appropriate electrochemical conditions.
This can help protect exposed steel in localized areas where the coating has been damaged.
However, sacrificial protection should not be interpreted as an unlimited ability to tolerate coating damage.
Corrosion performance still depends on:
Coating system
Coating thickness
Surface condition
Damage severity
Environment
Geometry
Exposure duration
For weld fasteners, additional attention may be required around:
Welded areas
Edges
Projections
Threads
Corners
Machined surfaces
These locations may behave differently from a large, flat coated surface.
Zinc plating is widely used for steel fasteners where corrosion protection is required.
Potential benefits include:
Sacrificial corrosion protection
Improved surface appearance
Broad industrial availability
Compatibility with many commercial fastening applications
However, zinc-coated weld fasteners require careful consideration of the manufacturing sequence.
As discussed in the Surface Finishes & Coatings guide, the fastener's surface condition during welding can affect:
Electrical contact
Heat generation
Electrode condition
Welding consistency
Fume generation
Spatter
Post-weld corrosion protection
Therefore, the procurement team should specify whether the coating is intended:
Before welding
or
After welding
or whether a process-specific coating strategy is required.
Zinc-nickel coating systems may be selected when a higher level of corrosion protection is required than a basic zinc-plated system can provide under the customer's specified test conditions.
Potential advantages can include improved corrosion performance under defined test environments and applications.
However, the actual performance depends on the complete coating system, including:
Alloy composition
Coating thickness
Pretreatment
Passivation
Sealing
Substrate condition
Application process
Post-treatment
JUXIN FASTENERS has discussed zinc-nickel coating configurations capable of meeting demanding salt-spray requirements, including 720-hour-class testing under specified conditions.
Such a result should always be understood as a specified test performance for a defined coating configuration, not as a universal guarantee for every zinc-nickel fastener or every real-world environment.
For an OEM program, the required test method and acceptance criterion should be confirmed before quotation and production.
Neutral salt spray is useful, but it is not the only corrosion-testing approach.
Cyclic corrosion tests can introduce changing environmental stages such as:
Salt exposure
Humidity
Drying
Condensation
Temperature variation
These cycles may provide a different representation of certain real-world corrosion mechanisms.
Whether cyclic corrosion testing is more appropriate depends on the application and customer specification.
For automotive and other demanding OEM programs, the applicable customer or industry corrosion test may be more important than simply selecting the highest salt-spray-hour requirement.
Therefore, procurement teams should ask:
Which corrosion test does the final customer actually specify?
rather than assuming that ASTM B117 is always the final qualification method.
A weld fastener should not be evaluated in isolation when the actual product uses it as part of a welded sheet-metal assembly.
Potential corrosion locations include:
Weld interface
Fastener-to-sheet interface
Exposed fastener surface
Hole perimeter
Panel edge
Threaded area
Crevices
Coating transition zones
The welding process can also alter the local surface condition.
For example, welding may locally remove, disturb, or thermally affect a pre-existing surface treatment.
This is why Article 24's coating strategy and Article 27's corrosion-testing strategy should be considered together.
The full engineering chain is:
Surface Treatment → Welding → Post-Weld Condition → Assembly → Environmental Exposure → Corrosion Performance
Galvanic corrosion can occur when dissimilar conductive metals are electrically connected in the presence of an electrolyte.
Potential combinations include:
Carbon steel and stainless steel
Carbon steel and aluminum
Zinc-coated steel and aluminum
Stainless steel and aluminum
The actual corrosion risk depends on:
Metal combination
Relative exposed surface areas
Electrochemical potential
Moisture availability
Electrolyte conductivity
Electrical contact
Coating condition
Environmental exposure
Therefore, simply selecting a “corrosion-resistant” fastener does not automatically solve galvanic-corrosion risk.
Aluminum structures require particular attention when steel fasteners are used.
Possible control strategies may include:
Compatible surface treatments
Electrical isolation where appropriate
Protective coatings
Sealing
Controlled joint geometry
Material selection
Environmental validation
The correct solution depends on the complete assembly.
Stainless steel can provide strong corrosion resistance in many environments, but stainless steel is not immune to all forms of corrosion.
Crevice corrosion, localized corrosion, contamination, and environmental exposure can still be relevant.
Therefore, “stainless steel fastener” should not be treated as a universal corrosion solution.

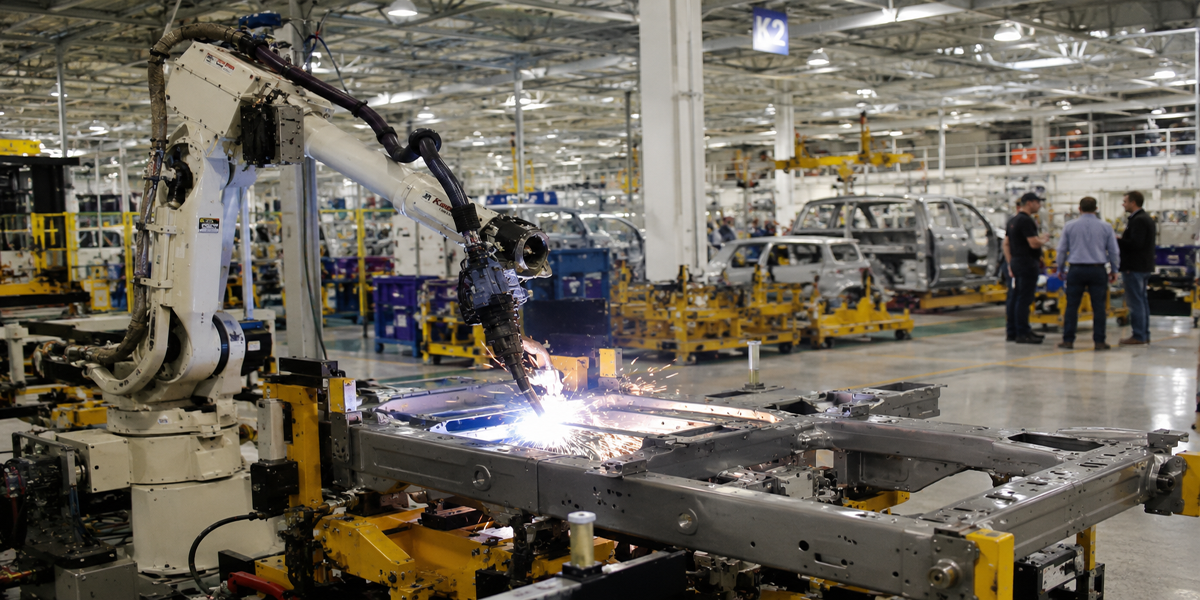

Welding can create localized changes in a component and its surrounding substrate.
Potential considerations include:
Heat-affected areas
Coating disturbance
Weld spatter
Surface contamination
Local geometry
Moisture retention
The corrosion behavior of a weld-fastener assembly can therefore differ from that of an unwelded fastener tested separately.
For qualification programs, customers may need to determine whether corrosion testing should evaluate:
The fastener alone
or
The welded fastener and representative substrate assembly
or both.
The test specimen should reflect the actual engineering question being investigated.
Coating thickness can influence corrosion performance, but thickness alone does not define the complete performance of a coating system.
Other factors include:
Coating chemistry
Surface preparation
Pretreatment
Passivation
Sealing
Uniformity
Edge coverage
Thread coverage
Substrate condition
Therefore, procurement should avoid specifying only:
“Thick coating required.”
A better specification identifies:
Coating system
Applicable standard
Required coating thickness where specified
Test method
Corrosion acceptance criterion
Inspection method
This produces a more reproducible purchasing requirement.
Fastener corrosion testing should consider the functional areas of the component.
Important features can include:
Internal threads
External threads
Weld projections
Flanges
Locating features
Machined surfaces
Corrosion products can potentially affect assembly if they accumulate on critical surfaces.
For example, a coating that provides acceptable flat-surface corrosion performance may still require evaluation for threaded assembly behavior.
Therefore, quality inspection should consider both:
Corrosion appearance
and
Functional condition after exposure
when required by the customer specification.
Some industrial fasteners perform an electrical bonding or grounding function.
In these cases, corrosion testing should not be evaluated only by visual appearance.
The assembly may also require evaluation of:
Electrical continuity
Contact resistance
Coating condition
Contact area
Mechanical integrity
Environmental durability
A surface treatment that improves corrosion protection may also alter electrical contact behavior.
Therefore, the engineering requirement may involve a trade-off between:
Corrosion Protection + Electrical Contact + Welding Process + Assembly Reliability
This is particularly important for:
Electrical enclosures
Grounding studs
Battery systems
Power equipment
Industrial control cabinets
Corrosion requirements should be matched to the actual operating environment.
Potential exposure may include:
Humidity
Condensation
Industrial dust
Mild chemicals
The coating requirement may differ substantially from an outdoor application.
Outdoor machinery may experience:
Rain
Humidity
Temperature cycling
Dirt
Salt contamination
UV exposure
Corrosion protection should therefore be evaluated as part of the complete environmental system.
Automotive corrosion requirements may involve:
Road salt
Humidity
Temperature cycling
Mud
Water splash
Underbody exposure
Customer-specific cyclic corrosion testing
The final acceptance criteria should follow the applicable customer or program specification.
Marine environments can introduce significant chloride exposure.
However, the phrase “marine grade” should not be used as a substitute for an actual corrosion specification.
Procurement should define:
Environment
Material
Coating
Test method
Exposure requirement
Acceptance criteria
rather than relying only on marketing terminology.
A useful corrosion specification should answer several questions.
Which standard applies?
Examples may include:
ASTM B117
A customer-specific cyclic corrosion procedure
An applicable coating standard
An OEM internal test method
How long must the specimen be exposed?
The required duration should come from the customer or applicable specification.
What constitutes failure?
Possible criteria may include:
Red rust
Defined corrosion area
Functional degradation
Thread impairment
Coating delamination
Electrical-performance change
Is the test performed on:
Finished fasteners?
Welded assemblies?
Representative coated panels?
As-installed components?
How is corrosion evaluated?
The method should be clearly defined so different suppliers are evaluated consistently.
A professional test report should provide more information than:
“Passed 720 hours.”
Procurement and quality engineers should look for:
Sample identification
Fastener material
Surface treatment
Coating system
Coating thickness where applicable
Test method
Test duration
Test chamber conditions
Specimen preparation
Inspection method
Corrosion observations
Acceptance criteria
Test laboratory information
Test date
Traceability information
The exact documentation depends on the customer requirement and test arrangement.
A complete report provides much stronger evidence than an unsupported salt-spray claim.
When qualifying a fastener supplier, procurement teams should distinguish between:
Supplier Claim
and
Documented Test Evidence
A supplier may state that a coating provides high corrosion resistance.
For critical applications, procurement should ask:
What coating system was tested?
Which substrate was used?
Which test method was used?
What was the exposure duration?
What was the acceptance criterion?
Was the tested configuration representative of the production part?
Can the result be traced to the supplied coating system?
Is testing performed internally or externally?
How are coating changes controlled?
This is particularly important when corrosion performance is part of a formal customer qualification.
Before releasing a corrosion-sensitive fastener for production, engineering teams should review:
Is the substrate material appropriate?
Is stainless steel, carbon steel, or another material required?
Is galvanic compatibility evaluated?
What coating system is required?
Is the coating applied before or after welding?
Is post-treatment required?
Is the coating thickness specified?
Will welding alter the protective coating?
Is the welding process compatible with the surface condition?
Are electrode contamination and spatter controlled?
Is post-weld corrosion protection required?
Are threads exposed to the environment?
Are crevices created?
Can water accumulate?
Is electrical bonding required?
Indoor?
Outdoor?
Coastal?
Automotive?
Industrial chemical?
High humidity?
Condensation?
Road-salt exposure?
Which corrosion test applies?
What exposure duration is required?
What constitutes failure?
Is component-level or assembly-level testing required?
A strong OEM RFQ should avoid vague requirements such as:
“Use corrosion-resistant fasteners.”
Instead, procurement should provide as much of the following as practical:
Fastener material
Surface treatment
Applicable coating standard
Coating thickness where specified
Welding process
Parent material
Environmental exposure
Corrosion test method
Test duration
Acceptance criteria
Required documentation
Traceability requirements
This allows suppliers to quote equivalent requirements accurately.
It also prevents suppliers from making different assumptions about what “corrosion-resistant” means.
Higher corrosion performance can involve additional coating or process cost.
However, the correct procurement decision should consider the complete cost of failure.
Potential costs include:
Field corrosion
Warranty claims
Replacement
Maintenance
Production rework
Customer complaints
Product recalls
Corrosion-related electrical failures
Premature structural degradation
At the same time, unnecessarily specifying an expensive coating for a low-risk indoor application can create avoidable cost.
The engineering objective is therefore:
Select the corrosion-protection system appropriate for the actual environment and risk level.
Not:
Select the highest salt-spray-hour coating available.
For OEM projects, corrosion should be evaluated across the complete lifecycle:
Fastener Material | v Surface Treatment | v Welding Process | v Post-Weld Condition | v Assembly Environment | v Environmental Exposure | v Corrosion Testing | v Acceptance Criteria | v Production Quality Control
This lifecycle approach is more reliable than selecting a coating only from a supplier catalogue.
It also allows engineering, quality, procurement, and manufacturing teams to use the same technical framework.
Salt-spray exposure does not directly translate into years of field service.
ASTM B117 defines a test method. The acceptance criteria must come from the applicable specification.
Two coatings tested under different configurations should not automatically be compared as if the results were equivalent.
A coating that performs well before welding may not provide the same protection after welding.
The corrosion behavior of the complete welded assembly can differ from that of the isolated fastener.
Stainless steel can still experience application-specific corrosion mechanisms.
Environmental terminology should not replace a defined engineering requirement.
Dissimilar metals can create additional corrosion risks even when each material individually has good corrosion resistance.
Corrosion testing may need to evaluate functional performance as well as visible corrosion.
A practical OEM qualification process can follow:
Identify:
Indoor/outdoor
Humidity
Salt exposure
Chemicals
Temperature cycling
Condensation
Expected service environment
Identify:
Fastener material
Parent sheet material
Dissimilar-metal interfaces
Surface treatment
Establish:
Welding
Coating
Painting
E-coating
Assembly
Sealing
Determine:
ASTM B117 or other applicable method
Cyclic corrosion test where required
Exposure duration
Specimen configuration
Acceptance criteria
Test a configuration representative of the actual production fastener and assembly where required.
Changes to:
Material
Plating
Coating supplier
Coating process
Surface preparation
Welding sequence
should be evaluated according to the customer's change-control requirements.
Corrosion requirements can significantly influence:
Fastener material
Surface treatment
Manufacturing sequence
Welding process
Packaging
Inspection
Testing
Cost
Therefore, corrosion should not be added after a fastener has already been selected.
Article 22 established the importance of complete RFQ information.
Article 24 addressed surface finishes and coating strategies.
Article 27 extends that engineering path into corrosion validation and quality assurance.
The resulting sourcing chain becomes:
Application → Material → Surface Treatment → Welding → Corrosion Testing → Quality Documentation → Production
This reduces the risk of discovering a coating or corrosion problem after mass production has already started.
JUXIN FASTENERS works with industrial fastening requirements where material, welding, surface treatment, corrosion protection, and procurement specifications need to be considered together.
For corrosion-sensitive weld fasteners, customers can provide:
Part drawings
Fastener material
Parent-sheet material
Surface-treatment specification
Welding process
Environmental requirements
Salt-spray target
Applicable corrosion standard
Customer acceptance criteria
Annual usage
Required quality documentation
This information allows the fastener configuration to be evaluated according to the actual application rather than by a generic corrosion-resistance label.
Where zinc-nickel or other protective coating systems are required, the applicable test configuration and acceptance criteria should be established before production qualification.
The objective is not to claim that a single coating is suitable for every environment.
The objective is to select a material + coating + welding + assembly + testing system that matches the customer's actual engineering requirements.
This article should connect with the broader JUXIN FASTENERS Weld Fasteners Solutions architecture:
Fastener Surface Finishes & Coatings
Substrate Material Compatibility for Weld Fasteners
Weld Fastener Procurement & RFQ Best Practices
Fastener Supplier Quality Audits & Certifications
Fastener Packaging & Feeder Compatibility
Automotive BIW Weld Fasteners
EV Battery Enclosure Weld Fasteners
Electrical Enclosure Weld Fasteners
Custom Weld Fasteners
The engineering pathway is:
Material Selection → Surface Treatment → Welding → Corrosion Testing → Supplier Quality → Packaging → OEM Production
ASTM B117 is a standardized laboratory method for conducting salt spray exposure testing.
It provides a controlled corrosion-test environment, but it does not by itself establish a universal pass/fail requirement for every fastener.
No.
Salt-spray hours should not be directly converted into field service life. Actual outdoor corrosion depends on environment, coating system, assembly geometry, moisture, temperature, contaminants, and other factors.
White or light-colored corrosion products can be associated with corrosion of zinc-based protective layers, while red rust generally indicates corrosion of underlying iron or steel.
The exact acceptance criteria should follow the applicable coating or customer specification.
Not necessarily in every test program.
Whether red rust constitutes failure depends on the applicable specification, test objective, location, amount, and customer acceptance criteria.
For many protective-coating specifications, however, the appearance of base-metal corrosion is an important failure criterion.
Not automatically.
Zinc-nickel can provide higher corrosion performance under certain specified conditions, but coating selection should consider application environment,
welding sequence, electrical requirements, cost, coating specification, and customer validation requirements.
Not necessarily.
Automotive customers may specify cyclic corrosion procedures or other customer-specific validation methods. The final test requirement should come from the applicable automotive program specification.
The answer depends on the engineering question.
If the concern is coating performance on the finished fastener, component-level testing may be relevant.
If the concern is corrosion performance of the actual welded assembly, representative welded specimens may provide more meaningful information.
It can provide useful comparative and qualification information, but it is not a direct field-life prediction.
Real-world corrosion involves environmental cycles that may differ substantially from constant laboratory salt-fog exposure.
No.
Welding can locally change or disturb a coating system. The post-weld condition should be evaluated where corrosion performance is critical.
A strong requirement should identify the material, surface treatment, applicable test method, exposure duration, acceptance criteria, specimen configuration, and required documentation.
If your industrial weld fasteners will be exposed to humidity, salt, outdoor environments, chemicals, automotive road conditions, or other corrosive environments, include the corrosion requirements in the RFQ from the beginning.
Send JUXIN FASTENERS:
Fastener drawing
Fastener material
Parent-sheet material
Surface-treatment requirement
Welding process
Environmental exposure
Applicable corrosion standard
Salt-spray or cyclic-corrosion requirement
Required exposure duration
Acceptance criteria
Quality-documentation requirements
Annual usage and production requirements
Email: info@juxinfasteners.com
JUXIN FASTENERS — Precision Fastening Solutions Since 2003.
Reliable corrosion performance is not created by a single salt-spray number. It is the result of a controlled engineering system connecting material selection, surface treatment, welding, assembly design, environmental exposure, corrosion testing, and production quality control.
Product Packaging
Packaging Standard
At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.
1. Standard Export Packaging
Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:
Moisture-resistant inner protection
Poly bag or small box packing as required
Reinforced export cartons
Clear labeling with part number, specification, batch number, and quantity
Palletizing for sea or air shipment when necessary
Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.
2. Customized Packaging Options
We also provide customized packaging solutions according to customer requirements, including but not limited to:
Private labeling
Customized barcodes
Specific carton dimensions
Retail packaging
Special pallet configuration
Customer-specific marking and identification
So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.
3. Compliance & Quality Assurance
All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
Product Pictures
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
