Heavy-Duty Automotive Fastening: The Strategic Advantage of DIN 928 Square Weld Nuts in Chassis and Body-in-White (BiW) Engineering

Heavy-Duty Automotive Fastening: The Strategic Advantage of DIN 928 Square Weld Nuts in Chassis and Body-in-White (BiW) Engineering

In modern automotive manufacturing, structural integrity and assembly efficiency are non-negotiable. As vehicles transition toward lighter materials and modular architectures, design engineers face the continuous challenge of creating high-strength, reliable threaded anchor points on thin-gauge metal sheets. Traditional tapped holes often fail to provide sufficient thread engagement, leading to stripping under high vibrational loads.

The DIN 928 square weld nut has emerged as the global standard for securing critical automotive assemblies. By integrating a high-contact welding interface directly into structural components, this fastening solution ensures long-term joint integrity in high-stress environments such as seating assemblies, body structures, and chassis frameworks.

1. Engineering Analysis: Why the Square Weld Nut Design Excels

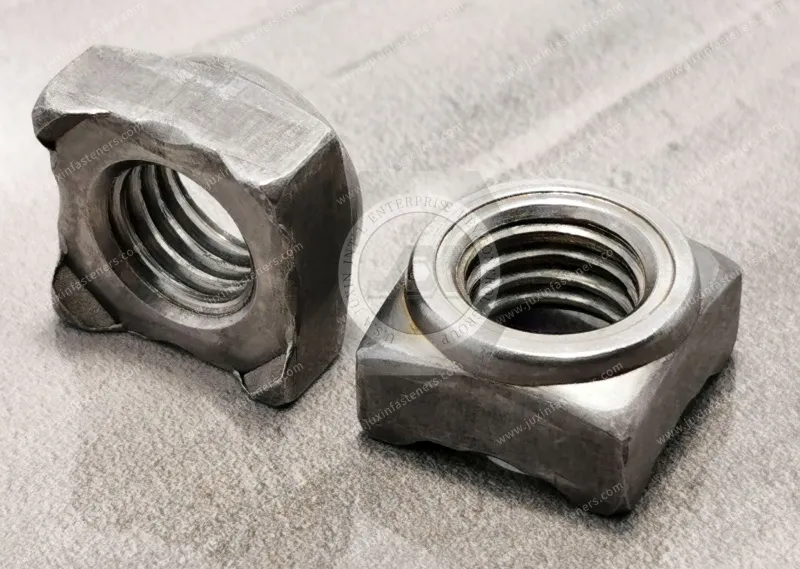

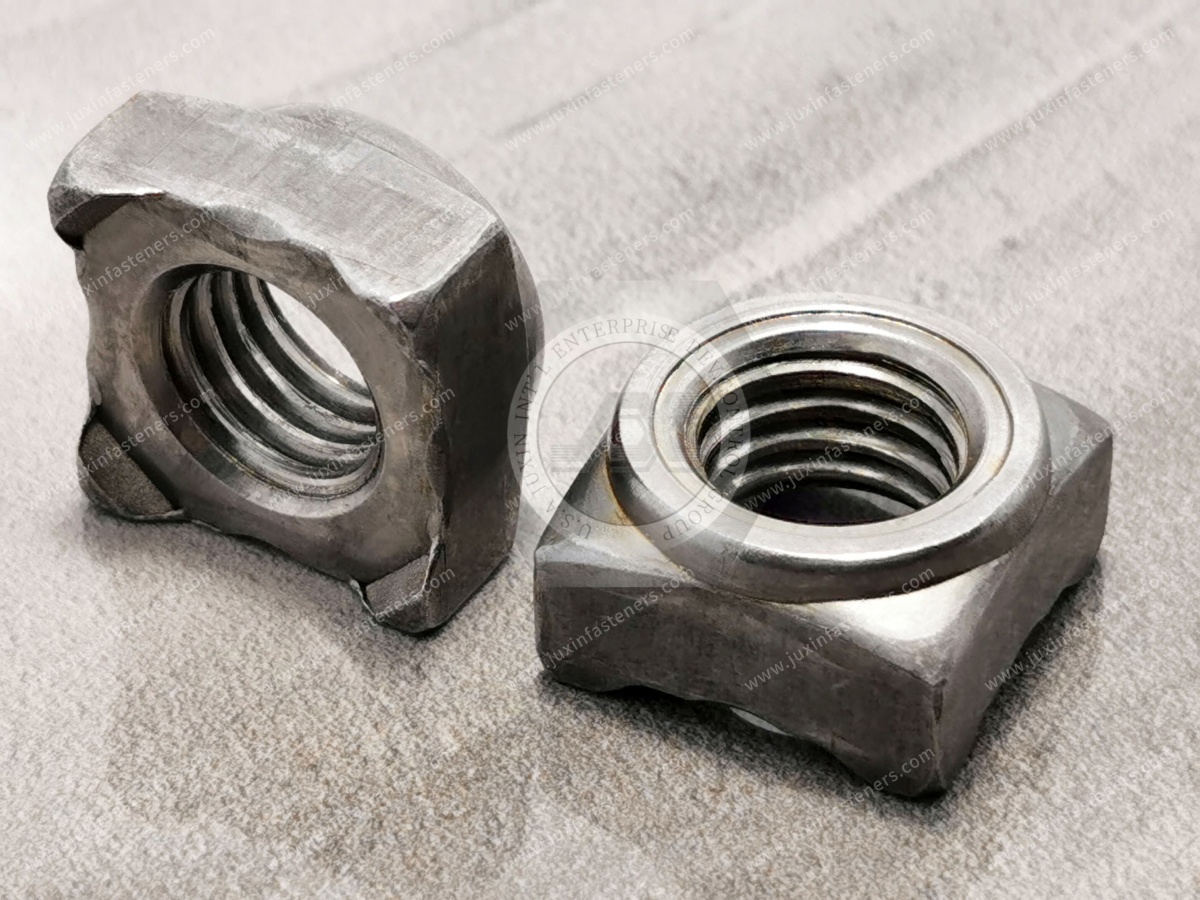

The distinctive geometry of the DIN 928 square weld nut is engineered to optimize resistance welding—a critical factor in automated automotive production lines.

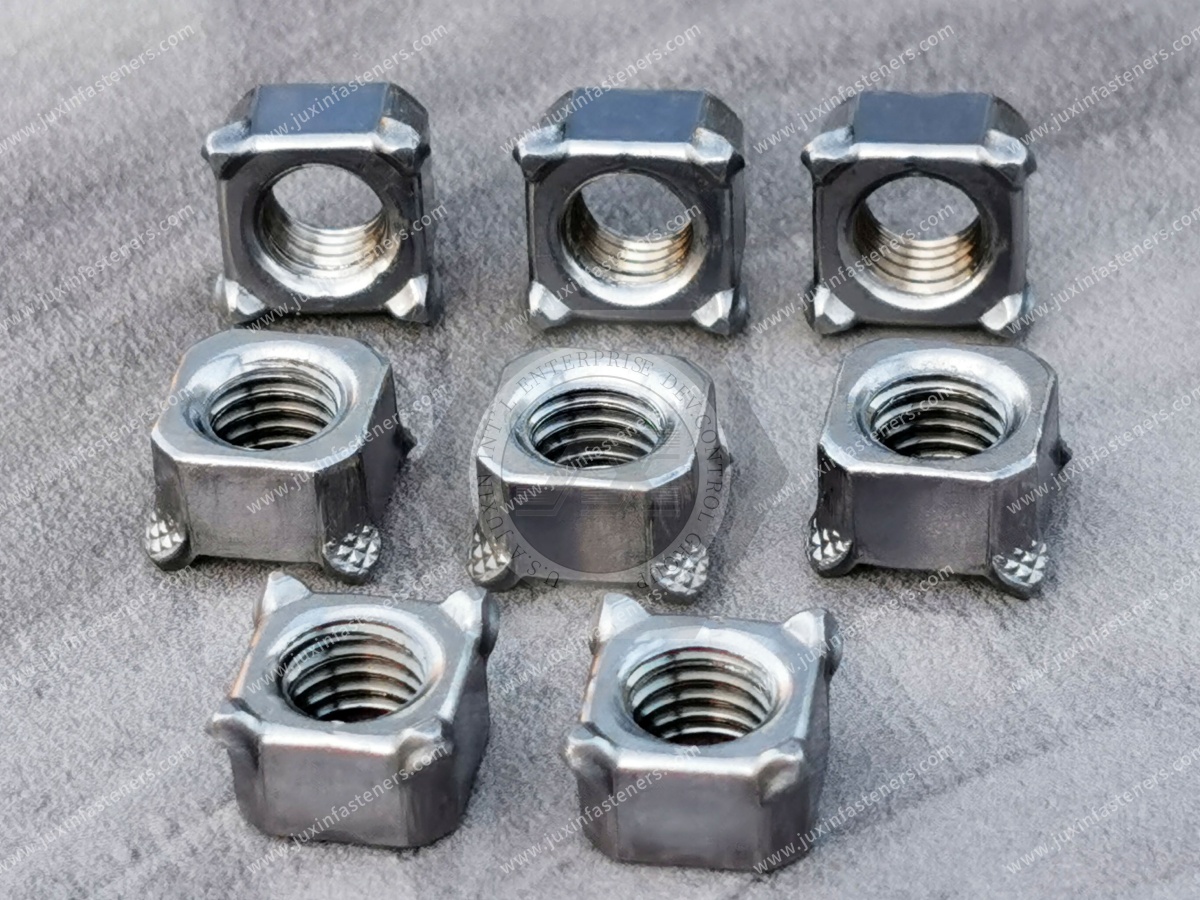

• Uniform Projection Welding:The underside of the nut features four precision-engineered, uniform welding projections at each corner. During the projection welding process, electrical current and pressure are concentrated strictly on these points, creating localized fusion without distorting the internal metric threads.

• Maximized Joint Integrity: Compared to standard round weld nuts, the square profile offers a significantly larger welding contact area. This distribution drastically increases torsional resistance (anti-spin) and push-out force, ensuring the nut remains permanently anchored even under heavy impact or automated impact-wrench assembly.

• Optimized Thread Precision: Featuring high-precision metric threading compliant with the strict 6G thread tolerance class, these nuts guarantee a seamless, galling-free fit with standard automotive-grade bolts, eliminating cross-threading bottlenecks on the assembly line.

2. Technical Specifications & Dimension Matrix

For automotive design engineers, geometric precision is mandatory for CAD modeling and robotic clearance planning. Below is the technical breakdown of the DIN 928 standard across common metric sizes.

DIN 928 Dimensional Reference Table

Custom sizes beyond M16 are available upon request to meet specific blueprints for heavy commercial vehicles.

3. Core Automotive Applications & Solutions

[Vehicle Frame / Sheet Metal Panel]

          │ (Resistance Projection Welding)

[DIN 928 Square Weld Nut] ── Provides Rigid, Anti-Spin Anchor Point

          │ (High-Torque Bolt Fastening)

[Sub-Assembly Component: Seats, Chassis Brackets, Door Structures]

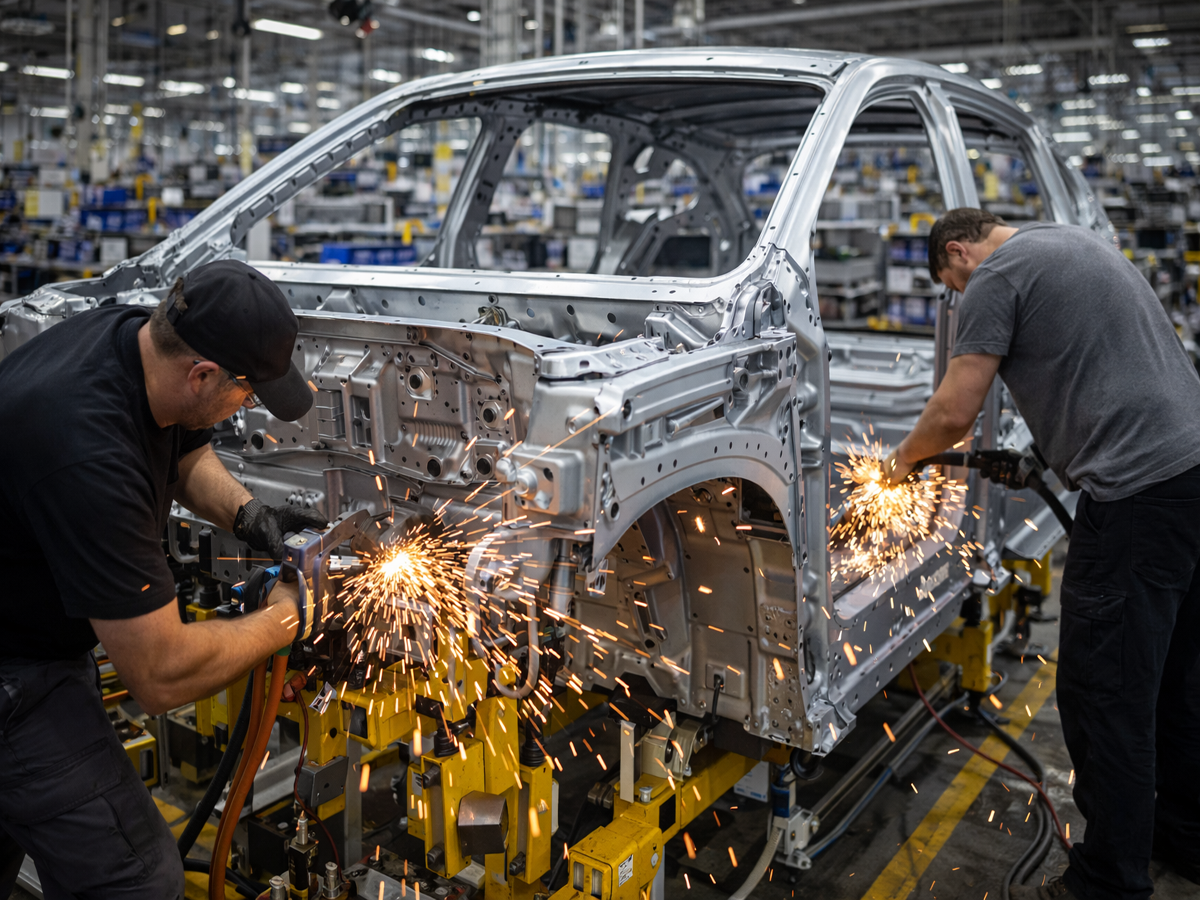

Body-in-White (BiW) & Structural Frameworks

In automotive body structures, space constraints often make rear-side nut access impossible during final assembly. DIN 928 weld nuts are pre-welded onto closed-section profiles, hydroformed tubes, and structural pillars during the stamping phase. This provides reliable, blind-threaded anchor points for subsequent bolt connections.

Automotive Seating Assemblies

Seating tracks and safety belt anchor points must withstand extreme load retention during crash testing. Carbon steel and high-tensile variants of the square weld nut provide the necessary shear and tensile strength to ensure passenger safety modules remain firmly anchored to the vehicle floorpan.

Chassis and Underbody Components

Exposed underbody environments demand strict mechanical durability. For these applications, stainless steel DIN 928 weld nuts are heavily specified. They provide exceptional high-temperature durability and superior corrosion resistance against road salt, moisture, and chemical exposure, preventing catastrophic structural oxidation.

4. Material Selection Guide for Procurement Managers

Choosing the correct material class directly influences both the component cost and the vehicle matrix's lifecycle performance.

• Carbon Steel (Class 8 / Class 10): The industry standard for interior structural components, bracketry, and BiW applications where subsequent ecoat (electrophoretic deposition) or painting provides environmental protection. Excellent weldability characteristics with standard automated equipment.

• Stainless Steel (A2 / A4 Grade): Highly recommended for exhaust system brackets, wheel well areas, powertrain mounts, and electric vehicle (EV) battery enclosures. Provides the necessary resistance to thermal degradation and harsh galvanic corrosion.

Partner with a Certified DIN 928 Fastener Manufacturer

As a leading Tier supplier of industrial fasteners, we supply precision-engineered DIN 928 square weld nuts that meet rigorous quality control and PPAP (Production Part Approval Process) standards required by European and American automotive supply chains. Our state-of-the-art cold forging and thread rolling technologies ensure zero-defect production runs, optimized weld projections, and flawless compatibility with 6G thread tolerances.
