Thread Insert Nuts for Automotive Plastic-to-Metal Fastening: Engineering Design, Installation Methods and OEM Sourcing

Automotive manufacturers increasingly use engineered plastics in vehicle interiors, electronic control units, lighting systems, sensor housings and auxiliary equipment.

These materials offer design flexibility and opportunities for weight reduction, component integration and efficient manufacturing.

However, connecting plastic components to metal screws introduces engineering challenges that differ from conventional metal-to-metal fastening.

Plastic threads may experience stripping, deformation, creep or damage during repeated assembly.

 Thermal cycling, vibration and long-term mechanical loading can further affect joint performance.

Thread Insert Nuts, also known as Threaded Inserts for Plastics, provide metallic internal threads within suitable plastic components.

When correctly selected and installed, they can improve thread durability, support repeated assembly and provide a more controlled connection to mating metal fasteners.

Their performance, however, depends on more than the metal insert alone.

A successful automotive plastic-to-metal joint requires compatibility between the insert geometry, plastic material, molded boss, installation process, mating screw and service environment.

JUXIN FASTENERS supplies industrial threaded inserts and related fastening components for plastic assemblies, including standard and drawing-based OEM requirements.

This engineering guide examines the selection, installation and qualification of thread insert nuts for automotive manufacturing,

with particular attention to product design, production efficiency, joint reliability and supplier development.

What Are Thread Insert Nuts?

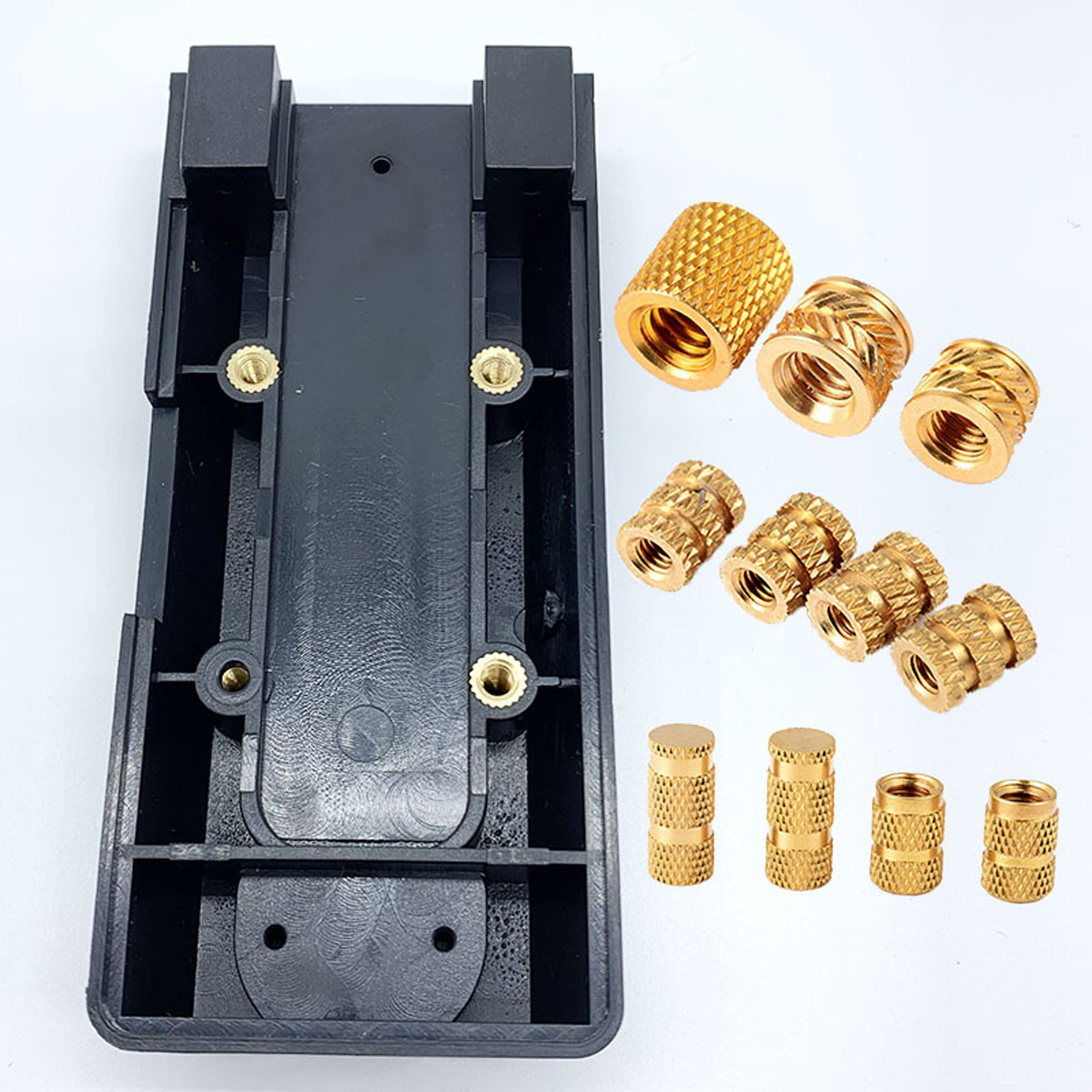

A thread insert nut is a metal fastening component designed to provide an internal thread within a plastic part.

The insert is retained by mechanical engagement with the surrounding plastic.

Depending on its design, retention may be achieved through knurls, undercuts, external threads, barbs, flanges or features formed during molding.

The insert's internal thread receives a mating screw or bolt.

Common Industry Names

• Thread Insert Nuts

• Threaded Inserts for Plastics

• Brass Threaded Inserts

• Brass Heat-Set Inserts

• Ultrasonic Threaded Inserts

• Molded-In Threaded Inserts

• Press-In Threaded Inserts

• Self-Tapping Inserts for Plastic

• Knurled Brass Inserts

• Metal Inserts for Plastic Components

These terms describe related product categories, but the installation methods and geometries are not necessarily interchangeable.

Why Metal Threads Are Used in Plastic Components

A threaded insert separates two functions.

The metal insert provides the mating thread.

The surrounding plastic retains the insert and transfers load into the molded component.

This distinction is important because a strong metal thread does not automatically create a strong plastic joint.

Potential Advantages

• More durable internal threads than some directly formed plastic threads

• Improved resistance to thread stripping during repeated assembly

• Ability to use conventional mating screws

• Potentially better control of assembly geometry

• Compatibility with selected automated installation methods

• Opportunities for component serviceability and repair

Important Limitations

The surrounding plastic may still crack, creep, deform or fail.

The insert may rotate or pull out if its geometry, installation or boss design is unsuitable.

A threaded insert does not automatically provide a vibration-proof or fatigue-resistant joint.

Automotive Applications for Thread Insert Nuts

Threaded inserts are relevant to numerous automotive plastic assemblies.

Interior Trim and Dashboard Components

Plastic brackets, instrument-panel accessories and selected interior housings may require durable threaded attachment points.

Important requirements include repeated assembly, dimensional accuracy, appearance and resistance to vibration.

Door Modules and Interior Equipment

Certain door-related plastic housings and accessories may use threaded inserts for removable components.

The design must account for assembly access, boss geometry and repeated service operations.

Automotive Lighting Systems

Headlamp and rear-light housings may incorporate threaded mounting features.

Thermal exposure, moisture, plastic material and vibration requirements must be considered.

Electronic Control Unit Housings

ECU enclosures and electronic module housings may require threaded attachment points for covers, brackets or internal components.

The joint design should account for assembly torque, thermal cycling, electrical requirements and service access.

Sensor and Communication Equipment

Selected sensor housings and communication modules may use inserts where a reusable thread is required.

Insert selection must account for housing dimensions, plastic material and the required mechanical loading.

EV and Hybrid Vehicle Equipment

Electric vehicles incorporate plastic housings and insulating components in various electronic and auxiliary systems.

Threaded inserts may be appropriate for selected noncritical mounting applications.

However, high-voltage insulation, battery sealing, thermal runaway considerations, crash performance and other safety requirements must be evaluated at the assembly level.

Where Thread Insert Nuts Should Not Be Selected Automatically

Safety-critical suspension connections, primary crash structures and highly loaded vehicle attachments require separate engineering qualification.

A conventional brass insert embedded in plastic should not be treated as a general substitute for a structural metal fastening system.

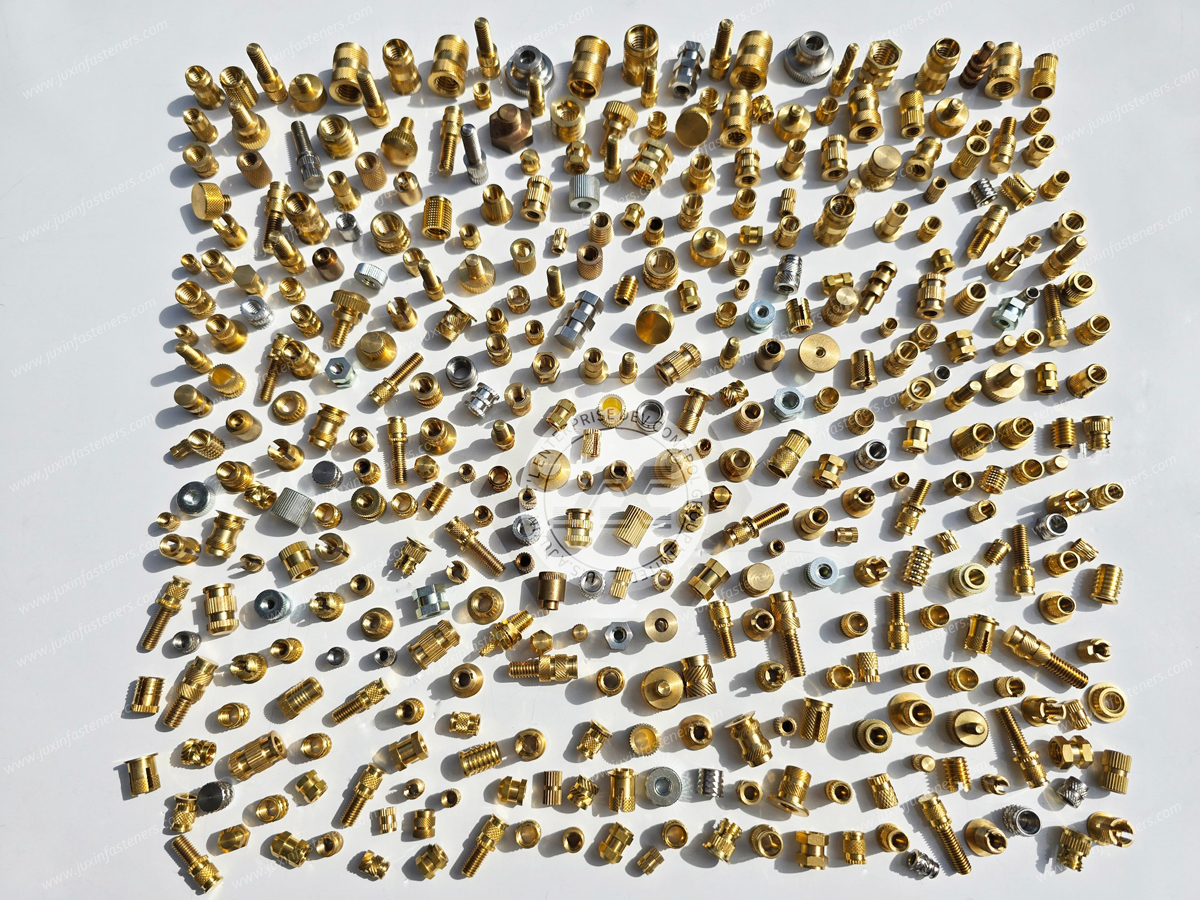

Main Types of Thread Insert Nuts for Plastics

Different insert designs are intended for different installation processes.

The selection should begin with the plastic material, production method and required joint performance.

Heat-Set Thread Insert Nuts

Heat-set inserts are installed into suitable thermoplastic components after molding.

The insert is heated using controlled equipment.

Heat transfers into the surrounding plastic, allowing the material to soften and flow into the insert's external retention features.

After cooling, the plastic forms a mechanical interlock around the insert.

Typical Applications

• Automotive electronic housings

• Plastic mounting brackets

• Lighting assemblies

• Interior plastic components

• Precision molded enclosures

Potential Advantages

• Durable internal threads

• Controlled post-mold installation

• Good performance when plastic flow is properly developed

• Compatibility with selected automated equipment

Engineering Considerations

The process must provide sufficient plastic flow without damaging the boss or deforming the component.

Temperature, insertion speed, depth and tooling alignment must be controlled.

Ultrasonic Thread Insert Nuts

Ultrasonic insertion uses mechanical vibration to generate localized heating at the metal-plastic interface.

The plastic softens around the insert, allowing the external features to become embedded.

After cooling, the surrounding material retains the insert.

Potential Advantages

• Short installation cycles in suitable applications

• Localized heating

• Compatibility with automated equipment

• Controlled installation when properly validated

Engineering Limitations

Ultrasonic insertion requires suitable equipment, tooling and fixturing.

Process behavior differs between amorphous and semi-crystalline thermoplastics.

A process developed for ABS should not automatically be applied to glass-filled PA66 or other engineering polymers.

Heat-Set Versus Ultrasonic Installation

Neither method is universally superior.

Heat insertion may provide a useful process window for certain materials and component geometries.

Ultrasonic insertion may be attractive where cycle time and equipment integration are important.

The correct choice depends on:

• Plastic resin

• Filler content

• Insert geometry

• Boss design

• Installation equipment

• Required pull-out performance

• Torque resistance

• Cosmetic requirements

• Production volume

Molded-In Thread Insert Nuts

Molded-in inserts are positioned inside the mold before plastic injection.

The molten plastic flows around the insert's external retention features.

After cooling, the insert becomes mechanically retained within the molded component.

Potential Advantages

• No separate post-mold insertion operation

• Integration into the molding process

• Compatibility with selected thermoplastic and thermoset materials

• Potentially strong retention when properly designed

Engineering Considerations

The insert must remain correctly positioned during molding.

Mold tooling must accommodate the insert.

The process must prevent plastic contamination of the internal thread.

Why Molded-In Is Not Always the Best Option

Placing inserts into a mold adds handling and tooling requirements.

Incorrect insert placement may cause part rejection or tooling damage.

For some production programs, post-mold installation may offer lower overall manufacturing cost.

Press-In Thread Insert Nuts

Press-in inserts are installed into prepared holes using mechanical force.

Retention depends on the insert geometry and plastic deformation.

They may be suitable for selected plastic materials and load requirements.

Advantages

• No thermal installation process

• Potentially simple equipment

• Suitable for certain production and service applications

Limitations

Excessive interference may crack the plastic boss.

Retention may be insufficient for demanding applications if the insert and hole are not correctly matched.

Self-Tapping Thread Insert Nuts

Self-tapping inserts use external cutting or forming features to engage the plastic during installation.

They may be used in suitable thermoplastic or thermoset components.

Advantages

• Post-mold installation

• No separate heat or ultrasonic process

• Useful for selected applications requiring a mechanical installation method

Limitations

Installation torque, hole geometry and plastic material must be controlled.

An incorrect hole size can cause excessive stress or poor retention.

Expansion and Screw-to-Expand Inserts

Some insert designs expand or mechanically lock into the plastic when a mating screw is installed.

These products require their own installation and assembly procedures.

They should not be treated as equivalent to heat-set or molded-in inserts.

Choosing the Correct Insert Installation Method

The following selection logic provides a practical starting point.

Thermoplastic Housing with Repeated Service Assembly

Consider heat-set or ultrasonic inserts where the resin and boss geometry are suitable.

Thermoset Plastic Component

Consider molded-in, press-in or suitable self-tapping designs.

Heat and ultrasonic insertion processes that depend on remelting the host material are generally not suitable for cured thermosets.

High-Volume Injection-Molded Component

Compare molded-in and automated post-mold insertion using total installed cost, quality and tooling requirements.

Limited Access to Installation Equipment

A suitable mechanical insertion method may be preferable.

High Pull-Out or Torque Requirements

Evaluate insert length, external retention features, plastic boss geometry and the load path.

Do not assume that one insert category always provides the highest strength.

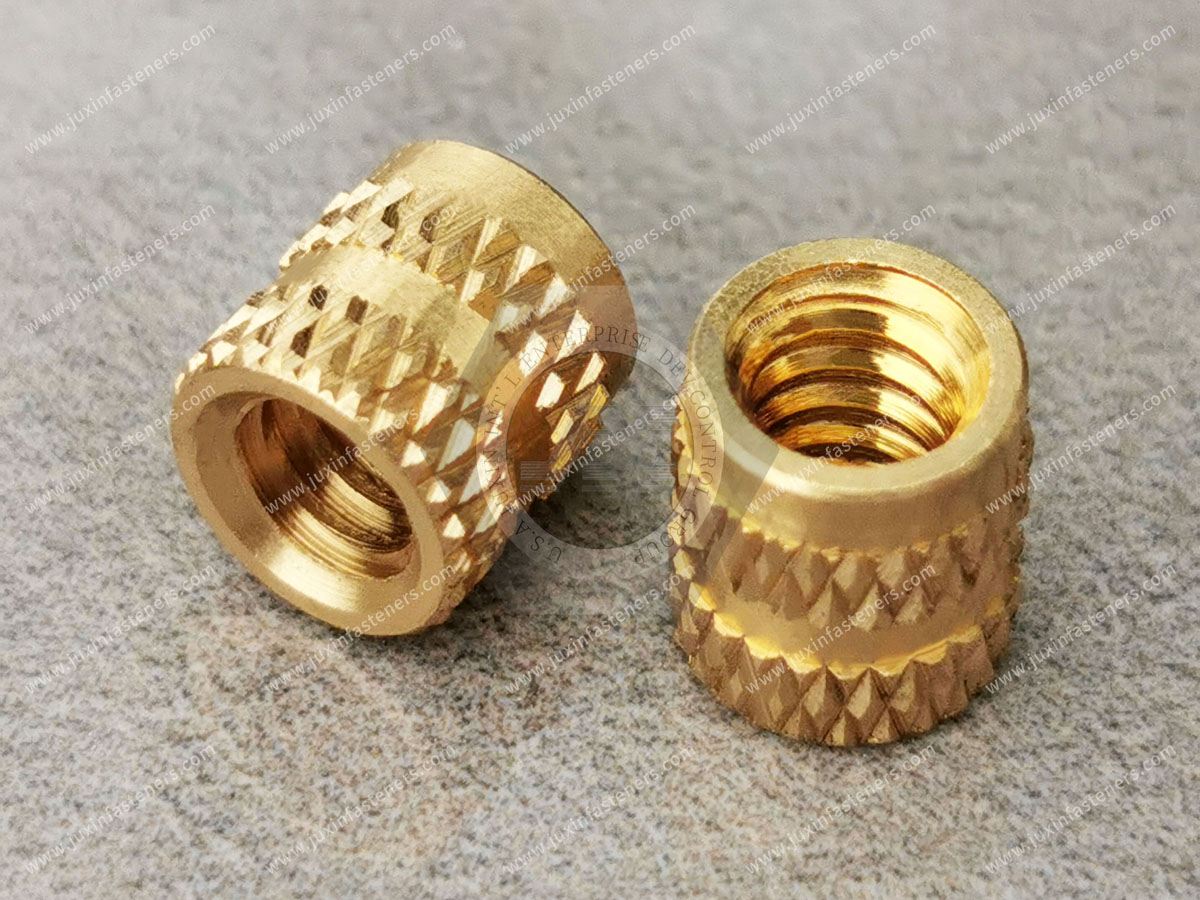

Brass Thread Insert Nuts: Material Selection

Brass is widely used for threaded inserts in plastic assemblies.

Its combination of machinability, corrosion resistance and thermal conductivity makes it suitable for many heat-insertion applications.

Advantages of Brass

• Good machinability

• Suitable thermal conductivity for heat installation

• Corrosion resistance in many environments

• Nonmagnetic characteristics

• Durable internal threads for suitable applications

Brass Alloy Selection

Different brass alloys have different mechanical properties, lead contents and manufacturing characteristics.

The required alloy should be identified in the drawing or purchasing specification.

Lead and Material Compliance

Some machinable brass grades contain lead.

Where applicable, automotive OEM material restrictions and regulatory requirements must be reviewed.

A generic description such as "brass insert" does not establish lead-free status or compliance with a particular environmental requirement.

Stainless Steel Thread Insert Nuts

Stainless steel may be considered where corrosion resistance, material restrictions or mechanical requirements justify its use.

However, stainless steel has different thermal and machining characteristics from brass.

The insert geometry and installation process must be evaluated accordingly.

Carbon Steel Thread Insert Nuts

Carbon steel may be suitable for selected insert designs where mechanical and commercial requirements justify its use.

Surface protection and corrosion exposure should be considered.

Aluminum Thread Insert Nuts

Aluminum inserts may be considered where weight is important and the required thread strength and installation characteristics can be achieved.

They should not automatically be substituted for brass or stainless steel.

Material Selection Principle

The best insert material is not necessarily the strongest metal.

It is the material that provides the required thread performance, installation compatibility, corrosion behavior and total assembly cost.

Plastic Material Selection: ABS, PC, PP, PA and Reinforced Polymers

Plastic properties strongly influence insert performance.

ABS

ABS is commonly used in molded housings and interior components.

Its thermal behavior and boss geometry must be considered during heat or ultrasonic insertion.

Polycarbonate (PC)

PC may be selected where impact performance and dimensional requirements are important.

Residual stress, environmental exposure and installation conditions must be evaluated.

PC/ABS Blends

PC/ABS blends are used in various automotive and electronic housings.

The installation process should be validated using the actual resin grade.

Polypropylene (PP)

PP has different stiffness, creep and thermal properties from engineering plastics such as PC and PA.

Insert retention must be evaluated for the expected service conditions.

Polyamide (PA6 and PA66)

Polyamide materials are widely used in engineering components.

Moisture absorption can influence dimensions and mechanical behavior.

Glass-Fiber-Reinforced Polyamide

PA66-GF30 and other reinforced grades may provide increased stiffness compared with unfilled material.

However, fiber content affects plastic flow, installation behavior and boss cracking risk.

Thermosetting Plastics

Cured thermosets generally cannot be remelted using conventional heat-set or ultrasonic insertion methods.

Molded-in or suitable mechanical installation designs may be more appropriate.

Why the Exact Resin Grade Matters

A generic designation such as "PA66" is insufficient when performance depends on filler content, moisture conditioning and thermal exposure.

The OEM should identify the resin grade and relevant material condition.

Plastic Boss Design: The Foundation of Insert Performance

The plastic boss is the molded feature that retains the insert.

Its design influences pull-out resistance, torque resistance, cracking risk and long-term reliability.

Hole Diameter

The hole must be matched to the insert's external geometry and installation method.

An oversized hole may provide insufficient retention.

An undersized hole may create excessive stress, cracking or displaced plastic.

Hole Depth

For selected heat-set and ultrasonic insert designs, the hole must be deeper than the insert.

This allows room for plastic displacement and helps prevent the assembly screw from bottoming out.

Boss Diameter

The boss must provide sufficient surrounding plastic to retain the insert and transfer the expected loads.

Wall Thickness

Insufficient wall thickness may lead to cracking, bulging or reduced retention.

Ribs and Reinforcement

Ribs may help support a boss when properly designed.

However, rib geometry and molding conditions must be evaluated to avoid creating weak sections or molding defects.

Molded Hole Versus Drilled Hole

Molded holes may provide advantages in surface condition and consistency.

Drilled holes may be appropriate in some applications but require evaluation of hole quality and manufacturing variation.

Knitting and Weld Lines in Molded Plastic

Poorly positioned molding knit lines can reduce the strength of a boss.

Insert performance should be evaluated using production-representative molded components.

Engineering Reference: Hole Depth and Boss Diameter

SPIROL's published guidance for certain heat and ultrasonic inserts recommends a hole depth of at least the insert length plus two thread pitches.

Its general boss-design guidance also discusses an outside boss diameter approximately two to three times the insert diameter.

These are product-family design references, not universal requirements for every threaded insert.

Final dimensions must follow the selected insert supplier's design data and the OEM's validation results.

Why Fixed Hole Tolerances Should Be Avoided

A universal ±0.05 mm hole tolerance is not appropriate for every insert and plastic material.

The required tolerance depends on insert size, resin shrinkage, molding process, filler content and the intended installation method.

Headed Versus Unheaded Thread Insert Nuts

Insert head geometry influences the load path and assembly design.

Unheaded Inserts

Unheaded inserts may provide compact installation and allow certain symmetrical designs to be fed without orientation.

Headed Inserts

A head can provide additional bearing area for the mating component.

Depending on orientation and assembly design, it may help resist jack-out or pull-through.

Why Head Geometry Matters

A headed insert is not automatically better.

The design must consider available space, installation direction, mating-part clearance and manufacturing cost.

Knurl Geometry and Mechanical Retention

External knurls and undercuts are critical retention features.

Straight Knurls

May provide mechanical engagement depending on their geometry and the installation process.

Diagonal or Helical Knurls

Can improve resistance to rotation when matched to the plastic and installation method.

Opposing Knurl Patterns

Opposing knurl directions may provide resistance to different rotational loading conditions.

Undercuts

Undercuts allow softened or molded plastic to engage the insert and resist axial movement.

Why Deeper Knurls Are Not Always Better

Excessive interference or unsuitable knurl geometry may damage the surrounding plastic.

The correct design balances material displacement, boss stress, pull-out resistance and torque performance.

Pull-Out Strength, Torque-Out Resistance and Joint Reliability

Threaded insert performance should be evaluated using the actual assembly requirements.

Pull-Out Strength

Pull-out testing evaluates resistance to axial removal from the plastic component.

The result depends on insert geometry, plastic material, installation quality and test conditions.

Torque-Out Resistance

Torque-out testing evaluates resistance to rotation within the host material.

This is particularly important during tightening and removal of mating screws.

Thread Strength

The internal metal thread must withstand the required assembly loads.

Boss Failure

A strong insert may remain intact while the surrounding plastic cracks or deforms.

Repeated Assembly

Metal threads may reduce wear compared with direct plastic threads.

However, repeated assembly can still damage the insert, mating screw or plastic boss if tightening conditions are unsuitable.

Why One Test Result Is Not Enough

A high pull-out value does not automatically prove adequate torque-out resistance.

Likewise, a high torque-out value does not establish long-term fatigue or thermal cycling performance.

The qualification plan should reflect the actual loading conditions.

Avoiding Jack-Out in Plastic-to-Metal Assemblies

Jack-out occurs when tightening the assembly causes the insert to move or pull out of the host plastic.

This may occur when the mating screw bottoms out or when the joint geometry transfers force incorrectly.

Potential Causes

• Insufficient hole depth

• Excessive screw length

• Incorrect mating-part clearance

• Inadequate insert retention

• Incorrect insert installation depth

• Unsuitable joint geometry

Engineering Solutions

Ensure the screw does not bottom out.

Provide suitable clearance in the mating component.

Evaluate headed inserts where appropriate.

Confirm the installed insert position and assembly stack-up.

Tightening Torque and Clamp Load

The metal thread of an insert can accept a mating screw, but the surrounding plastic still limits the assembly.

Why Excessive Torque Is Dangerous

Excessive tightening may cause:

• Insert rotation

• Boss cracking

• Plastic compression

• Thread damage

• Loss of joint integrity

Torque Specification

Assembly torque should be established using the actual screw, insert, plastic component and joint geometry.

Generic torque tables for metal-to-metal fasteners should not automatically be applied to plastic assemblies.

Preload Retention

Plastic materials may relax under sustained compression.

This can reduce clamping force over time.

The design should account for creep and stress relaxation.

Compression Limiters

Where sustained clamp load is important, a suitable compression limiter may help prevent excessive compression of the plastic.

The limiter and threaded insert perform different functions.

The complete load path must be evaluated.

Thermal Cycling and Long-Term Creep

Automotive plastic assemblies may experience changing temperatures during manufacturing, storage and service.

Metal and plastic materials generally have different thermal expansion characteristics.

Thermal Expansion

Differential expansion can change the stress state around the insert.

Plastic Creep

Under sustained load, plastics may deform over time.

Stress Relaxation

Plastic relaxation may reduce retention or clamping force.

Thermal Aging

Material properties may change after prolonged exposure to elevated temperatures.

Moisture Effects

Polyamide and other moisture-sensitive polymers may experience dimensional and mechanical changes.

Engineering Recommendation

Evaluate the installed insert using the actual plastic resin, moisture condition, thermal exposure and assembly loading.

A room-temperature pull-out test alone may not represent long-term automotive service.

Vibration and Fatigue Considerations

Automotive components may experience repeated vibration and dynamic loading.

A threaded insert does not automatically prevent a mating screw from loosening.

Joint Design Variables

• Screw preload

• Mating fastener geometry

• Insert retention

• Plastic boss stiffness

• Vibration direction

• Temperature

• Assembly stack-up

Thread-Locking Methods

Where appropriate, a compatible locking method may be considered.

However, thread-locking products and mechanical locking features must be evaluated for compatibility with the insert material, plastic component and service environment.

Fatigue Testing

Fatigue evaluation may be required where cyclic loading is significant.

The test plan should reflect the actual joint design.

Automated Installation of Thread Insert Nuts

Automated installation can improve process repeatability and reduce repetitive manual handling.

However, it does not eliminate all manufacturing risks.

Heat-Set Installation Equipment

Controlled systems may regulate heating, insertion speed, depth and holding time.

Ultrasonic Installation Equipment

Ultrasonic systems may control amplitude, pressure, insertion travel and process time.

Automatic Feeding

Insert geometry affects orientation and feeding reliability.

Symmetrical inserts may offer handling advantages in suitable automated systems.

Vision and Position Monitoring

Depending on the equipment, production systems may verify part presence, insert position or installation completion.

Why Process Data Is Not the Same as Joint Strength

A successful insertion cycle indication does not automatically establish acceptable pull-out or torque-out performance.

Process monitoring must be correlated with mechanical testing.

Production Manager Considerations

Important manufacturing indicators include:

• Installation cycle time

• First-pass acceptance

• Feeding reliability

• Tooling maintenance

• Scrap rate

• Rework

• Equipment downtime

• Changeover time

• Inspection requirements

• Cost per accepted assembly

Pilot Production Validation

Before full production, the OEM should evaluate representative components and production equipment.

The pilot plan should include insert placement, depth, pull-out resistance, torque-out resistance and relevant environmental testing.

Common Thread Insert Nut Failures and Troubleshooting

Insert Spins During Screw Tightening

Possible causes include inadequate knurl engagement, incorrect hole diameter, poor installation or excessive assembly torque.

Insert Pulls Out of the Plastic Boss

Possible causes include insufficient retention, inadequate boss design, incorrect screw length or excessive axial loading.

Plastic Boss Cracks

Possible causes include undersized holes, excessive installation force, insufficient wall thickness or unsuitable material conditions.

Insert Sits Above the Surface

Possible causes include incorrect installation depth, insufficient plastic softening or tooling problems.

Insert Is Installed Too Deep

Possible causes include incorrect travel control or unsuitable installation parameters.

Plastic Flash Around the Insert

Possible causes include excessive material displacement, incorrect hole dimensions or unsuitable installation conditions.

Internal Thread Becomes Contaminated

Plastic may enter the internal thread during molding or insertion.

The design and process should prevent unacceptable thread obstruction.

Inconsistent Retention Between Production Lots

Investigate insert geometry, plastic resin, filler content, molding conditions, hole dimensions and installation settings.

How to Distinguish Insert Defects from Installation Problems

This distinction is important for supplier quality management.

Potential Insert-Related Problems

• Incorrect thread dimensions

• Knurl geometry variation

• Material mismatch

• Burrs

• Surface-condition variation

• Incorrect overall length

• Dimensional inconsistency

Potential Plastic Component Problems

• Incorrect hole diameter

• Inadequate boss wall thickness

• Poor molding conditions

• Knit lines

• Material degradation

• Resin-grade variation

• Excessive filler variation

Potential Installation Problems

• Incorrect temperature

• Excessive insertion force

• Poor alignment

• Inadequate heating

• Incorrect ultrasonic settings

• Insufficient holding or cooling time

• Tooling wear

Potential Assembly Problems

• Excessive screw torque

• Incorrect screw length

• Misaligned mating parts

• Inadequate clearance

• Unsupported plastic compression

Recommended Investigation

Compare accepted and failed assemblies.

Measure critical insert and boss dimensions.

Review the actual plastic resin and molding records.

Check installation settings.

Evaluate failure modes using appropriate tests.

Avoid attributing every failure to the insert supplier without evidence.

Quality Control and OEM Validation

A suitable quality plan should cover the insert, plastic component, installation process and final assembly.

Incoming Insert Inspection

Depending on the specification:

• Internal thread dimensions

• Overall length

• Outside diameter

• Knurl geometry

• Head dimensions

• Material identification

• Surface condition

• Visual defects

Plastic Component Inspection

Check the relevant hole dimensions, boss geometry and molding quality.

Installation Process Validation

Establish suitable installation parameters using representative production components.

Post-Installation Inspection

Verify insert position, depth, alignment and visible defects.

Mechanical Testing

Use pull-out, torque-out and other appropriate tests based on the application.

Environmental Testing

Where required, evaluate temperature cycling, humidity, moisture conditioning, chemical exposure and aging.

Traceability

Maintain appropriate lot and process records according to the OEM's quality requirements.

International Standards and Thread Specifications

Thread insert nuts for plastics are generally specified using a combination of product drawings, material specifications, thread standards and customer requirements.

There is no single universal ISO or DIN product standard that covers every heat-set, ultrasonic, molded-in and press-in insert design.

ISO 261

Provides general-purpose metric screw thread series.

ISO 965 Series

Addresses metric screw thread tolerances.

ASME B1.1

Covers Unified inch screw threads, including UNC and UNF designations.

Material Standards

Applicable ASTM or EN material specifications may be used where appropriate to define the selected metal alloy.

The actual standard must match the material and product.

Automotive Customer Specifications

OEM requirements may define additional material restrictions, testing, inspection and documentation.

These must be confirmed for the specific project.

Metric and Inch Threaded Inserts

Common metric thread designations include M2, M2.5, M3, M4, M5, M6 and M8.

Common Unified inch thread designations include 2-56 UNC, 4-40 UNC, 6-32 UNC, 8-32 UNC, 10-24 UNC, 10-32 UNF and 1/4-20 UNC.

These examples do not establish availability in every insert style or material.

Metric and Unified inch threads are not directly interchangeable.

BSW and BSF are also separate thread systems.

The insert must match the specified mating screw.

Why Thread Insert Nut Substitution Requires Engineering Review

Two inserts with the same internal thread may differ in:

• Outside diameter

• Overall length

• Knurl pattern

• Undercut geometry

• Head configuration

• Installation method

• Recommended hole size

• Material

• Surface treatment

• Pull-out performance

• Torque-out performance

Therefore, a dimensional or commercial cross-reference is not sufficient to establish full interchangeability.

A replacement insert should be evaluated using the actual plastic component and installation process.

Total Installed Cost and Production Efficiency

The lowest insert unit price does not always provide the lowest assembly cost.

Additional cost factors include:

• Plastic boss design

• Mold tooling

• Installation equipment

• Cycle time

• Automatic feeding

• Inspection

• Scrap

• Rework

• Maintenance

• Quality failures

• Supplier changes

Molded-In Versus Post-Mold Installation Cost

Molded-in inserts eliminate a separate insertion operation but may increase mold handling complexity.

Post-mold inserts require an installation step but may simplify molding and reduce the risk of insert-related mold problems.

The preferred process depends on annual volume, part design, equipment and quality requirements.

Short Versus Long Inserts

Longer inserts may provide greater engagement with the surrounding plastic in suitable designs.

However, they require additional material and installation space.

Shorter inserts may reduce cost and installation time where the load requirements permit.

Headed Versus Unheaded Inserts

A headed insert may improve the load path for certain assemblies but can increase material use and require additional space.

The choice should be based on the joint design.

Supplier Development and OEM Procurement

Automotive purchasing teams should evaluate both technical and commercial requirements.

Product Specification

Confirm the approved drawing and revision.

Material Requirements

Identify the required brass, steel, stainless steel or aluminum grade.

Plastic Compatibility

Confirm the intended resin and installation method.

Critical Dimensions

Identify dimensions that affect installation and assembly.

Quality Documentation

Specify inspection reports, material information and any customer-required documentation.

Sample Approval

Evaluate samples using the intended production plastic and installation equipment.

Production Planning

Review estimated annual volume, order release schedules and delivery expectations.

Change Control

Agree how changes to material, knurl geometry, dimensions or manufacturing processes will be communicated.

Packaging

Ensure packaging protects threads and external retention features.

JUXIN FASTENERS Thread Insert Nut Product Solutions

JUXIN FASTENERS supplies industrial threaded inserts and related fastening components for plastic assemblies.

Relevant product families include:

• Brass Heat-Set Thread Insert Nuts

• Ultrasonic Threaded Inserts

• Molded-In Threaded Inserts

• Tapered Threaded Inserts

• Headed and Unheaded Inserts

• Stainless Steel Threaded Inserts

• Steel Threaded Inserts

• Expansion Inserts

• Drawing-Based Custom Inserts

Specific dimensions, materials, thread sizes, finishes, inspection arrangements and delivery terms require project-level confirmation.

Related JUXIN FASTENERS Products and Engineering Resources

M6 Brass Tapered Heat-Set Inserts for Plastic

Stainless Steel Tapered Heat-Set Inserts for Plastic

Tapered Through Threaded Inserts for Plastics

Thread Inserts for Ultrasonic Installation

Thread Insert Nuts for Plastics: Design and Installation

These product pages provide starting points for engineering review.

The final insert specification should be confirmed using the approved drawing and actual application requirements.

Frequently Asked Questions

What are thread insert nuts?

Thread insert nuts are metal fasteners installed into plastic components to provide durable internal threads for mating screws.

Are thread insert nuts the same as threaded inserts for plastics?

Yes, these terms are commonly used for related product families.

However, individual designs and installation methods differ.

What is the difference between heat-set and ultrasonic inserts?

Heat-set inserts use controlled thermal energy, while ultrasonic inserts use vibration-generated localized heating.

Both are generally used in suitable thermoplastics.

Can heat-set inserts be installed in thermoset plastics?

Conventional heat-set insertion depends on softening or remelting the host plastic and is generally unsuitable for cured thermosets.

Are molded-in inserts always stronger than heat-set inserts?

No. Performance depends on insert geometry, plastic material, boss design, molding conditions and loading.

What is the best material for automotive threaded inserts?

Brass is common, but stainless steel, carbon steel and aluminum may be appropriate depending on the application.

Can threaded inserts be installed in PA66-GF30?

Suitable designs may be used, but glass-fiber content affects hole design and installation behavior.

The actual resin grade and process must be validated.

What causes a threaded insert to spin in plastic?

Possible causes include insufficient mechanical engagement, incorrect hole size, poor installation or excessive assembly torque.

What causes threaded inserts to pull out?

Possible causes include inadequate retention, unsuitable boss design, incorrect screw length, excessive loading or poor installation.

Can threaded inserts prevent plastic creep?

No. Metal threads may improve thread durability, but the surrounding plastic can still creep under sustained loading.

Can threaded inserts be used in EV electronics?

They may be suitable for selected housings and auxiliary components, subject to the applicable mechanical, electrical and environmental requirements.

Are threaded inserts suitable for repeated assembly?

They can provide more durable threads than direct plastic threads in suitable applications, but repeated assembly performance must be evaluated.

Does a higher pull-out strength guarantee better torque resistance?

No. Pull-out and torque-out resistance are different performance characteristics.

Are metric and UNC threaded inserts interchangeable?

No. Their internal thread specifications differ.

Can JUXIN FASTENERS supply custom threaded inserts?

Drawing-based requirements may be submitted for technical and commercial evaluation.

What should an automotive OEM include in a threaded insert RFQ?

The RFQ should include the insert drawing, thread specification, material, plastic resin, installation method,

 boss dimensions, required mechanical performance and purchasing volume.

OEM RFQ — Thread Insert Nuts for Automotive Plastic-to-Metal Fastening

JUXIN FASTENERS welcomes inquiries from automotive OEMs, Tier-1 and Tier-2 suppliers, plastic injection molding companies,

automotive electronics manufacturers, manufacturing engineers, production managers and international procurement teams.

For technical evaluation and quotation, please provide the following information where applicable.

Insert Specifications

• 2D engineering drawing

• 3D CAD model where available

• Internal thread size and pitch

• Metric or Unified inch thread designation

• Insert outside diameter

• Overall length

• Knurl and undercut geometry

• Headed or unheaded configuration

• Material and surface treatment

• Critical dimensional tolerances

Plastic Component and Installation Requirements

• Plastic resin grade

• Glass-fiber or mineral filler content

• Molded hole diameter and tolerance

• Hole depth

• Boss diameter and wall thickness

• Installation method

• Installation equipment

• Assembly screw specification

• Required tightening torque

Performance Requirements

• Pull-out resistance

• Torque-out resistance

• Repeated assembly requirements

• Thermal cycling

• Vibration exposure

• Moisture conditioning

• Chemical exposure

• Corrosion requirements

• Inspection and testing criteria

Commercial Requirements

• Prototype quantity

• Sample requirements

• Estimated annual demand

• Minimum order quantity expectations

• Packaging specification

• Delivery schedule

• Required documentation

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Contact JUXIN FASTENERS with your engineering drawings and project requirements to discuss brass heat-set inserts,

 ultrasonic threaded inserts, molded-in inserts and custom thread insert nuts for automotive plastic components.

Reliable plastic-to-metal fastening begins with the correct insert geometry, compatible plastic boss,

controlled installation process and clearly defined OEM quality requirements.
