Precision sheet metal manufacturers require fastening solutions that balance mechanical strength, dimensional accuracy, production efficiency and surface appearance.

These requirements are particularly important in electrical enclosures, energy storage cabinets, telecommunications equipment,

industrial control panels and fabricated metal assemblies.

Capacitor discharge (CD) stud welding provides a method of attaching suitable threaded fasteners directly to metallic

 workpieces without requiring a conventional drilled mounting hole through the parent sheet.

Among the available configurations, Non-Flanged CD Weld Studs (Inch / Metric) are designed for applications where a conventional stud flange

may interfere with mating components, limit nut rundown or conflict with the required assembly geometry.

Unlike standard flanged CD studs, the non-flanged configuration reduces or eliminates the projecting flange geometry associated with conventional

 CD weld stud designs. This can provide additional assembly clearance near the welded attachment.

However, removing the conventional flange introduces important engineering tradeoffs involving weld-base geometry, effective joining area,

mechanical strength, installation tooling and process reliability.

For OEM design engineers, manufacturing engineers, production managers and international procurement teams,

selecting a non-flanged CD stud requires careful consideration of the complete joint rather than the stud's nominal thread diameter alone.

JUXIN FASTENERS supplies non-flanged capacitor discharge weld studs and related industrial fastening components for suitable standard and drawing-based OEM applications.

This guide explains product selection, welding principles, material compatibility, application limitations,

manufacturing quality and procurement requirements for precision sheet metal assemblies.

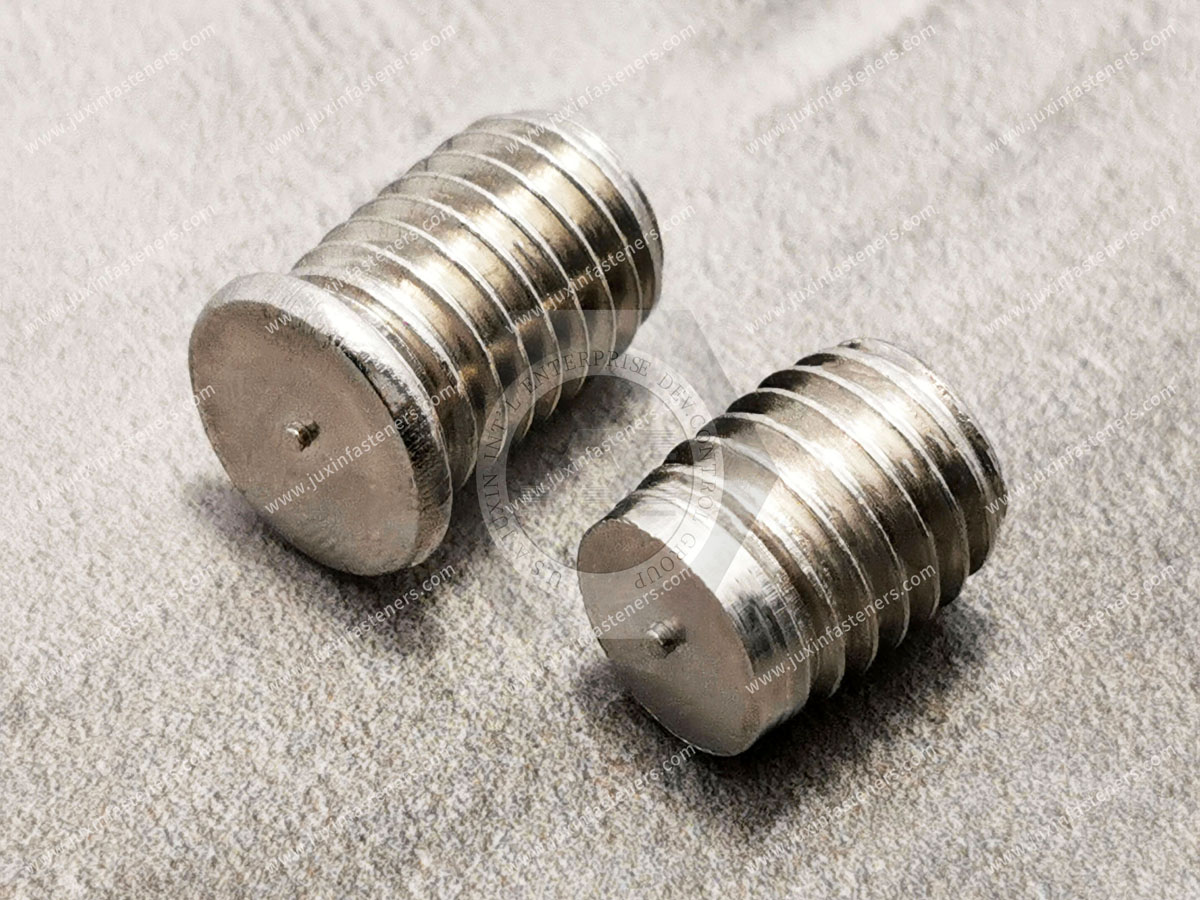

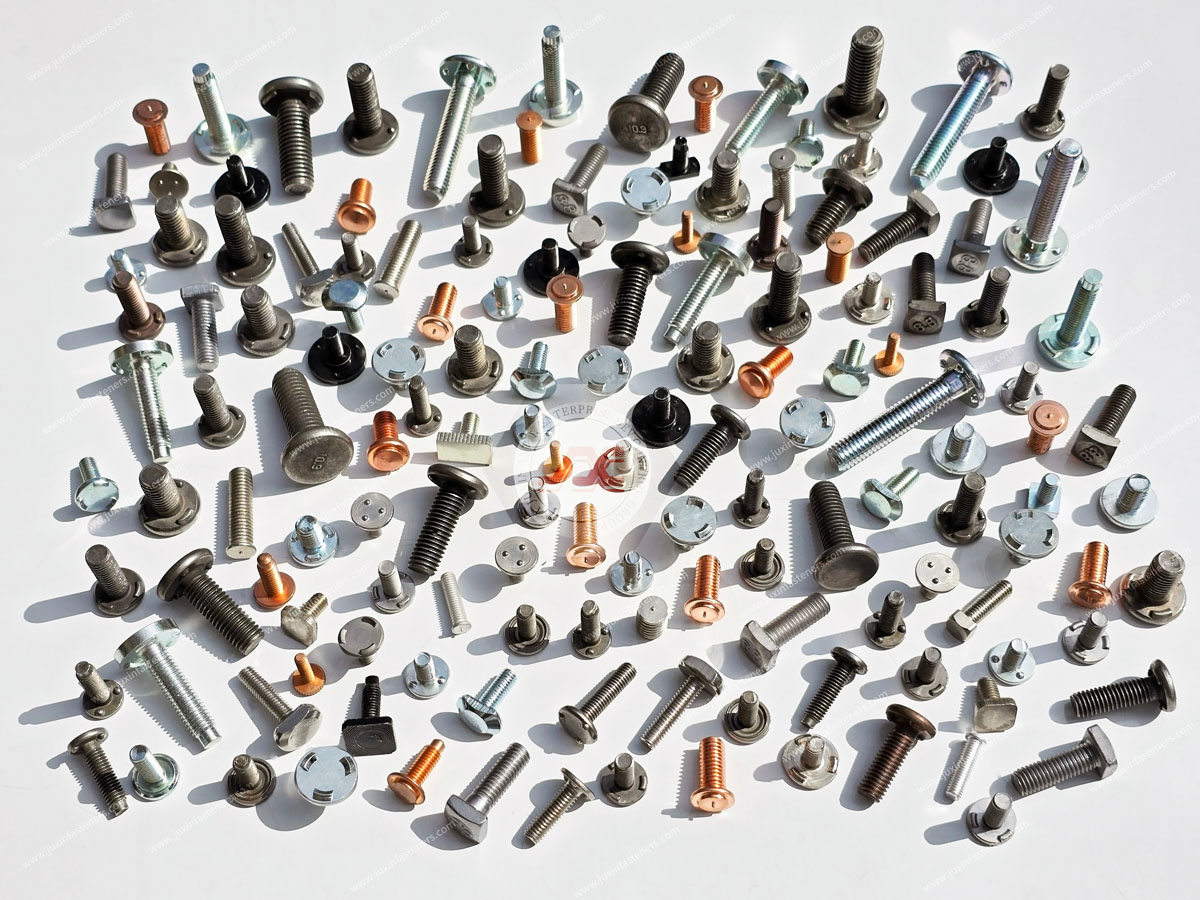

What Are Non-Flanged Capacitor Discharge Weld Studs?

A non-flanged capacitor discharge weld stud is an externally threaded fastener designed for attachment to a suitable metallic workpiece using capacitor discharge stud welding.

The fastener incorporates a weld-end geometry compatible with the intended CD welding process.

Depending on the product design, the weld end may incorporate a small ignition tip used to initiate the welding process.

The threaded portion provides a permanent male-threaded mounting point for a compatible nut, bracket or mechanical component.

Common Industry Terminology

Relevant product descriptions include:

• Non-Flanged CD Weld Studs

• Non-Flanged Capacitor Discharge Weld Studs

• CD Non-Flanged Threaded Studs

• Capacitor Discharge Weld Screws

• Non-Flanged Stud Welding Fasteners

• Inch and Metric CD Weld Studs

The term energy storage welding stud is sometimes used in international product descriptions.

However, the actual joining process should be identified as capacitor discharge stud welding rather than confused with resistance projection welding or conventional arc stud welding.

Main Product Features

• External male-threaded shank

• Non-flanged or reduced weld-base geometry

• Weld end designed for a suitable CD welding process

• Inch or metric threads according to the product specification

• Material selection based on weldability and application requirements

• Standard or drawing-based dimensions subject to confirmation

• Potential suitability for selected thin sheet metal assemblies

• Compatibility with manual or automated installation only when validated

The actual weld-base dimensions, ignition-tip geometry, material, thread tolerance and overall length must be established by the product drawing.

Why Non-Flanged Geometry Matters

A conventional flanged CD stud incorporates a wider weld-base region that may increase the effective joining area and provide a defined weld interface.

In many applications, this flange is beneficial.

However, some assemblies require a mating nut, bracket or other component to move closer to the welded surface.

A projecting flange may interfere with the mating component or prevent the required installation position.

A non-flanged stud may address this geometric limitation.

Closer Nut Rundown

Where the mating nut must approach the parent sheet closely, a conventional flange may limit the available rundown distance.

A non-flanged configuration may provide improved clearance.

However, the actual minimum rundown distance depends on the stud geometry, weld reinforcement, nut design and surrounding assembly.

Reduced Interference with Mating Components

Some brackets or mounting components have limited clearance around the threaded attachment.

A non-flanged stud may reduce interference with these components.

The complete assembly should be checked using the actual stud dimensions and mating hardware.

Space-Constrained Sheet Metal Assemblies

Non-flanged configurations may be considered where the available mounting area is restricted.

However, reduced weld-base geometry should not be assumed to provide equivalent mechanical performance to a standard flanged stud.

The Important Engineering Tradeoff: Clearance Versus Weld Strength

Removing or reducing the flange may decrease the effective weld area compared with a comparable conventional flanged design.

This can influence the joint's resistance to tensile, shear and bending loads.

The actual difference depends on weld-base geometry, material, welding procedure and substrate characteristics.

Therefore, non-flanged CD studs should be selected primarily where their geometry provides a necessary assembly benefit.

Where a conventional flanged stud can meet the design requirements without interference, it may provide a more practical option.

This distinction is important for both engineering reliability and total installed cost.

Non-Flanged Versus Flanged CD Weld Studs

The comparison describes engineering considerations rather than universal performance guarantees.

How Capacitor Discharge Stud Welding Works

Capacitor discharge stud welding uses electrical energy stored in capacitors to create a short-duration welding event.

In a suitable tip-ignition process, the stud's ignition tip and the parent metal participate in initiating the arc.

The welding system controls the discharge and stud movement to produce the welded connection.

The actual welding sequence depends on whether the equipment uses contact or gap operation.

General CD Welding Sequence

• Position the stud perpendicular to the intended welding surface.

• Establish the required stud and workpiece contact arrangement.

• Set the welding equipment according to the approved procedure.

• Initiate the capacitor discharge welding cycle.

• Allow the ignition tip and intended joining surfaces to participate in weld formation.

• Complete the controlled stud movement and joining sequence.

• Inspect the finished weld against the specified acceptance criteria.

The process requires suitable equipment, compatible fastener geometry and a validated welding procedure.

Contact and Gap CD Welding

Contact and gap capacitor discharge welding are related but distinct operating methods.

They differ in the initial positioning and movement of the stud during the welding cycle.

The selected method influences equipment setup, stud movement and process behavior.

The correct method should be established according to the welding equipment and stud design.

Why CD Welding Can Be Useful for Sheet Metal

The short-duration welding process can limit the extent of heat input compared with some longer-duration joining processes.

This may help reduce distortion and reverse-side marking in suitable applications.

However, the actual thermal effects depend on stud diameter, material, sheet thickness, welding energy and equipment settings.

A short welding cycle does not guarantee an undistorted or cosmetically acceptable surface.

CD Welding Is Not Resistance Projection Welding

Capacitor discharge stud welding and resistance projection welding are different joining processes.

Resistance projection welding uses formed projections and electrode force to concentrate resistance heating at the interface.

Tip-ignition capacitor discharge stud welding uses a short-duration discharge and a different weld-end arrangement.

The fasteners, equipment and process settings should not be treated as interchangeable.

Welding Energy and Process Parameters

CD welding parameters must be developed for the actual fastener and substrate combination.

There is no reliable universal formula that determines welding current solely from the stud's nominal diameter.

The welding process may depend on:

• Stored welding energy

• Capacitor charging voltage

• Equipment capacitance

• Discharge circuit characteristics

• Stud diameter and weld-base geometry

• Ignition-tip dimensions

• Stud and substrate materials

• Sheet thickness

• Surface condition

• Stud movement and contact arrangement

• Welding gun setup

• Required joint performance

The relationship between stored energy and capacitor charging voltage is:

E = ½ CV²

Where E represents stored electrical energy, C is capacitance and V is capacitor charging voltage.

This relationship describes the electrical energy stored in the capacitor bank.

 It does not directly establish the energy delivered to the weld interface or guarantee an acceptable joint.

Electrical losses, equipment behavior and welding conditions must also be considered.

Why Welding Time Should Not Be Treated as a Universal Constant

Capacitor discharge stud welding generally involves a short-duration welding event.

However, the actual duration depends on the equipment and process.

A single numerical welding-time range should not be applied to every stud size, material and welding system.

The welding schedule should be developed and validated for the specific application.

Why Fixed Penetration Values Are Misleading

Weld penetration and heat-affected-zone characteristics vary with material, welding energy and joint geometry.

A universal penetration value cannot be used to guarantee weld quality or cosmetic performance.

The finished joint should be evaluated using appropriate inspection and testing methods.

Thin Sheet Metal Welding and Reverse-Side Marking

One reason manufacturers consider capacitor discharge welding is the potential to attach studs to relatively thin metal panels while limiting thermal effects.

However, thin-sheet suitability depends on the complete application.

Factors Affecting Minimum Sheet Thickness

• Parent-metal grade

• Stud diameter

• Weld-base geometry

• Material compatibility

• Welding energy

• Workpiece support

• Required mechanical strength

• Reverse-side appearance requirements

A minimum sheet thickness should not be determined from thread diameter alone.

Potential Thin-Sheet Welding Problems

• Reverse-side discoloration

• Local surface marking

• Sheet distortion

• Burn-through

• Incomplete weld formation

• Excessive weld expulsion

• Stud misalignment

• Insufficient mechanical strength

No Guaranteed Mark-Free Exterior

A short-duration CD welding cycle may reduce reverse-side marking under suitable conditions.

However, it cannot guarantee that the opposite side of the panel will remain completely unaffected.

For visible enclosure panels, cosmetic requirements should be specified and verified using representative production samples.

Why Reducing Welding Energy Is Not Always the Correct Solution

Lower welding energy may reduce some thermal effects.

However, insufficient energy can also result in incomplete fusion or inadequate joint strength.

The welding schedule must balance mechanical performance, surface appearance and process stability.

Material Selection for Non-Flanged CD Weld Studs

Material selection must consider both the stud's mechanical function and compatibility with the intended welding process.

Carbon Steel CD Weld Studs

Suitable low-carbon steel grades are used in industrial CD stud welding applications.

Material selection should consider:

• Chemical composition

• Mechanical properties

• Weldability

• Surface condition

• Coating requirements

• Service environment

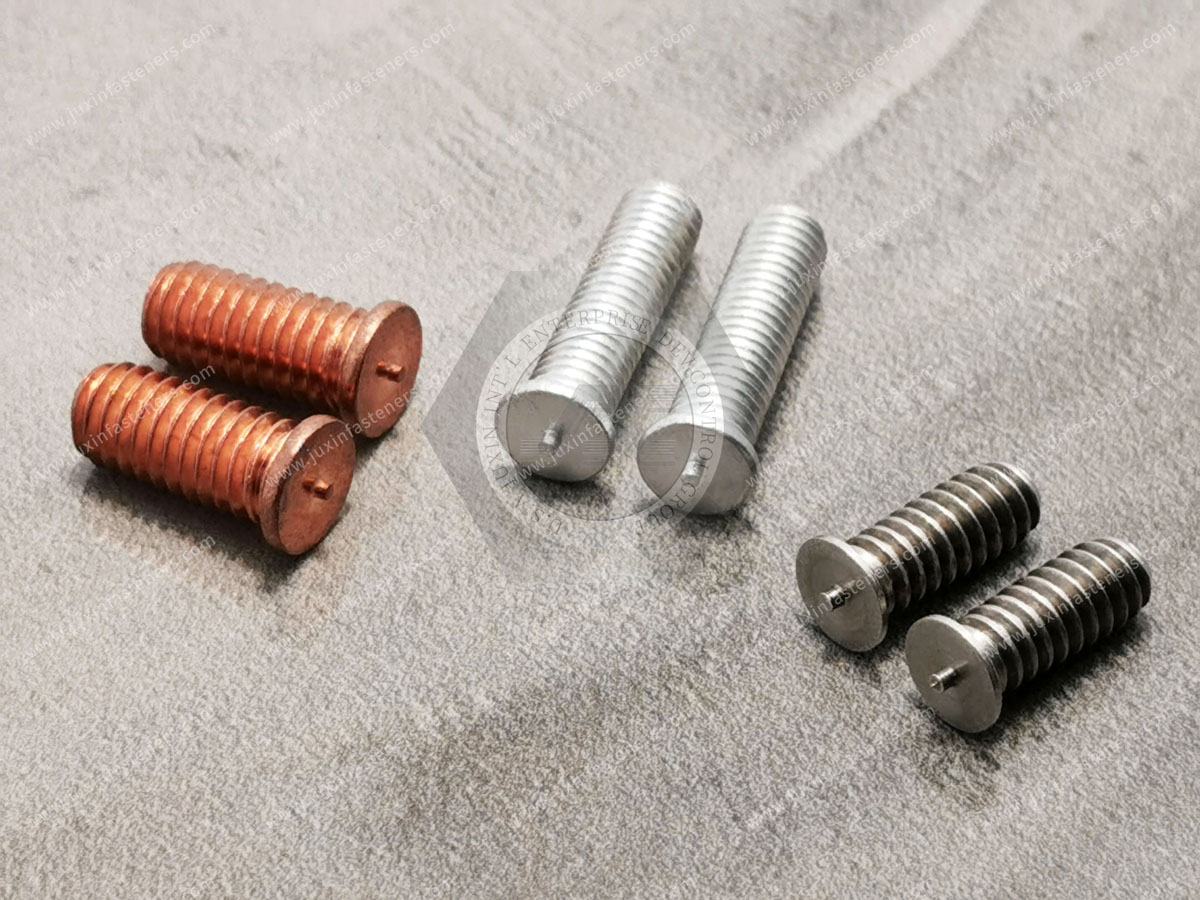

Copper-flashed low-carbon steel is used in certain commercial CD stud product families.

However, the exact material and coating must be confirmed against the specified product.

Stainless Steel CD Weld Studs

Stainless steel may be selected for applications requiring corrosion resistance.

JUXIN FASTENERS lists SUS304 and SUS316 stainless steel materials for its non-flanged CD weld stud product family.

The actual grade, thread specification, weld-end geometry and availability should be confirmed for each project.

304 Stainless Steel

304 stainless steel may be suitable for many general industrial enclosure applications where the environment and welding procedure are compatible.

316 Stainless Steel

316 stainless steel may be considered where improved resistance to certain corrosive environments is required.

However, material selection must reflect the actual chemical exposure, operating conditions and assembly design.

Stainless Steel Weldability Considerations

Different stainless steel grades have different electrical, thermal and metallurgical characteristics.

A welding schedule developed for carbon steel should not automatically be used for stainless steel.

The stud and parent-metal combination must be evaluated.

Aluminum Sheet Metal

Aluminum is used in electrical equipment housings, electronic enclosures and lightweight industrial assemblies.

However, a carbon steel or stainless steel CD stud should not be assumed suitable for direct welding to aluminum.

Dissimilar-metal joining requires specific engineering evaluation.

Where direct welding is unsuitable, an alternative fastening method may be preferable.

Material Matching Is Not Always Sufficient

Using the same general material family for the stud and substrate does not automatically guarantee weld quality.

Surface condition, exact alloy, material thickness and welding procedure remain important.

Surface Preparation and Coating Compatibility

The welding surface must be suitable for the intended process.

Oil, contamination, heavy oxide layers and incompatible coatings may interfere with weld formation.

Surface Preparation Considerations

• Cleanliness of the intended weld location

• Presence of oil or lubricants

• Oxide or corrosion condition

• Coating type and thickness

• Surface flatness

• Workpiece grounding arrangement

• Equipment manufacturer's process requirements

Galvanized Sheet Metal

Galvanized steel may be used in industrial cabinets and fabricated enclosures.

However, zinc coatings can influence welding behavior and surface conditions.

The coating specification and welding procedure should be evaluated together.

Pre-Plated Studs

Surface treatments may affect electrical contact and weld formation.

The finish must be compatible with the intended CD welding process.

Not every conventional fastener coating is suitable for welding.

Post-Weld Finishing

Where appropriate, corrosion protection may be applied after welding.

The finishing process should preserve thread function and meet the assembly's environmental requirements.

Electrical Cabinets and Industrial Control Enclosures

Electrical control cabinets contain internal mounting brackets, support structures, cable management components and electrical equipment.

Non-flanged CD studs may be considered where a permanent threaded attachment is required and a conventional flange interferes with the mating assembly.

Potential Applications

• Internal mounting brackets

• Control equipment support plates

• Cable-routing accessories

• Mechanical mounting components

• Selected enclosure hardware

Engineering Considerations

The designer should evaluate the panel material, sheet thickness, bracket loading, thread engagement, tightening torque and available installation space.

Where the fastener supports an electrical component, additional clearance, insulation and grounding requirements may apply.

A welded stud does not independently establish electrical safety or compliance of the enclosure.

Energy Storage Systems and Battery Enclosures

Energy storage systems may incorporate fabricated metal cabinets, internal brackets, equipment support plates and thermal management structures.

Non-flanged CD weld studs may be considered for suitable noncritical mechanical attachment points where the joint design permits.

Potential Mechanical Applications

• Internal equipment support brackets

• Cable-management mounting components

• Auxiliary hardware supports

• Enclosure accessory mounting

• Selected thermal management brackets

Electrical and Thermal Safety Boundaries

The suitability of a CD welded attachment depends on its location and function.

A mechanically acceptable welded stud does not automatically meet requirements for:

• Electrical insulation

• High-voltage clearance

• Creepage distance

• Grounding continuity

• Battery enclosure sealing

• Thermal runaway protection

• Fire resistance

These requirements must be evaluated at the system level.

Welding Sequence Around Sensitive Components

CD welding introduces electrical current, heat and mechanical forces into the workpiece.

For assemblies containing batteries, electronics or sensitive electrical components,

welding should generally be evaluated during the metallic fabrication stage before those components are installed.

Any welding operation near installed sensitive components requires specific engineering assessment.

Communication Cabinets and Data Center Equipment

Telecommunications cabinets, server enclosures and data center equipment frequently use fabricated metal structures with multiple threaded attachment points.

Non-flanged CD studs may be considered where conventional flanges interfere with mounting brackets or equipment components.

Potential Applications

• Internal cabinet mounting brackets

• Cable-management supports

• Electronic equipment support plates

• Mechanical accessory mounts

• Selected rack enclosure components

Mechanical and Electrical Requirements

The design should consider vibration, equipment weight, assembly torque, maintenance access and corrosion protection.

Where a welded stud forms part of an electrical bonding path, electrical continuity must be specified and validated separately.

Mechanical weld strength does not automatically establish acceptable grounding performance.

HVAC, Elevator and Industrial Equipment Panels

HVAC equipment, elevator control enclosures and industrial machinery often incorporate fabricated sheet metal panels.

CD weld studs may provide permanent threaded mounting points for suitable mechanical components.

Potential Applications

• Equipment mounting brackets

• Internal support plates

• Cable and harness accessories

• Mechanical enclosure hardware

• Selected control panel components

Vibration and Service Loading

Equipment vibration, repeated maintenance and mechanical loading should be considered during design.

Where repeated tightening or removal is expected, the welded joint must be evaluated for the intended service conditions.

Automotive and Transportation Sheet Metal Assemblies

Automotive and transportation equipment may incorporate thin metal panels, mounting brackets and auxiliary equipment supports.

Non-flanged CD studs may be considered for selected applications where the materials and welding process are suitable.

However, their use should not be assumed appropriate for safety-critical or primary structural connections.

Engineering Requirements

• Applied mechanical loads

• Vibration and fatigue exposure

• Material compatibility

• Corrosion protection

• Assembly torque

• Production process validation

• Customer-specific quality requirements

For safety-related applications, additional engineering qualification and approval may be required.

Metric and Unified Inch Thread Specifications

Non-flanged CD weld studs may be supplied in metric or Unified inch-series configurations according to the applicable product specification.

Metric Thread References

Relevant standards include:

• ISO 261 — General-purpose metric screw thread series

• ISO 965 — Metric thread tolerances

Unified Inch Thread Reference

ASME B1.1 defines Unified inch screw threads, including UNC and UNF thread series.

Common Metric Search Specifications

Examples of commonly requested metric thread designations include:

• M3

• M4

• M5

• M6

• M8

These examples are not a guarantee that every size is available in every material, length or weld-end configuration.

Common Unified Inch Search Specifications

Examples include:

• #4-40 UNC

• #6-32 UNC

• #8-32 UNC

• #10-24 UNC

• #10-32 UNF

• 1/4-20 UNC

• 5/16-18 UNC

• 3/8-16 UNC

Actual availability and manufacturing feasibility must be confirmed.

Metric and Inch Threads Are Not Interchangeable

Metric, UNC and UNF threads have different specifications.

BSW and BSF are also distinct thread systems.

Similar nominal diameters do not establish interchangeability.

For example, M6 and 1/4-20 UNC have different nominal diameters and thread pitches.

They should not be treated as interchangeable mating threads.

Thread selection must follow the actual assembly drawing.

Stud Length and Thread Engagement

The specified stud length should provide adequate thread engagement while avoiding interference with adjacent components.

The design should consider:

• Bracket thickness

• Nut height

• Required thread engagement

• Available clearance

• Weld-end geometry

• Stud length measurement convention

• Assembly tolerances

The product drawing should clearly establish the length reference and dimensional requirements.

Relevant International Welding Standards

International standards may provide useful references for stud geometry, welding processes and qualification.

ISO 13918 addresses studs and ceramic ferrules for arc stud welding applications, including relevant stud configurations.

ISO 14555 addresses arc stud welding of metallic materials.

Their applicability must be checked against the actual product design, welding method and relevant standard edition.

A general reference to a standard does not establish that a particular non-flanged CD stud conforms to every dimensional or welding requirement.

The customer should define the applicable product specification, welding procedure and acceptance criteria.

Weld Strength and Joint Design

A successful CD weld must satisfy the mechanical requirements of the finished assembly.

The nominal tensile strength of the stud material does not automatically establish the strength of the welded connection.

Important Mechanical Loading Conditions

• Axial tensile loading

• Transverse shear

• Bending

• Assembly torque

• Repeated tightening

• Vibration

• Fatigue

• Impact loading where applicable

Why Non-Flanged Studs Require Careful Joint Evaluation

A non-flanged stud may have a smaller effective joining area than a comparable flanged design.

This can influence the failure mode and mechanical capacity of the joint.

The effect depends on the actual weld geometry, substrate and welding procedure.

For applications with significant mechanical loading, the engineering team should compare the non-flanged design with a suitable flanged alternative.

Stud Strength Versus Sheet Metal Strength

In thin sheet metal assemblies, the parent material may limit the mechanical capacity of the attachment.

Potential failure modes include:

• Stud fracture

• Weld interface failure

• Parent-sheet tearing

• Local sheet deformation

• Thread damage

The required joint performance should be established from the complete assembly design.

Mechanical Testing and Weld Validation

Potential evaluation methods include:

• Visual inspection

• Dimensional inspection

• Bend testing where appropriate

• Torque-related testing

• Axial pull-off testing

• Shear testing

• Destructive weld examination

• Fatigue testing where required

The appropriate method and acceptance limits must be established for the application.

Torque Resistance Is Not the Same as Tensile Strength

A stud may satisfy a torque-related test without necessarily meeting the required axial tensile capacity.

Different loading conditions require appropriate evaluation.

Welding Quality Problems and Engineering Troubleshooting

CD stud welding quality depends on the interaction between the fastener, substrate, welding equipment and production process.

Common problems should be investigated systematically.

Weak Weld Attachment

Possible contributing factors include insufficient welding energy, unsuitable surface conditions, material incompatibility or incorrect stud positioning.

The engineering response should include review of the welding procedure and finished joint testing.

Excessive Weld Expulsion

Excessive expulsion may be associated with unsuitable welding energy, surface conditions or equipment setup.

The actual cause must be established before process parameters are changed.

Reverse-Side Marking

Visible marking may result from local heat input, thin substrate material or unsuitable welding conditions.

The engineer should review the substrate, welding schedule and cosmetic acceptance requirements.

Stud Tilt or Misalignment

Possible causes include incorrect positioning, unsuitable tooling or inconsistent stud movement.

The installation equipment and fixture arrangement should be evaluated.

Thread Damage

Thread damage may occur during handling, tooling contact, welding or subsequent assembly.

Thread inspection and handling controls should be established where required.

Inconsistent Weld Results

Variation may result from differences in fastener geometry, material, surface condition, equipment setup or workpiece preparation.

Comparing production lots and welding records can help identify the source.

Engineering Root-Cause Analysis

A practical troubleshooting approach separates the problem into four groups.

Fastener Variables

Material, thread dimensions, weld-base geometry, ignition-tip condition and dimensional consistency.

Substrate Variables

Material grade, sheet thickness, flatness, coating and surface cleanliness.

Equipment Variables

Welding energy, gun setup, stud movement, workpiece grounding and positioning.

Finished-Joint Variables

Mechanical performance, appearance, dimensions and any required electrical properties.

This approach helps avoid unnecessary changes to the fastener when the actual cause is related to equipment or substrate conditions.

Automated CD Stud Welding and Production Line Compatibility

Automated stud welding may be useful for high-volume sheet metal manufacturing.

However, a stud's suitability for welding does not automatically establish compatibility with automated feeding and positioning equipment.

Fastener Characteristics Affecting Automation

• Overall length

• Thread diameter

• Weld-base geometry

• Ignition-tip condition

• Straightness

• Dimensional variation

• Surface condition

• Part orientation

• Packaging and handling condition

Why Non-Flanged Geometry Matters for Feeding

Some automated feeding systems are designed around specific stud geometries.

A conventional flange may provide a useful feature for orientation, support or transfer.

Removing the flange may require different feeding or positioning arrangements.

Therefore, automatic feeding compatibility should be confirmed using the actual stud and equipment.

Production Manager Evaluation

Production managers may consider:

• Fastener positioning consistency

• Welding cycle repeatability

• Installation throughput

• Tooling maintenance

• Inspection requirements

• Rework and scrap

• Changeover time

• Material availability

• Batch-to-batch dimensional consistency

These factors should be evaluated during process development rather than assumed from the product description.

Process Monitoring Versus Weld Validation

Depending on the equipment, production monitoring may record charging voltage, welding settings, cycle completion or equipment alarms.

However, a completed welding cycle does not automatically prove that the finished joint meets mechanical requirements.

Monitoring should be supported by suitable inspection and testing.

Quality Control for OEM Production

Reliable OEM production requires clearly defined fastener characteristics and agreed inspection requirements.

Dimensional Characteristics

Important dimensions may include:

• Thread diameter and pitch

• Thread tolerance class

• Overall length

• Weld-base diameter

• Ignition-tip geometry

• Straightness

• Critical tolerances

Material and Surface Condition

The material grade and surface condition should be specified according to the intended welding process.

Material documentation or additional verification should be agreed where required.

Thread Inspection

Threads should conform to the applicable specification.

Appropriate thread gauges or dimensional measurement methods may be used according to the inspection plan.

Weld-End Inspection

The weld end is a functional feature of the fastener.

Damage or dimensional variation may affect the welding process.

The inspection plan should identify critical weld-end characteristics where applicable.

Packaging and Handling

Packaging should help protect threads, weld ends and critical surfaces.

Different materials, thread sizes and lengths should be clearly identified to reduce the risk of mixing.

Inspection Scope

Sampling inspection, additional dimensional verification or sorting may be appropriate depending on the project.

The inspection scope must be agreed with the customer.

No general inspection statement should be interpreted as a guarantee of zero defects or finished weld performance.

Choosing Between Non-Flanged CD Studs and Alternative Fasteners

Different fastening methods may be appropriate depending on the substrate and assembly requirements.

When a Flanged CD Stud May Be Better

A flanged CD stud may be preferable where the flange does not interfere with the assembly and the design benefits from its weld-base geometry.

When a Non-Flanged CD Stud May Be Better

A non-flanged CD stud may be appropriate where closer nut rundown or reduced flange interference is essential and the resulting welded joint can meet the mechanical requirements.

When a Self-Clinching Stud May Be Better

A self-clinching stud may be suitable where the sheet material and thickness permit mechanical installation and welding is undesirable.

When a Blind Rivet Nut May Be Better

A blind rivet nut may be appropriate where only one side of the workpiece is accessible and an internal threaded attachment is required.

When a Projection Weld Stud May Be Better

A projection weld stud may be appropriate where the manufacturing process is designed for resistance projection welding rather than capacitor discharge stud welding.

The correct fastening method should be selected based on verified engineering and manufacturing requirements.

Total Installed Cost and OEM Production Planning

The unit price of a non-flanged CD stud is only one part of the total manufacturing cost.

A complete evaluation may include:

• Fastener purchase price

• Welding equipment

• Installation tooling

• Feeding equipment

• Welding cycle time

• Inspection requirements

• Rework and scrap

• Maintenance

• Packaging

• Delivery planning

Why a Non-Flanged Stud May Cost More

Some non-flanged configurations may require different manufacturing operations, tooling or production arrangements compared with standard flanged products.

The actual cost difference depends on the design, material, dimensions and order volume.

Cost Versus Engineering Function

Where a standard flanged stud meets the assembly requirements, it may provide a more economical option.

Where the flange causes unacceptable interference, the non-flanged design may justify its additional cost.

The correct decision should consider both product cost and verified installed performance.

OEM Supplier Development and Procurement Requirements

For purchasing managers, supplier-development engineers and supply chain teams, sourcing non-flanged CD weld studs requires a clear product specification.

A complete RFQ should identify the requirements that affect manufacturing feasibility, welding compatibility and repeat production.

Product Specification Requirements

• Engineering drawing and revision

• Thread system

• Thread diameter and pitch

• Thread tolerance class

• Overall length

• Weld-base geometry

• Ignition-tip specification

• Material grade

• Surface finish

• Dimensional tolerances

Application Requirements

• Parent-sheet material

• Sheet thickness

• Welding process

• Welding equipment

• Mechanical load requirements

• Assembly torque

• Cosmetic surface requirements

• Environmental exposure

• Inspection and testing requirements

Commercial Requirements

• Prototype quantity

• Sample requirements

• Minimum order quantity

• Estimated annual demand

• Packaging specification

• Delivery schedule

• Supplier documentation requirements

• Engineering change-control requirements

Drawing-Based Customization

Some OEM applications require custom thread lengths, weld-base dimensions, materials or other features.

These requirements should be evaluated using the actual engineering drawing.

Technical feasibility, tooling arrangements and commercial terms depend on the project.

Engineering Change Control

Changes to material, weld-end geometry or surface condition may affect welding behavior even when the nominal thread specification remains unchanged.

Critical changes should be reviewed through the customer's applicable engineering and supplier quality procedures.

JUXIN FASTENERS — Non-Flanged CD Weld Studs and OEM Fastening Solutions

JUXIN FASTENERS supplies industrial weld studs and related fastening components for international OEM manufacturing and drawing-based applications.

Relevant product families include:

• Non-Flanged CD Weld Studs

• Flanged CD Weld Studs

• Metric CD Weld Studs

• Inch-Series CD Weld Studs

• Stainless Steel CD Weld Studs

• Carbon Steel CD Weld Studs

• Projection Weld Studs

• Weld Nuts

• Self-Clinching Studs and Standoffs

• Blind Rivet Nuts

• Drawing-Based Custom Fasteners

Specific dimensions, materials, finishes, inspection arrangements and delivery terms require confirmation against the project specification.

Related JUXIN FASTENERS Products

Non-Flanged CD Weld Studs — Inch / Metric

Weld Fasteners Manufacturer — Industrial Weld Studs and Weld Nuts

Fastener Automated Feeding and Robotics — OEM Integration Guide

Frequently Asked Questions

What is a non-flanged CD weld stud?

A non-flanged CD weld stud is an externally threaded fastener designed for capacitor discharge stud welding

 without the conventional projecting flange geometry used on standard flanged CD studs.

Why choose a non-flanged CD stud instead of a flanged stud?

A non-flanged design may provide closer nut rundown or reduce interference with mating components.

However, the smaller effective joining area may affect weld strength, so the application must be evaluated.

Are non-flanged CD studs suitable for thin sheet metal?

They may be suitable for selected thin sheet metal applications, depending on the material, thickness, stud geometry and welding process.

There is no universal minimum thickness applicable to every configuration.

Can non-flanged CD studs be supplied in metric and inch threads?

Metric and Unified inch-series configurations are used in the industry.

 Specific sizes, materials and lengths require confirmation.

Are M6 and 1/4-20 UNC interchangeable?

No. They are different thread systems with different dimensions and pitches.

Can stainless steel non-flanged CD studs be welded to carbon steel?

Some dissimilar material combinations may be technically feasible, but the actual weldability and joint performance must be evaluated.

Can CD weld studs be installed on galvanized sheet metal?

Potentially, depending on the coating, material and welding procedure.

Coating compatibility and finished weld performance require validation.

Does CD welding eliminate reverse-side marking?

No. It may reduce marking under suitable conditions, but surface appearance must be verified for the actual sheet thickness, material and welding schedule.

Can welding energy be calculated from stud diameter alone?

No. Welding parameters depend on the complete fastener, substrate and equipment combination.

Are non-flanged CD studs suitable for automated feeding?

Potentially, but compatibility depends on the stud geometry and the actual feeding and positioning equipment.

Does a non-flanged CD stud provide the same weld strength as a flanged stud?

Not necessarily. The different weld-base geometry may affect the effective joining area and mechanical performance.

 Comparative testing may be required.

Can JUXIN FASTENERS review custom drawings?

Drawing-based requirements may be submitted for technical and commercial evaluation,

including thread specifications, material, length, weld-end geometry, tolerances and purchasing volume.

OEM RFQ — Non-Flanged CD Weld Studs for Sheet Metal Manufacturing

JUXIN FASTENERS welcomes inquiries from industrial equipment manufacturers, electrical enclosure OEMs,

energy storage equipment manufacturers, telecommunications equipment producers, design engineers,

 manufacturing engineers, production managers and international procurement teams.

For accurate product evaluation and quotation, please provide the following information where applicable.

Engineering Drawings and Product Requirements

• 2D engineering drawing with revision

• 3D CAD model where available

• Metric or Unified inch thread specification

• Thread diameter, pitch and tolerance class

• Stud length

• Weld-base dimensions

• Ignition-tip geometry

• Material specification

• Surface finish

• Critical dimensional tolerances

Application and Welding Requirements

• Parent-sheet material and thickness

• Capacitor discharge welding equipment

• Contact or gap welding process

• Mechanical load requirements

• Assembly tightening torque

• Required exterior surface appearance

• Corrosion and environmental requirements

• Inspection and testing requirements

Commercial and Production Requirements

• Prototype or sample quantity

• Estimated annual purchasing volume

• Minimum order quantity expectations

• Packaging requirements

• Required delivery schedule

• Applicable supplier documentation requirements

Providing complete engineering information helps reduce clarification cycles and supports accurate product selection, technical review and quotation.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

For non-flanged capacitor discharge weld studs, inch and metric CD weld screws, stainless steel welding fasteners and drawing-based OEM fastening components,

contact JUXIN FASTENERS with your drawings and technical requirements.

Our team can review the supplied specifications and discuss suitable product options, manufacturing feasibility, inspection requirements and commercial arrangements for your project.
