Self-Clinching Studs for Electrical Cabinets and Control Panels

Self-Clinching Studs for Electrical Cabinets and Control Panels

Electrical cabinets, industrial control panels, switchgear enclosures, and automation equipment housings require reliable mounting points for electrical components,

brackets, cable supports, mounting plates, and internal assemblies.

Many of these products are manufactured from thin-gauge carbon steel, galvanized steel, stainless steel, or aluminum sheet.

Conventional tapping may provide insufficient thread engagement in thin material, while loose nuts can complicate production and maintenance.

Self-clinching studs provide permanently retained external threads in compatible sheet metal.

During installation, a controlled pressing operation causes the sheet material to flow into the fastener's engineered retention features, creating a mechanical interlock.

For suitable electrical cabinet designs, this approach can simplify downstream assembly, reduce loose hardware handling, and eliminate welding heat during the stud installation operation.

However, fastener selection must account for sheet thickness, substrate hardness, installation-hole dimensions, mechanical loads, surface treatment, electrical clearances, grounding requirements, and the manufacturing sequence.

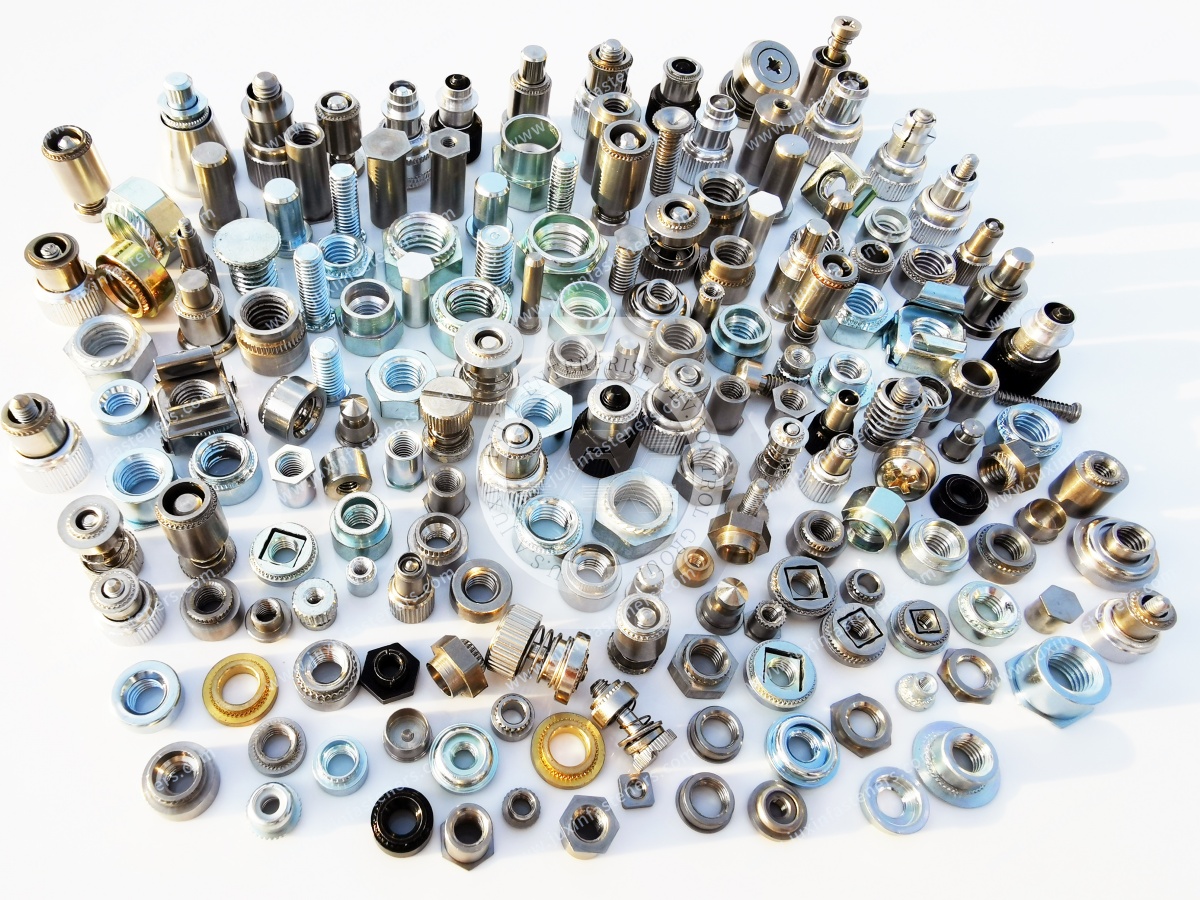

JUXIN FASTENERS supplies self-clinching studs and related sheet metal fastening products for electrical enclosure manufacturers, industrial automation equipment suppliers, and OEM production programs.

Where Are Self-Clinching Studs Used in Electrical Cabinets?

Self-clinching studs can provide fixed threaded mounting points in suitable fabricated metal components.

Typical applications include:

• Industrial control cabinets.

• PLC and automation equipment enclosures.

• Electrical distribution cabinet accessories.

• Switchgear auxiliary sheet metal panels.

• Internal equipment mounting plates.

• Cable management brackets.

• Control module support brackets.

• Sensor and instrumentation mounting.

• Electrical enclosure covers and accessories.

• Power supply and drive cabinet components.

• Industrial machine control boxes.

• Telecom and network equipment cabinets.

The correct application depends on the component's mechanical function and the electrical equipment design.

A stud securing a lightweight cable support has different requirements from a mounting point supporting a heavy transformer or power component.

Conventional self-clinching studs should not automatically be used as primary structural anchors for heavy equipment or safety-critical electrical connections.

How Self-Clinching Studs Work in Thin Sheet Metal

A self-clinching stud typically consists of an externally threaded shank and a specially designed head or retention section.

The fastener is inserted into a correctly prepared hole and installed using controlled axial pressing force.

During pressing, the surrounding sheet material plastically deforms into the retention features.

This creates resistance to axial displacement and rotation.

The installed stud provides a fixed external thread for subsequent assembly using a mating nut.

Why Sheet Thickness Matters

Thin sheet metal may not provide sufficient material for conventional tapped threads.

A self-clinching stud introduces a separate threaded component without relying on the panel itself to form the external thread.

However, the mechanical retention still depends on the sheet's ability to engage with the fastener geometry.

There is no universal minimum sheet thickness applicable to all self-clinching studs.

The selected product specification must be matched to the actual panel.

Pushout Resistance

Pushout resistance describes the force required to displace the installed stud axially from the sheet under a defined test condition.

Performance depends on the stud design, substrate material, thickness, hole preparation, and installation quality.

Torque-Out Resistance

Torque-out resistance describes the stud's resistance to rotation within the panel.

This is particularly important when tightening or removing a mating nut.

The required assembly torque must be compatible with the installed stud's retention performance.

Joint Strength

The strength of the completed connection depends on more than the stud's nominal tensile strength.

The surrounding sheet, mounting bracket, mating nut, and applied loads must also be considered.

Self-Clinching Studs for Industrial Control Cabinets

Industrial control cabinets commonly contain programmable logic controllers, power supplies, relays, communication modules, terminal blocks, and other electrical equipment.

Many components are attached to mounting plates, DIN rails, or dedicated brackets.

Self-clinching studs can be considered where a fixed threaded projection is useful for attaching a compatible mounting component.

Internal Mounting Plates

A mounting plate may require threaded attachment points for brackets or auxiliary equipment.

A self-clinching stud can simplify assembly when a component is positioned over fixed threaded projections.

The panel must provide adequate retention for the expected equipment weight and service conditions.

DIN Rail Support Brackets

DIN rail assemblies often use screws, clips, and other mounting hardware.

Self-clinching studs may be considered for suitable brackets supporting rail sections or associated accessories.

The stud should not interfere with the DIN rail profile, mounted devices, or required service access.

PLC and Control Module Brackets

Control modules may be mounted on dedicated support plates.

A retained stud can provide a repeatable mounting location where the assembly design uses a mating nut.

However, direct device mounting should follow the equipment manufacturer's approved installation method.

Serviceable Components

Control cabinets often require periodic maintenance and equipment replacement.

Stud length, thread access, and mating nut removal should be considered during design.

The clinched stud must remain retained during the intended service operations.

Self-Clinching Studs for Switchgear and Distribution Equipment

Switchgear and electrical distribution equipment may contain fabricated sheet metal housings, partitions, covers, and auxiliary mounting brackets.

Self-clinching studs may be suitable for certain non-primary mounting features.

Potential applications include:

• Auxiliary enclosure brackets.

• Instrumentation support panels.

• Cable routing accessories.

• Control wiring supports.

• Removable sheet metal covers.

• Non-current-carrying equipment mounting features.

Electrical Equipment Classification

A cabinet used for low-voltage control equipment may have different requirements from a switchgear assembly.

The relevant equipment standard and customer specification must be identified.

For example, IEC 61439 may apply to certain low-voltage switchgear and controlgear assemblies, while UL 508A may be relevant to industrial control panels within its scope.

These are equipment or assembly standards, not automatic product certifications for self-clinching studs.

Short-Circuit and Mechanical Loads

Some electrical equipment can experience significant mechanical forces during fault conditions.

A conventional self-clinching stud should not automatically be selected for busbar support or other connections subjected to short-circuit forces.

The complete electrical and mechanical assembly must be evaluated according to its applicable requirements.

Electrical Clearance

Stud projection length and mounting position must not interfere with required electrical clearances.

The presence of a metallic threaded projection can affect the available space around energized components.

The enclosure design should consider the relevant voltage, insulation system, contamination conditions, and applicable electrical requirements.

Electrical Cabinet Materials and Clinching Compatibility

Electrical enclosure manufacturers commonly use carbon steel, galvanized steel, stainless steel, and aluminum.

The substrate must be compatible with the selected fastener.

Cold-Rolled Carbon Steel

Cold-rolled steel sheet is widely used in fabricated electrical cabinets.

Some conventional self-clinching studs are designed for compatible relatively soft steel sheet.

The actual grade, hardness, and thickness must be verified.

Galvanized Steel

Galvanized sheet may be used where corrosion protection is required.

The coating and base material must be considered together.

Hole preparation and pressing may disturb the zinc coating around the installation area.

The corrosion protection strategy should account for these effects.

Stainless Steel Sheet

Stainless steel cabinets may be selected for demanding environments.

However, stainless steel sheet can be too hard for certain conventional self-clinching fastener designs.

A stainless steel stud is not automatically suitable for installation into stainless steel sheet.

The actual fastener design and substrate hardness must be compatible.

Aluminum Enclosure Panels

Aluminum may be used for lightweight electrical equipment housings.

Different aluminum alloys and tempers have different hardness and deformation characteristics.

The fastener must be validated for the actual substrate.

Fastener Material vs. Sheet Hardness

Self-clinching installation requires controlled material flow into the retention geometry.

If the sheet is too hard, the fastener may not seat correctly or develop sufficient retention.

If the sheet is too thin or inadequately supported, pressing may cause excessive deformation.

The correct fastener should therefore be selected from the complete sheet specification, not simply from the thread diameter.

Flush-Head Studs for Electrical Enclosures

Flush-head self-clinching studs are designed to sit flush with the designated panel surface when correctly installed.

This can be useful where a protruding head would interfere with another sheet metal component or the cabinet's internal layout.

JUXIN FASTENERS offers Flush-Head Studs JX-FH for compatible sheet metal applications.

For projects requiring a stainless steel fastener configuration, JUXIN also offers Flush-Head Studs JX-FHS.

The selected stud must match the substrate hardness, sheet thickness, hole dimensions, and installation requirements.

A flush-head design does not automatically establish electrical bonding or enclosure sealing performance.

Concealed-Head Studs for Cabinet Exterior Surfaces

Some electrical enclosures require an uninterrupted exterior surface for appearance, cleaning, or environmental protection.

A concealed-head self-clinching stud may be considered where the panel can accommodate a suitable blind recess.

JUXIN FASTENERS offers Concealed-Head Self-Clinching Studs.

The panel must provide sufficient thickness for the required installation geometry.

A concealed-head stud is not directly interchangeable with a conventional through-hole clinching stud.

The complete design must be reviewed for retention, panel integrity, and manufacturing feasibility.

Powder Coating and Surface Treatment in Cabinet Manufacturing

Powder coating is commonly used to protect and finish fabricated electrical cabinets.

The timing of self-clinching stud installation can influence both retention and corrosion performance.

Installing Studs Before Powder Coating

Installing self-clinching studs before powder coating may allow the pressing operation to be completed on the bare metal panel.

This can reduce the risk of damaging a finished coating during installation.

However, the process must consider:

• Thread masking.

• Coating buildup.

• Grounding contact surfaces.

• Oven temperature exposure.

• Surface preparation.

• Corrosion protection at the installation interface.

Coating thickness may affect mating hardware installation or electrical contact.

Installing Studs After Powder Coating

Installing studs after coating may damage the finish around the installation hole.

This can create local corrosion concerns.

The process should be evaluated before production.

Coating and Thread Fit

Coating buildup on external threads may interfere with mating nuts.

Thread protection or controlled post-coating processing may be necessary.

The final threaded connection must meet the approved assembly requirements.

Electrical Bonding and Protective Grounding

Protective bonding is a critical consideration in many electrical cabinet designs.

A metallic self-clinching stud may be mechanically suitable for attaching a grounding-related component, but the connection must not automatically be treated as a validated protective bonding point.

Mechanical Retention vs. Electrical Continuity

Mechanical retention and electrical continuity are different performance characteristics.

A stud may be securely retained in the panel while coatings or oxidation prevent reliable electrical contact.

Powder-Coated Panels

Powder coating is generally electrically insulating.

If a grounding connection relies on metal-to-metal contact, the approved design must establish the necessary conductive interface.

This may require specific surface preparation, bonding hardware, or another engineered connection.

Protective Bonding Verification

Where the fastener forms part of a protective bonding arrangement, the complete connection must be evaluated according to the applicable equipment requirements.

The evaluation may include electrical continuity, mechanical integrity, corrosion exposure, and service conditions.

Do Not Assume a Standard Clinching Stud Is a Grounding Stud

A conventional self-clinching stud should not be represented as a dedicated grounding component unless its design and intended use have been appropriately specified and validated.

Ingress Protection and Electrical Enclosure Sealing

Electrical enclosures may require protection against dust and water.

IEC 60529 defines ingress protection classifications for enclosures.

However, a self-clinching stud does not automatically provide an IP-rated seal.

Through-Hole Installation

Conventional self-clinching studs are installed into prepared holes.

Where the installation penetrates an enclosure boundary, the fastener location may create a potential leakage path.

Sealing-Critical Locations

Engineers should consider:

• Hole geometry.

• Fastener interface.

• Gaskets or sealants.

• Surface coatings.

• Water exposure.

• Pressure differences.

• Manufacturing tolerances.

• Maintenance conditions.

Where an enclosure has a specified IP rating, the complete enclosure must be validated.

Blind or Concealed Fastening Alternatives

A concealed-head stud or another fastening method may be considered where an uninterrupted exterior surface is important.

The suitability depends on panel thickness, retention requirements, and the complete enclosure design.

Self-Clinching Stud Installation-Hole Design

Reliable self-clinching performance depends on correct hole preparation.

Hole Diameter and Tolerance

The hole must match the selected fastener's approved specification.

An oversized hole may reduce retention.

An undersized hole may increase installation force or cause panel damage.

Hole Edge Condition

Punching or drilling may create burrs and local deformation.

These conditions can affect fastener seating and retention.

Unapproved countersinking or excessive chamfering may remove material needed for clinching.

Minimum Sheet Thickness

The required sheet thickness depends on the fastener geometry and substrate.

There is no universal minimum thickness for all self-clinching studs.

Edge Distance

Installing a stud too close to a panel edge, bend, or adjacent hole may cause distortion.

The minimum edge distance should follow the selected fastener's technical requirements.

Stud Position and Perpendicularity

Cabinet mounting brackets may use several studs simultaneously.

Position tolerance and perpendicularity can influence assembly fit.

The installation fixture should control these dimensions according to the approved drawing.

Installation Access

Conventional self-clinching installation generally requires controlled pressing force and suitable panel support.

The manufacturing sequence should account for access before the cabinet is fully assembled.

Mechanical Performance in Electrical Cabinet Assemblies

Electrical cabinets may be subjected to vibration, handling loads, transportation, and repeated service operations.

The fastener must be evaluated according to its actual mechanical function.

Pushout Resistance

Pushout resistance measures the installed stud's resistance to axial displacement under a defined test condition.

It depends on fastener geometry, substrate, thickness, hole preparation, and installation quality.

Torque-Out Resistance

Torque-out resistance measures resistance to rotation within the sheet.

It is important during mating nut installation and removal.

Tensile and Shear Loading

A mounted component may apply tensile, shear, or combined loads.

The complete joint must be evaluated, including the stud, mating nut, mounting bracket, and surrounding sheet.

Vibration and Loosening

A self-clinching stud remains mechanically retained in the panel when properly installed.

However, the mating nut may still loosen under vibration.

Where necessary, the joint should incorporate an appropriate locking method.

Repeated Maintenance

Cabinet equipment may be removed and reinstalled during maintenance.

The stud should remain retained under the intended service conditions.

Manufacturing and Assembly Efficiency

Self-clinching studs may support efficient electrical cabinet production when integrated into the sheet metal fabrication process.

Controlled Press Installation

The installation process typically includes:

• Hole preparation.

• Stud positioning.

• Panel support.

• Controlled pressing.

• Inspection.

• Downstream assembly.

Automatic Feeding

Suitable stud designs may be installed using automated feeding and pressing equipment.

The actual feasibility depends on stud geometry and equipment compatibility.

Force-Displacement Monitoring

Some pressing equipment can monitor force and displacement.

This may help identify abnormal installation conditions.

However, process monitoring alone does not prove that every installed stud meets its required mechanical performance.

Fixture Design

Proper fixtures help control stud location and panel deformation.

Production Sequence

Fasteners may need to be installed before bending, coating, or cabinet assembly.

The sequence should be established according to tooling access, finish requirements, and assembly geometry.

Cycle Time and Total Cost

Production managers should evaluate the complete installation process, including:

• Fastener unit cost.

• Hole preparation.

• Press tooling.

• Installation labor.

• Automation.

• Inspection.

• Scrap and rework.

• Coating operations.

• Downstream assembly time.

A lower fastener unit price does not necessarily produce a lower total manufacturing cost.

Common Electrical Cabinet Clinching Stud Failure Risks

Stud Rotation

The stud rotates during mating nut tightening.

Potential causes include incorrect hole size, unsuitable sheet hardness, incomplete installation, or inadequate retention geometry.

Stud Pushout

The stud is displaced from the sheet under axial loading.

Potential causes include insufficient sheet thickness, poor material flow, or excessive loading.

Panel Distortion

Excessive pressing force or inadequate support deforms the panel.

Thread Damage

Handling or pressing equipment damages the external thread.

Misalignment

Incorrect positioning causes interference during bracket assembly.

Coating Damage

Pressing after coating damages the protective finish.

Corrosion

Moisture, coating damage, or dissimilar-metal contact contributes to corrosion.

Grounding Failure

The mechanical connection is secure, but electrical continuity is inadequate because of coating or contact conditions.

Ingress Protection Failure

A fastening penetration creates an unsealed leakage path.

Mating Nut Loosening

The mating nut loosens under vibration even though the stud remains retained.

These risks should be addressed through engineering review, controlled installation, inspection, and application-specific validation.

Self-Clinching Studs vs. Other Electrical Cabinet Fasteners

Different fastening methods may be suitable for different enclosure designs.

A self-clinching stud may be appropriate for a factory-fabricated cabinet mounting plate where controlled pressing access is available.

A self-clinching nut may be preferable for a removable panel secured using screws.

A rivet nut may be useful where only one-sided installation access is available.

A threaded standoff may be more appropriate where a defined spacing distance is required for electronic components.

Related JUXIN Electrical Enclosure Fastening Solutions

JUXIN FASTENERS supplies multiple fastening product types for industrial electrical enclosures.

For applications requiring permanent internal threads, see Self-Clinching Fasteners for Electrical Enclosures.

For PCB mounting and controlled component spacing, see Self-Clinching Standoffs for PCB Mounting and Electronic Enclosures.

For broader electrical equipment applications, see Fasteners for Industrial Electrification Equipment.

These related solutions help engineering and purchasing teams compare fastening methods according to the actual enclosure design and production requirements.

Metric and Inch Thread Specifications

Electrical cabinet fasteners may use ISO metric or Unified inch-series threads.

Relevant standards include ISO 261 and ISO 965 for metric threads and ASME B1.1 for Unified inch threads.

The applicable thread specification must be defined on the engineering drawing.

Metric, UNC, UNF, BSW, and BSF thread systems are different and are not directly interchangeable.

For example, M6 × 1.0 and 1/4-20 UNC are not equivalent thread specifications.

The mating nut must match the selected stud's thread form, pitch, and tolerance.

Electrical Cabinet Fastener Quality Control

OEM electrical cabinet production requires consistent dimensions and installation quality.

Incoming Fastener Inspection

Typical checks may include:

• Thread dimensions.

• Stud length.

• Head geometry.

• Retention features.

• Material identification.

• Surface finish.

• Lot identification.

Installed Fastener Inspection

Checks may include:

• Correct seating.

• Stud alignment.

• Installation position.

• Thread condition.

• Panel deformation.

• Required mechanical retention.

Mechanical Testing

Depending on the project, testing may include pushout, torque-out, tensile, or other specified evaluations.

The test method and acceptance criteria should be defined by the approved engineering specification.

There is no universal pushout or torque-out requirement applicable to every electrical cabinet self-clinching stud.

Surface Finish Inspection

Where corrosion protection or electrical bonding is important, the finish and contact surfaces should be evaluated according to the application requirements.

Traceability

Customers may require lot identification, inspection records, material documentation, and shipment traceability.

The required scope should be agreed before production.

OEM Procurement and Supplier Development

Electrical cabinet manufacturers and automation equipment suppliers need fasteners that are compatible with their production processes and long-term purchasing requirements.

Drawing-Based RFQ Review

A complete RFQ should include:

• Fastener drawing.

• Thread size and standard.

• Stud length.

• Head and retention geometry.

• Sheet material and thickness.

• Substrate hardness.

• Installation-hole dimensions.

• Mechanical performance requirements.

• Surface finish.

• Environmental conditions.

• Quality documentation.

• Estimated purchasing quantity.

• Delivery schedule.

Alternative Supplier Qualification

A replacement stud should not be approved solely because its nominal thread and length match the original.

Differences in retention geometry, material hardness, head dimensions, and installation requirements may affect performance.

The alternative should be validated using representative production panels and the approved installation process.

MOQ and Lead Time

MOQ and lead time depend on the selected product configuration, material, finish, tooling requirements, and purchasing quantity.

For custom electrical cabinet studs, procurement teams should communicate prototype quantities, initial production volumes, and annual forecasts.

Long-Term Supply Planning

Recurring cabinet production programs may require consistent dimensions, stable specifications, lot identification, and reliable delivery arrangements.

Supplier evaluation should consider quality consistency, packaging, traceability, and supply continuity.

Total Installed Cost

The total cost of an electrical cabinet fastening solution may include:

• Fastener purchase price.

• Hole preparation.

• Press tooling.

• Installation labor.

• Automation.

• Inspection.

• Scrap and rework.

• Surface treatment.

• Packaging and logistics.

• Downstream assembly operations.

The lowest fastener unit price does not necessarily produce the lowest total manufacturing cost.

Engineering and Procurement Checklist for Electrical Cabinet Clinching Studs

This checklist helps electrical enclosure engineering, manufacturing, and purchasing teams establish consistent requirements before approving a fastening solution.

JUXIN FASTENERS – Electrical Cabinet Self-Clinching Stud Supply

JUXIN FASTENERS supplies self-clinching studs and related sheet metal fastening products for electrical cabinets, industrial automation equipment, control panels, and OEM enclosure manufacturing.

Relevant product options include:

• Carbon steel self-clinching studs.

• Stainless steel self-clinching studs.

• Flush-head self-clinching studs.

• Concealed-head self-clinching studs.

• Self-clinching nuts.

• Floating self-clinching nuts.

• Threaded self-clinching standoffs.

• Metric and Unified thread configurations.

• Customer-defined dimensions and retention geometries.

• Related rivet nuts and sheet metal threaded fasteners.

JUXIN can review customer drawings, substrate specifications, installation requirements, and purchasing quantities to evaluate suitable product configurations.

Any required electrical equipment certification, protective bonding performance, ingress protection, environmental testing, or customer approval must be confirmed separately for the complete application.

Request an Electrical Cabinet Self-Clinching Stud Technical Review or OEM RFQ

Are you sourcing self-clinching studs, clinch nuts, or custom press-in fasteners for electrical cabinets, industrial control panels, switchgear auxiliary housings, automation equipment, or sheet metal enclosures?

JUXIN FASTENERS welcomes inquiries from electrical cabinet manufacturers, industrial automation suppliers, sheet metal fabricators, mechanical engineers, production managers, purchasing departments, and international supplier development teams.

For an accurate technical review and quotation, please provide:

• Available 2D drawings or 3D CAD models.

• Required fastener type and thread specification.

• Stud length and retention geometry.

• Sheet material, thickness and hardness.

• Installation-hole diameter and tolerance.

• Required pushout and torque-out performance.

• Mechanical loading and vibration requirements.

• Electrical clearance or grounding requirements.

• Powder coating and surface finish specifications.

• Corrosion and sealing requirements.

• Customer-specific quality and documentation requirements.

• Estimated order quantity and annual demand.

• Target delivery schedule.

If you are evaluating an alternative to an existing electrical cabinet fastener, please include the original drawing and installation specification.

Our objective is to help customers select technically appropriate fastening products that support reliable electrical cabinet assembly, efficient manufacturing, and consistent OEM procurement.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

Send your technical drawings and RFQ to discuss your electrical cabinet self-clinching stud requirements.
